GT 3235 (14A-692-710) - Cub Cadet Garden Tractor Hydrostatic Transmission Parts Diagram

Garden Tractor

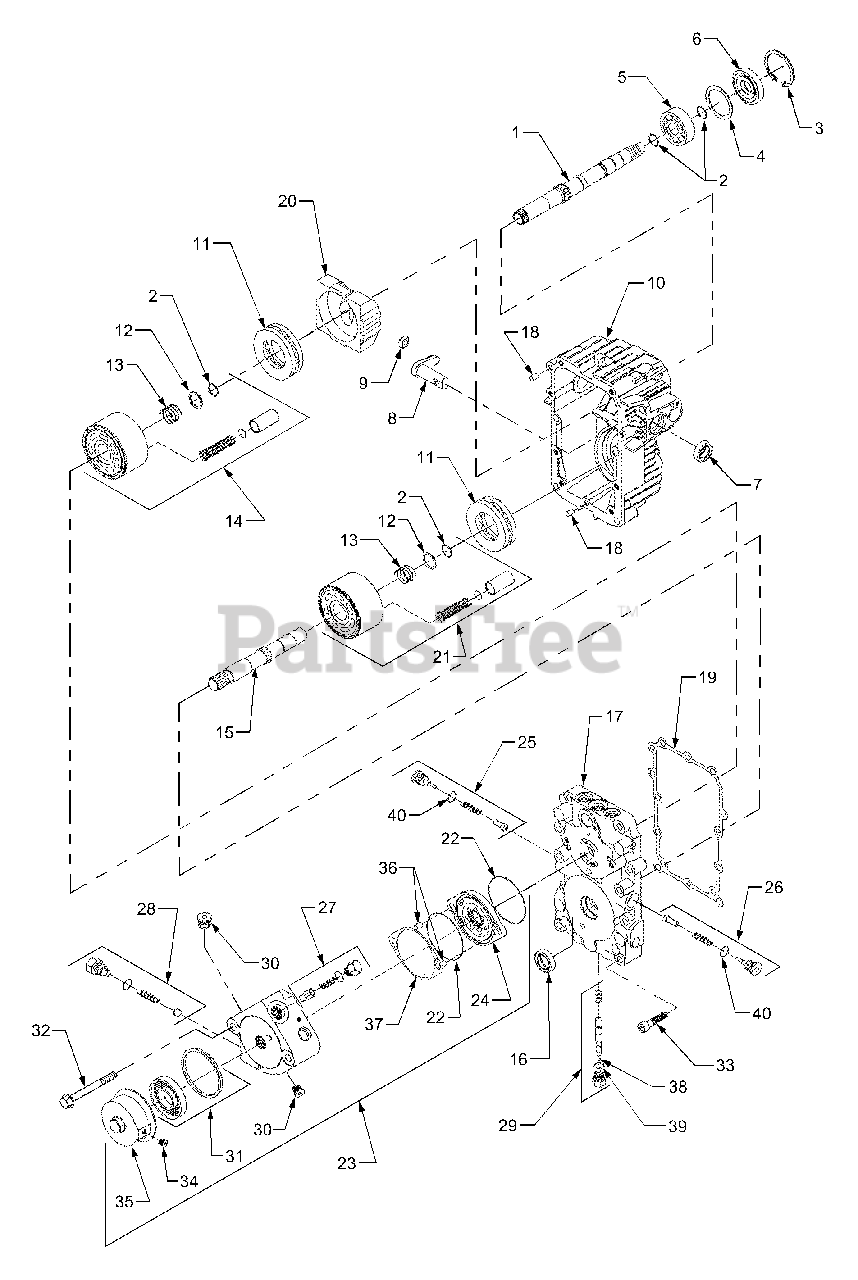

Hydrostatic Transmission Parts Diagram

  • Title

1

Cub Cadet HG-51206

Shaft, Pump

$221.99

$

Usually ships in 3-6 days

0

2

Cub Cadet HG-2000022

Ring, Wire Retaining

$4.49

$

Usually ships in 3-6 days

0

3

Cub Cadet HG-2000038

Ring, Retaining

$

$

Not available

4

Cub Cadet HG-2000023

Spacer

$8.99

$

Usually ships in 3-6 days

0

5

Cub Cadet HG-2000032

Bearing, Ball

$

$

Not available

6

Cub Cadet HG-2000036

Seal, Lip
(Superseded to HG-51092)

$17.99

$

Usually ships in 3-6 days

0

7

Cub Cadet HG-2000037

Seal, Lip

$

$

Not available

8

Cub Cadet HG-2000014

Arm, Trunnion

$

$

Not available

9

Cub Cadet HG-2000015

Guide, Slot

$21.99

$

Usually ships in 3-6 days

0

10

Cub Cadet HG-2510097

Housing Assembly

$

$

Not available

11

Cub Cadet HG-50552

Bearing Assembly, Thrust Ball
(Superseded to HG-53341)

$37.99

$

Usually ships in 3-6 days

0

12

Cub Cadet HG-2000024

Washer, Block Thrust

$

$

Not available

13

Cub Cadet HG-2000025

Spring, Block

$4.49

$

Usually ships in 3-6 days

0

14

Cub Cadet HG-2510014

Kit, Pump Cylinder Block

$

$

Not available

15

Cub Cadet HG-2000007

Shaft, Motor

$180.99

$

In Stock, only 1 left!

0

16

Cub Cadet N/A

Not Used In This Application

$

$

Currently unavailable

17

Cub Cadet HG-2510098

Kit, Center Section

$654.99

$

Usually ships in 3-6 days

0

18

Cub Cadet HG-50641

Pin

$6.99

$

Usually ships in 3-6 days

0

19

Cub Cadet HG-2000061

Gasket, Center Section

$

$

Not available

20

Cub Cadet HG-50203

Swashplate, Variable

$

$

Not available

21

Cub Cadet HG-2510013

Kit, Motor Cylinder Block

$

$

Not available

22

Cub Cadet HG-9004100-1430

O-Ring

$

$

Not available

23

Cub Cadet HG-2510083

Kit, Auxiliary Charge Pump

$554.99

$

Usually ships in 3-6 days

0

24

Cub Cadet HG-50761

Gerotor & Housing Assembly
(Superseded to HG-50761P)

$148.99

$

In Stock, only 1 left!

0

25

Cub Cadet HG-2510050

Kit, Check Valve

$

$

Not available

26

Cub Cadet HG-2510034

Kit, Check Valve w/ .044 Orifice

$49.99

$

Usually ships in 3-6 days

0

27

Cub Cadet HG-2510081

Kit, Check Relief

$40.99

$

Usually ships in 3-6 days

0

28

Cub Cadet HG-2510082

Kit, Auxiliary Relief Valve

$

$

Not available

29

Cub Cadet HG-2510012

Kit, Bypass Valve

$114.99

$

Usually ships in 3-6 days

0

30

Cub Cadet HG-9005110-4400

Plug, 7/16-20

$

$

Not available

31

Cub Cadet HG-2510090

Kit, Auxilary Filter

$

$

Not available

32

Cub Cadet HG-50969

Screw, Flange Head Cap, M8 x 60

$5.99

$

Usually ships in 3-6 days

0

33

Cub Cadet HG-9007314-0808

Screw, Socket Head Cap

$5.99

$

Usually ships in 3-6 days

0

34

Cub Cadet HG-9005110-3100

Plug, 5/16-24

$

$

Not available

35

Cub Cadet HG-50994

Cover, Filter
(Superseded to HG-53070)

$

$

Not available

36

Cub Cadet HG-50408

Pin

$

$

Not available

37

Cub Cadet HG-2000044

Shim, Charge Pump

$

$

Not available

38

Cub Cadet N/A

O-Ring-Order Seal Kit HG-2510010

$

$

Currently unavailable

39

Cub Cadet N/A

O-Ring-Order Seal Kit HG-2510010

$

$

Currently unavailable

40

Cub Cadet N/A

O-Ring-Order Seal Kit HG-2510010

$

$

Currently unavailable

Cub Cadet HG-2510010

Kit, Overhaul Seal

Note: (Includes Ref. Nos. 2, 3, 4, 6, 7, 19, 22, 38, 39 & 40)

$

$

Not available
