GT 3235 (14A-692-710) - Cub Cadet Garden Tractor Blower Housing And Baffles Parts Diagram

Garden Tractor

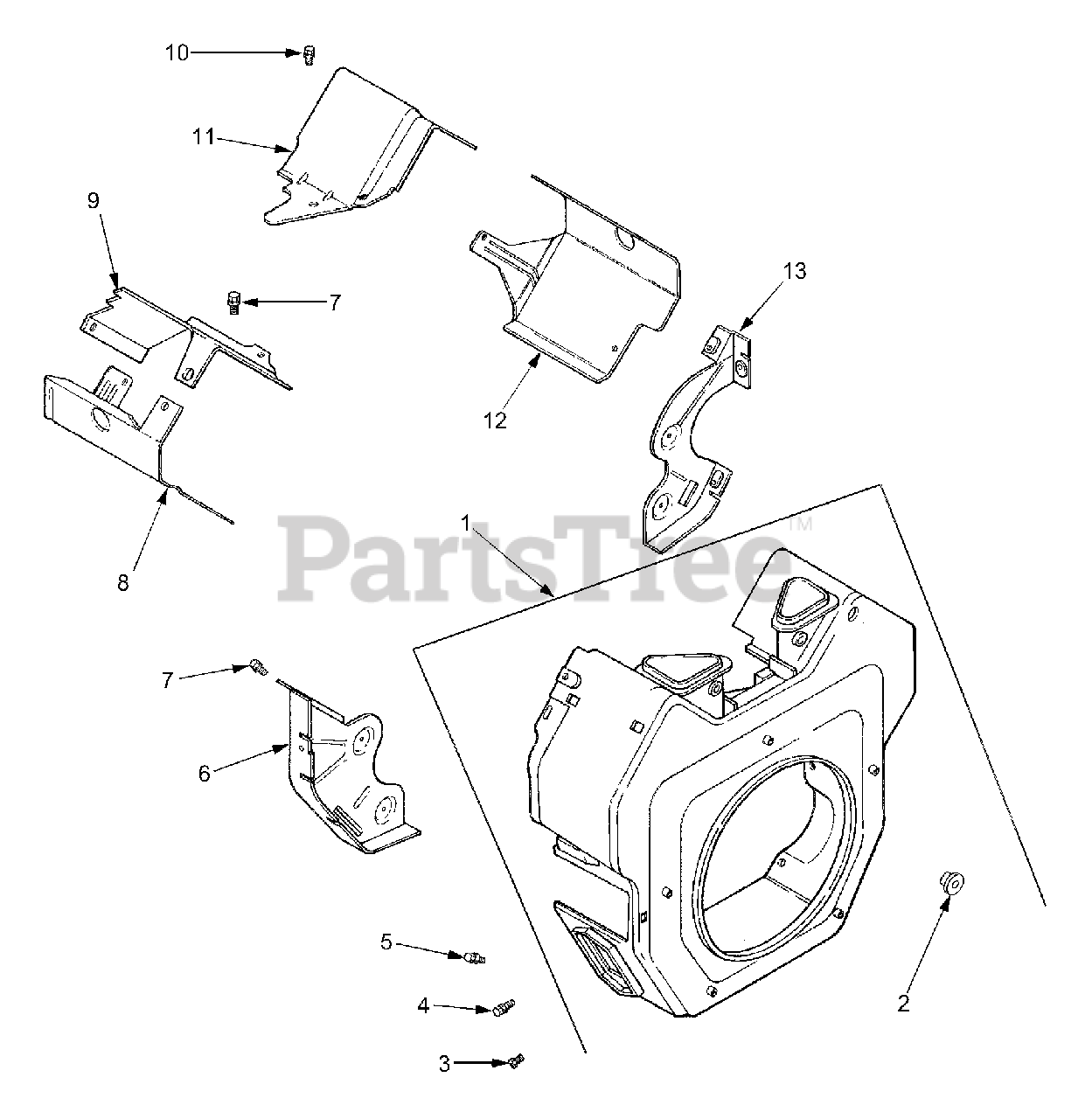

Blower Housing And Baffles Parts Diagram

  • Title

1

Cub Cadet KH-24-027-163-S

Housing, Blower

Note: (Includes 2-4)

$

$

Not available

2

Cub Cadet KH-25-313-06-S

Grommet

$

$

Not available

3

Cub Cadet KH-M-0551016

Screw, Hex Flange M5 x 0.8 x 16

$

$

Not available

4

Cub Cadet KH-M-0545016

Screw, Hex Flange M5 x 0.8 x 16
(Superseded to KH-25-086-426-S)

$2.49

$

In Stock, Qty 15

0

5

Cub Cadet KH-M-0545020

Screw, Hex Flange M5 x 0.8 x 20

$

$

Not available

6

Cub Cadet KH-24-146-17-S

Plate, Backing #2 Side

$25.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-M-0645016

Screw, Hex Flange M6 x 1.0 x 16
(Superseded to KH-M-645016-S)

$3.99

$

In Stock, Qty 13

0

8

Cub Cadet KH-24-063-20

Baffle, Cyl. Barrel #2 Side
(Superseded to KH-24-063-88-S)

$28.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-24-063-17

Baffle, Valley #2 Side
(Superseded to KH-24-063-94-S)

$9.49

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-M-0545010

Screw, Hex Flange M5 x 0.8 x 10

$

$

Not available

11

Cub Cadet KH-24-063-59-S

Baffle, Valley #1 Side
(Superseded to KH-24-063-93-S)

$

$

Not available

12

Cub Cadet KH-24-063-58-S

Baffle, Cyl. Barrel #1 Side
(Superseded to KH-24-063-85-S)

$17.99

$

In Stock, only 1 left!

0

13

Cub Cadet KH-24-146-20

Plate, Backing #1 Side

$

$

Not available
