GT 3200 (14B-692-710) - Cub Cadet Garden Tractor Auxiliary Hydraulics Parts Diagram

Garden Tractor

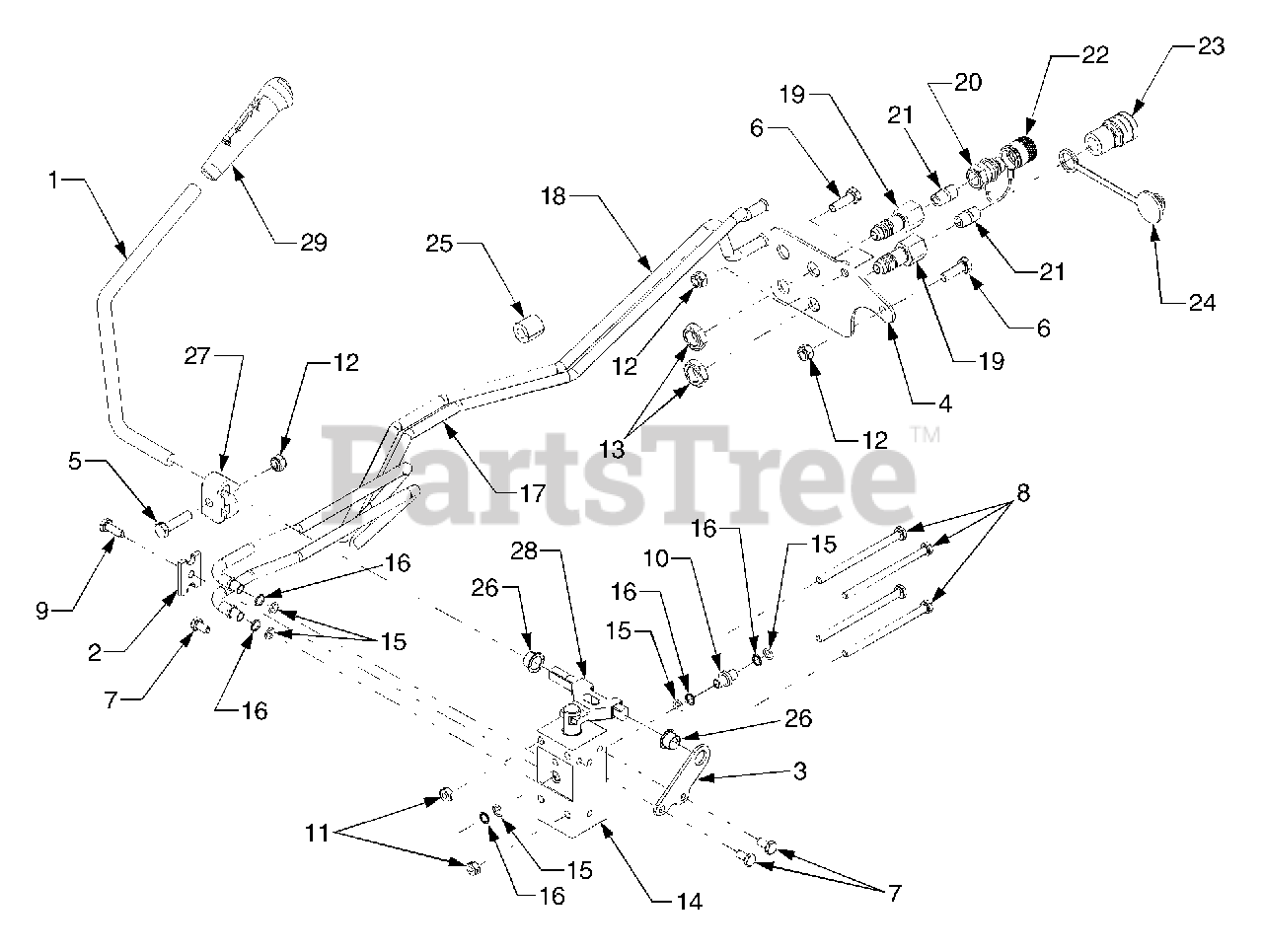

Auxiliary Hydraulics Parts Diagram

  • Title
1

Cub Cadet 631-3017A

Handle Ass'y.

Note: (Includes Ref. 29)

$

$

Currently unavailable

2

Cub Cadet 703-1803

Clamp, Double Valve
(Superseded to 903-1803)

$

$

Not available

3

Cub Cadet 703-3154-0637

Bracket, Lift Valve

$33.99

$

In Stock, only 1 left!

0

4

Cub Cadet 703-3442-0637

Bulkhead, Fitting

$

$

Not available

5

Cub Cadet 710-0528

Screw, Hex Cap, 5/16-18 x 1.25 GR5

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-3025

Screw, Hex Cap, 5/16-18 x .625 GR5

$3.99

$

In Stock, Qty 8

0

7

Cub Cadet 710-3013

Screw, Hex Cap, 1/4-20 x .5 GR5

$4.99

$

In Stock, Qty 11

0

8

Cub Cadet 710-1058

Screw, Hex Cap, 1/4-20 x 4.0 GR2

$5.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-3015

Screw, Hex Cap, 1/4-20 x .75 GR5

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 711-3294

Fitting, Union

$36.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 712-0291

Nut, Hex Lock, 1/4-20 GRA

$4.49

$

In Stock, Qty 8

0

12

Cub Cadet 712-0429

Nut, Hex Nylon Insert Lock, 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 712-3035

Nut, Hex Jam, 9/16-18 GR5

$6.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 717-3452

Valve, Hydro
(Superseded to 717P3452)

$473.99

$

In Stock, only 1 left!

0

15

Cub Cadet 721-3021

O-Ring
(Superseded to 921-3021)

$3.99

$

In Stock, Qty 20+

0

16

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 727-3141

Tube, Hydraulic (Up)

$111.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 727-3142

Tube, Hydraulic (Down)

$117.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 727-3145

Fitting, Bulkhead

$

$

Not available

20

Cub Cadet 727-3023

Coulpling, Male

$51.99

$

In Stock, only 3 left!

0

21

Cub Cadet 727-3170

Fitting, Pipe Nipple

$

$

Not available

22

Cub Cadet 727-3024

Cap, Protective Coupling

$57.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 727-3014

Coupling, Female

$106.99

$

In Stock, only 1 left!

0

24

Cub Cadet 731-3022

Cap, Protective Coupling

$20.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 735-3007

Pad, Bumper
(Superseded to 935-3007)

$8.49

$

In Stock, only 3 left!

0

26

Cub Cadet 741-0491

Bearing, Nylon Flange

$5.49

$

In Stock, only 3 left!

0

27

Cub Cadet 748-3082

Clamp, Handle

$36.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 748-3081A

Link, Lift

$46.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 731-3259

Grip, Handle

$19.99

$

In Stock, only 2 left!

0
