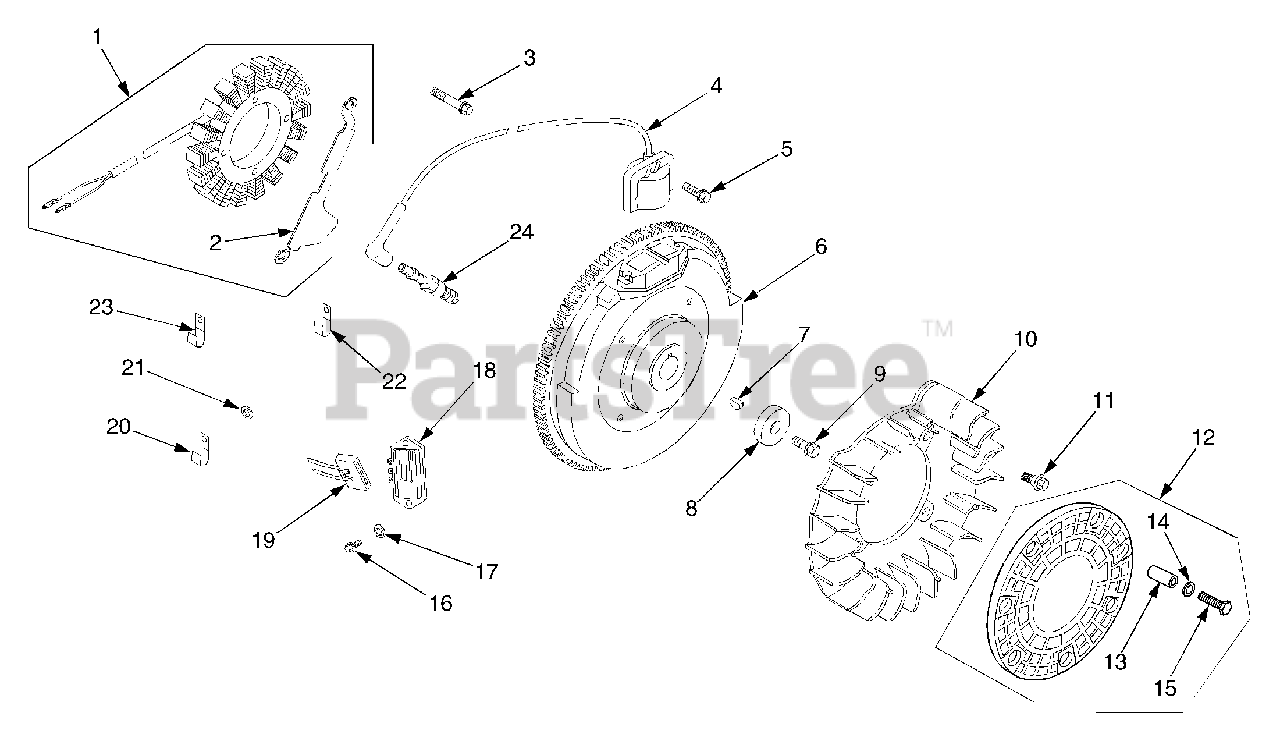

GT 3200 (14A-692-010) - Cub Cadet Garden Tractor Ignition & Electrical Parts Diagram

Garden Tractor

Ignition & Electrical Parts Diagram

  • Title
1

Cub Cadet KH-54-755-09

Stator Kit, 15 Amp
(Superseded to KH-237878)

$

$

Not available

2

Cub Cadet KH-24-126-139-S

Bracket, Stator Wire

$15.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-M-0548025

Screw, Stator Mtg. M5 x .8 x 25
(Superseded to KH-25-086-402-S)

$2.49

$

In Stock, only 2 left!

0

4

Cub Cadet KH-24-584-45-S

Module, Ignition
(Superseded to KH-24-584-201-S)

Note: (CDI FIXED)

$110.99

$

Usually ships in 3-6 days

0

5

Cub Cadet KH-M-545020-S

Screw, Module M5 x .8 x 20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 6

0

6

Cub Cadet KH-24-025-59-S

Flywheel Assembly

$

$

Not available

$

$

Not available

8

Cub Cadet KH-12-468-03

Washer, Flywheel Mtg. Screw

$

$

Not available

9

Cub Cadet KH-12-086-14

Screw, Flywhl Mtg, M10x1.5 x 46
(Superseded to KH-25-086-361-S)

$3.49

$

In Stock, Qty 12

0

10

Cub Cadet KH-24-157-11-S

Fan
(Superseded to KH-24-755-253-S)

$45.99

$

In Stock, Qty 8

0

11

Cub Cadet KH-25-086-47

Bolt, Shoulder

$

$

Not available

12

Cub Cadet KH-54-755-15

Screen, Grass

$

$

Not available

$

$

Not available

14

Cub Cadet KH-X-25-92

Washer, Plain

$

$

Not available

15

Cub Cadet KH-M-403025

Screw, Hex Hd. M4 x 0.7 x 25

$

$

Not available

16

Cub Cadet KH-24-086-18

Screw Phillips Hd., #11-16 x .875

$

$

Not available

17

Cub Cadet KH-X-25-92

Washer, Plain

$

$

Not available

18

Cub Cadet KH-41-403-09

Regulator - Rectifier
(Superseded to KH-25-403-37-S)

$

$

Not available

19

Cub Cadet KH-236602

Connector, Regulator-Rectifier
(Superseded to KH-25-155-41-S)

$7.99

$

In Stock, only 1 left!

0

20

Cub Cadet KH-235173

Clip, Cable

$

$

Not available

21

Cub Cadet KH-X-25-63

Washer, Plain 1/4"

$

$

Not available

22

$

$

Not available

23

Cub Cadet KH-47-154-01

Clip, Cable
(Superseded to KH-47-154-01-S)

$4.99

$

In Stock, Qty 5

0

24

Cub Cadet 759-3336

Spark Plug
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet KH-25-086-91-S

Screw, Set

Note: (not shown)

$3.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-176-08

Harness, Wire
(Superseded to KH-24-176-171-S)

Note: (not shown)

$117.99

$

In Stock, only 1 left!

0

Cub Cadet KH-25-454-03-S

Tie, Wire

Note: (not shown)

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-126-137-S

Bracket, Ground Strap
(Superseded to KH-24-518-12-S)

Note: (not shown)

$4.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-468-07-S

Washer

Note: (not shown)

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-086-117-S

Screw, Hex Sems

Note: (not shown)

$2.49

$

In Stock, only 4 left!

0
