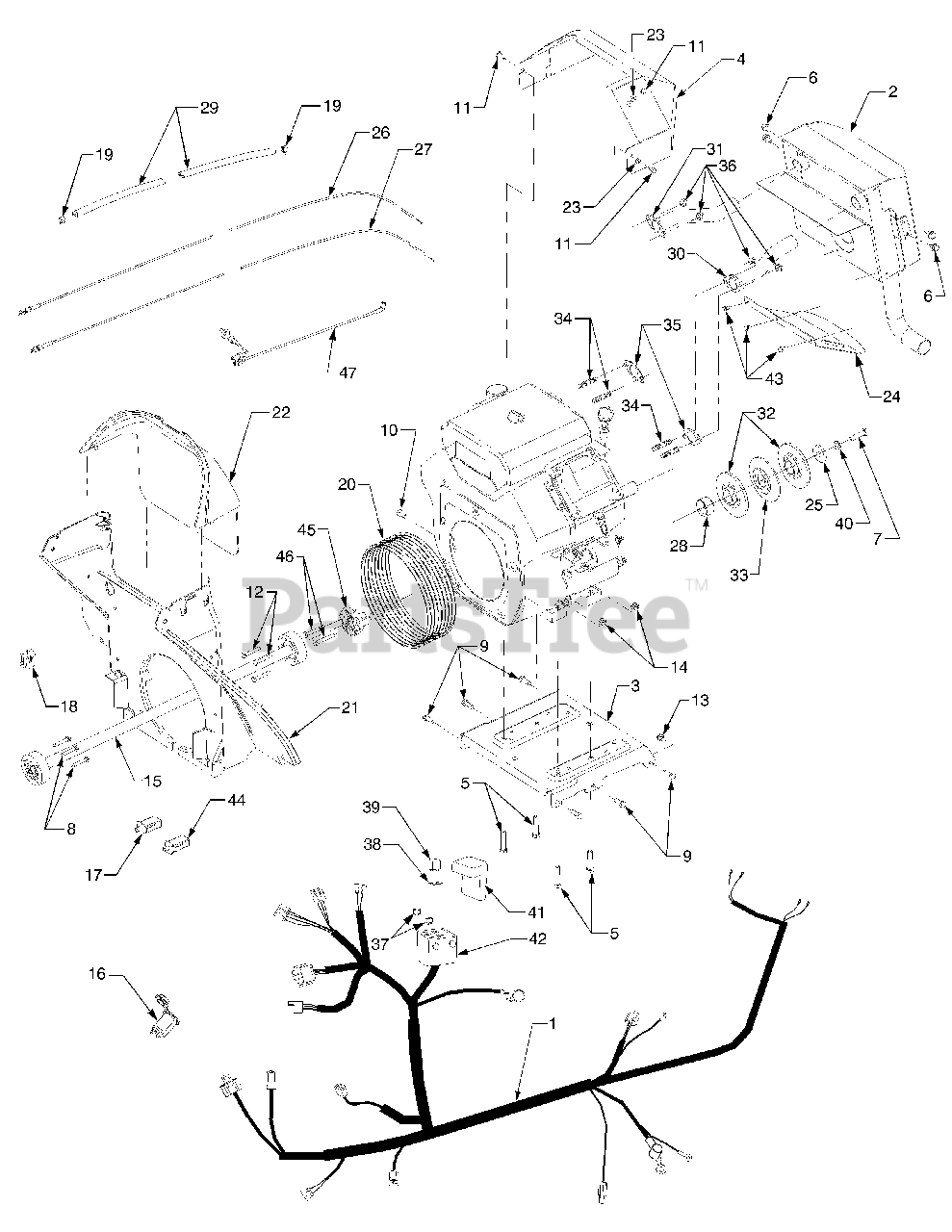

GT 3200 (14A-692-010) - Cub Cadet Garden Tractor Driveshaft And Engine Connections Parts Diagram

Garden Tractor

Driveshaft And Engine Connections Parts Diagram

  • Title

1

Cub Cadet 629-04107

Harness, Wire
(Superseded to 929-04107)

$

$

Not available

1

Cub Cadet 726-0154

Tie, Pushmount
(Superseded to 926-0154)

Note: Not shown

$6.49

$

Usually ships in 3-6 days

0

1

Cub Cadet 726-3055

Clip, Cable

Note: Not shown

$6.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 651-3003

Muffler Assembly

$

$

Not available

3

Cub Cadet 703-2909-0716

Plate, Engine Mounting

$

$

Not available

4

Cub Cadet 703-2999

Shield, Muffler Heat

$92.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0539

Screw, Hex Cap, 3/8-24 x 1.75 GR5

$4.99

$

In Stock, Qty 11

0

6

Cub Cadet 710-0607

Screw, Hex Wash. Hd. Tapp 5/16-18 x .5

$6.99

$

In Stock, Qty 12

0

7

Cub Cadet 710-0757

Screw, Hex Cap, 7/16-20 x 1.5 GR5

$9.99

$

In Stock, only 1 left!

0

8

Cub Cadet 710-1062

Screw, Hex Cap Lock 1/4-20 x 1.25 GR5

$6.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-3038

Screw, Hex Cap, 5/16-18 x .875 GR5

$4.99

$

In Stock, only 3 left!

0

10

Cub Cadet 710-0237

Screw, Hex Cap, 5/16 - 24 x .625 GR5

$4.49

$

In Stock, only 1 left!

0

11

Cub Cadet 710-3209

Screw, Hex Cap, M6 - 1.0 x 10MM

$8.49

$

In Stock, Qty 13

0

12

Cub Cadet 710-3288

Screw, Hex Cap, Lock 1/4-20 x 1.62 GR5

$6.99

$

In Stock, Qty 12

0

13

Cub Cadet 712-0429

Nut, Hex Insert Lock, 5/16-18

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 712-3054

Nut, Hex Lock, 3/8-24

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 718-3093

Shaft, Drive, 27.125 Long
(Superseded to 918-3093)

$337.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 759-3764

Drive Barrels Kit

Note: Not shown (2 used per tractor)

$27.99

$

In Stock, Qty 20+

0

16

Cub Cadet 725-2003

Receptacle, 12V Power

$42.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 725-3164A

Switch, Plunger (Reverse)
(Superseded to 925-3164A)

$40.99

$

In Stock, only 2 left!

0

18

Cub Cadet 725-04040

Switch, Snap Mount (Seat)
(Superseded to 925-04040)

$36.99

$

In Stock, only 2 left!

0

19

Cub Cadet 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 18

0

20

Cub Cadet 731-3166

Boot, Intake

$

$

Not available

21

Cub Cadet 731-3221A

Baffle, Lower Air

$98.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 731-3231A

Baffle, Upper Air

$

$

Not available

23

Cub Cadet 736-0142

Washer, Flat, .281 x .50 x .06

$4.99

$

In Stock, only 4 left!

0

24

Cub Cadet 703-3398

Shield, Lower Exhaust

$65.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 736-3017

Washer, Flat, .417 x 1.5 x .225

$10.99

$

In Stock, only 4 left!

0

26

Cub Cadet 746-3075

Cable, Throttle Control

$23.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 746-3077

Cable, Choke Control

$25.99

$

In Stock, Qty 7

0

28

Cub Cadet 750-3357

Spacer, Crankshaft

$13.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 751-10349

Hose, Fuel Line

Note: 54 inches

$9.49

$

Usually ships in 3-6 days

0

30

Cub Cadet 751-3154

Pipe, Exhaust RH

$

$

Not available

31

Cub Cadet 751-3155

Pipe, Exhaust LH

$85.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 756-3091A

Pulley Half

$54.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 756-3099

Pulley, Center

$79.99

$

In Stock, only 1 left!

0

34

Cub Cadet KH-25-072-04

Stud, M8 - 1.25 x 33MM
(Superseded to KH-25-072-24-S)

$3.99

$

In Stock, only 3 left!

0

35

Cub Cadet KH-24-041-49-S

Gasket, Exhaust

$

$

Not available

36

Cub Cadet 712-3086

Nut, Hex, M8 x 1.25

$4.49

$

In Stock, only 2 left!

0

37

Cub Cadet 725-3243

Fuse, 25 Amp

$5.49

$

Usually ships in 3-6 days

0

37

Cub Cadet 725-04008

Fuse, 5 Amp

$

$

Not available

38

Cub Cadet 721-0342

Gasket, Silicone
(Superseded to 921-0342)

$7.99

$

In Stock, only 3 left!

0

39

Cub Cadet 725-1648

Relay
(Superseded to 925-1648A)

$47.99

$

In Stock, Qty 8

0

40

Cub Cadet 736-0171

Washer, Lock, 7/16

$4.49

$

In Stock, Qty 5

0

41

Cub Cadet 759-3868

Cover, Fuse Box
(Superseded to 959-3869)

$

$

Not available

42

Cub Cadet 759-3869

Box, Fuse
(Superseded to 959-3869)

$

$

Not available

43

Cub Cadet 710-3007

Screw, Hex Wash. Hd. Tapp, #12-24 x .38

$4.49

$

In Stock, Qty 20+

0

44

Cub Cadet 725-3191A

Switch, Plunger (Brake)
(Superseded to 925-3191A)

$54.99

$

In Stock, only 4 left!

0

45

Cub Cadet 719-3096

Adapter, Drive Shaft
(Superseded to KH-24-029-12-S)

$32.99

$

In Stock, only 1 left!

0

46

Cub Cadet KH-24-086-16

Screw, Hex Flange, M10 x 1.5 x 90
(Superseded to KH-24-086-17-S)

$2.49

$

In Stock, Qty 5

0

47

Cub Cadet 751-3199

Hose, Vacuum

$79.99

$

Usually ships in 3-6 days

0
