GT 32 L - Jonsered String Trimmer (2002-08) ENGINE Parts Diagram

String Trimmer

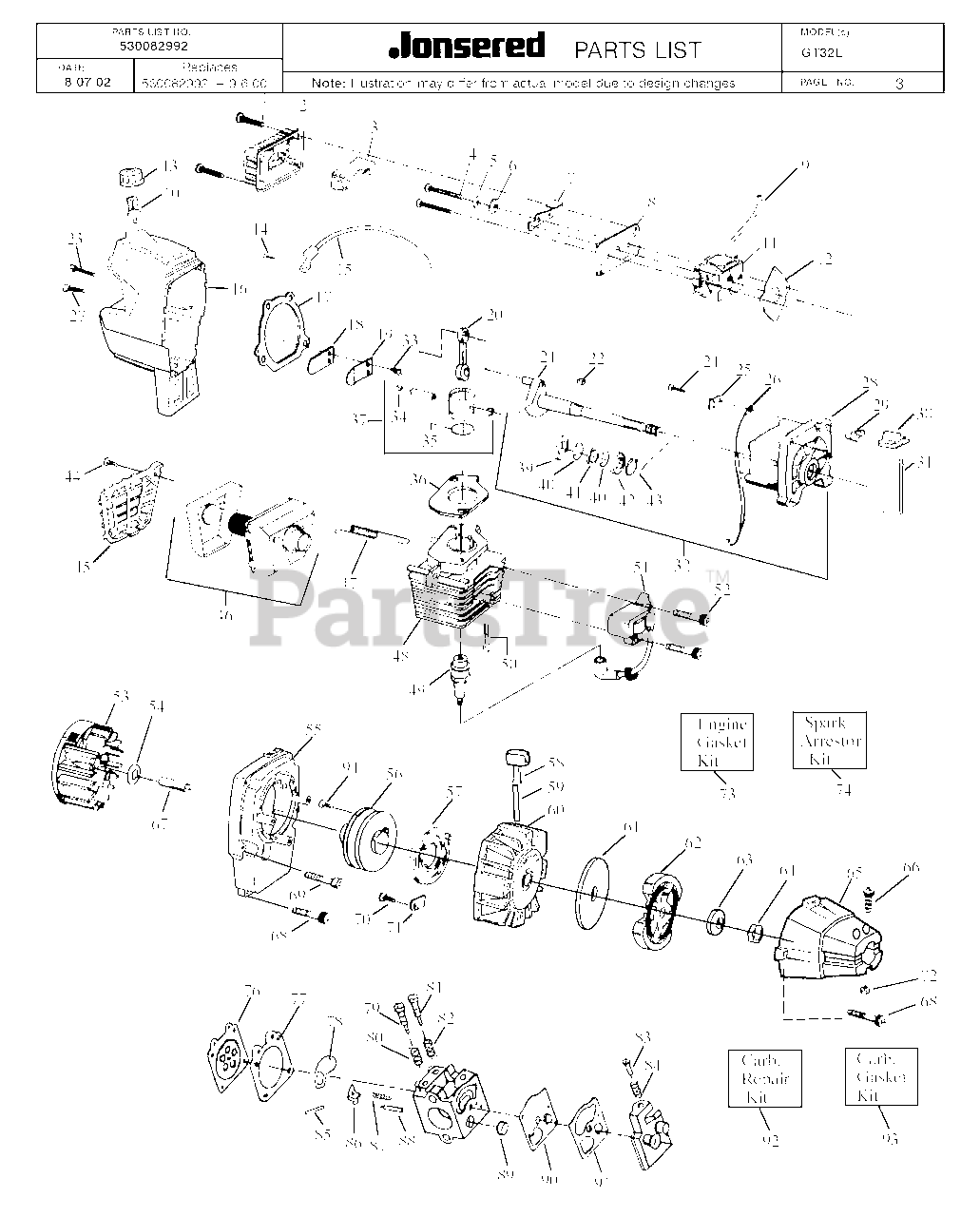

ENGINE Parts Diagram

  • Title

1

Jonsered 530015773

SCREW-10-24 X 13/16

$3.99

$

In Stock, only 2 left!

0

2

Jonsered 530027529

No Description Available

$

$

Not available

3

Jonsered 530027530

AIR FILTER

$6.49

$

In Stock, Qty 11

0

4

Jonsered 530015849

SCREW

$6.49

$

In Stock, only 1 left!

0

5

Jonsered 530015852

CHOKE SPACER

$3.49

$

In Stock, only 1 left!

0

6

Jonsered 530015254

WASHER

$3.99

$

In Stock, only 2 left!

0

7

Jonsered 530027526

SHUTTER-CHOKE

$1.99

$

Usually ships in 3-10 days

0

8

Jonsered 530027527

PLATE-AIR FILTER MTG.

$2.99

$

Usually ships in 3-10 days

0

9

Jonsered 530069247

KIT-LINE

$7.99

$

In Stock, Qty 20+

0

10

Jonsered 530095646

FUEL PICK-UP ASSY

Note: NEW PART NUMBER FOR THIS IPL

$6.99

$

In Stock, Qty 19

0

11

Jonsered 530069641

CARBURETOR (WA-298A)
(Superseded to 545081825)

$66.99

$

Usually ships in 3-10 days

0

12

Jonsered 530019156

GASKET-CARBURETOR

$8.99

$

In Stock, only 2 left!

0

13

Jonsered 530014347

CAP ASSY W/ RETAINER

$9.49

$

In Stock, Qty 15

0

14

Jonsered 530015775

SCREW 8-16 X 9/16 (PLAS

$6.49

$

In Stock, only 2 left!

0

15

Jonsered 530037497

THROTTLE CABLE.

Note: NEW PART NUMBER FOR THIS IPL

$

$

Not available

16

Jonsered 530029787

TANK

$

$

Not available

17

Jonsered 530019154

GASKET-C'CASE/SHROUD

$3.99

$

In Stock, only 1 left!

0

18

Jonsered 530027593

VALVE-REED

$6.49

$

In Stock, only 2 left!

0

19

Jonsered 530027594

REED STOP

$5.99

$

Usually ships in 3-10 days

0

20

Jonsered 530010960

ASS'Y-CONNECTING ROD

$18.99

$

Usually ships in 3-10 days

0

21

Jonsered 530010934

ASSY-CRANKSHAFT

$34.99

$

Usually ships in 3-10 days

0

22

Jonsered 530015126

KEY-FLYWHEEL

$3.99

$

Usually ships in 3-10 days

0

23

Jonsered 530015772

SCREW-10-24 X 1" (TAP.)

$3.99

$

In Stock, only 2 left!

0

24

Jonsered 530015780

No Description Available

$6.49

$

In Stock, only 2 left!

0

25

Jonsered 530027546

INSULATOR-KILL SWITCH

$4.99

$

Usually ships in 3-10 days

0

26

Jonsered 530027547

LEAD WIRE-KILL SWITCH

$

$

Not available

27

Jonsered 530015771

SCREW 1/4-20 X 7/8 (TAP

$6.49

$

In Stock, Qty 6

0

28

Jonsered 530014016

ASSY-CRANKCASE

$

$

Not available

29

Jonsered 530027545

KILL SWITCH RAMP

$3.99

$

Usually ships in 3-10 days

0

30

Jonsered 530027958

No Description Available
(Superseded to 530038309)

$4.99

$

In Stock, Qty 8

0

31

Jonsered 530027959

No Description Available

$

$

Not available

32

Jonsered 530014015

ASSY-C'CASE & C'SHAFT
(Superseded to 530071705)

$37.99

$

Usually ships in 3-10 days

0

33

Jonsered 530015241

SCREW-6-19X5/16PLAST PA

$3.99

$

Usually ships in 3-10 days

0

34

Jonsered 530015162

WRIST PIN RET.

$6.49

$

In Stock, only 1 left!

0

35

Jonsered 530025875

RING-PISTON (HOOKED)

$

$

Not available

36

Jonsered 530019178

GASKET-CYL W/ADHESIVE
(Superseded to 530019267)

$4.99

$

In Stock, only 4 left!

0

37

Jonsered 530069277

KIT-PISTON (32CC)

$54.99

$

Usually ships in 3-10 days

0

39

Jonsered 530032103

BEARING-R8 (INNER)

$

$

Not available

40

Jonsered 530015787

RING-RETAINING

$3.99

$

Usually ships in 3-10 days

0

41

Jonsered 530019158

SEAL-CRANKSHAFT

$6.49

$

Usually ships in 3-10 days

0

42

Jonsered 530032102

BEARING-R8 (OUTER)

$

$

Not available

43

Jonsered 530015789

RING-RETAINING (SHAFT)

$4.99

$

Usually ships in 3-10 days

0

44

Jonsered 530015717

SCREW-10-16X9/16SLTD.PH

$3.99

$

Usually ships in 3-10 days

0

45

Jonsered 530027781

GUARD-MUFFLER

$3.99

$

Usually ships in 3-10 days

0

46

Jonsered 530069310

KIT-MUFFLER

$

$

Not available

47

Jonsered 530036409

SPRING-MUFFLER

$

$

Not available

48

Jonsered 530069628

CYLINDER
(Superseded to 530071581)

Note: NEW PART NUMBER FOR THIS IPL

$78.99

$

Usually ships in 3-10 days

0

49

Jonsered 530030058

SPARK PLUG (RCJ-8) NLA

$4.99

$

In Stock, only 2 left!

0

50

Jonsered 530015239

SCREW-1/4-20 X 13/16

$2.49

$

Usually ships in 3-10 days

0

51

Jonsered 530039134

MODULE-IGNITION

$

$

Not available

52

Jonsered 530016357

SCREW

Note: NEW PART NUMBER FOR THIS IPL

$6.49

$

In Stock, only 4 left!

0

53

Jonsered 530039189

FLYWHEEL

Note: NEW PART NUMBER FOR THIS IPL

$

$

Not available

54

Jonsered 530016030

WASHER

$3.99

$

Usually ships in 3-10 days

0

55

Jonsered 530029789

HOUSING
(Superseded to 530047493)

$14.99

$

Usually ships in 3-10 days

0

56

Jonsered 530069291

KIT-STARTER PULLEY
(Superseded to 530071387)

$

$

Not available

57

Jonsered 530027531

No Description Available
(Superseded to 545008015)

Note: NEW PART NUMBER FOR THIS IPL

$7.99

$

In Stock, Qty 16

0

58

Jonsered 530027569

HANDLE-STARTER

$6.49

$

Usually ships in 3-10 days

0

59

Jonsered 530069232

KIT-ROPE

$7.49

$

In Stock, Qty 18

0

60

Jonsered 530069678

No Description Available

Note: NEW PART NUMBER FOR THIS IPL

$

$

Not available

61

Jonsered 530094189

WASHER-CLUTCH

$6.99

$

In Stock, only 1 left!

0

62

Jonsered 530069254

KIT-CLUTCH ASS'Y

$

$

Not available

63

Jonsered 530015796

WASHER-BELLEVILLE

$3.99

$

Usually ships in 3-10 days

0

64

Jonsered 530001733

NUT

$

$

Not available

65

Jonsered 530069679

No Description Available

Note: NEW PART NUMBER FOR THIS IPL

$

$

Not available

66

Jonsered 530015767

SCREW-10-24 X 1-3/8 (UN

$3.99

$

In Stock, only 2 left!

0

67

Jonsered 530027511

SPACER-CLUTCH

$8.99

$

Usually ships in 3-10 days

0

68

Jonsered 530015770

SCREW-10-16 X 1-3/8 PLA

$

$

Not available

69

Jonsered 530015769

SCREW-10-24X1-3/8-TAPTI

$3.99

$

Usually ships in 3-10 days

0

70

Jonsered 530015496

SCREW-10-16 X 1/2 HI-LO

$3.99

$

Usually ships in 3-10 days

0

71

Jonsered 530027523

RETAINER

$7.49

$

In Stock, only 2 left!

0

72

Jonsered 530015768

LOCKNUT-HEX 10-24

$6.49

$

In Stock, only 2 left!

0

73

Jonsered 530069276

KIT-GASKET

$

$

Not available

74

Jonsered 530701612

No Description Available

$

$

Not available

76

Jonsered 530035014

DIAPHRAGM
(Superseded to 503896701)

$51.99

$

In Stock, Qty 10

0

77

Jonsered 530035151

GASKET-METER DIAP

$3.99

$

In Stock, Qty 8

0

78

Jonsered 530035147

GASKET-CIRCUIT PLATE
(Superseded to 501781301)

$

$

Not available

79

Jonsered 530035142

HI-SPEED NEEDLE
(Superseded to 501782201)

$

$

Not available

80

Jonsered 530035036

SPRING

$

$

Not available

81

Jonsered 530035141

NEEDLE - IDLE

$2.99

$

Usually ships in 3-10 days

0

82

Jonsered 530035023

SPRING-NEEDLE FUEL MIX
(Superseded to 501467301)

$0.99

$

Usually ships in 3-10 days

0

83

Jonsered 530035203

SCREW-IDLE SPEED

$8.99

$

Usually ships in 3-10 days

0

84

Jonsered 530035208

SPRING-IDLE SPEED
(Superseded to 501667801)

$

$

Not available

85

Jonsered 530035028

PIN
(Superseded to 505520125)

$7.99

$

In Stock, only 3 left!

0

86

Jonsered 530035031

LEVER
(Superseded to 505520127)

$

$

Not available

87

Jonsered 530035188

No Description Available

$4.99

$

In Stock, Qty 10

0

88

Jonsered 530035106

INLET NEEDLEVALVE
(Superseded to 503117001)

$

$

Not available

89

Jonsered 530035178

SCREEN-DUTCH TWILL INLE

$3.99

$

Usually ships in 3-10 days

0

90

Jonsered 530035166

DIAP FUEL PUMP
(Superseded to 504130807)

$31.99

$

In Stock, Qty 6

0

91

Jonsered 530035164

GASKET-FUEL PUMP
(Superseded to 504130906)

$11.99

$

In Stock, only 3 left!

0

92

Jonsered 530035260

REPAIR KIT

$26.99

$

In Stock, only 3 left!

0

93

Jonsered 530035185

KIT-KWIK REPAIR

$36.99

$

In Stock, only 2 left!

0

94

Jonsered 530016080

SCREW

$6.49

$

Usually ships in 3-10 days

0

530-029910

Jonsered 530029910

No Description Available

$

$

Not available

530-047243

Jonsered 530047243

No Description Available

$

$

Not available
