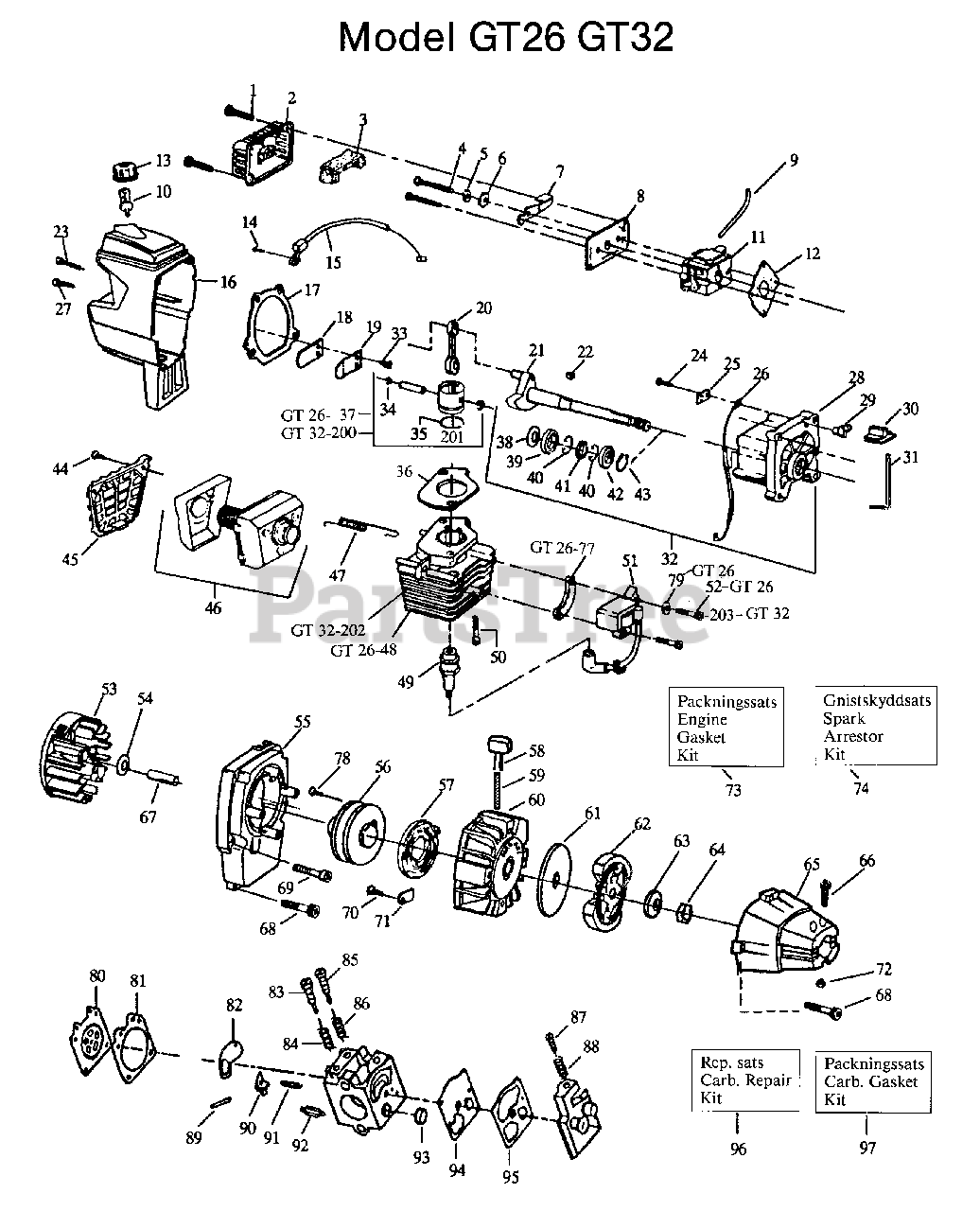

GT 32 - Jonsered String Trimmer (1992-03) ENGINE Parts Diagram

String Trimmer

ENGINE Parts Diagram

  • Title
1

Jonsered 530015773

SCREW-10-24 X 13/16

$3.99

$

In Stock, only 2 left!

0

2

Jonsered 530027529

No Description Available

$

$

Not available

3

Jonsered 530027530

AIR FILTER

$6.49

$

In Stock, Qty 11

0

$6.49

$

In Stock, only 1 left!

0

5

Jonsered 530027528

SPACER-CHOKE
(Superseded to 530015852)

$3.49

$

In Stock, only 1 left!

0

$3.99

$

In Stock, only 2 left!

0

7

Jonsered 530027526

SHUTTER-CHOKE

$1.99

$

Usually ships in 3-10 days

0

8

Jonsered 530027527

PLATE-AIR FILTER MTG.

$2.99

$

Usually ships in 3-10 days

0

9

$7.99

$

In Stock, Qty 20+

0

10

Jonsered 530010897

ASSY-FUEL PICK-UP
(Superseded to 530095646)

$6.99

$

In Stock, Qty 19

0

11

Jonsered 530035259

CARBURETOR (WA-199)
(Superseded to 545081825)

$66.99

$

Usually ships in 3-10 days

0

12

Jonsered 530019156

GASKET-CARBURETOR

$8.99

$

In Stock, only 2 left!

0

13

Jonsered 530010729

ASSY-FUEL CAP W/RETAINER
(Superseded to 530014347)

$9.49

$

In Stock, Qty 15

0

14

Jonsered 530015775

SCREW 8-16 X 9/16 (PLAS

$6.49

$

In Stock, only 2 left!

0

15

Jonsered 530027549

No Description Available
(Superseded to 530037497)

$

$

Not available

$

$

Not available

17

Jonsered 530019154

GASKET-C'CASE/SHROUD

$3.99

$

In Stock, only 1 left!

0

18

Jonsered 530027593

VALVE-REED

$6.49

$

In Stock, only 2 left!

0

19

Jonsered 530027594

REED STOP

$5.99

$

Usually ships in 3-10 days

0

20

Jonsered 530010960

ASS'Y-CONNECTING ROD

$18.99

$

Usually ships in 3-10 days

0

21

Jonsered 530010934

ASSY-CRANKSHAFT

$34.99

$

Usually ships in 3-10 days

0

22

Jonsered 530015126

KEY-FLYWHEEL

$3.99

$

Usually ships in 3-10 days

0

23

Jonsered 530015772

SCREW-10-24 X 1" (TAP.)

$3.99

$

In Stock, only 2 left!

0

24

Jonsered 530015780

No Description Available

$6.49

$

In Stock, only 2 left!

0

25

Jonsered 530027546

INSULATOR-KILL SWITCH

$4.99

$

Usually ships in 3-10 days

0

26

Jonsered 530027547

LEAD WIRE-KILL SWITCH

$

$

Not available

27

Jonsered 530015771

SCREW 1/4-20 X 7/8 (TAP

$6.49

$

In Stock, Qty 6

0

28

Jonsered 530014016

ASSY-CRANKCASE

$

$

Not available

29

Jonsered 530027545

KILL SWITCH RAMP

$3.99

$

Usually ships in 3-10 days

0

30

Jonsered 530027958

No Description Available
(Superseded to 530038309)

$4.99

$

In Stock, Qty 8

0

31

Jonsered 530027959

No Description Available

$

$

Not available

32

Jonsered 530014015

ASSY-C'CASE & C'SHAFT
(Superseded to 530071705)

$37.99

$

Usually ships in 3-10 days

0

33

Jonsered 530015241

SCREW-6-19X5/16PLAST PA

$3.99

$

Usually ships in 3-10 days

0

34

Jonsered 530015162

WRIST PIN RET.

$6.49

$

In Stock, only 1 left!

0

35

Jonsered 530027369

RING-PISTON (26.2CC)

Note: GT 26

$

$

Not available

36

Jonsered 530019178

GASKET-CYL W/ADHESIVE
(Superseded to 530019267)

$4.99

$

In Stock, only 4 left!

0

37

Jonsered 530069240

KIT-PISTON (26.2CC)

Note: GT 26

$

$

Not available

38

Jonsered 530015788

SPACER-BEARING

$0.99

$

Usually ships in 3-10 days

0

39

Jonsered 530032103

BEARING-R8 (INNER)

$

$

Not available

40

Jonsered 530015787

RING-RETAINING

$3.99

$

Usually ships in 3-10 days

0

41

Jonsered 530019158

SEAL-CRANKSHAFT

$6.49

$

Usually ships in 3-10 days

0

42

Jonsered 530032102

BEARING-R8 (OUTER)

$

$

Not available

43

Jonsered 530015789

RING-RETAINING (SHAFT)

$4.99

$

Usually ships in 3-10 days

0

44

Jonsered 530015717

SCREW-10-16X9/16SLTD.PH

$3.99

$

Usually ships in 3-10 days

0

45

Jonsered 530027781

GUARD-MUFFLER

$3.99

$

Usually ships in 3-10 days

0

46

Jonsered 530069310

KIT-MUFFLER

$

$

Not available

47

Jonsered 530024903

SPRING
(Superseded to 530036409)

$

$

Not available

48

Jonsered 530012247

CYLINDER (26CC) (SERVIC

Note: GT 26

$

$

Not available

49

Jonsered 530030058

SPARK PLUG (RCJ-8) NLA

$4.99

$

In Stock, only 2 left!

0

50

Jonsered 530015239

SCREW-1/4-20 X 13/16

$2.49

$

Usually ships in 3-10 days

0

51

Jonsered 530039134

MODULE-IGNITION

$

$

Not available

52

Jonsered 530015776

SCREW 8-32 X 1-9/32

$0.99

$

Usually ships in 3-10 days

0

53

Jonsered 530039136

ASSY-FLYWHEEL
(Superseded to 530039189)

$

$

Not available

54

Jonsered 530347987

WASHER
(Superseded to 530016030)

$3.99

$

Usually ships in 3-10 days

0

55

Jonsered 530029789

HOUSING
(Superseded to 530047493)

$14.99

$

Usually ships in 3-10 days

0

56

Jonsered 530069291

KIT-STARTER PULLEY
(Superseded to 530071387)

$

$

Not available

57

Jonsered 530029395

SPRING-STARTER
(Superseded to 545008010)

$9.49

$

In Stock, Qty 20+

0

58

Jonsered 530027569

HANDLE-STARTER

$6.49

$

Usually ships in 3-10 days

0

59

$7.49

$

In Stock, Qty 18

0

60

Jonsered 530014294

No Description Available
(Superseded to 530069678)

$

$

Not available

61

Jonsered 530094189

WASHER-CLUTCH

$6.99

$

In Stock, only 1 left!

0

62

Jonsered 530069254

KIT-CLUTCH ASS'Y

$

$

Not available

63

Jonsered 530015796

WASHER-BELLEVILLE

$3.99

$

Usually ships in 3-10 days

0

$

$

Not available

65

Jonsered 530014298

CLUTCH COVER

$

$

Not available

66

Jonsered 530015767

SCREW-10-24 X 1-3/8 (UN

$3.99

$

In Stock, only 2 left!

0

67

Jonsered 530027511

SPACER-CLUTCH

$8.99

$

Usually ships in 3-10 days

0

68

Jonsered 530015770

SCREW-10-16 X 1-3/8 PLA

$

$

Not available

69

Jonsered 530015769

SCREW-10-24X1-3/8-TAPTI

$3.99

$

Usually ships in 3-10 days

0

70

Jonsered 530015496

SCREW-10-16 X 1/2 HI-LO

$3.99

$

Usually ships in 3-10 days

0

71

$7.49

$

In Stock, only 2 left!

0

72

Jonsered 530015768

LOCKNUT-HEX 10-24

$6.49

$

In Stock, only 2 left!

0

73

Jonsered 530069276

KIT-GASKET

$

$

Not available

74

Jonsered 952701612

KIT-W/E SPARK ARRESTER

$

$

Not available

77

Jonsered 530027525

SPACER-IGNITION MODULE

Note: GT 26

$0.99

$

In Stock, only 1 left!

0

78

Jonsered 530015823

SCREW-6-19X9/32 PAN/SEM
(Superseded to 530016080)

$6.49

$

Usually ships in 3-10 days

0

79

Jonsered 530015811

No Description Available

Note: GT 26

$

$

Not available

80

Jonsered 504130808

METERING DIAPHRAGM
(Superseded to 503896701)

$51.99

$

In Stock, Qty 10

0

81

Jonsered 530035151

GASKET-METER DIAP

$3.99

$

In Stock, Qty 8

0

82

$

$

Not available

83

$

$

Not available

84

Jonsered 505316721

PRESSURE SPRING
(Superseded to 505316737)

$14.99

$

In Stock, only 2 left!

0

85

Jonsered 530035141

NEEDLE - IDLE

$2.99

$

Usually ships in 3-10 days

0

86

$0.99

$

Usually ships in 3-10 days

0

87

Jonsered 530035203

SCREW-IDLE SPEED

$8.99

$

Usually ships in 3-10 days

0

88

$

$

Not available

89

Jonsered 505520125

FULCRUM PIN

$7.99

$

In Stock, only 3 left!

0

$5.99

$

Usually ships in 3-10 days

0

91

Jonsered 530035188

No Description Available

$4.99

$

In Stock, Qty 10

0

92

Jonsered 503117001

VALVE/INLET.

$22.99

$

In Stock, Qty 8

0

93

Jonsered 530035178

SCREEN-DUTCH TWILL INLE

$3.99

$

Usually ships in 3-10 days

0

94

Jonsered 504130807

PUMP DIAPHRAGM

$31.99

$

In Stock, Qty 6

0

95

$11.99

$

In Stock, only 3 left!

0

96

Jonsered 505520130

REPAIR PARTS KIT

$

$

Not available

97

Jonsered 530035185

KIT-KWIK REPAIR

$36.99

$

In Stock, only 2 left!

0

200

Jonsered 530069277

KIT-PISTON (32CC)

Note: GT 32

$54.99

$

Usually ships in 3-10 days

0

201

Jonsered 530025875

RING-PISTON (HOOKED)

Note: GT 32

$

$

Not available

202

Jonsered 530012238

CYLINDER
(Superseded to 530071581)

Note: GT 32

$78.99

$

Usually ships in 3-10 days

0

203

Jonsered 530015128

SCREW-COIL MTG
(Superseded to 530015816)

Note: GT 32

$3.99

$

Usually ships in 3-10 days

0
