GT 3100 (14B-671-710) - Cub Cadet Garden Tractor Dash Panel Parts Diagram

Garden Tractor

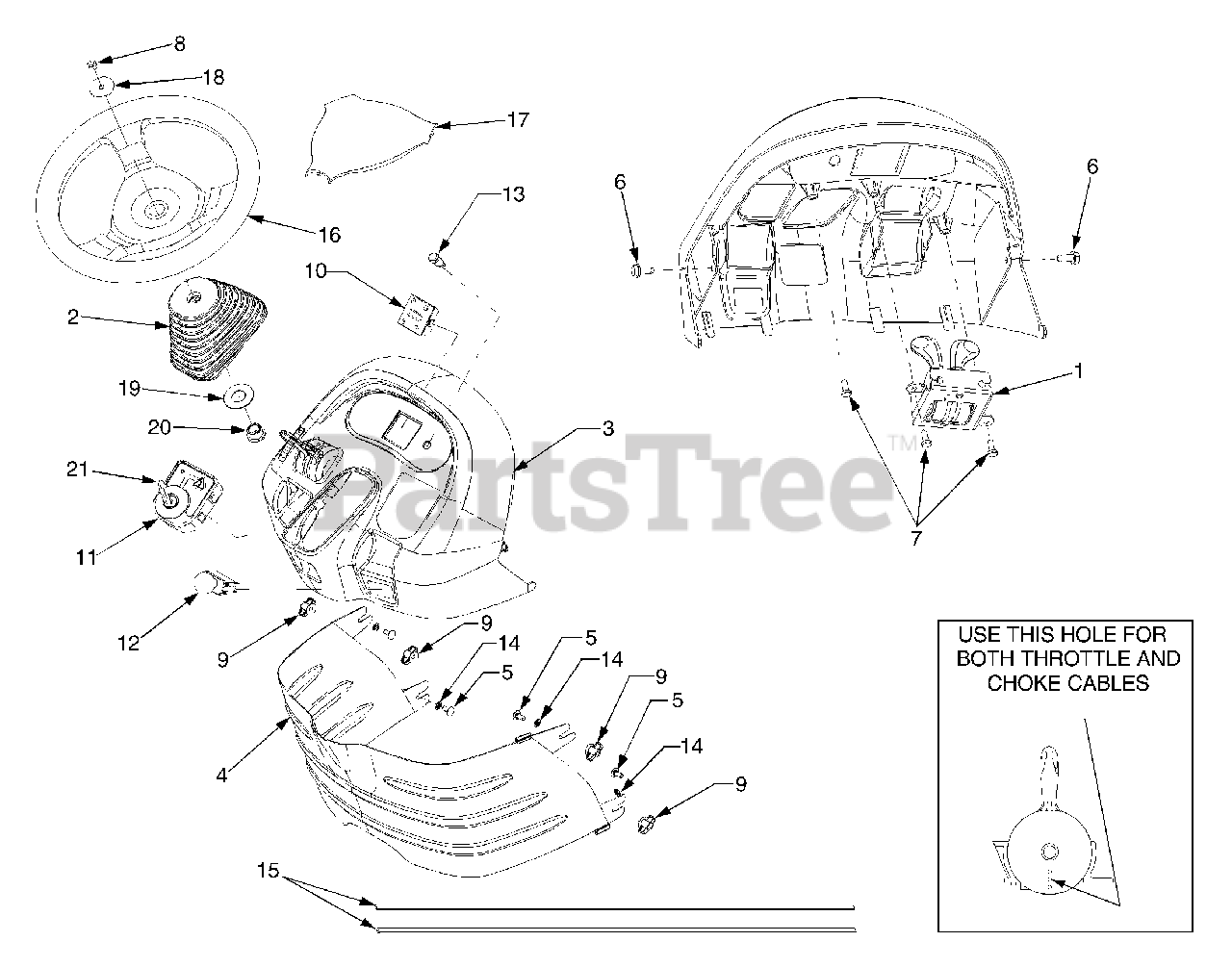

Dash Panel Parts Diagram

  • Title

1

Cub Cadet 603-0586

Control Ass'y, Throttle/Choke

$137.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 631-0076

Boot, Tilt Steer

$

$

Not available

3

Cub Cadet 631-04144

Dash Panel

$

$

Not available

3

Cub Cadet 777I22466

Graphic, Monitor Light Cover

$

$

Not available

4

Cub Cadet 703-3072

Screen, Dash

Variations

Cub Cadet 703-3072-0637

USE 703-3072 SCREEN-DASH - POWDER BLACK (0637)

$

$

Not available

$

$

5

Cub Cadet 710-0134

Carriage Bolt, 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-1260A

Screw, Hex Wash. Hd. Tapp 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-3013

Screw, Hex Cap 1/4-20 x .50 GR5

$4.99

$

In Stock, only 1 left!

0

8

Cub Cadet 712-0237

Nut, Hex Lock, 5/16-24

$4.99

$

In Stock, only 4 left!

0

9

Cub Cadet 712-0397

Wing Nut, 1/4-20 w/Bell Washer
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 725-04036A

Meter, Indicator / Hour
(Superseded to 925-06170B)

$70.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 725-04227B

Switch, Key/Module
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 20+

0

12

Cub Cadet 725-04258

Switch, PTO
(Superseded to 925-04258A)

$56.99

$

In Stock, only 4 left!

0

13

Cub Cadet 725-04288

Lamp, Fuel
(Superseded to 925-04288)

$71.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 726-0233

Nut, Push

$4.49

$

In Stock, only 3 left!

0

15

Cub Cadet 731-0511-37

Seal, Screen

Note: (Cut to fit screen)

$52.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 731-3209

Steering Wheel

$

$

Not available

17

Cub Cadet 731-3210

Cover, Steering Wheel
(Superseded to 731-06459)

$21.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 736-04062

Washer, Flat, .34 x 1.5 x .10
(Superseded to 936-04062)

$

$

Not available

19

Cub Cadet 736-0514

Washer, Flat, .885 x 1.85 x .06

$

$

Not available

20

Cub Cadet 736-0176

Bearing, Flange, .63ID x .62 Lg

$4.99

$

In Stock, Qty 6

0

21

Cub Cadet 725-2054A

Key, Ignition
(Superseded to 925-2054A)

$17.99

$

In Stock, Qty 20+

0
