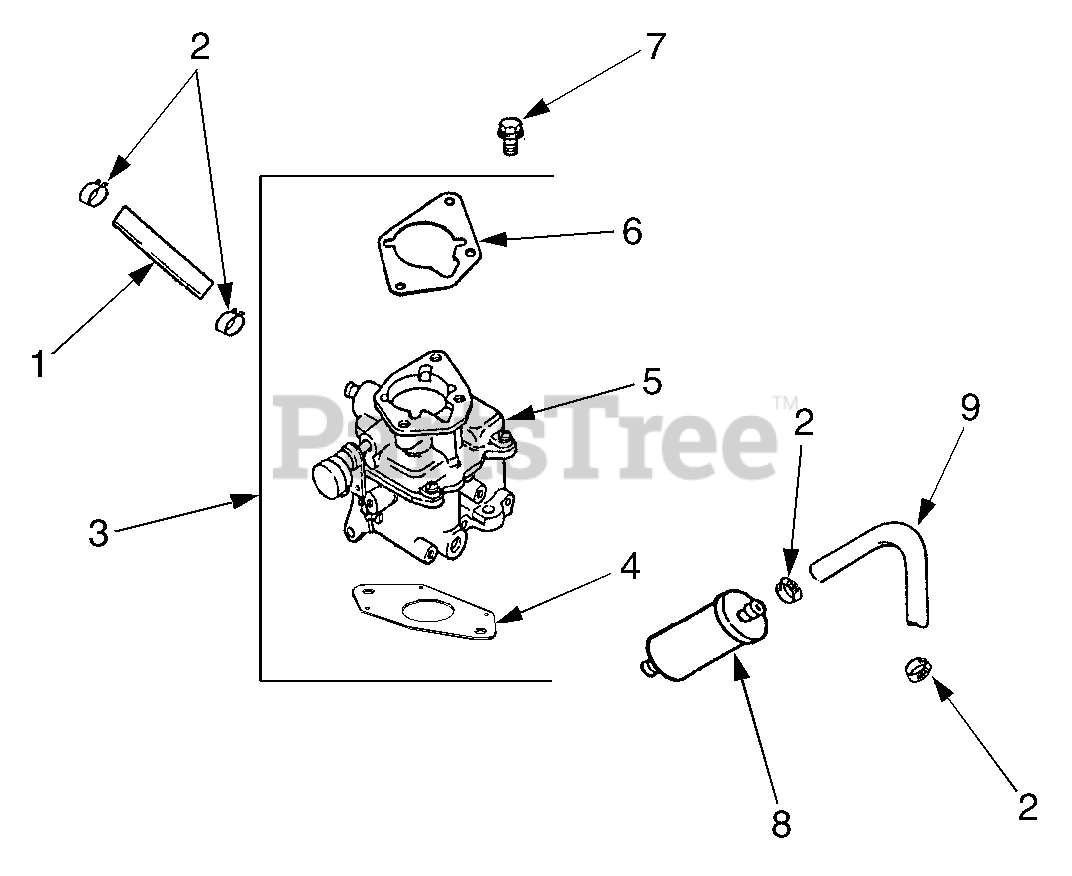

GT 3100 (14A-671-010) - Cub Cadet Garden Tractor Fuel System Parts Diagram

Garden Tractor

Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-25-111-34-S

Line, Fuel 24"
(Superseded to KH-25-111-81-S)

Note: Replaces KH-52-353-20 in this model

$17.99

$

In Stock, only 2 left!

0

2

Cub Cadet KH-25-237-14-S

Clamp, Hose
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, only 3 left!

0

3

Cub Cadet KH-24-853-59-S

Kit, Carburetor w/Gasket
(Superseded to KH-24-853-311-S)

$339.99

$

Usually ships in 3-6 days

0

4

Cub Cadet KH-24-041-53-S

Gasket, Carburetor

$3.49

$

In Stock, Qty 5

0

5

Carburetor Assembly

Note: Not Available Separately

$

$

Not available

6

Cub Cadet KH-24-041-06

Gasket, Air Cleaner Base

$2.99

$

In Stock, Qty 18

0

7

Cub Cadet KH-25-086-124-S

Screw, Hex Flange

Note: Replaces KH-M-651025-S

$2.49

$

In Stock, only 1 left!

0

8

Cub Cadet KH-24-050-10-S

Filter, Fuel
(Superseded to 2405013S1C)

$12.99

$

In Stock, Qty 20+

0

9

Cub Cadet KH-25-111-34-S

Line, Fuel 24"
(Superseded to KH-25-111-81-S)

Note: Replaces KH-24-353-12 in this model

$17.99

$

In Stock, only 2 left!

0

Cub Cadet KH-24-518-24-S

Lead, Ground

Note: Not Illustrated

$2.49

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-01

Kit, Solenoid

Note: Not Illustrated

$

$

Not available

Cub Cadet KH-24-757-02

Kit, Float Repair
(Superseded to KH-24-757-02-S)

Note: Not Illustrated

$133.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-757-03

Kit, Carburetor Repair
(Superseded to KH-24-757-03-S)

Note: Not Illustrated

$112.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-757-07

Kit, Choke Repair

Note: Not Illustrated

$

$

Not available

Cub Cadet KH-24-755-125-S

Kit , High Altitude

Note: Not Illustrated

$55.99

$

Usually ships in 2-5 days

0
