GT 31 (UT-26054) - Green Machine String Trimmer Deflector - Guard - Driveshaft - Stringhead Parts Diagram

String Trimmer

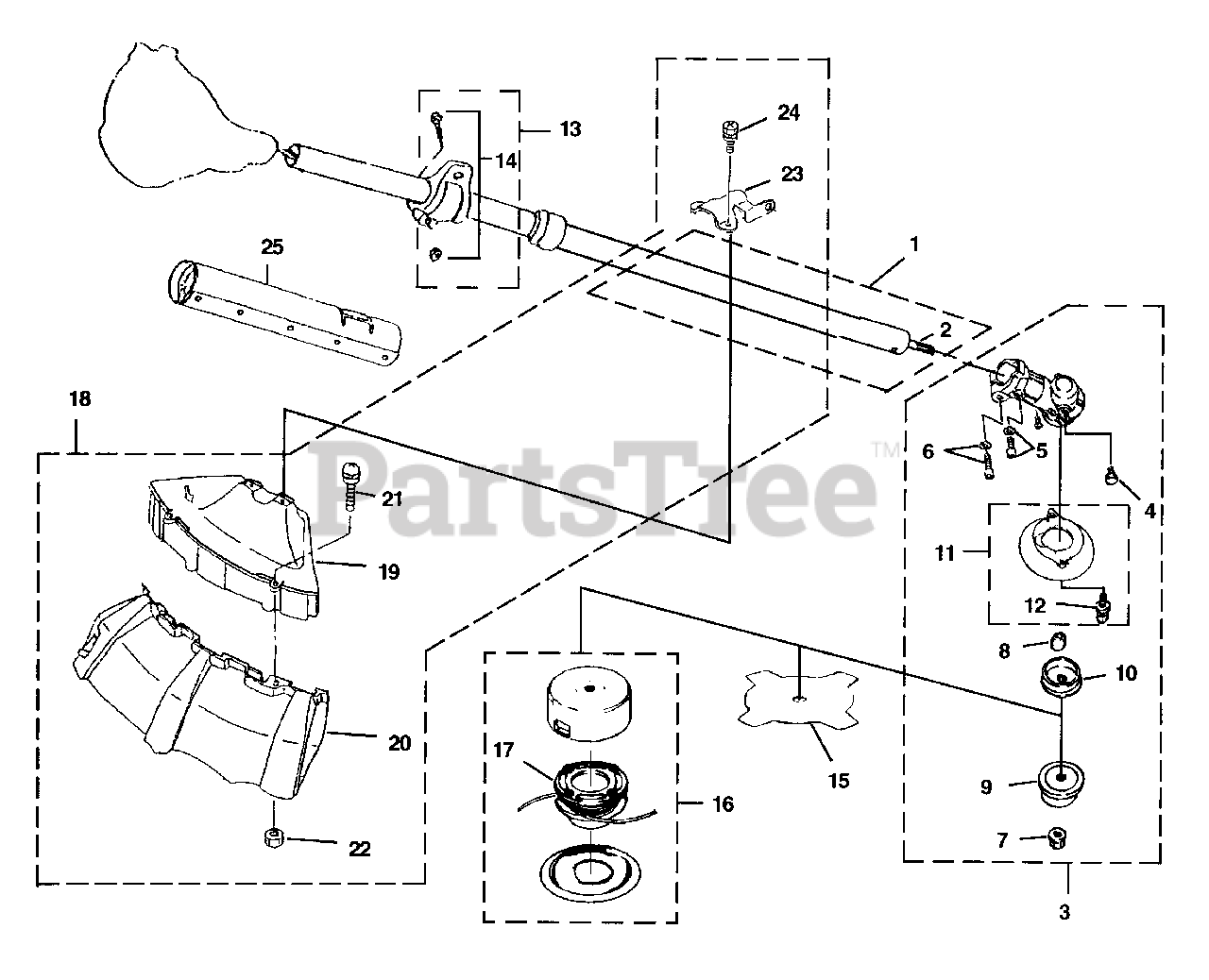

Deflector - Guard - Driveshaft - Stringhead Parts Diagram

  • Title

1

Homelite UP00435

DRIVESHAFT HOUSING

$

$

Not available

2

Homelite PS00448

DRIVESHAFT

$

$

Not available

3

Homelite UP00436

GEAR HEAD

$

$

Not available

4

Homelite PS00449

BOLT-Grease

Note: Torque Specs: 39 - 47 In/Lbs, 4.4 - 5.3 Nm

$

$

Not available

5

Homelite PS00450

BOLT ASSEMBLY (M5 X 12 SW)

Note: Torque Specs: 44 - 60 In/Lbs, 5.0 - 6.8 Nm

$

$

Not available

6

Homelite PS00451

BOLT ASSEMBLY (M5X 25 SW)

Note: Torque Specs: 44 - 60 In/Lbs, 5.0 - 6.8 Nm

$

$

Not available

7

Homelite PS00452

NUT

Note: Torque Specs: 149 - 165 In/Lbs, 16.8 - 18.6 Nm

$

$

Not available

8

Homelite PS00453

SPACER

$

$

Not available

9

Homelite PS00447

WASHER-Cupped

$

$

Not available

10

Homelite PS00454

WASHER-Flange

$

$

Not available

11

Homelite UP00496

GRASS GUARD

$

$

Not available

12

Homelite PS00559

SCREW-Socket Hd (M5 x 12 W SW)

Note: Torque Specs: 48 - 56 In/Lbs, 5.4 - 6.3 Nm

$

$

Not available

13

Homelite UP00441

HANGER ASSEMBLY

$

$

Not available

14

Homelite PS00460

SCREW AND NUT

Note: Torque Specs: 13 - 21 In/Lbs, 1.5 - 2.4 Nm

$

$

Not available

15

Homelite PS01001

BLADE CUTTER

$

$

Not available

16

Homelite UP05113

STRINGHEAD ASSEMBLY (.095)

$

$

Not available

17

Homelite UP05114

SPOOL & STRING (.095)

$

$

Currently unavailable

18

Homelite UP05111

PROTECTOR ASSEMBLY

$

$

Not available

19

Homelite PS02684

PROTECTOR COMPLETE

$

$

Not available

20

Homelite PS02685

PROTECTOR COMPLETE

$

$

Not available

21

Homelite PS02681

SCREW ASSEMBLY

$

$

Not available

22

Homelite PS02680

NUT

$

$

Not available

23

Homelite PS02679

CLAMP-Protector

$

$

Not available

24

Homelite PS00455

BOLT ASSEMBLY

Note: Torque Specs: 52 - 68 In/Lbs, 5.9 - 7.7 Nm

$

$

Not available

25

Homelite PS02984

CUSHION

$

$

Not available
