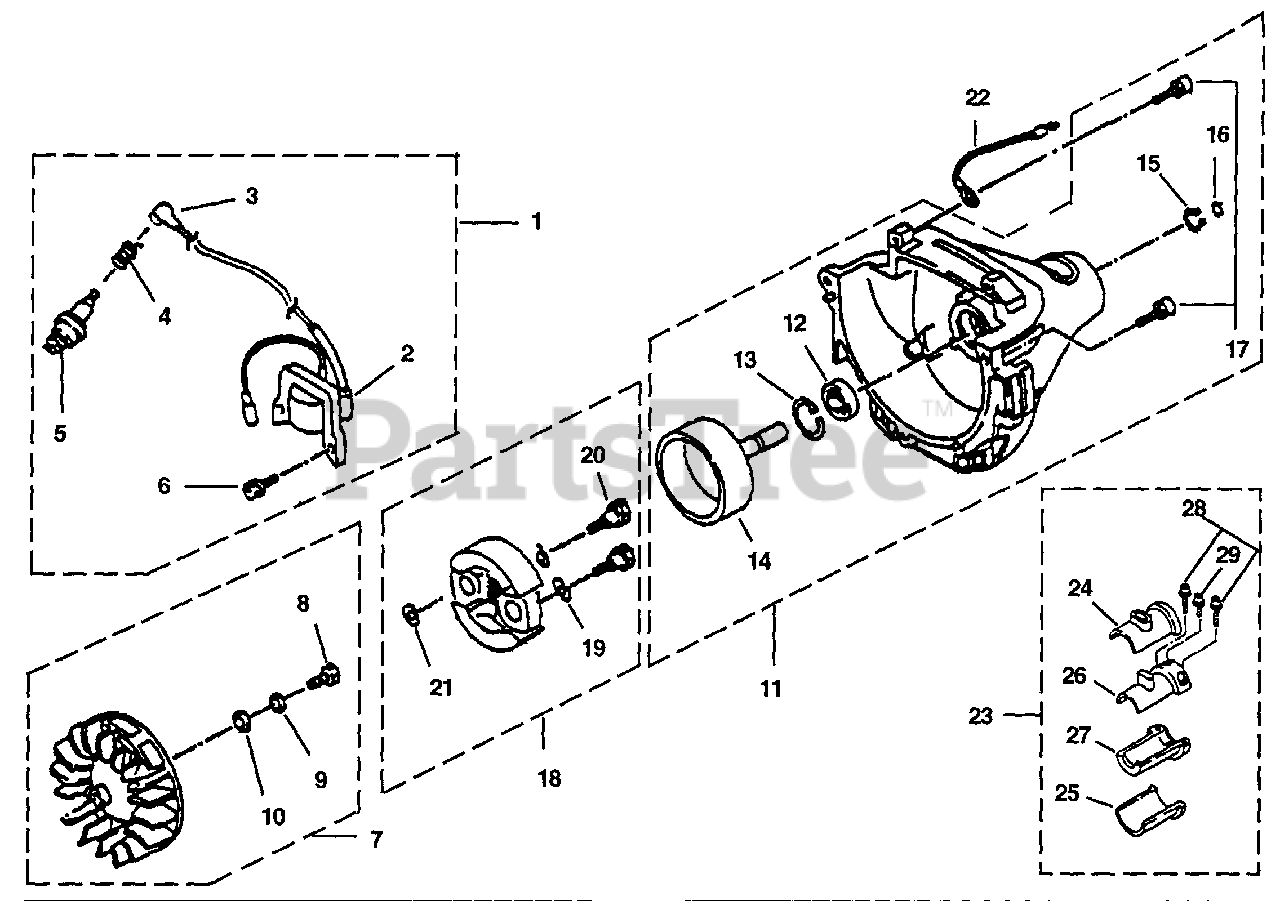

GT 31 (UT-26041) - Green Machine String Trimmer Ignition, Rotor, Clutch & Isolator Parts Diagram

String Trimmer

Ignition, Rotor, Clutch & Isolator Parts Diagram

  • Title

1

Homelite UP00451

IGNITION KIT

$

$

Not available

2

Homelite PS00497

MODULE-Ignition

$

$

Not available

3

Homelite PS00498

CAP-Plug

$

$

Not available

4

Homelite PS00499

SPRING-Plug Cap

$

$

Not available

5

Homelite UP02950

SPARK PLUG

$

$

Not available

6

Homelite PS00501

SCREW ASSEMBLY

$

$

Not available

7

Homelite UP00452

ROTOR ASSEMBLY

$

$

Not available

8

Homelite PS00502

SCREW

$

$

Not available

9

Homelite PS00503

WASHER-Spring

$

$

Not available

10

Homelite PS00716

WASHER

$

$

Not available

11

Homelite UP00453

CLUTCH HOUSING

$

$

Not available

12

Homelite PS00505

BEARING-Ball

$

$

Not available

13

Homelite PS00506

SNAP RING-Inner

$

$

Not available

14

Homelite PS00507

CLUTCH DRUM

$

$

Not available

15

Homelite PS00508

SNAP RING-Outer

$

$

Not available

16

Homelite PS00509

O-RING

$

$

Not available

17

Homelite PS00510

SCREWS-Socket Hd (M5 x 20W SW)

$

$

Currently unavailable

18

Homelite UP00454

CLUTCH ASSEMBLY

$

$

Not available

19

Homelite PS00511

WASHER

$

$

Not available

20

Homelite PS00826

BOLT-Clutch

$

$

Not available

21

Homelite PS00588

WASHER

$

$

Not available

22

Homelite PS00813

WIRE

$

$

Currently unavailable

23

Homelite UP00455

DRIVESHAFT ISOLATOR ASSEMBLY

$

$

Not available

24

Homelite PS00514

BRACKET

$

$

Not available

25

Homelite PS00515

BRACKET

$

$

Currently unavailable

26

Homelite PS00516

ISOLATOR

$

$

Not available

27

Homelite PS00517

ISOLATOR

$

$

Not available

28

Homelite PS00518

SCREW-Socket Hd (M5 x 18 SW)

$

$

Not available

29

Homelite PS00554

SCREW-Socket Hd (M5 x 12 SW)

$

$

Not available
