GT 31 B (UT-26055) - Green Machine String Trimmer Ignition - Rotor - Clutch - Isolator Parts Diagram

String Trimmer

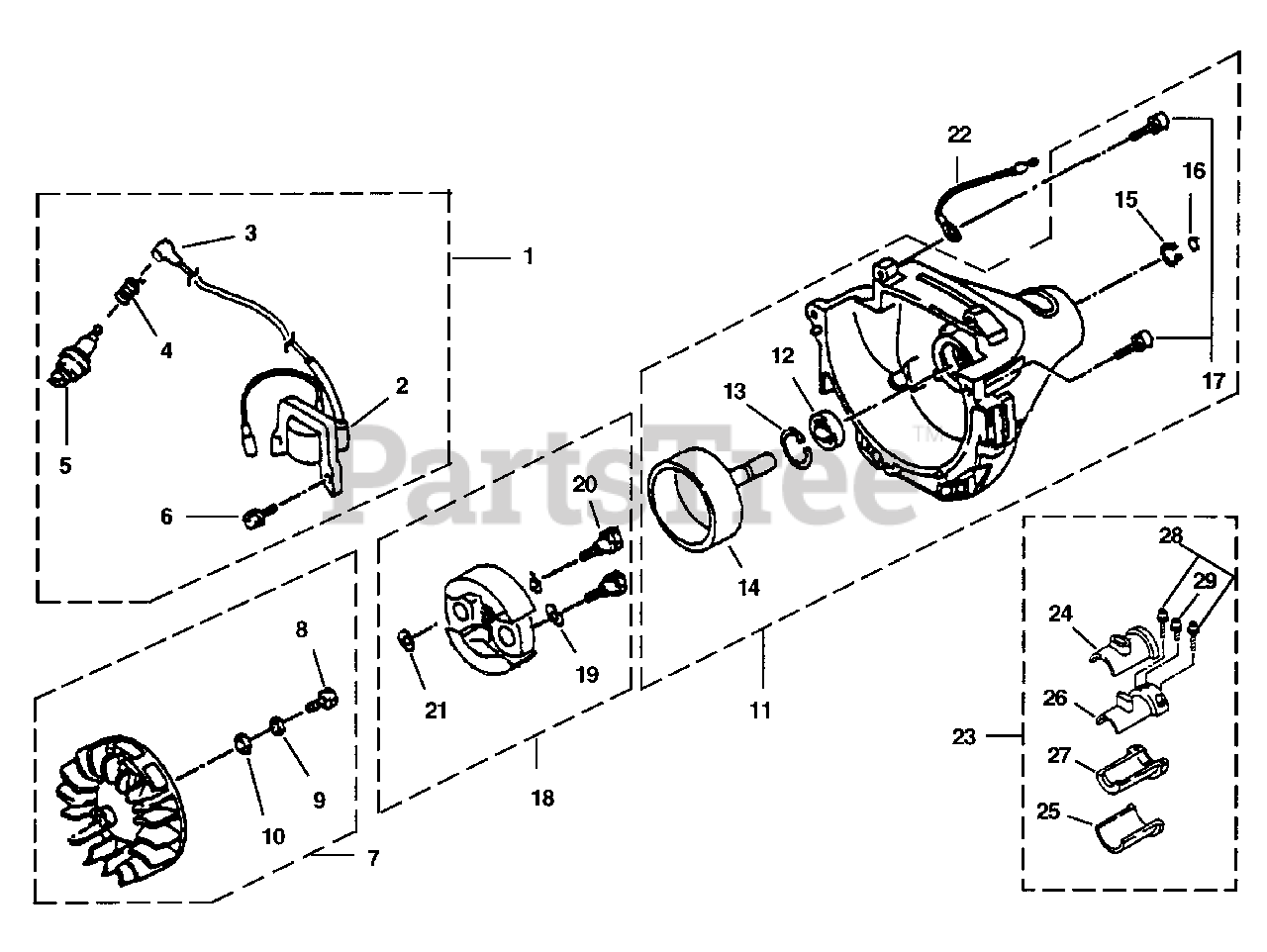

Ignition - Rotor - Clutch - Isolator Parts Diagram

  • Title

1

Homelite UP05128

IGNITION KIT

$

$

Not available

2

Homelite PS00497

MODULE-Ignition

$

$

Not available

3

Homelite PS00498

CAP-Plug

$

$

Not available

4

Homelite PS00499

SPRING-Plug Cap

$

$

Not available

5

Homelite PS02691

SPARK PLUG

Note: Torque Specs 105 - 155 In/Lbs, 11.9 - 17.5 Nm

$

$

Currently unavailable

6

Homelite PS00501

SCREW ASSEMBLY (M5 X 20)

Note: Torque Specs 38 - 42 In/Lbs, 4.3 - 4.7 Nm

$

$

Not available

7

Homelite UP00452

ROTOR ASSEMBLY

$

$

Not available

8

Homelite PS00502

SCREW (M6 x 16)

Note: Torque Specs 96 - 112 In/Lbs, 10.8 - 12.7 Nm

$

$

Not available

9

Homelite PS00503

WASHER-Spring

$

$

Not available

10

Homelite PS00716

WASHER

$

$

Not available

11

Homelite UP00453

CLUTCH HOUSING

$

$

Not available

12

Homelite PS00505

BEARING-Ball

$

$

Not available

13

Homelite PS00506

SNAP RING-Inner

$

$

Not available

14

Homelite PS00507

CLUTCH DRUM

$

$

Not available

15

Homelite PS00508

SNAP RING-Outer

$

$

Not available

16

Homelite PS00509

O-RING

$

$

Not available

17

Homelite PS00840

SCREWS-Socket Hd (M5 x 20W SW)

Note: Torque Specs 38 - 42 In/Lbs, 4.3 - 4.7 Nm

$2.49

$

Usually ships in 3-7 days

0

18

Homelite UP00454

CLUTCH ASSEMBLY

$

$

Not available

19

Homelite PS00511

WASHER

$

$

Not available

20

Homelite PS00826

BOLT-Clutch (M6 x 25)

Note: Torque Specs 65 - 87 In/Lbs, 7.3 - 9.8 Nm

$

$

Not available

21

Homelite PS00588

WASHER

$

$

Not available

22

Homelite PS00813

WIRE

$

$

Currently unavailable

23

Homelite UP00455

DRIVESHAFT ISOLATOR ASSEMBLY

$

$

Not available

24

Homelite PS00514

BRACKET

$

$

Not available

25

Homelite PS00515

BRACKET

$

$

Currently unavailable

26

Homelite PS00516

ISOLATOR

$

$

Not available

27

Homelite PS00517

ISOLATOR

$

$

Not available

28

Homelite PS00518

SCREW-Socket Hd (M5 x 18 SW)

$

$

Not available

29

Homelite PS00554

SCREW-Socket Hd (M5 x 12 SW)

$

$

Not available
