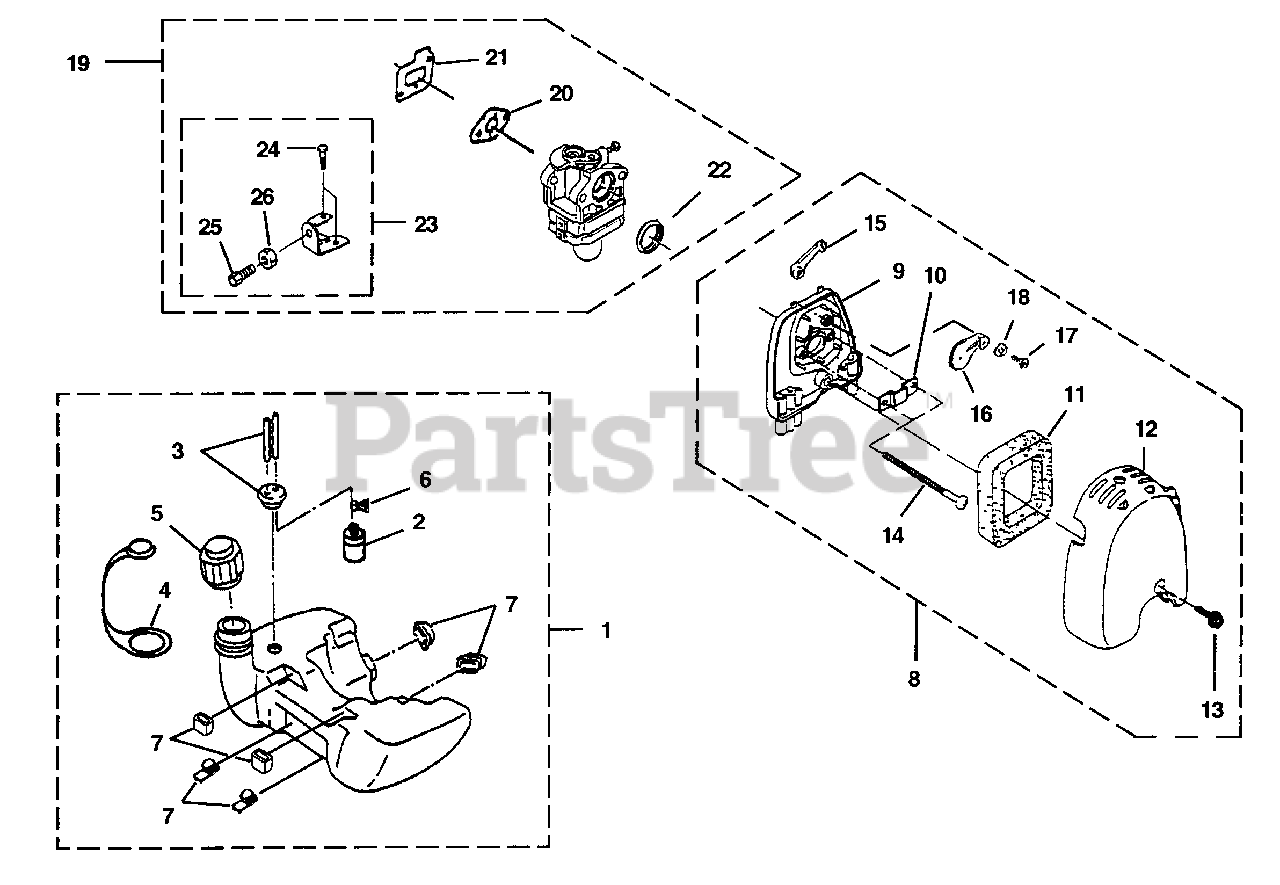

GT 31 B (UT-26055) - Green Machine String Trimmer Air Filter - Carburetor - Fuel Tank Parts Diagram

String Trimmer

Air Filter - Carburetor - Fuel Tank Parts Diagram

  • Title

1

Homelite UP00456

FUEL TANK ASSEMBLY

$

$

Not available

2

Homelite PS00520

FILTER-Fuel

$

$

Currently unavailable

3

Homelite PS00521

TUBE

$

$

Not available

4

Homelite PS00522

CAP-Retainer
(Superseded to UP02946)

$

$

Not available

5

Homelite UP02946

CAP-Fuel

$

$

Not available

6

Homelite PS00833

CLAMP-Hose

$

$

Not available

7

Homelite UP00458

RUBBER BUMPER KIT

$

$

Not available

8

Homelite UP00463

AIR FILTER ASSEMBLY

$

$

Not available

9

Homelite PS00545

PLATE-Air Filter Assembly

$

$

Not available

10

Homelite PS00546

PLATE-Air Filter

$

$

Not available

11

Homelite UP02947

FILTER-Air

$

$

Not available

12

Homelite PS00548

COVER-Air Filter

$

$

Not available

13

Homelite PS00802

SCREW ASSEMBLY (M5 x 14)

Note: Torque Specs 11 - 15 In/Lbs, 1.2 - 1.7 Nm

$

$

Not available

14

Homelite PS00550

SCREW (M5 x 50)

Note: Torque Specs 19 - 25 In/Lbs, 2.1 - 2.8 Nm

$

$

Not available

15

Homelite PS02692

LEVER-Choke

$

$

Currently unavailable

16

Homelite PS02693

PLATE-Choke

$

$

Not available

17

Homelite PS02694

SCREW-Tapping

$

$

Not available

18

Homelite PS02695

WASHER
(Superseded to PS01363)

$

$

Not available

19

Homelite UP00782

CARBURETOR ASSEMBLY

$

$

Not available

20

Homelite PS00851

GASKET-Carburetor

$

$

Not available

21

Homelite PS00481

GASKET-Heat Dam

$

$

Not available

22

Homelite PS00541

RING-Packing

$

$

Not available

23

Homelite UP00462

CABLE BRACKET ASSEMBLY

$

$

Not available

24

Homelite PS00542

SCREW-Throttle Collar (M5 x 18)

Note: Torque Specs 48 - 56 In/Lbs, 5.4 - 6.3 Nm

$

$

Not available

25

Homelite PS00543

SCREW-Cable Adjust

$

$

Not available

26

Homelite PS00544

NUT-Cable Adjust

$

$

Not available
