GT 2754 KH (14AK94GK897) - Columbia 54" Garden Tractor, Kohler (2012) Mower Deck 54-Inch Parts Diagram

54" Garden Tractor, Kohler

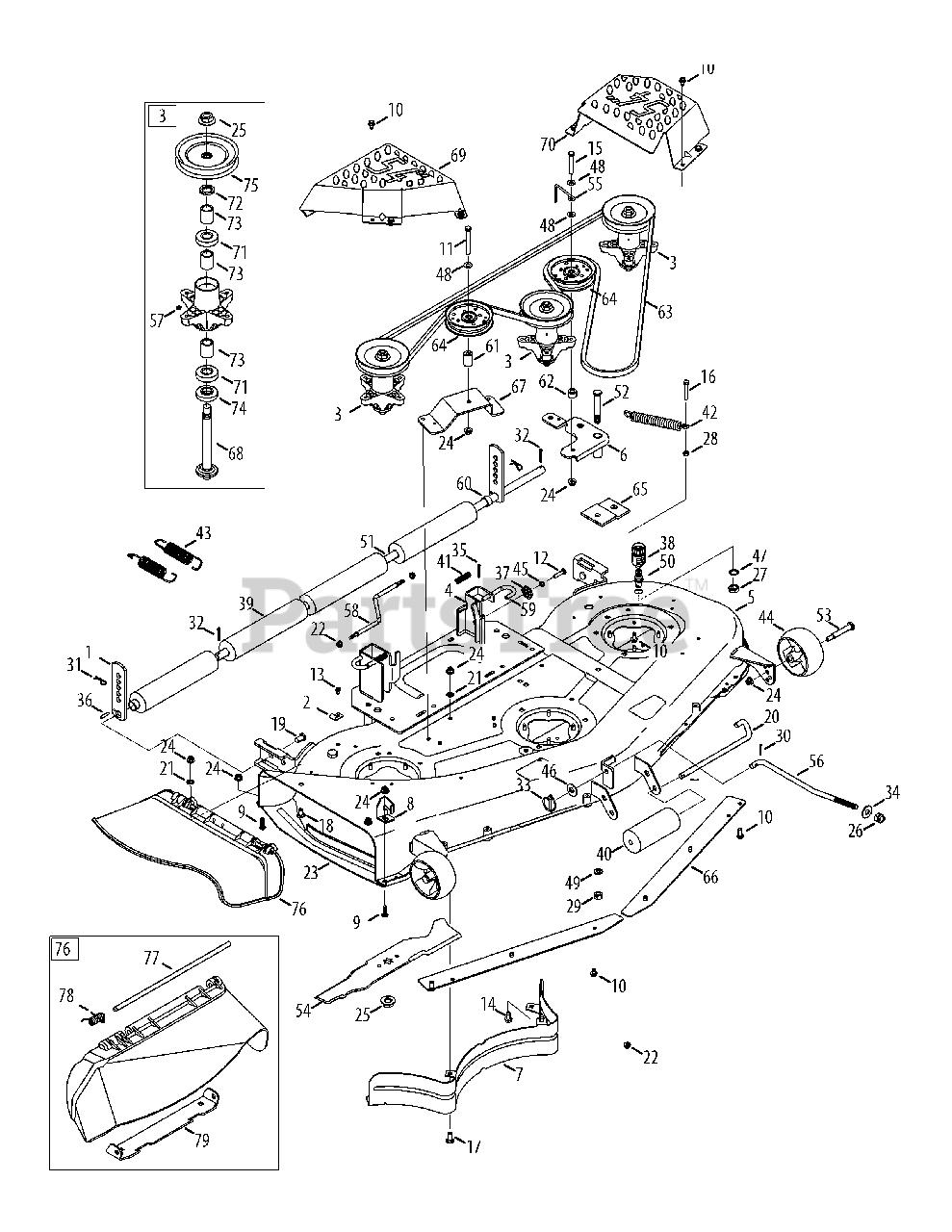

Mower Deck 54-Inch Parts Diagram

  • Title

1

MTD 12650

Bracket, Height adjustment

Variations

MTD 12650-0637

Height Adjuster, Powder Black - POWDER BLACK (0637)

$43.99

$

In Stock, only 3 left!

0

MTD 12650-4008

Height Adjuster - WINE RED (4008)

$43.99

$

In Stock, only 3 left!

0

$35.99

$

Usually ships in 3-6 days

0

2

MTD 96606

Retainer Hook Brkt.

$7.49

$

In Stock, Qty 7

0

3

MTD 918-04608A

Spindle Assembly

$153.99

$

In Stock, Qty 16

0

4

MTD 683-0254B

Deck adjustment Bracket w/Weld Nut

Variations

MTD 683-0254B-0498

Deck Bracket Assembly, LH - OLD CUB YELLOW (0498)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0716

Deck Bracket Assembly, LH - CUB YELLOW-99 (0716)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-4021

Deck Bracket Assembly, LH - CUB YELLOW 2 (4021)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-4033

Deck Bracket Assembly, LH - FLINT MICA (4033)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-4044

Deck Bracket Assembly, LH - CRAFTSMAN RED (4044)

$49.99

$

In Stock, only 1 left!

0

MTD 683-0254B-0606

Deck Bracket Assembly, LH - MAJESTIC ORANGE (0606)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-0638

Deck Bracket Assembly, LH - MTD/TROY-BILT RED (0638)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-0650

BRACKET ASM-DECK LH - RED METALLIC (0650)

$49.99

$

In Stock, only 1 left!

0

MTD 683-0254B-0665

BRACKET ASM-DECK LH - YARDMAN GREEN (0665)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-4008

BRACKET ASM-DECK LH - WINE RED (4008)

$46.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0709

BRACKET ASM-DECK LH - MASTERCRAFT GREEN (0709)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-4028

BRACKET ASM-DECK LH - SEARS YELLOW (4028)

$36.99

$

In Stock, only 1 left!

0

$46.99

$

Usually ships in 3-6 days

0

5

MTD 983-04652-0606

54" Deck
(Superseded to 983-04652B-0606)

$

$

Not available

6

MTD 683-0459-0637

Idler Assembly

$74.99

$

In Stock, only 1 left!

0

7

MTD 703-2093C-0637

RR Inner Baffle

$96.99

$

In Stock, only 2 left!

0

8

MTD 703-3279-0606

Chute Stop Deflector
(Superseded to 703-3279)

$40.99

$

In Stock, only 1 left!

0

9

MTD 710-04095

Screw, 3/8-16 x 1.0

$5.49

$

In Stock, Qty 20+

0

10

MTD 710-04484

S-Tapp Screw 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

11

MTD 710-0521

Screw, 3/8-16 x 3.0

$5.49

$

In Stock, Qty 10

0

12

MTD 710-0528

Hex Bolt 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

13

MTD 710-0599

Hex Screw 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

14

MTD 710-0623

Screw, 3/8-16 x 0.75

$4.49

$

In Stock, only 2 left!

0

15

MTD 710-0859

Screw, 3/8-16 x 2.5

$6.99

$

In Stock, Qty 16

0

16

MTD 710-3103

Hex Hd Cap Screw. 5/16-18 x 2.0 Gr. 5

$4.49

$

In Stock, only 4 left!

0

17

MTD 710-3168

Carriage Bolt 3/8-16 x 1.0

$3.99

$

In Stock, Qty 20+

0

18

MTD 710-3178

Short Neck Carriage Bolt 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

19

MTD 911-0332

Clevis Pin .50 Dia. x .78

$16.99

$

In Stock, Qty 18

0

20

MTD 911-3314

Roller Pin .5" Dia x 7.31
(Superseded to 711-3314A)

$25.99

$

In Stock, Qty 11

0

21

MTD 712-0229

Push Nut 3/8

$3.99

$

In Stock, Qty 20+

0

22

MTD 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

23

MTD 703-3511A-0637

Fin ger Guard
(Superseded to 703-3511B-0637)

$69.99

$

In Stock, Qty 20+

0

24

MTD 712-04065

Flange Lock-Nut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

25

MTD 712-0417A

Hex Flange Nut 5/8-18

$6.99

$

In Stock, Qty 20+

0

26

MTD 712-04243

Flexlock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

27

MTD 912-0641

Hex Nut, M16-1.5
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

28

MTD 912-3010

Hex Nut 5/16-18 hd. (Gr. 5)
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

29

MTD 712-3022

Hex L-Nut 1/2-13

$3.99

$

In Stock, Qty 8

0

30

MTD 914-0111

Cotter Pin 3/32 x 1.0
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

31

MTD 914-0145

Cotter Pin
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

32

MTD 714-0162

Cotter Pin

$4.99

$

In Stock, Qty 20+

0

33

MTD 753-04070

Linch Pin .1875

$9.99

$

In Stock, Qty 20+

0

34

MTD 736-0317

Washer .63 x 1.25 x .180

$7.99

$

In Stock, Qty 20+

0

35

MTD 914-0470

Cotter Pin 1/8" Dia x 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

36

MTD 715-0108

Spring Pin 1/4 Dia. x 1.0

$4.99

$

In Stock, Qty 15

0

37

MTD 917-04074

Deck adjustment Gear

$13.99

$

In Stock, Qty 20+

0

38

MTD 921-04041

Water Nozzle Adaptor

$23.99

$

In Stock, Qty 20+

0

39

MTD 731-0335

Deck Roller

$72.99

$

In Stock, Qty 11

0

40

MTD 731-05679

Front Roller
(Superseded to 731-05679B)

$18.99

$

In Stock, Qty 20+

0

41

MTD 732-04652

Compression Spring .535 OD x 1.751 Lg.

$6.99

$

In Stock, only 3 left!

0

42

MTD 732-04692

Extension Spring .85 Dia. x 5.915

$9.49

$

In Stock, only 1 left!

0

43

MTD 732-0934

Extension Spring 1.5 x 5.99

$11.99

$

In Stock, only 1 left!

0

44

MTD 734-04155

Deck Wheel 5.0

$20.99

$

In Stock, Qty 20+

0

45

MTD 936-0119

L-Wash 5/16 ID

$4.99

$

In Stock, Qty 20+

0

46

MTD 936-0179

Flat Washer .531 x 1.25 x .100
(Superseded to 736-0179)

$4.99

$

In Stock, only 2 left!

0

47

MTD 736-0225

Lockwasher 5/8

$4.49

$

In Stock, only 2 left!

0

48

MTD 936-0300

Flat Washer .406 x .875 x .059
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

49

MTD 936-0921

Lockwasher
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 5

0

50

MTD 737-04003D

Port, Water

$23.99

$

In Stock, Qty 6

0

51

MTD 738-0295

Shaft .75 x 47.12

$124.99

$

In Stock, only 2 left!

0

52

MTD 738-1229A

Shoulder Screw

$12.99

$

In Stock, only 4 left!

0

53

MTD 938-3056

Shoulder Screw

$9.49

$

In Stock, Qty 20+

0

54

MTD 942-0677B

Blade 18.5"

$30.99

$

In Stock, Qty 20+

0

55

MTD 747-04938

Idler Belt Keeper Rod

$7.99

$

In Stock, only 3 left!

0

56

MTD 747-05141A

Deck Lift Rod
(Superseded to 747-05141B)

$22.99

$

In Stock, Qty 17

0

57

MTD 937-3000

Grease

$4.99

$

In Stock, Qty 20+

0

58

MTD 747-05462

Deck Sway Rod

$33.99

$

In Stock, only 1 left!

0

59

MTD 747-1116

Deck Release Pin

$12.99

$

Usually ships in 3-6 days

0

60

MTD 950-0212

Spacer .82 ID x 1.0 OD x .53
(Superseded to 750-0212)

$

$

Not available

61

MTD 750-04597

Spacer .380 ID x .90 OD x 1.313

$

$

Not available

62

MTD 750-0933

Spacer .385 ID x .88 OD x .64

$3.99

$

In Stock, Qty 8

0

63

MTD 954-04083

V-Type Belt

$95.99

$

In Stock, only 4 left!

0

64

MTD 756-04129B

Idler Pulley w/Flange 4.25 Dia
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

65

MTD 783-04013A-0637

Bracket, Stabilizing

$22.99

$

In Stock, only 1 left!

0

66

MTD 783-04690B-0637

Deck Shirt

$42.99

$

In Stock, only 3 left!

0

67

MTD 783-04726-0637

Idler Bracket

$36.99

$

Usually ships in 3-6 days

0

68

MTD 738-1197

Spindle Shaft, 6.95" Lg.

$41.99

$

In Stock, Qty 15

0

69

MTD 783-1470A-0606

Spindle Cover RH
(Superseded to 783-1470A)

$86.99

$

Usually ships in 3-6 days

0

70

MTD 783-1471-0606

Spindle Cover LH
(Superseded to 783-1471A-0637)

$80.99

$

Usually ships in 3-6 days

0

71

MTD 941-0919A

Ball Bearing .787 ID x 1.85 OD x .551
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

72

MTD 748-0160A

Spacer .790 ID x 1.25 OD x .175

$6.99

$

In Stock, only 3 left!

0

73

MTD 750-1000

Spacer .79 x 1.82 x .55

$4.49

$

In Stock, Qty 7

0

74

MTD 750-1349A

Spacer .79 ID x 1.82 OD x .55

$13.99

$

In Stock, only 3 left!

0

75

MTD 756-04216

Deck Pulley

$33.99

$

In Stock, only 1 left!

0

76

MTD 631-04070A

Chute Assembly
(Superseded to 631-04070C)

$122.99

$

In Stock, only 2 left!

0

77

MTD 711-04565

Hinge Pin

$15.99

$

In Stock, only 3 left!

0

78

MTD 732-04372

Torsion Spring .44 ID x 2.0

$10.99

$

In Stock, Qty 9

0

79

MTD 783-05030

Chute Bracket

$29.99

$

In Stock, Qty 5

0
