GT 2654 F (960430294-00) - RedMax 54" Garden Tractor, 26hp (2018-10) MOWER DECK / CUTTING DECK Parts Diagram

54" Garden Tractor, 26hp

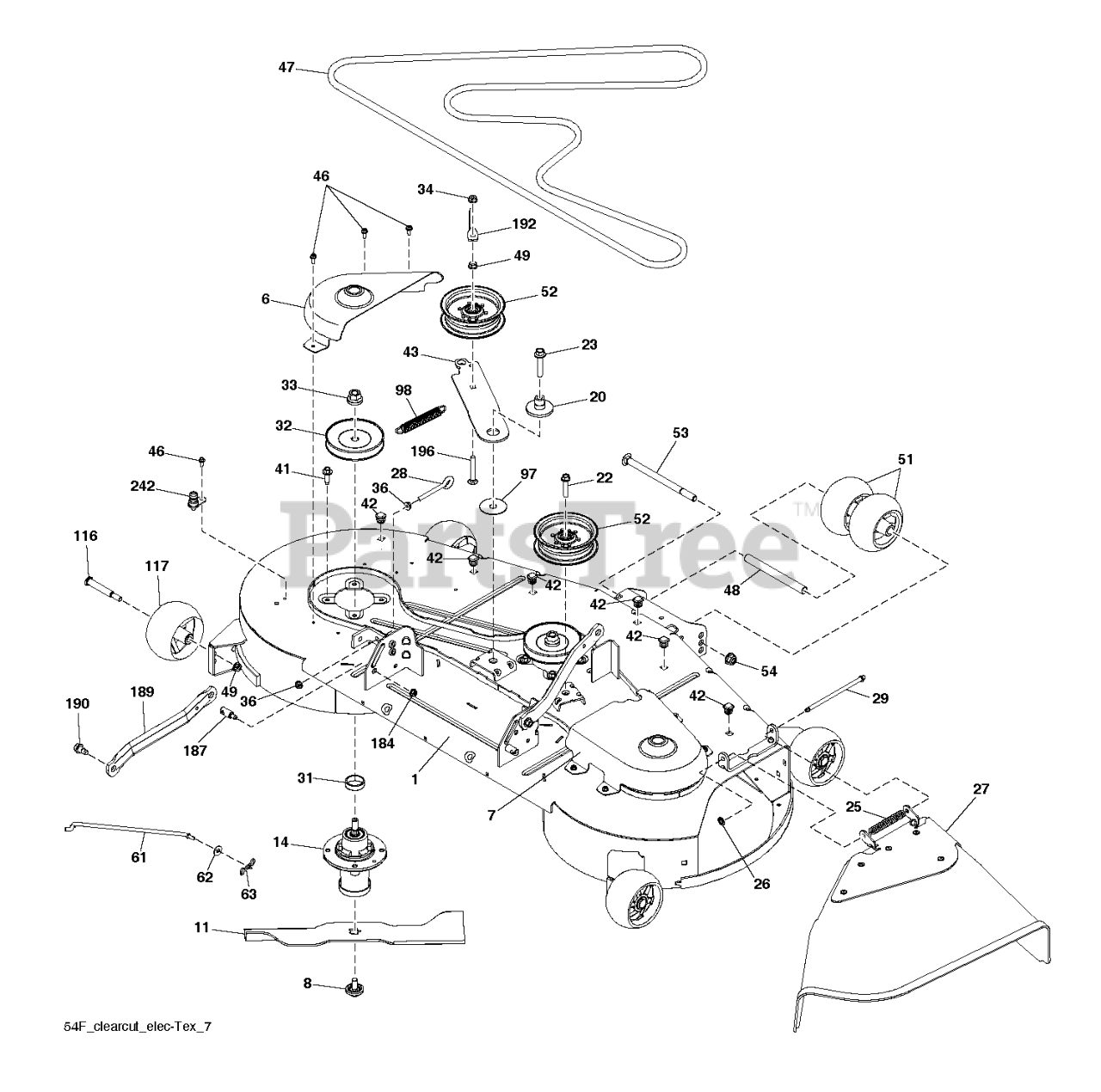

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
--

RedMax 591350201

DECK.ASM.SVC..54CC.EL.

$2184.99

$

Usually ships in 3-10 days

0

1

RedMax 591350101

DECK.SVC.WLDT.54CC.428

$1455.99

$

Usually ships in 3-10 days

0

6

RedMax 590304305

COVER 54 CLEARCUT, LH MANDREL,

$11.99

$

Usually ships in 3-10 days

0

7

RedMax 590304205

COVER 54 CLEARCUT RH MANDREL B

$26.99

$

Usually ships in 3-10 days

0

8

RedMax 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

11

RedMax 582760502

BLADE CC54 PZ STYLE HI LIFT BL

$39.99

$

In Stock, Qty 6

0

14

RedMax 539131898

MANDREL ASM, CAST IRON

$80.99

$

In Stock, Qty 8

0

20

RedMax 532197236

SPACER.IDLER.PULLY.HUB

$9.49

$

Usually ships in 3-10 days

0

22

RedMax 817490628

SCREW LT
(Superseded to 596564003)

$3.49

$

Usually ships in 3-10 days

0

23

RedMax 588438301

SCREW.7/16-14 X 2.125.WASHER

$6.99

$

Usually ships in 3-10 days

0

25

RedMax 587354701

SPRING.42.FCS.DEFLECTOR

$6.99

$

In Stock, Qty 10

0

26

RedMax 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

27

RedMax 590632204

DEFLECTOR ASSY 54 CLEARCUT RES

$79.99

$

In Stock, only 1 left!

0

28

RedMax 539115574

EYE BOLT 5/16 X 3.50
(Superseded to 596240801)

$4.99

$

In Stock, only 2 left!

0

29

RedMax 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

31

RedMax 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 20+

0

32

RedMax 532153535

PULLEY/MANDREL
(Superseded to 532173436)

$17.99

$

In Stock, Qty 20+

0

33

RedMax 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 12

0

34

RedMax 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 6

0

36

RedMax 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

41

RedMax 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$4.99

$

In Stock, Qty 16

0

42

$3.99

$

Usually ships in 3-10 days

0

43

RedMax 582219602

ARM IDLER ARM, CLEARCUT 54 BLA

$5.99

$

In Stock, only 3 left!

0

46

RedMax 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

47

RedMax 582236301

BELT CLEARCUT 54, TRACTOR DECK

$72.99

$

In Stock, only 2 left!

0

48

RedMax 574196501

TUBE, ROLLER AXLE LONG

$14.99

$

Usually ships in 3-10 days

0

49

RedMax 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

51

RedMax 574169601

ROLLER, GAUGE .635 BORN

$17.99

$

Usually ships in 3-10 days

0

52

RedMax 532197379

PULLEY.IDLER.2006
(Superseded to 532196106)

$39.99

$

In Stock, Qty 14

0

$

$

Not available

54

RedMax 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

61

RedMax 532400337

ROD.ANTI.SWAY.48/54"TE
(Superseded to 596274401)

$11.99

$

In Stock, only 4 left!

0

62

RedMax 819131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, Qty 5

0

63

RedMax 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

97

$6.99

$

Usually ships in 3-10 days

0

98

RedMax 587358401

SPRING.EXTN.42.FCS.TR.DECK.DRV

$7.99

$

In Stock, Qty 6

0

116

RedMax 532193406

BOLT.SHOULDER.3/8-16X3-5/8.
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

117

RedMax 589527301

WHEEL.GAUGE.RALLY

$10.99

$

Usually ships in 3-10 days

0

184

RedMax 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

187

RedMax 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

189

RedMax 587140502

ARM.RFIXED.MOWER.SUSPNSIONX431

$6.99

$

Usually ships in 3-10 days

0

190

RedMax 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

192

RedMax 532198468

KEEPER.BELT.IDLER.54"T

$17.99

$

Usually ships in 3-10 days

0

196

RedMax 539128101

CARRIAGE BOLT 3/8-16 X
(Superseded to 596337801)

$5.99

$

In Stock, Qty 11

0

242

RedMax 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 17

0

- -

RedMax 532416405

COUPLING.QUICK CONNECT

$10.99

$

In Stock, Qty 6

0

RedMax 591350201

DECK.ASM.SVC..54CC.EL.

$2184.99

$

Usually ships in 3-10 days

0
