GT 25540 (2690742) - Snapper 54" Garden Tractor, 25hp Wheels & Tires Group Parts Diagram

54" Garden Tractor, 25hp

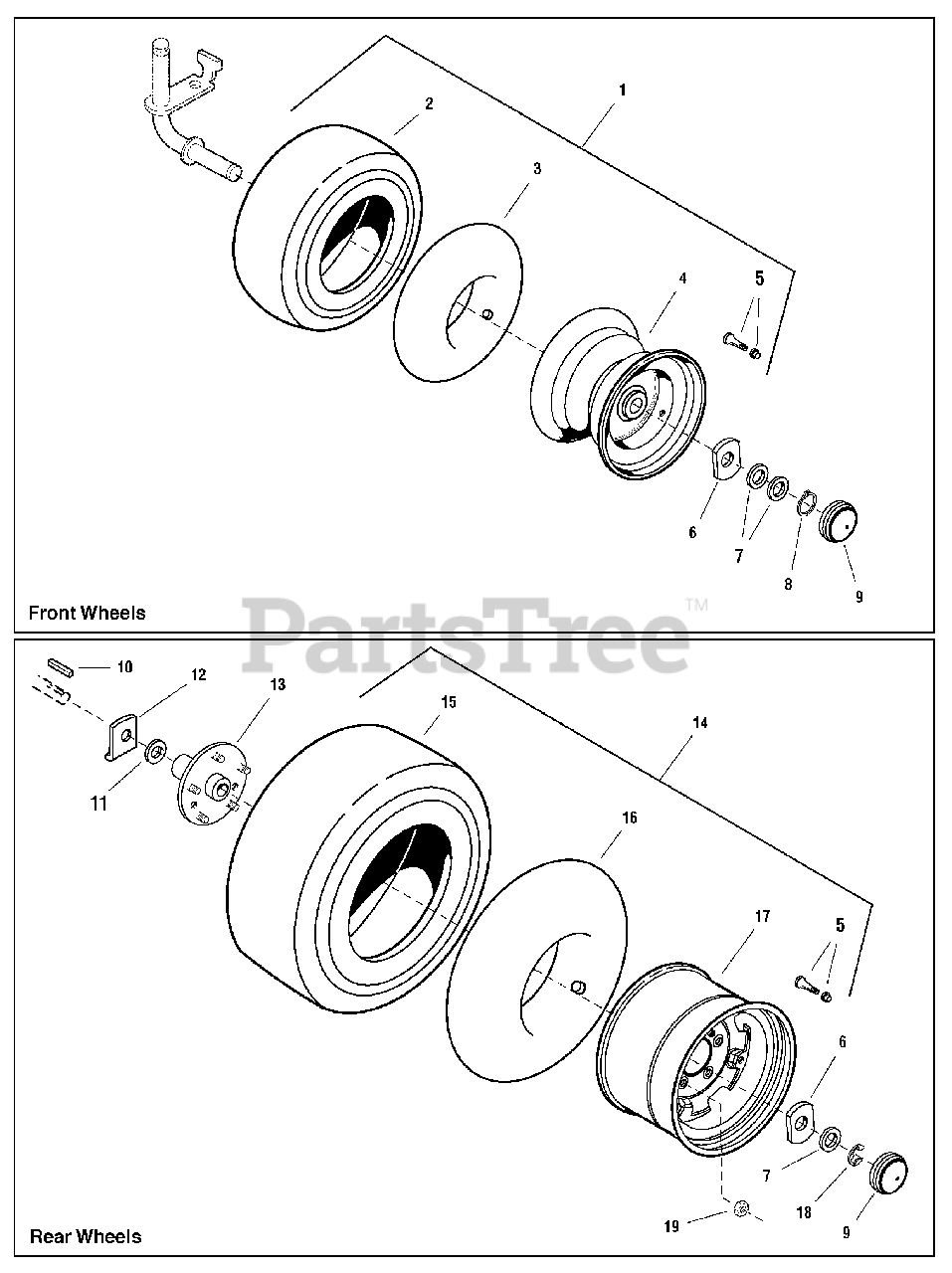

Wheels & Tires Group Parts Diagram

  • Title

1

Snapper 1722305SM

WHEEL & TIRE ASSEMBLY, Front, (Includes Ref. Nos. 2, 3, 4 & 5)
(Superseded to 84002906)

$227.99

$

In Stock, only 1 left!

0

2

Snapper 1727146SM

TIRE, 24 x 12 - 12, Front

$262.99

$

Usually ships in 2-12 days

0

3

Snapper 2157638SM

TUBE, Tire 23 x 10-1/2 - 12, Front

$86.99

$

In Stock, only 2 left!

0

4

Snapper 1726490SM

WHEEL, 12 x 8-1/2, Front

$193.99

$

Usually ships in 2-12 days

0

5

Snapper 2172353SM

VALVE STEM & CAP ASSEMBLY
(Superseded to 024373MA)

$

$

Not available

6

Snapper 1722726SM

WASHER, Special, 1 x 2-1/2

$5.49

$

In Stock, only 1 left!

0

7

Snapper 1919394SM

WASHER
(Superseded to 703149)

$3.49

$

In Stock, Qty 20+

0

8

Snapper 2832577SM

RING, Retainer

$4.49

$

In Stock, Qty 20+

0

9

Snapper 1722676SM

CAP, Hub Grey, 2-23/64

$5.49

$

In Stock, Qty 20+

0

10

Snapper 2105337SM

KEY, HI PRO, 1/4 x 2

$8.49

$

In Stock, Qty 12

0

11

Snapper 2860200SM

WASHER

$5.49

$

In Stock, Qty 5

0

12

Snapper 1719172SM

WASHER, Axle Seal
(Superseded to 1719172ASM)

$19.99

$

In Stock, Qty 8

0

13

Snapper 1721400SM

PLATE & HUB ASSEMBLY, Rear Wheel w/Studs

$101.99

$

Usually ships in 2-12 days

0

14

Snapper 1722766SM

WHEEL & TIRE ASSEMBLY, Rear 23" (Includes Ref. Nos. 5, 15, 16 & 17)

$249.99

$

Usually ships in 2-12 days

0

15

Snapper 1722830SM

TIRE, 23 x 10-1/2 - 12 Super Turf, Rear

$242.99

$

Usually ships in 2-12 days

0

16

Snapper 2157638SM

TUBE, Tire 23 x 10-1/2 - 12, Rear

$86.99

$

In Stock, only 2 left!

0

17

Snapper 1722831SM

WHEEL, 7 x 12, Rear

$176.99

$

Usually ships in 2-12 days

0

18

Snapper 2834712SM

RING, Shaft

$4.99

$

In Stock, only 2 left!

0

19

Snapper 2177725SM

NUT, Hex 7/16-20, For Wheel Bolt

$6.49

$

In Stock, only 3 left!

0
