GT 25540 (2690742) - Snapper 54" Garden Tractor, 25hp Engine & Electric Clutch Group - 25HP Kohler Parts Diagram

54" Garden Tractor, 25hp

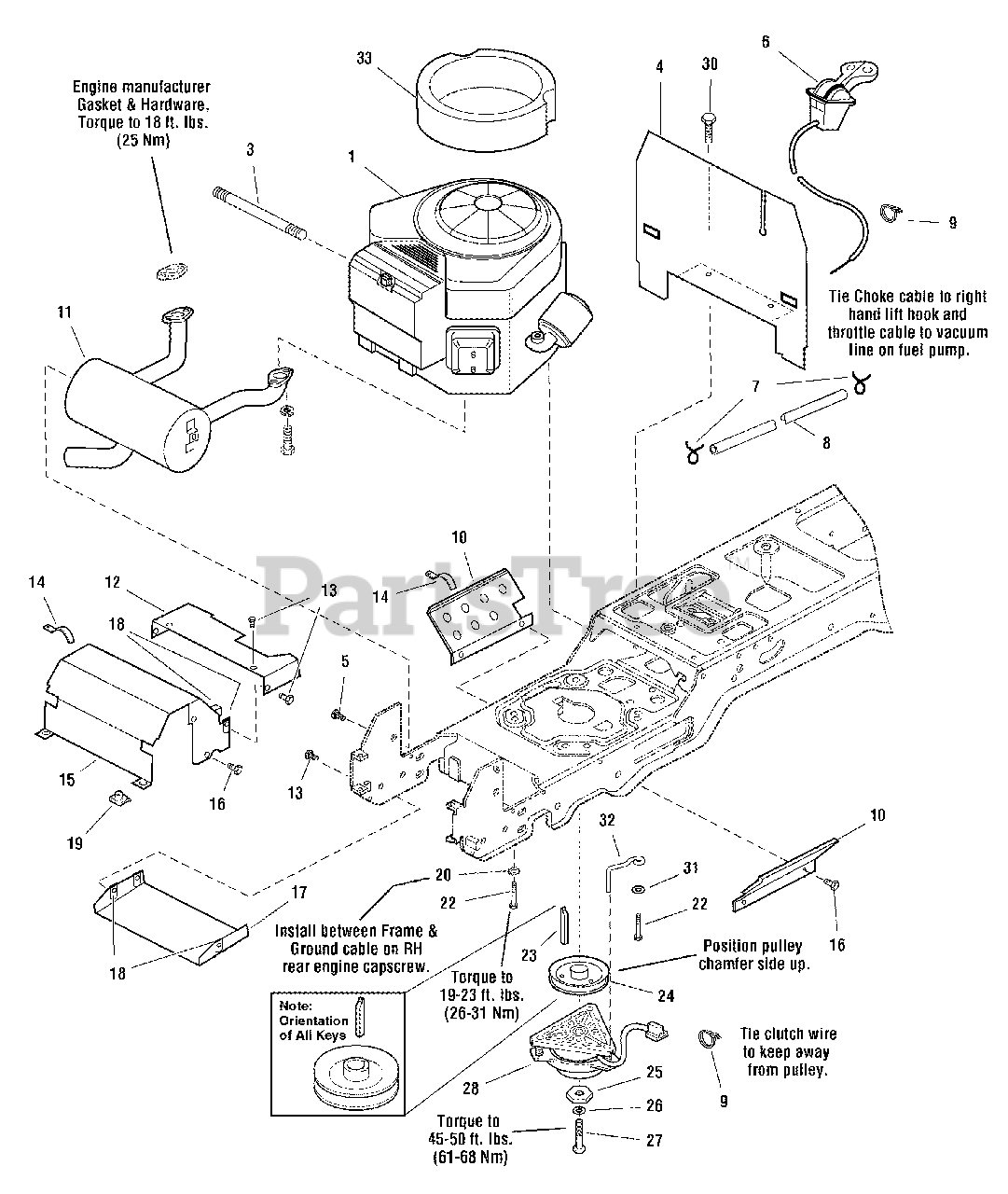

Engine & Electric Clutch Group - 25HP Kohler Parts Diagram

  • Title

1

Snapper CV730S-PS-CV730-3113

* ENGINE, 25HP Kohler Command Twin - Model CV730S, PS-CV730-3113

$

$

Currently unavailable

3

Snapper 1723165

HOSE, Oil Drain
(Superseded to 1723165SM)

$20.99

$

In Stock, Qty 8

0

4

Snapper 1722388A

BULKHEAD
(Superseded to 1722388ASM)

$39.99

$

Usually ships in 2-12 days

0

5

Snapper 1924856

SCREW, Hex Washer Head Taptite 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

6

Snapper 1727375

THROTTLE, Control Double 51.0 LG w/Knobs
(Superseded to 1727375SM)

$125.99

$

Usually ships in 2-12 days

0

7

Snapper 2860112

CLAMP, Hose
(Superseded to 2860112SM)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper 1718678

HOSE, Fuel

$

$

Not available

9

Snapper 1701011

TIE, Self Locking
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

10

Snapper 1722392A

SHIELD, Side
(Superseded to 1722392ASM)

$10.99

$

Usually ships in 2-12 days

0

11

Snapper 1721705

MUFFLER, Kohler Twin
(Superseded to 1721705SM)

$213.99

$

Usually ships in 2-12 days

0

12

Snapper 1733884A

DUCT, Muffler
(Superseded to 1733884ASM)

$15.99

$

Usually ships in 2-12 days

0

13

Snapper 1960295

SCREW, Hex Whiz Lock Flange 1/4-20 x 5/8
(Superseded to 1960295SM)

$4.49

$

In Stock, only 1 left!

0

14

Snapper 2834683

CLIP, Speed Wire
(Superseded to 703176)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper 1722389A

DUCT, Muffler Top
(Superseded to 1722389ASM)

$80.99

$

Usually ships in 2-12 days

0

16

Snapper 1929000

SCREW, Hex Washer Head Taptite 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

17

Snapper 1722414A

SHIELD, Muffler
(Superseded to 1722414ASM)

$20.99

$

Usually ships in 2-12 days

0

18

Snapper 1960368

NUT, Speed 1/4-20 Lug Type
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

19

Snapper 1935255

NUT, Speed, Lug Type, 5/16-18
(Superseded to 1935255SM)

$3.49

$

In Stock, only 2 left!

0

20

Snapper 2820427

LOCKWASHER, External Tooth 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

22

Snapper 2830598

SCREW, Hex Washer Head Taptite 3/8-16 x 1-1/2
(Superseded to 704010)

$4.99

$

Usually ships in 2-12 days

0

23

Snapper 1720463

KEY, Hi-Pro, 2.5" x .250" Square
(Superseded to 1720463SM)

$8.99

$

In Stock, only 1 left!

0

24

Snapper 1722288

PULLEY & HUB ASMY
(Superseded to 1739847YP)

$42.99

$

In Stock, only 1 left!

0

25

Snapper 1708264

WASHER, Hex
(Superseded to 1708264SM)

$8.99

$

In Stock, Qty 5

0

26

Snapper 1918199

LOCKWASHER, Spring
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

27

Snapper 1960649

CAPSCREW, Hex Head 7/16-20 x 3-1/2 G5
(Superseded to 1960649SM)

$7.49

$

In Stock, only 1 left!

0

28

Snapper 1686883

CLUTCH, Electric, Ogura, Adjustable
(Superseded to 1687296SM)

$402.99

$

In Stock, only 1 left!

0

30

Snapper 1925003

SCREW, Hex Washer Head Taptite 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0

31

Snapper 1924940

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

32

Snapper 1732026

RETAINER, Clutch
(Superseded to 1737420AYP)

$12.99

$

Usually ships in 2-12 days

0

33

Snapper 1731971

EDGING, Rubber
(Superseded to 1731971SM)

$12.99

$

Usually ships in 2-12 days

0
