GT-2554 (14AR809K063) - Troy-Bilt 54" Garden Tractor (2002) Frame & Seat Parts Diagram

54" Garden Tractor

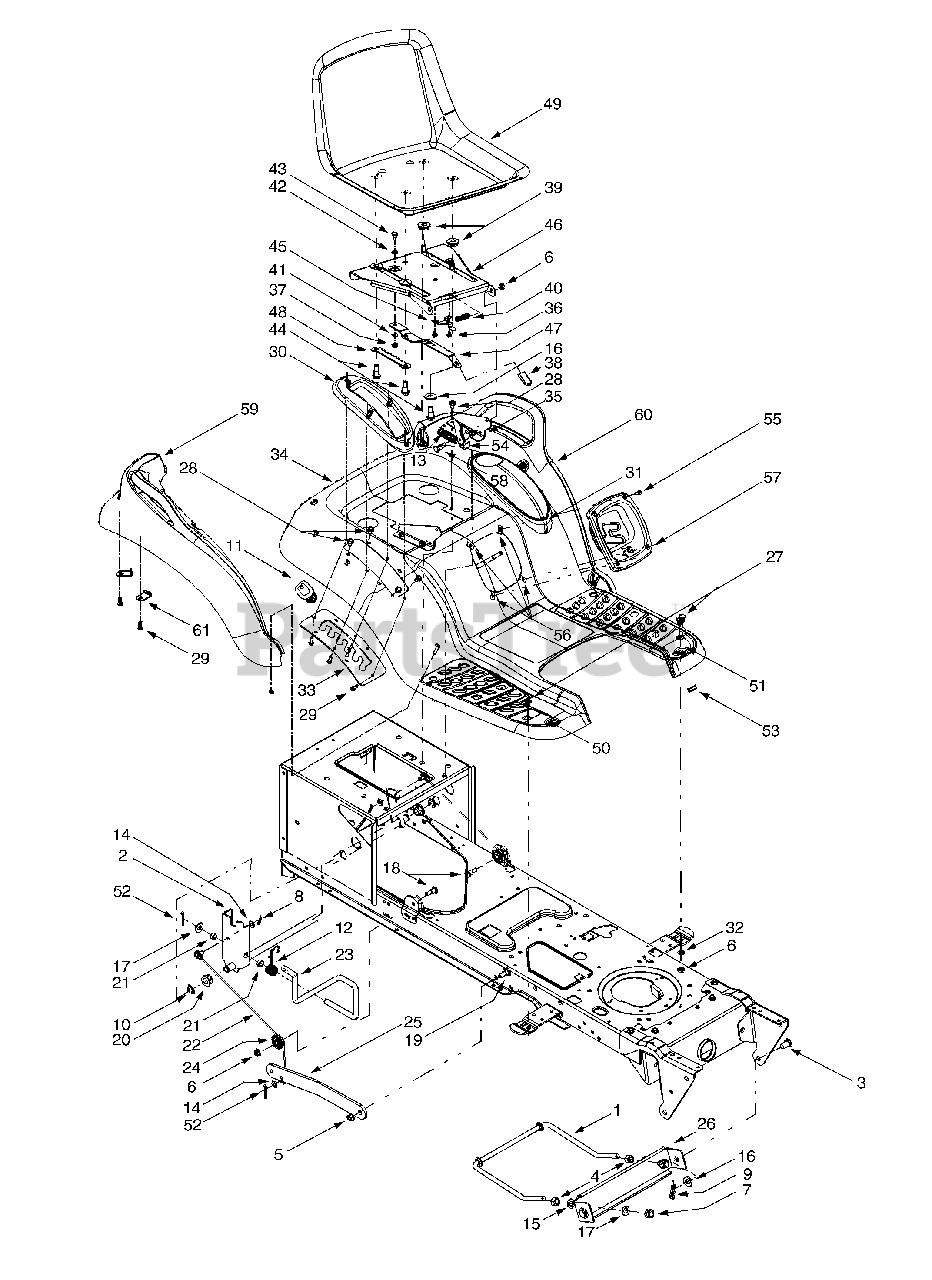

Frame & Seat Parts Diagram

  • Title

1

Troy-Bilt 747-1130B

Deck Stabilizer Rod (Model B809H)

$41.99

$

In Stock, only 3 left!

0

Troy-Bilt 747-1324

Deck Stabilizer Rod (Model R809K)

$58.99

$

In Stock, only 3 left!

0

2

Troy-Bilt 683-0197A

Lift Shaft Assembly (Model B809H)

$

$

Not available

Troy-Bilt 683-0642

Lift Shaft Assembly (Model R809K)

$

$

Currently unavailable

3

Troy-Bilt 711-0332

Clevis Pin, .5 x .78
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 15

0

4

Troy-Bilt 712-0206

Hex Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 712-3083

Hex Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 714-0104

Internal Cotter Pin

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 714-0145

Internal Cotter Pin

$4.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 716-0106

E-ring

$4.49

$

In Stock, Qty 12

0

11

Troy-Bilt 720-0311

Handle Grip

$15.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 732-0874

Torsion Spring

$4.99

$

In Stock, Qty 6

0

13

Troy-Bilt 732-1184

Extension Spring, .84 x 4.6

$11.99

$

In Stock, only 1 left!

0

14

Troy-Bilt 736-0275

Flat Washer, 5/16

$6.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 736-0921

Lock Washer, 1/2

$4.49

$

In Stock, Qty 6

0

16

Troy-Bilt 736-3019

Flat Washer, .31 x 1.062 x .134

$5.99

$

In Stock, Qty 11

0

17

Troy-Bilt 736-3084

Flat Washer, .51 x 1.12 x .06

$4.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 738-0138A

Hex Cap Screw, 5/16-18 x .62

$6.99

$

In Stock, only 2 left!

0

19

Troy-Bilt 738-0143

Shoulder Screw, 3/8-16

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 741-0715

Snap Flange Bearing
(Superseded to 941-0715)

$

$

Not available

22

Troy-Bilt 746-0968

Lift Cable, 16.16

$19.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 747-1111A

Lift Handle

$

$

Not available

24

Troy-Bilt 756-1154

Roller Pulley

$7.99

$

In Stock, only 2 left!

0

25

Troy-Bilt 783-0678A

Arm Lift
(Superseded to 783-0678C)

Variations

Troy-Bilt 783-0678A-0637

Lift Deck Link - POWDER BLACK (0637)

$29.99

$

In Stock, only 1 left!

0

Troy-Bilt 783-0678A-4008

LINK-LIFT DECK - WINE RED (4008)

$29.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 783-0720A

Deck Stabilizer Bracket
(Superseded to 783-0720C)

Variations

Troy-Bilt 783-0720A-0637

Deck Adjustment Bracket, Front - POWDER BLACK (0637)

$45.99

$

In Stock, only 2 left!

0

Troy-Bilt 783-0720A-4008

BRACKET-ADJ:FRT DE - WINE RED (4008)

$36.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 710-0260A

Carriage Bolt, 5/16 x .62

$4.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 710-0604A

Self-tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

29

Troy-Bilt 710-0895

Self-tapping Screw, 1/4-15 x .75

$6.49

$

In Stock, only 4 left!

0

30

Troy-Bilt 731-1990

Lift Lever Cover
(Superseded to 731-06795)

$24.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 731-1993

Cover w/ Cup Holder
(Superseded to 731-1993A)

$25.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 736-3078

Flat Washer, .349 x 1.0 x .063

$4.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 783-0677

Lift Adjustment Bracket
(Superseded to 783-0677B-0637)

Variations

Troy-Bilt 783-0677-0637

Lift Adjustment Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

34

MTD 783-1280

Fender

Variations

Troy-Bilt 783-1280-0606

FENDER 4 STYLE - MAJESTIC ORANGE (0606)

$

$

Not available

Troy-Bilt 783-1280-0638

FENDER 4 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 783-1280-0650

FENDER 4 STYLE - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 783-1280-0665

FENDER 4 STYLE - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 783-1280-0709

FENDER 4 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

Troy-Bilt 783-1280-0716

FENDER 4 STYLE - CUB YELLOW-99 (0716)

$

$

Not available

$

$

35

Troy-Bilt 783-1489

Seat Mounting Bracket
(Superseded to 783-1489C)

Variations

Troy-Bilt 783-1489-0637

Seat Mounting Bracket - POWDER BLACK (0637)

$23.99

$

In Stock, only 1 left!

0

$19.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 710-1268

Screw, #10-16 x .375

$4.49

$

In Stock, Qty 20+

0

37

Troy-Bilt 712-3027

Hex Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

38

Troy-Bilt 720-0309A

Seat Adjuster Grip

$9.49

$

Usually ships in 3-6 days

0

39

Troy-Bilt 731-1989

Spacer

$

$

Not available

40

Troy-Bilt 732-0499

Compression Spring, .41 x 1.5

$9.49

$

In Stock, only 1 left!

0

41

Troy-Bilt 736-0175

Spring Washer, .265 x .562 x .025
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

42

Troy-Bilt 736-0204

Flat Washer, .344 x .62 x .03

$4.49

$

In Stock, Qty 20+

0

43

Troy-Bilt 738-0137A

Shoulder Screw, .340 x .285,1/4-20

$10.99

$

In Stock, Qty 10

0

44

Troy-Bilt 738-1007

Shoulder Screw, .50 x .50, 3/8-16

$

$

Not available

45

Troy-Bilt 783-0611

Seat Stop

$10.99

$

In Stock, only 3 left!

0

46

Troy-Bilt 783-0738

Seat Pivot Bracket
(Superseded to 783-0738D)

Variations

Troy-Bilt 783-0738-0498

Seat Pivot Bracket - OLD CUB YELLOW (0498)

$

$

Not available

Troy-Bilt 783-0738-0716

Seat Pivot Bracket - CUB YELLOW-99 (0716)

$

$

Not available

Troy-Bilt 783-0738-0638

Seat Pivot Bracket - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 783-0738-0650

BRACKET-PIVOT:SEAT - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 783-0738-0665

BRACKET-PIVOT:SEAT - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 783-0738-0691

Seat Pivot Bracket - BLACK JACK (0691)

$

$

Not available

$

$

47

Troy-Bilt 783-0739

Seat Adjustment Lever

Variations

Troy-Bilt 783-0739-0498

Seat Adjust Lever - OLD CUB YELLOW (0498)

$25.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-0739-0638

Seat Adjust Lever - MTD/TROY-BILT RED (0638)

$25.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-0739-0665

Seat Adjust Lever - YARDMAN GREEN (0665)

$25.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-0739-0691

Seat Adjust Lever - BLACK JACK (0691)

$25.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-0739-0716

Seat Adjust Lever - CUB YELLOW-99 (0716)

$25.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 783-0753

Seat Adjustment Selector

$15.99

$

In Stock, only 1 left!

0

49

Troy-Bilt 757-0350

High Back Seat w/ Drain Holes, Black
(Superseded to 957-0350)

$588.99

$

Usually ships in 3-6 days

0

50

Troy-Bilt 735-0656

RH Foot Pad

$25.99

$

Usually ships in 3-6 days

0

51

Troy-Bilt 735-0657

LH Foot Pad

$26.99

$

Usually ships in 3-6 days

0

Troy-Bilt 726-3046

Foot Pad Clips

$3.99

$

In Stock, Qty 16

0

52

Troy-Bilt 714-0111

Cotter Pin

$4.99

$

In Stock, Qty 13

0

53

Troy-Bilt 731-0511

Trim Strip

$3.99

$

Usually ships in 3-6 days

0

54

Troy-Bilt 783-0209A

LH Seat Lift Bracket
(Superseded to 783-0209D)

$16.99

$

In Stock, only 1 left!

0

Troy-Bilt 17239A

RH Seat Lift Bracket
(Superseded to 17239C)

$

$

Not available

55

Troy-Bilt 710-0924

Phillips Pan Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

56

Troy-Bilt 712-0292

U-type Speed Nut, 1/4-20

$10.99

$

In Stock, only 2 left!

0

57

Troy-Bilt 731-2480

Shift Lever Cover
(Superseded to 731-2480A)

$43.99

$

Usually ships in 3-6 days

0

58

Troy-Bilt 738-0296

Shoulder Screw, .437 x .286

$4.49

$

In Stock, Qty 20+

0

59

Troy-Bilt 731-2618

RH Fender Flare

$

$

Not available

60

Troy-Bilt 731-2619

LH Fender Flare

$80.99

$

Usually ships in 3-6 days

0

61

Fender Clips

Note: Not used (Use Carriage Bolt)

$

$

Not available

Troy-Bilt 910-0932

Carriage Bolt 1/4-20 x 1.0" Lg
(Superseded to 710-0932A)

$3.99

$

In Stock, only 4 left!

0

Troy-Bilt 912-0271

Hex Nut 1/4-20 Thd
(Superseded to 712-0271)

$4.49

$

In Stock, Qty 20+

0
