GT-2554 (14AR809K063) - Troy-Bilt 54" Garden Tractor (2002) 54 Inch Deck Parts Diagram

54" Garden Tractor

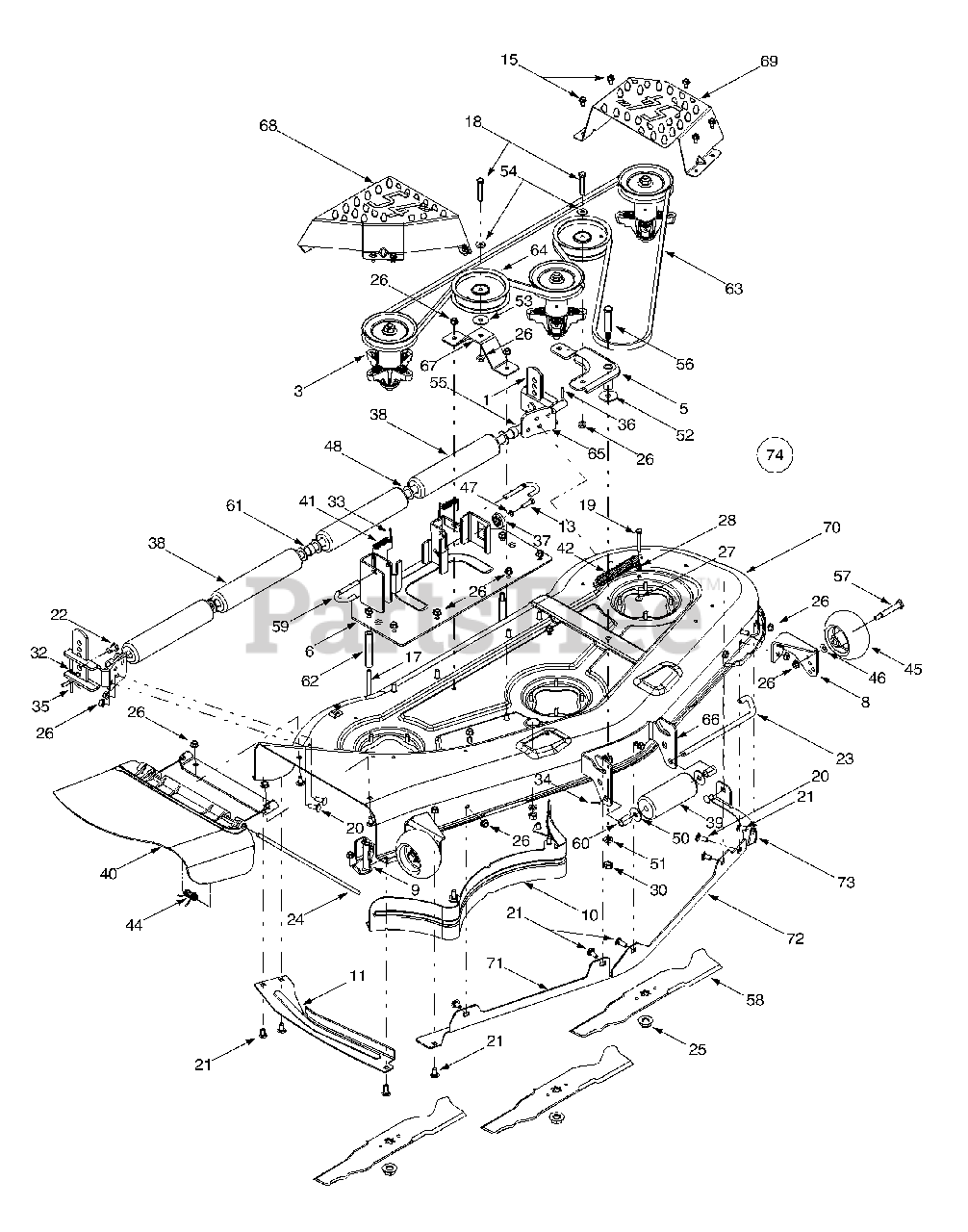

54 Inch Deck Parts Diagram

  • Title

1

Troy-Bilt 12650-0637

Bracket, Adjustment, Height

$43.99

$

In Stock, only 3 left!

0

2

Troy-Bilt 96606

Bracket, Hook, Retainer

$7.49

$

In Stock, Qty 7

0

3

Troy-Bilt 918-0671B

Spindle Assembly, Pulley, 5.39 Dia x .
(Superseded to 918-04608A)

$153.99

$

In Stock, Qty 16

0

4

Troy-Bilt 683-0254B

Bracket Assembly, Deck, Hanger LH

Variations

Troy-Bilt 683-0254B-0498

Deck Bracket Assembly, LH - OLD CUB YELLOW (0498)

$49.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-0254B-0716

Deck Bracket Assembly, LH - CUB YELLOW-99 (0716)

$49.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-0254B-4021

Deck Bracket Assembly, LH - CUB YELLOW 2 (4021)

$49.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-0254B-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$36.99

$

In Stock, only 1 left!

0

Troy-Bilt 683-0254B-4033

Deck Bracket Assembly, LH - FLINT MICA (4033)

$36.99

$

In Stock, only 1 left!

0

Troy-Bilt 683-0254B-4044

Deck Bracket Assembly, LH - CRAFTSMAN RED (4044)

$49.99

$

In Stock, only 1 left!

0

Troy-Bilt 683-0254B-0606

Deck Bracket Assembly, LH - MAJESTIC ORANGE (0606)

$36.99

$

In Stock, only 1 left!

0

Troy-Bilt 683-0254B-0638

Deck Bracket Assembly, LH - MTD/TROY-BILT RED (0638)

$36.99

$

In Stock, only 1 left!

0

Troy-Bilt 683-0254B-0650

BRACKET ASM-DECK LH - RED METALLIC (0650)

$49.99

$

In Stock, only 1 left!

0

Troy-Bilt 683-0254B-0665

BRACKET ASM-DECK LH - YARDMAN GREEN (0665)

$49.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-0254B-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$36.99

$

In Stock, only 1 left!

0

Troy-Bilt 683-0254B-4008

BRACKET ASM-DECK LH - WINE RED (4008)

$46.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-0254B-0709

BRACKET ASM-DECK LH - MASTERCRAFT GREEN (0709)

$49.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-0254B-4028

BRACKET ASM-DECK LH - SEARS YELLOW (4028)

$36.99

$

In Stock, only 1 left!

0

$46.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 683-0459-0637

Idlr Assembly, 54"

$74.99

$

In Stock, only 1 left!

0

6

Troy-Bilt 683-0608-0637

Bracket Assembly, Lift, 54"
(Superseded to 683-0608B-0637)

$

$

Not available

7

MTD 683-0609-0637

Bracket Assembly, LH-Front

$

$

Not available

8

MTD 683-0610-0637

Bracket Assembly, RH-Front

$

$

Not available

9

Troy-Bilt 683-0617A-0637

Stop Assembly, Chute

$64.99

$

In Stock, only 3 left!

0

10

Troy-Bilt 703-2093-0637

Baffle, RR, Inner
(Superseded to 703-2093C-0637)

$96.99

$

In Stock, only 2 left!

0

11

Troy-Bilt 703-3511A-0637

Guard, Finger
(Superseded to 703-3511B-0637)

$69.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 710-0528

Hex Screw, 5/16-18, 1.25, Gr5,

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 710-0602

Screw, Self-tapping, 5/16-18, 1.000

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 710-0604A

Screw, Self-tapping, 5/16-18, 0.625

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 710-0751

Hex Screw, 1/4-20, .620, Gr5,

$3.99

$

In Stock, Qty 20+

0

17

MTD 710-1644

Screw, Carriage, 3/8-16, Gr5, 5.00

$9.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 710-3011

Hex Screw, 3/8-16, 2.25, Gr5,

$6.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 710-0395

Hex Screw, 5/16-18, 2.25, Gr5,

Note: Replaces 710-3073

$4.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 710-3168

Bolt, Carriage, 3/8-16 x 1.0

$3.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 710-3178

Short Neck Carriage Bolt 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 911-0332

Pin, Clevis, .50 Dia x .78

$16.99

$

In Stock, Qty 17

0

23

Troy-Bilt 711-1737

Pin, Roller, .5" Dia x 10.06

$25.99

$

In Stock, Qty 6

0

24

Troy-Bilt 711-1762

Pin, Hinge, Dia .375 x 14.06

$18.99

$

In Stock, Qty 6

0

25

Troy-Bilt 712-0417A

Nut, Hex Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 912-0431

Nut, Flange Lock, 3/8-16

$4.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 712-3004A

Nut, Flange Lock, 5/16-18, Gr5

$3.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 912-3010

Nut, Hex, 5/16-18, Gr5
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

29

Troy-Bilt 912-3019

Nut, Hex, 7/16-14, Gr2
(Superseded to 712-3019)

$6.99

$

In Stock, only 1 left!

0

30

Troy-Bilt 712-3022

Nut, Hex Lock, 1/2-13

$3.99

$

In Stock, Qty 9

0

31

Troy-Bilt 912-3027

Nut, 1/4-20, Hexflg, Lock

$4.49

$

In Stock, Qty 17

0

32

Troy-Bilt 914-0145

Pin, Click, .092 x 1.64
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 914-0470

Pin, Cotter, 1/8 x 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

34

Troy-Bilt 714-3004

Pin, Cotter, 3/32 x 1.25

$4.99

$

In Stock, Qty 9

0

35

Troy-Bilt 715-0108

Pin, Sprg, 1/4 Dia x 1.00

$4.99

$

In Stock, Qty 15

0

36

Troy-Bilt 915-0246

Pin, Spring, 3/16 x 1.25

$6.99

$

In Stock, Qty 7

0

37

Troy-Bilt 917-04074

Adjustment, Deck, Gear

Note: Replaces 717-1553A

$13.99

$

In Stock, Qty 16

0

38

Troy-Bilt 731-0335

Roller, Deck

$72.99

$

In Stock, Qty 11

0

39

Troy-Bilt 731-3005

Front Roller

$28.99

$

In Stock, Qty 20+

0

40

Troy-Bilt 931-3131A

Deflector, Chute

$108.99

$

In Stock, only 4 left!

0

40

Troy-Bilt 631-04070A

Bracket, Chute
(Superseded to 631-04070C)

Note: Replaces 703-2392

$122.99

$

In Stock, only 4 left!

0

41

Troy-Bilt 932-0306A

Spring, Compression, .406 x .531 x 1.75

$8.49

$

In Stock, only 4 left!

0

42

Troy-Bilt 732-0459C

Spring, Extension, .94 Dia x 6.74

$18.99

$

In Stock, only 3 left!

0

43

Troy-Bilt 732-0934

Spring, Extension, 1.15 Dia x 5.99

$11.99

$

In Stock, only 1 left!

0

44

Troy-Bilt 732-3070A

Torsion Spring .44 I.d. x 2.10

$11.99

$

In Stock, only 4 left!

0

45

Troy-Bilt 753-04856A

Deck Wheel, 5" Dia.

Note: Replaces 734-3058B

$20.99

$

In Stock, Qty 20+

0

46

Troy-Bilt 736-0105

Washer, Bell, .375 x .870 x .063

$4.49

$

In Stock, Qty 20+

0

47

Troy-Bilt 936-0119

Washer, Lock, 5/16, Regular Duty

$4.99

$

In Stock, Qty 20+

0

48

Troy-Bilt 736-0134

Flat Washer, .812 ID x 1.38 OD x .1

$4.49

$

In Stock, Qty 10

0

49

Troy-Bilt 936-0171

Washer, Lock, 7/16 , Regular Duty
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

50

Troy-Bilt 936-0208

Flat Washer, .51 ID x 1.5 OD x .07
(Superseded to 736-0208)

$

$

Not available

51

Troy-Bilt 936-0921

Washer, Lock, 1/2 , Regular Duty
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 6

0

52

Troy-Bilt 736-3027

Flat Washer, .531 x 1.75 x .090

$

$

Not available

53

Troy-Bilt 936-3039

Flat Washer .406 ID X 1.5 x 11ga
(Superseded to 736-3039)

$

$

Not available

54

Troy-Bilt 736-3072

Washer, Flat .38 ID x.93 OD x.110

$4.49

$

In Stock, Qty 20+

0

55

Troy-Bilt 738-0295

Roller Shaft, .750 x .47.12

$124.99

$

In Stock, only 2 left!

0

56

Troy-Bilt 738-1229A

Shoulder Screw, 5/8 Dia x 2.50

$12.99

$

In Stock, only 4 left!

0

57

Troy-Bilt 938-3056

Shoulder Screw, 1/2 Dia x 2.50

$9.49

$

In Stock, Qty 20+

0

58

Troy-Bilt 942-0677B

Blade, 18.50"

$30.99

$

In Stock, Qty 20+

0

59

Troy-Bilt 747-1116

Deck Release Handle Rod, .375 Dia

$12.99

$

In Stock, Qty 6

0

60

Troy-Bilt 950-0151

Spacer .550 ID x .755 OD x 1.1

$10.99

$

In Stock, Qty 20+

0

61

Troy-Bilt 950-0212

Spacer, .82 ID x 1.00 OD x .53
(Superseded to 750-0212)

$

$

Not available

62

MTD 750-3213

Spacer, .405 x .75 x 3.875

$15.99

$

In Stock, only 2 left!

0

63

Troy-Bilt 954-0642

Belt, V-Type, B Section

$82.99

$

In Stock, Qty 8

0

64

Troy-Bilt 756-3105

Pulley, Idler, 5.0 Dia.

$73.99

$

In Stock, only 3 left!

0

65

Troy-Bilt 783-1453-0637

Bracket, Mounting, 54" Roller

$

$

Not available

66

Troy-Bilt 783-1454B-0637

Bracket, Roller, Front
(Superseded to 783-1454D-0637)

$57.99

$

Usually ships in 3-6 days

0

67

Troy-Bilt 783-1455-0637

Bracket, Idler

$

$

Not available

68

Troy-Bilt 783-1470-0637

Cover, Spindle RH
(Superseded to 783-1470A-0637)

$107.99

$

Usually ships in 3-6 days

0

69

Troy-Bilt 783-1471-0637

Cover, Spindle LH
(Superseded to 783-1471A-0637)

$80.99

$

Usually ships in 3-6 days

0

70

Troy-Bilt 983-04127-0637

Deck Shell Assembly, 54"
(Superseded to 983-04483-0637)

Note: Replaces 783-1479

$1098.99

$

Usually ships in 3-6 days

0

71

Troy-Bilt 783-1482-0637

RH Skirt

$

$

Not available

72

Troy-Bilt 783-1483-0637

LH Skirt

$41.99

$

Usually ships in 3-6 days

0

73

Troy-Bilt 783-1484-0637

LH Extension Skirt

$58.99

$

Usually ships in 3-6 days

0

74

Troy-Bilt 953-04000-0637

54-inch Deck Assembly Complete

$

$

Not available
