GT 2554 (14A-2A7K710) - Cub Cadet 54" Garden Tractor (2005 - 2008) Oil Pan and Lubrication Mtg Date K016 & Before Parts Diagram

54" Garden Tractor

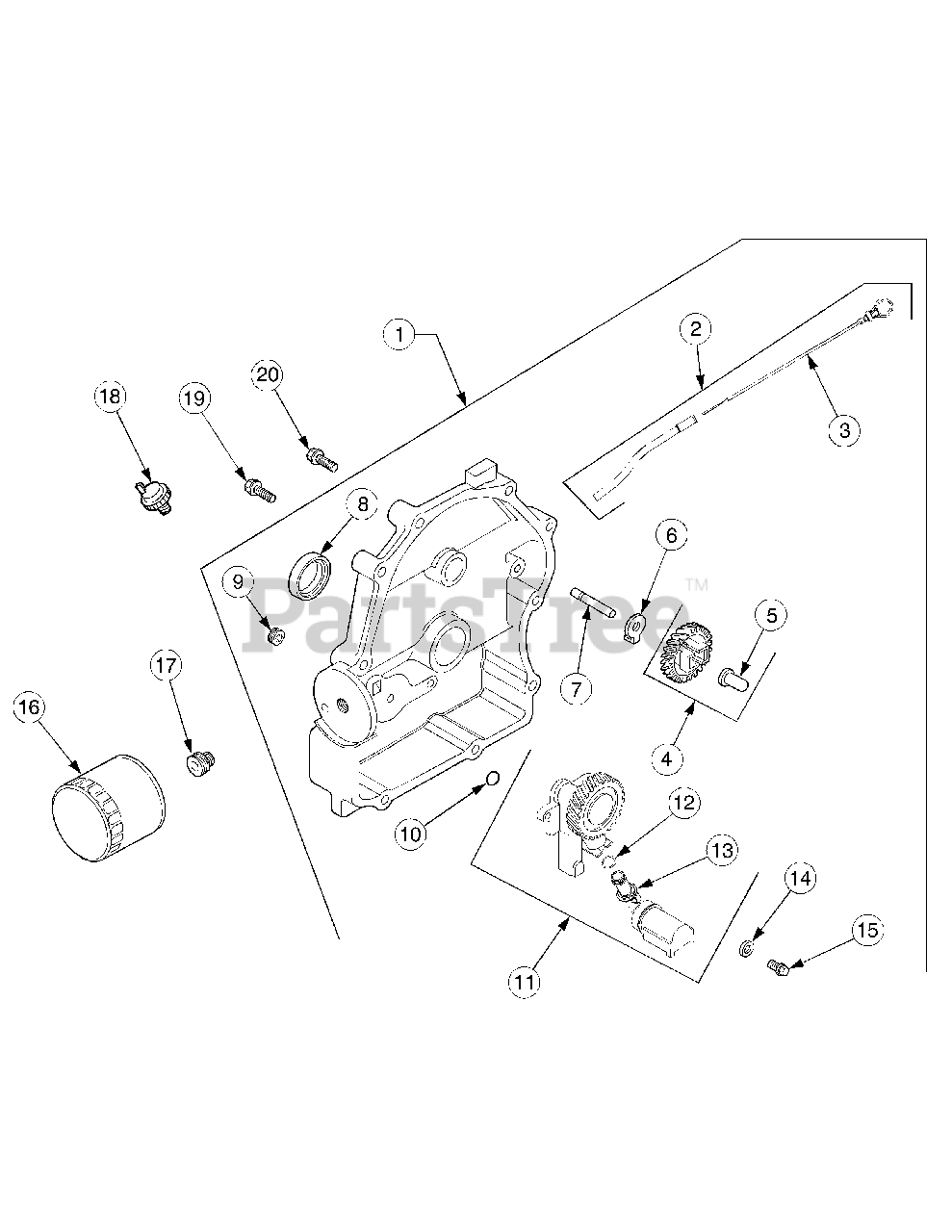

Oil Pan and Lubrication Mtg Date K016 & Before Parts Diagram

  • Title

1

Cub Cadet KH-24-009-83-S

Plate Assy, Closure (Incl. Ref #2-15)
(Superseded to KH-24-009-227-S)

$

$

Not available

2

Cub Cadet KH-24-755-121-S

Kit, Tube w/Dipstick

$35.99

$

In Stock, Qty 6

0

3

Cub Cadet KH-24-038-10-S

Dipstick

$12.99

$

In Stock, Qty 5

0

4

Cub Cadet KH-24-043-12

Kit, Governor Gear (Incl. Ref #6)

$

$

Not available

5

Cub Cadet KH-12-380-01

Pin, Governor Regulating

$

$

Not available

6

Cub Cadet KH-24-448-02-S

Tab, Locking

$2.49

$

In Stock, Qty 20+

0

7

Cub Cadet KH-12-144-02

Shaft, Governor Gear

$

$

Not available

8

Cub Cadet KH-52-032-08

Seal, Oil (PTO end)
(Superseded to KH-25-032-06-S)

$10.99

$

In Stock, Qty 20+

0

9

Cub Cadet KH-25-139-60-S

Plug, Pipe 1/8

$3.49

$

In Stock, only 2 left!

0

10

Cub Cadet KH-24-153-08

O-Ring

$

$

Not available

11

Cub Cadet KH-24-393-37-S

Oil Pump Assy (Incl. Ref #13-14)
(Superseded to KH-24-393-53-S)

$

$

Not available

12

Cub Cadet KH-24-153-01

O-Ring, Oil Pick-up

$

$

Not available

13

Cub Cadet KH-24-381-04

Pick-up, Oil

$

$

Not available

14

Cub Cadet KH-M-0631005

Washer, Plain
(Superseded to KH-M-631005)

$

$

Not available

15

Cub Cadet KH-M-0645025

Screw, Hex Flange, M6 x 1.0 x 25
(Superseded to KH-M-645025-S)

$2.49

$

In Stock, only 2 left!

0

16

Cub Cadet KH-12-050-08

Filter, Oil
(Superseded to KH-12-050-01-S)

$13.99

$

In Stock, Qty 20+

0

17

Cub Cadet KH-24-136-01

Nipple, Oil Filter
(Superseded to KH-24-136-09-S)

$6.99

$

Usually ships in 3-6 days

0

18

Cub Cadet KH-25-099-24

Switch, Pressure
(Superseded to KH-25-099-27-S)

$15.99

$

In Stock, only 4 left!

0

19

Cub Cadet KH-24-086-16

Screw, Hex Flange, M8 x 1.25 x 45
(Superseded to KH-24-086-17-S)

$2.49

$

In Stock, Qty 7

0

20

Cub Cadet KH-24-086-17

Screw, Hex Flange, M8 x 1.25 x 45
(Superseded to KH-24-086-17-S)

$2.49

$

In Stock, Qty 7

0
