GT 2554 (14A-2A7K710) - Cub Cadet 54" Garden Tractor (2005 - 2008) Engine Controls Parts Diagram

54" Garden Tractor

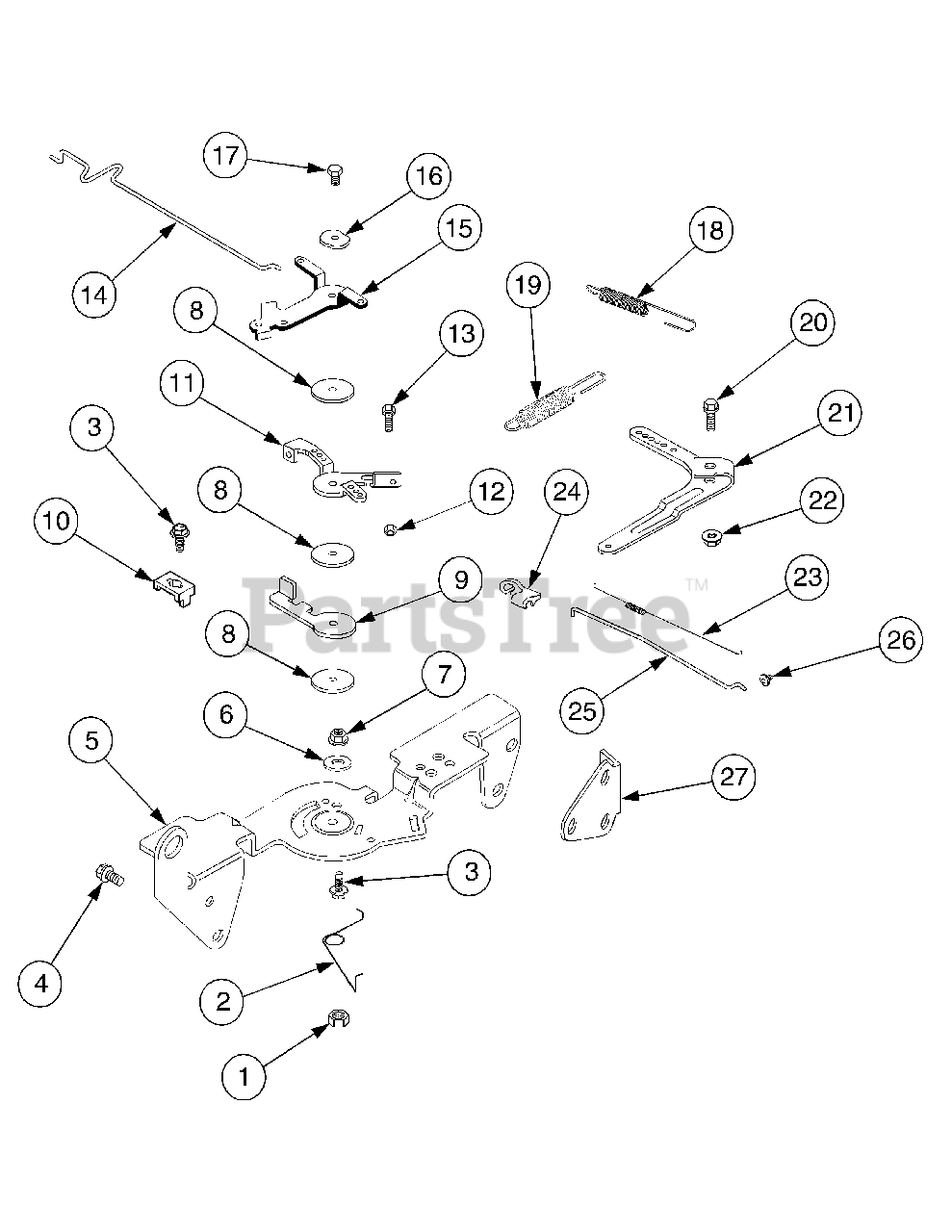

Engine Controls Parts Diagram

  • Title
1

Cub Cadet KH-M-547050

Nut, Hex Lock M5 x 0.8

$

$

Currently unavailable

2

Cub Cadet KH-24-089-03

Spring, Choke Return

$

$

Not available

3

Cub Cadet KH-M-645016-S

Screw, Hex Flange M6 x 1.0 x 16

$3.99

$

In Stock, Qty 13

0

4

Cub Cadet KH-M-545016-S

Screw, Hex Flange M5 x 0.8 x 16
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-24-126-56

Bracket, Control
(Superseded to KH-24-126-176-S)

$

$

Not available

$

$

Not available

$2.99

$

In Stock, Qty 10

0

8

Cub Cadet KH-24-468-01

Washer , Plain 5.5mm

$

$

Not available

9

Cub Cadet KH-24-090-07

Lever, Throttle Actuator
(Superseded to KH-24-090-65-S)

$5.49

$

In Stock, only 1 left!

0

10

Cub Cadet KH-12-237-01

Clamp, Cable
(Superseded to KH-25-237-53-S)

$3.99

$

Usually ships in 3-6 days

0

11

Cub Cadet KH-24-090-13

Lever, Throttle Control

$

$

Not available

12

Cub Cadet KH-M-446030-S

Nut, Hex M4 x 0.7

$2.49

$

In Stock, only 4 left!

0

13

Cub Cadet KH-M-401030

Screw, Hex Cap M4 x 0.7 x30

$

$

Not available

14

Cub Cadet KH-24-079-21-S

Linkage, Choke

$

$

Not available

15

Cub Cadet KH-24-090-05

Lever, Choke

$

$

Not available

16

Cub Cadet KH-41-468-03

Washer, Spring 1/4"

$

$

Not available

17

Cub Cadet KH-M-545020

Screw, Hex Flange M5 x 0,.8 x 20

$

$

Currently unavailable

18

Cub Cadet KH-24-089-51-S

Spring, Throttle Limiter

$5.49

$

In Stock, only 1 left!

0

19

Cub Cadet KH-24-089-45-S

Spring, Governor

$8.99

$

In Stock, Qty 10

0

20

Cub Cadet KH-24-211-03-S

Screw, Round Hd. Square Neck

$2.49

$

In Stock, Qty 15

0

21

Cub Cadet KH-24-090-51-S

Lever, Governor
(Superseded to KH-24-090-69-S)

$8.99

$

In Stock, only 1 left!

0

22

Cub Cadet KH-M-641060-S

Nut, Hex Flange M6 x 1.0

$4.49

$

In Stock, Qty 8

0

23

Cub Cadet KH-24-089-01

Spring, Linkage

$

$

Not available

24

Cub Cadet KH-25-158-11

Bushing, Linkage Retaining

$

$

Not available

25

Cub Cadet KH-24-079-01

Linkage, Throttle

$

$

Not available

26

Cub Cadet KH-25-158-08

Bushing, Linkage Retaining

$5.99

$

Usually ships in 2-5 days

0

27

Cub Cadet KH-24-126-04

Bracket, Support
(Superseded to KH-24-126-04-S)

$21.99

$

Usually ships in 2-5 days

0
