GT 2554 (14A-2A7K710) - Cub Cadet 54" Garden Tractor (2005 - 2008) Brake and Control Pedal Mtg Date K016 & Before Parts Diagram

54" Garden Tractor

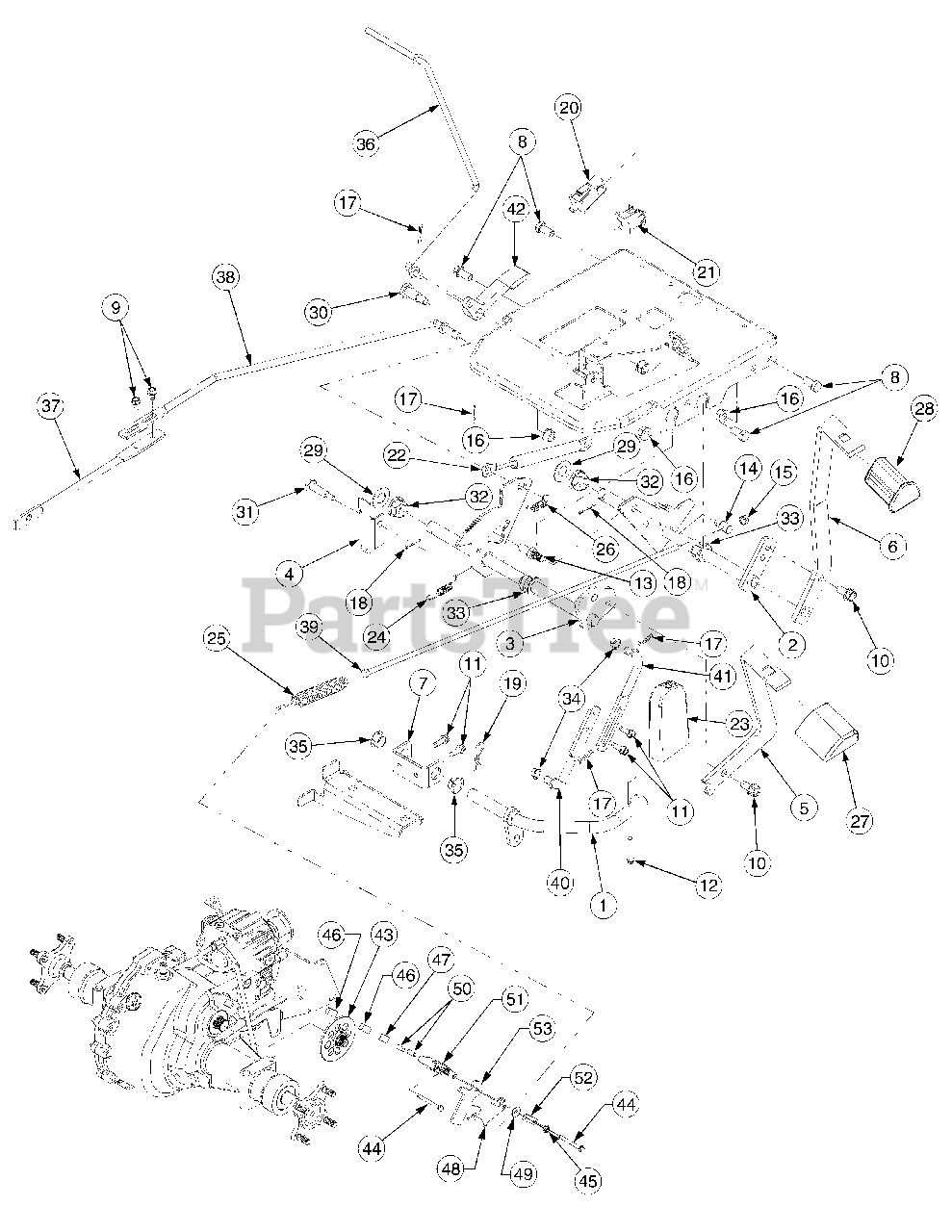

Brake and Control Pedal Mtg Date K016 & Before Parts Diagram

  • Title

1

Cub Cadet 603-0412

Pedal Assy, Reverse

Variations

Cub Cadet 603-0412-0637

PEDAL-REVERSE - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 603-04313

Shaft Assy, Brake
(Superseded to 603-04313A)

$

$

Not available

3

Cub Cadet 603-04314

Shaft Assy, Forward/Reverse

$

$

Not available

4

Cub Cadet 703-05873

Bracket, Reverse Switch

Variations

Cub Cadet 703-05873-0637

BRACKET-REV SWITCH - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-2570A

Pedal, Forward

Variations

Cub Cadet 703-2570A-0498

USE 703-2570A-0716 PEDAL-FORW - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2570A-0637

PEDAL-FORWARD - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 703-2570A-0716

PEDAL-FORWARD - CUB YELLOW-99 (0716)

$

$

Not available

$

$

6

Cub Cadet 703-2573A

Pedal, Brake

Variations

Cub Cadet 703-2573A-0498

USE 703-2573A-0716 PEDAL-BRAK - OLD CUB YELLOW (0498)

$60.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2573A-0637

PEDAL-BRAKE - POWDER BLACK (0637)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2573A-0716

PEDAL-BRAKE - CUB YELLOW-99 (0716)

$60.99

$

Usually ships in 3-6 days

0

$49.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-2938

Bracket, Reverse Pivot

Variations

Cub Cadet 703-2938-0637

Reverse Pivot Bracket - POWDER BLACK (0637)

$38.99

$

In Stock, only 1 left!

0

$38.99

$

In Stock, only 1 left!

0

8

Cub Cadet 710-0216

Screw, Hex Cap, 3/8-16 x .75 GR5

$4.49

$

In Stock, Qty 16

0

9

Cub Cadet 710-0599

Screw, Hex Wash Hd Tapp 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0623

Screw, Hex Wash Hd Tapp 3/8-16x .75

$4.49

$

In Stock, only 2 left!

0

11

Cub Cadet 710-0642

Screw, Hex Wash Hd Tapp 1/4-20x .75

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0796

Screw, Truss Mach, #12 x 1.5

$5.49

$

In Stock, only 1 left!

0

13

Cub Cadet 711-04543

Pin, 3/8-16 x 1.0

$

$

Not available

14

Cub Cadet 711-0736

Ferrule, Adjustment, 1/4-20 Thrd

$13.99

$

In Stock, only 2 left!

0

15

Cub Cadet 712-0271

Nut, Hex Sems, 1/4-20

$4.49

$

In Stock, Qty 10

0

16

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 714-0104

Pin, Internal Cotter, 5/16 Dia x 1.12

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 714-0111

Pin, Cotter, 3/32 x 1.0

$4.99

$

In Stock, Qty 13

0

19

Cub Cadet 714-0145

Pin, Internal Cotter, 3/8 Dia x 1.62

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet 725-3164A

Switch, Interlock (Brake)
(Superseded to 925-3164A)

$40.99

$

In Stock, only 2 left!

0

21

Cub Cadet 725-3167

Switch, Snap Mount (Reverse)
(Superseded to 925-3167)

$14.99

$

In Stock, only 2 left!

0

22

Cub Cadet 727-04141

Cylinder, Damper, .59 OD x 7.84 Lg
(Superseded to 927-04141)

$104.99

$

In Stock, Qty 6

0

23

Cub Cadet 731-3205

Pedal, Reverse
(Superseded to 931-3205)

$21.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 732-0418

Spring, Extension, .38 OD x 2.1

$10.99

$

In Stock, only 3 left!

0

25

Cub Cadet 732-0463A

Spring, Extension

$18.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 732-3118

Spring, Extension, .375 OD x 1.44

$10.99

$

In Stock, only 1 left!

0

27

Cub Cadet 735-3048

Pad, Forward Foot Control

$20.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 735-3049

Pad, Brake Foot
(Superseded to 735-3049A)

$12.99

$

In Stock, only 1 left!

0

29

Cub Cadet 736-0187

Washer, Flat, .64 x 1.24 x .06 HT

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 738-0145

Shoulder Bolt, .50 OD x .840

$6.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 738-0572

Screw, Shoulder, .374 x 1.16

$7.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 741-0225

Bearing, Hex Flange
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

33

Cub Cadet 741-3065B

Bearing, Hex Flange Split

$8.49

$

In Stock, Qty 11

0

34

Cub Cadet 741-3073

Bearing, Flange, .375 x .58 x .25
(Superseded to 941-3073)

$5.49

$

In Stock, Qty 20+

0

35

Cub Cadet 741-3074

Bearing, Flange, .625 x .938 x .344

$4.99

$

In Stock, Qty 20+

0

36

Cub Cadet 747-04426

Rod, Cruise

$

$

Not available

37

Cub Cadet 747-04478

Rod, Rear F/R Control

$

$

Not available

38

Cub Cadet 747-04479

Rod, Front F/R Control

$

$

Not available

39

Cub Cadet 747-04516

Rod, Brake

$

$

Not available

40

Cub Cadet 747-3341A

Rod, Rear Connecting

$24.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 747-3383

Rod, Front Connecting

$40.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 748-04102

Latch, Cruise

$37.99

$

Usually ships in 3-6 days

0

Cub Cadet 732-04354

Spring, Cruise Latch

$12.99

$

In Stock, only 1 left!

0

43

Cub Cadet 761-0215

Disc, Brake

$20.99

$

In Stock, only 1 left!

0

44

Cub Cadet 710-1206

Screw, Hex Wash Hd, Tapp, 1/4-20 x 2.375

$7.49

$

In Stock, Qty 6

0

45

Cub Cadet 712-0273

Nut, Hex Nylon Lock, 5/16-24
(Superseded to 912-0273)

$4.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 717-0678

Pad, Brake
(Superseded to 917-0678)

$7.49

$

In Stock, only 1 left!

0

47

Cub Cadet 717-0682

Plate, Puck
(Superseded to 917-0682)

$9.99

$

In Stock, Qty 8

0

48

Cub Cadet 732-0925

Spring, Torsion

$9.49

$

Usually ships in 3-6 days

0

49

Cub Cadet 736-0371

Washer, Flat, .343 x .88 x .062

$4.49

$

In Stock, only 3 left!

0

50

Cub Cadet 741-0343

Pin, Brake Actuating

$10.99

$

In Stock, Qty 7

0

51

Cub Cadet 761-0207A

Yoke, Brake

$40.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 761-0208

Bracket, Brake Anti Rotation

$7.49

$

Usually ships in 3-6 days

0

53

Cub Cadet 761-3074

Arm, Brake Actuator

$24.99

$

Usually ships in 3-6 days

0
