GT 2554 (14A-2A7K010) - Cub Cadet 54" Garden Tractor (2009 & After) Mower Deck 54 Inch Parts Diagram

54" Garden Tractor

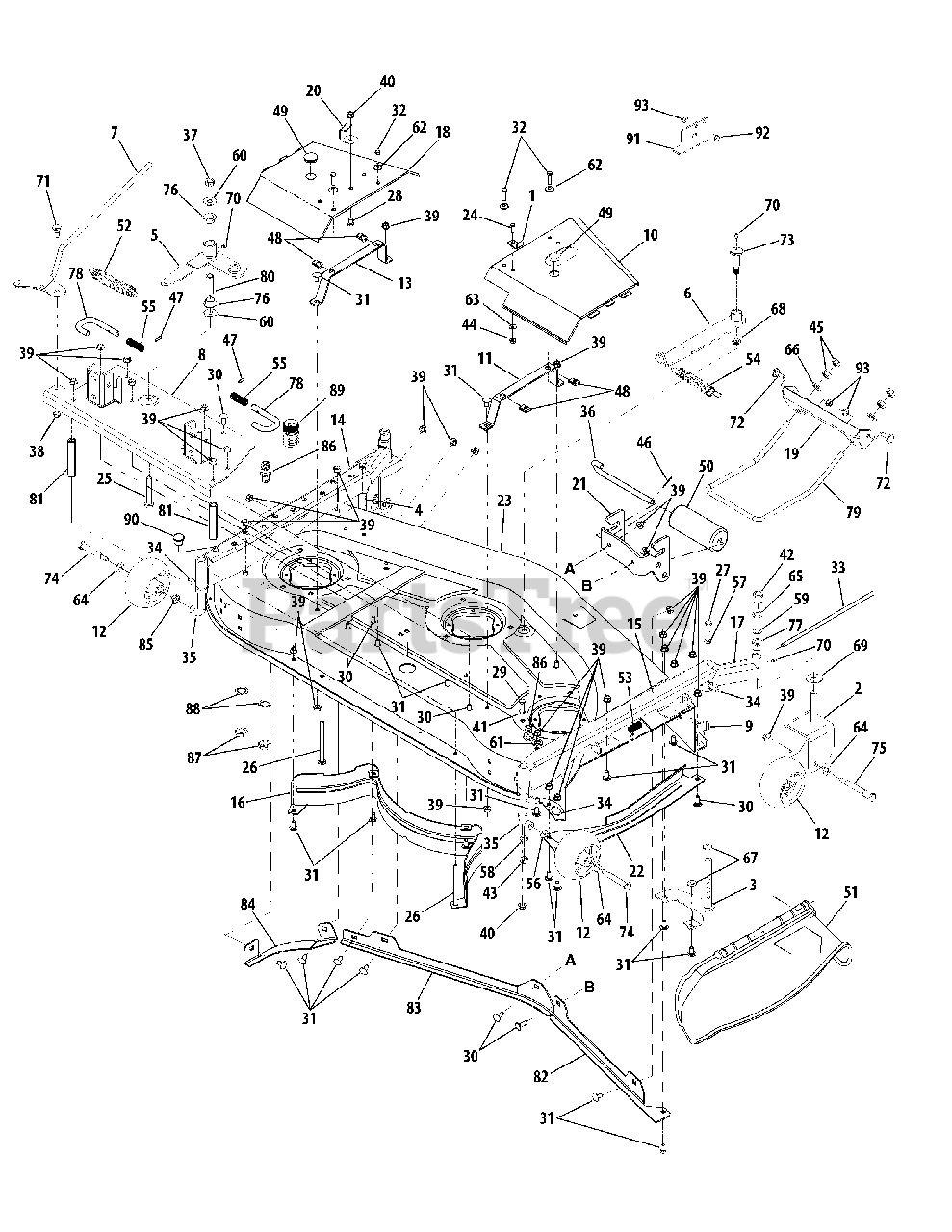

Mower Deck 54 Inch Parts Diagram

  • Title

1

Cub Cadet 96606

Brackt, Hook Retainer

$7.49

$

In Stock, Qty 7

0

2

Cub Cadet 603-0031A-4021

Bracket, Wheel

$78.99

$

In Stock, Qty 20+

0

3

Cub Cadet 603-0110

Spindle, Adjustment RH
(Superseded to 903-0110)

$

$

Not available

4

Cub Cadet 603-0111

Spindle, Adjustment LH
(Superseded to 903-0111)

$

$

Not available

5

Cub Cadet 603-04094

Bracket, Idler
(Superseded to 903-04094)

$162.99

$

In Stock, only 1 left!

0

6

Cub Cadet 603-04107-4021

Bracket, Idler
(Superseded to 603-04107-0637)

$113.99

$

In Stock, only 1 left!

0

7

Cub Cadet 603-04113-4021

Handle
(Superseded to 603-04113-0637)

$70.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 603-04135-4021

Bracket, Rear Hanger

$

$

Not available

9

Cub Cadet 703-3279-4021

Bracket, Chute Stop
(Superseded to 703-3279)

$40.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-05269-4021

Cover, Belt RH

$

$

Not available

11

Cub Cadet 703-05270-4021

Strap, Mounting

$21.99

$

In Stock, only 1 left!

0

12

Cub Cadet 703-1890A

Wheel, Ball w/Fitting, 5 in

$39.99

$

In Stock, Qty 20+

0

12

Cub Cadet 937-0280

Fitting, Lube
(Superseded to 737-0280)

Note: Not shown

$7.99

$

In Stock, Qty 8

0

12

Cub Cadet 948-0108

Bearing, Flange, .503 x .75

Note: Not shown

$8.99

$

In Stock, Qty 20+

0

13

Cub Cadet 703-2072-4021

Strap, Mounting

$26.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 703-2081A-4021

Channel, Castor LH

$

$

Not available

15

Cub Cadet 703-2083-4021

Channel, Castor RH

$

$

Not available

16

Cub Cadet 703-2093-0637

Baffl e, Rear Inner
(Superseded to 703-2093C-0637)

$96.99

$

In Stock, only 2 left!

0

17

Cub Cadet 703-2094-4021

Castor, Front

$88.99

$

In Stock, Qty 5

0

18

Cub Cadet 703-2096C-4021

Cover, Belt LH

$

$

Not available

19

Cub Cadet 703-2248-0637

Bracket, Front Lift

$47.99

$

In Stock, only 2 left!

0

20

Cub Cadet 703-2559-4021

Bracket, Stop

$28.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 703-3043A-4021

Bracket, Roller Front

$69.99

$

In Stock, only 1 left!

0

22

Cub Cadet 703-3511A-0637

Guard, Finger
(Superseded to 703-3511B-0637)

$69.99

$

In Stock, Qty 20+

0

23

Cub Cadet 903-06576-4021

Deck Housing
(Superseded to 903-06576A-4021)

$

$

Not available

23

Cub Cadet 777D11758

Label, 54"

Note: Not shown

$

$

Not available

23

Cub Cadet 777S30503

Label, Danger

Note: Not shown

$11.99

$

In Stock, only 3 left!

0

23

Cub Cadet 777S30015

Label, Danger L.H. Side

Note: Not shown

$8.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 777S30014

Graphic, Caution Spring Tension

Note: Not shown

$9.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 777I22485

Graphic, Belt Routing

Note: Not shown

$

$

Not available

23

Cub Cadet 777D10624

Graphic, Deck Wash

Note: Not shown

$3.49

$

In Stock, Qty 5

0

24

Cub Cadet 710-0751

Screw, Hex Cap 1/4-20 x .62 GR5

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 710-1010

Screw, Hex Cap, 1/2-20 x 3.0 GR8

$

$

Not available

26

Cub Cadet 710-1644

Carriage, Bolt 3/8-16 x 5.0 GR5

$9.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 710-3001

Screw, Hex Cap, 3/8-16 x .88 GR5

$7.49

$

In Stock, Qty 9

0

28

Cub Cadet 710-3039

Screw, Hex Cap, 5/16-18 x .5 GR5

$

$

Not available

29

Cub Cadet 710-0395

Screw, Hex Cap, 5/16-18 x 2.25 GR5

$4.99

$

In Stock, only 1 left!

0

30

Cub Cadet 710-3168

Carriage, Bolt 3/8-16 x 1.0

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 710-3178

Carriage, Bolt 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 710-0376

Screw, Hex Cap, 5/16-18 x 1 GR5

$3.99

$

In Stock, Qty 20+

0

33

Cub Cadet 711-04565

Pin, Hinge .3175 x 14.06

$15.99

$

In Stock, only 3 left!

0

34

Cub Cadet 911-3266

Pin, Clevis w/Ball Detent
(Superseded to 711-3266)

$15.99

$

In Stock, Qty 7

0

35

Cub Cadet 711-3312

Axle, Castor

$69.99

$

In Stock, Qty 10

0

36

Cub Cadet 911-3314

Pin, Roller 1/2 x 7.31
(Superseded to 711-3314A)

$25.99

$

In Stock, Qty 11

0

37

Cub Cadet 912-0239

Nut, Hex Lock, 1/2-20 GRA
(Superseded to 712-0239)

$

$

Not available

38

Cub Cadet 712-0375

Nut, Hex Lock, 3/8-16 GRA

$4.49

$

In Stock, Qty 6

0

39

Cub Cadet 912-0431

Nut, Flange Lock 3/8-16

$4.99

$

In Stock, Qty 20+

0

40

Cub Cadet 712-3004A

Nut, Flange Lock, 5/16-18 GR5

$3.99

$

In Stock, Qty 20+

0

41

Cub Cadet 912-3010

Nut, Hex , 5/16-18 GR5
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 712-3016

Nut, Hex Lock 5/8-11

$6.99

$

In Stock, Qty 13

0

43

Cub Cadet 912-3019

Nut, Hex, 7/16-14 GR2
(Superseded to 712-3019)

$6.99

$

In Stock, only 1 left!

0

44

Cub Cadet 912-3027

Nut, Hex Flange Lock 1/4-20

$4.49

$

In Stock, Qty 20+

0

45

Cub Cadet 912-0206

Nut, Hex, 1/2-13
(Superseded to 712-0206)

$4.49

$

In Stock, Qty 20+

0

46

Cub Cadet 714-3004

Pin, Cotter 3/32 x 1.25

$4.99

$

In Stock, Qty 9

0

47

Cub Cadet 715-3003

Pin, Spirol

$6.99

$

In Stock, Qty 7

0

48

Cub Cadet 926-0211

Nut, "U" 5/16-18
(Superseded to 726-0211)

$4.49

$

In Stock, only 1 left!

0

49

Cub Cadet 726-3045

Plug, Button
(Superseded to 726-3045A)

$4.99

$

In Stock, Qty 6

0

50

Cub Cadet 731-05679

Roller, Front
(Superseded to 731-05679B)

$18.99

$

In Stock, Qty 20+

0

51

Cub Cadet 631-04070A

Deflector, Chute
(Superseded to 631-04070C)

$122.99

$

In Stock, only 4 left!

0

51

Cub Cadet 977S30145

Label, Danger

Note: Not shown

$10.99

$

In Stock, only 1 left!

0

52

Cub Cadet 732-0861

Spring, Extension

$30.99

$

In Stock, only 1 left!

0

53

Cub Cadet 732-04372

Spring, Torsion

$10.99

$

In Stock, Qty 8

0

54

Cub Cadet 732-3120A

Spring, Extension

$31.99

$

In Stock, only 1 left!

0

55

Cub Cadet 932-3127

Spring, Compression

$4.49

$

In Stock, Qty 20+

0

56

Cub Cadet 736-0105

Washer, Bell, .375 x .87 x .063

$4.49

$

In Stock, Qty 20+

0

57

Cub Cadet 936-0169

Washer, Lock 3/8" I.D.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

58

Cub Cadet 936-0171

Washer, Lock 7/16" I.D.
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

59

Cub Cadet 736-0174

Washer, Wave, .625 x .885 x .015

$6.99

$

In Stock, Qty 11

0

60

Cub Cadet 936-0179

Washer, Flat, .5 x 1.25 x .10
(Superseded to 736-0179)

$4.99

$

In Stock, only 2 left!

0

61

Cub Cadet 936-0192

Washer, Flat, .535 x .93 x .09

$4.49

$

In Stock, Qty 18

0

62

Cub Cadet 736-0242

Washer, Bell .34" I.D.

$4.49

$

In Stock, Qty 20+

0

63

Cub Cadet 736-0270

Washer, Bell .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

64

Cub Cadet 936-0272

Washer, Flat, .51 x 1.0 x .06
(Superseded to 736-0272)

$4.99

$

In Stock, Qty 20+

0

65

Cub Cadet 736-0290

Washer, Flat, .625 x 1.0 x .067

$6.99

$

In Stock, Qty 20+

0

66

Cub Cadet 736-3019

Washer, Flat, .531 x 1.062 x .134 HT

$5.99

$

In Stock, Qty 11

0

67

Cub Cadet 936-3004

Washer, Flat, .406 x .875 x .105
(Superseded to 736-3004)

$

$

Not available

68

Cub Cadet 936-3015

Washer, Flat, .469 x .875 x .105

$4.49

$

In Stock, Qty 20+

0

69

Cub Cadet 736-3088

Washer, Flat, 1.595 x .635 x .062 HT

$4.49

$

In Stock, Qty 20+

0

70

Cub Cadet 937-3000

Fitting, Lube, 3/16 Drive

$4.99

$

In Stock, Qty 20+

0

71

Cub Cadet 738-0143

Screw, Shoulder, .498 x .34: 3/8-16

$4.49

$

In Stock, Qty 20+

0

72

Cub Cadet 938-0507B

Screw, Shoulder, .5 x .434: 3/8-16
(Superseded to 738-0507B)

$4.49

$

In Stock, Qty 20+

0

73

Cub Cadet 638-04012A

Screw, Shoulder, .68 x 1.59

$21.99

$

In Stock, Qty 5

0

74

Cub Cadet 938-3056

Screw, Shoulder, .5 x 2.5

$9.49

$

In Stock, Qty 20+

0

75

Cub Cadet 938-3093

Screw, Step Shoulder, 5/8-1/2 x 3.4
(Superseded to 738-3093)

$19.99

$

In Stock, Qty 17

0

76

Cub Cadet 741-0338

Bearing, Flange, 3/4 x .52

$9.49

$

Usually ships in 3-6 days

0

77

Cub Cadet 941-0353

Bearing, Flange, .63 ID
(Superseded to 741-0353)

$11.99

$

In Stock, Qty 20+

0

78

Cub Cadet 747-3188

Pin, Mower Support

$34.99

$

In Stock, only 3 left!

0

79

Cub Cadet 747-3172C

Rod, Deck Hanger

$71.99

$

In Stock, only 3 left!

0

80

Cub Cadet 950-3136

Spacer, .5 x .75 x 2.07" Lg.

$13.99

$

Usually ships in 3-6 days

0

81

Cub Cadet 750-3213

Spacer, .405" x .75 x 3.875" Lg.

$15.99

$

In Stock, only 2 left!

0

82

Cub Cadet 783-1482-0637

Skirt, RH Deck

$

$

Not available

83

Cub Cadet 783-1483-0637

Skirt, LH Deck

$41.99

$

Usually ships in 3-6 days

0

84

Cub Cadet 783-1484-0637

Skirt, LH Extension

$58.99

$

Usually ships in 3-6 days

0

85

Cub Cadet 738-0372B

Spacer, Shoulder

$9.49

$

In Stock, Qty 20+

0

86

Cub Cadet 737-04003D

Nozzle, Deck Wash

$23.99

$

In Stock, Qty 6

0

87

Cub Cadet 912-0641

Nut, Hex, M16-1.5
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

88

Cub Cadet 736-0225

Washer, Lock

$4.49

$

In Stock, only 2 left!

0

89

Cub Cadet 921-04041

Adapter, Water Nozzle

$23.99

$

In Stock, Qty 20+

0

90

Cub Cadet 738-04146

Plug, Screw, M16-1.5

$9.49

$

Usually ships in 3-6 days

0

91

Cub Cadet 703-05902-0637

Bracket, Up-Stop

$26.99

$

Usually ships in 3-6 days

0

92

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 x 1.0 Gr5

$4.49

$

In Stock, Qty 20+

0

93

Cub Cadet 712-04065

Nut, Flange Lock, 3/8-16 GrF

$3.99

$

In Stock, Qty 20+

0
