GT 2554 (14A-2A7K010) - Cub Cadet 54" Garden Tractor (2005 - 2008) Deck Drive and Spindle Assembly Parts Diagram

54" Garden Tractor

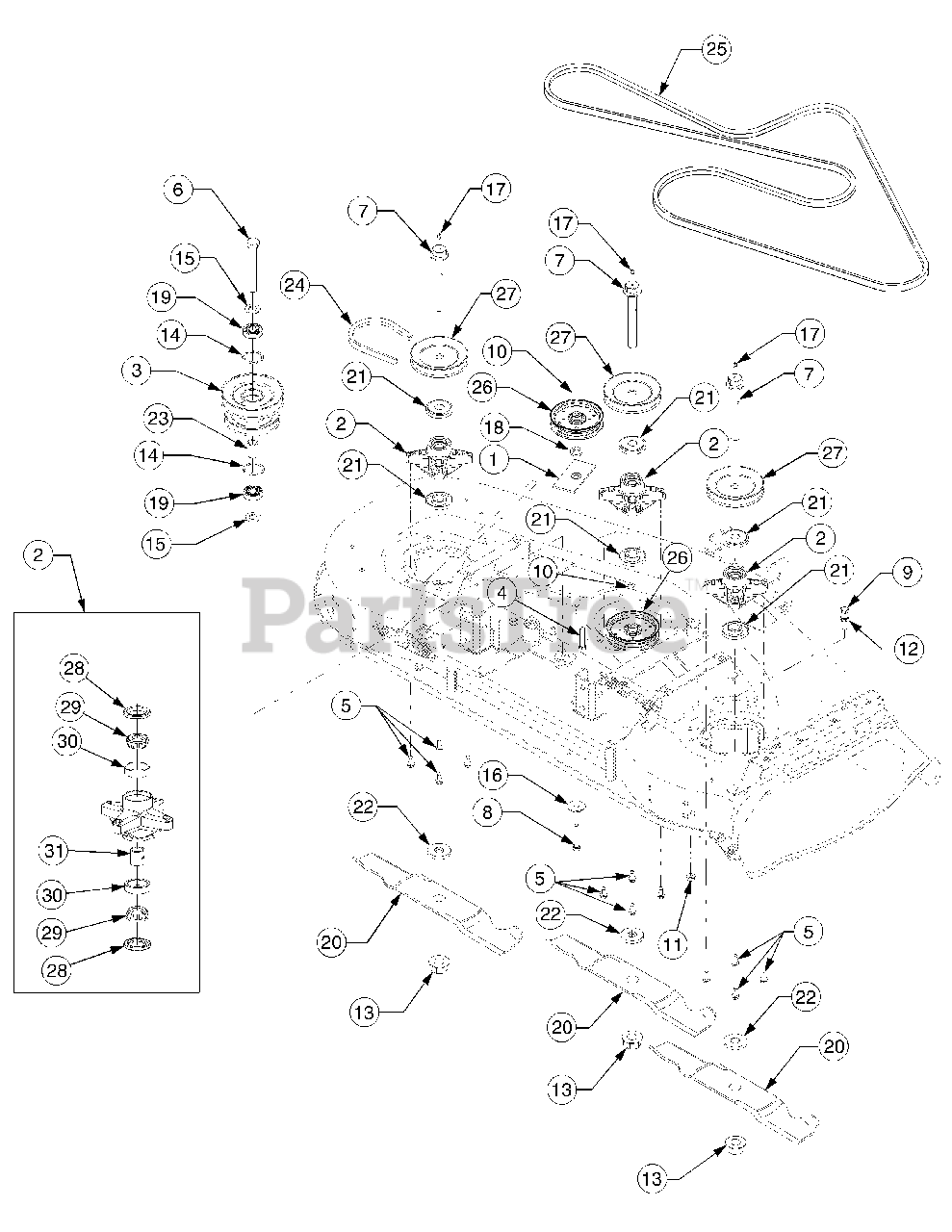

Deck Drive and Spindle Assembly Parts Diagram

  • Title

1

Cub Cadet 603-0646

Assembly, Spacer

Variations

Cub Cadet 603-0646-0637

PLATE ASM-SPACER - POWDER BLACK (0637)

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-0646-0716

PLATE ASM-SPACER - CUB YELLOW-99 (0716)

$66.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-0646-4021

PLATE ASM-SPACER - CUB YELLOW 2 (4021)

$66.99

$

Usually ships in 3-6 days

0

$57.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 918-3129C

Assembly, Spindle Includes Ref. Nos. 28 thru 31
(Superseded to 918-04426)

$112.99

$

In Stock, Qty 20+

0

3

Cub Cadet 756-3115

Pulley, Double

$135.99

$

In Stock, only 1 left!

0

3

Cub Cadet 937-3000

Fitting, Lube

Note: not shown

$4.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0347

Screw, Hex Cap 3/8-16 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0602

Screw, Hex Wash Hd Tapp

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0923

Screw, Hex Cap, 5/8-18 x 3 GR5

$9.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-1693

Bolt, Spindle, 3/4-16 x 5.215

$38.99

$

In Stock, only 2 left!

0

8

Cub Cadet 710-3066

Screw, Hex Cap 3/8-16 x 2.75 GR8

$5.49

$

In Stock, Qty 7

0

9

Cub Cadet 710-0395

Screw, Hex Cap, 5/16-18 x 2.25 GR5

$4.99

$

In Stock, only 1 left!

0

10

Cub Cadet 912-0431

Nut, Flange Lock 3/8-16 GRF

$4.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-3004A

Nut, Flange Lock, 5/16-18 GR5

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 912-3010

Nut, Hex, 5/16-18 GR5
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 712-3078

Nut, Hex Flange, 3/4-16

$9.99

$

In Stock, Qty 20+

0

14

Cub Cadet 916-3020

Ring, Internal Retaining

$4.99

$

In Stock, Qty 20+

0

15

Cub Cadet 736-0237

Washer, Flat .65 x 1.25 x .075

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 936-3039

Washer, Flat .406 x 1.5 x .105
(Superseded to 736-3039)

$

$

Not available

17

Cub Cadet 937-3000

Fitting, Grease

$4.99

$

In Stock, Qty 20+

0

18

Cub Cadet 738-0372B

Spacer, Shoulder

$9.49

$

In Stock, Qty 20+

0

19

Cub Cadet 741-1122

Bearing, Ball,

$34.99

$

In Stock, Qty 20+

0

20

Cub Cadet 759-3820

Blade, High Lift 18.5" Lg.
(Superseded to 742P3013A)

$35.99

$

In Stock, Qty 6

0

20

Cub Cadet 759-3841

Blade, Hard Coated
(Superseded to 759-3597-0637)

$

$

Not available

21

Cub Cadet 748-3065A

Spacer, Deck Spindle

$13.99

$

In Stock, Qty 14

0

22

Cub Cadet 748-3101

Spacer, Blade
(Superseded to 748-3101A)

$23.99

$

In Stock, only 3 left!

0

23

Cub Cadet 950-3132

Spacer, .635 x .88 x 1.25

$9.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 954-04137A

Belt, "V" 114.24" Lg.
(Superseded to 954-04137B)

$44.99

$

In Stock, only 3 left!

0

25

Cub Cadet 954-04055

Belt, "V" 111.4" Lg.

$78.99

$

In Stock, only 1 left!

0

26

Cub Cadet 756-04129B

Pulley, Flat, 4.25 Dia.
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

27

Cub Cadet 756-3096

Pulley, "V"

$40.99

$

In Stock, Qty 11

0

28

Cub Cadet 921-3018A

Seal, Oil, 1.25 x 1.874 x .25

$8.49

$

In Stock, Qty 20+

0

29

Cub Cadet 941-04089

Bearing, Cone
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 19

0

30

Cub Cadet 941-04091

Cup, Bearing
(Superseded to 941-04299)

$6.99

$

In Stock, Qty 20+

0

31

Cub Cadet 750-04409

Spacer, Bearing

$20.99

$

In Stock, only 1 left!

0
