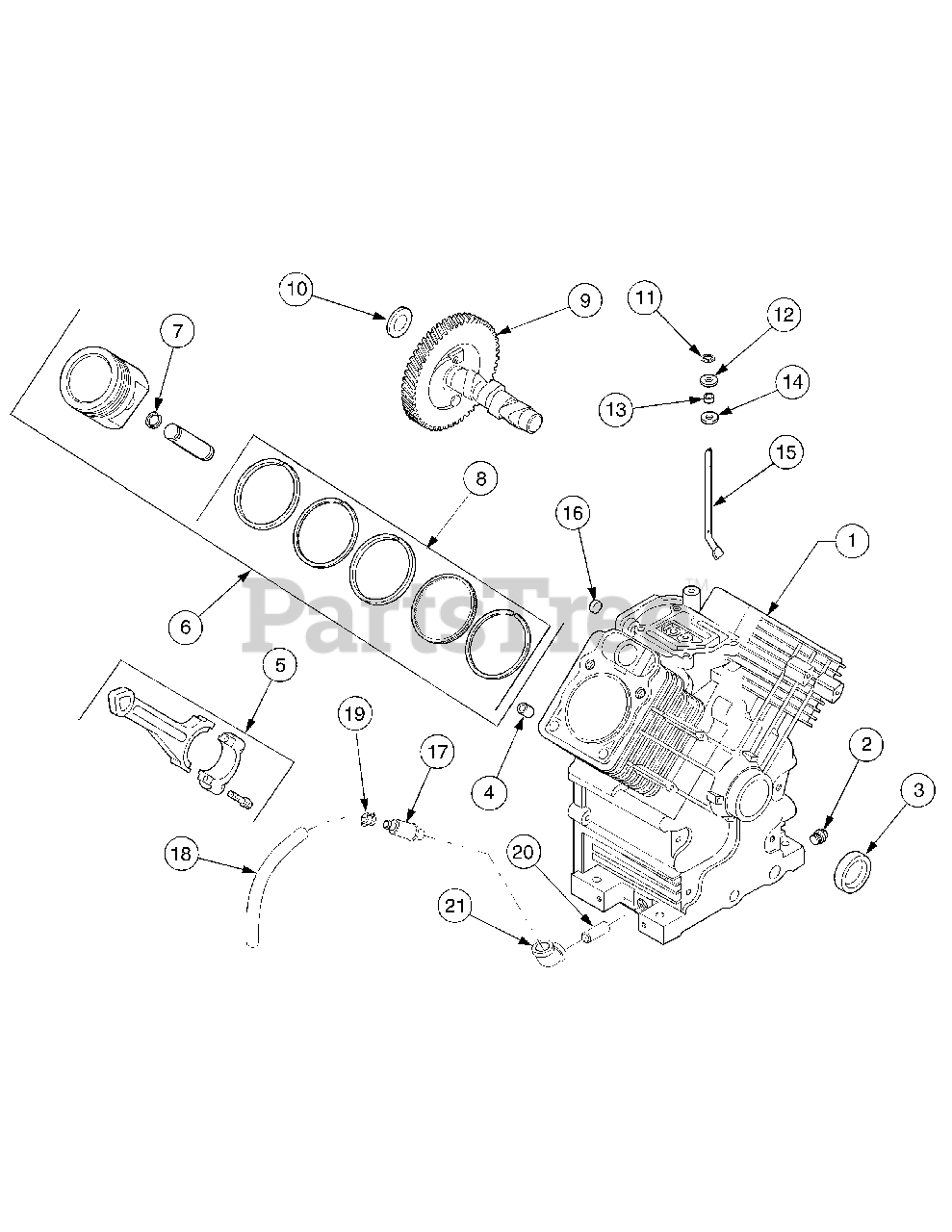

GT 2554 (14A-2A7K010) - Cub Cadet 54" Garden Tractor (2005 - 2008) Crankcase Mfg Date K016 & After Parts Diagram

54" Garden Tractor

Crankcase Mfg Date K016 & After Parts Diagram

  • Title

Cub Cadet KH-PA-76623

Complete Engine

Note: not shown

$

$

Not available

Cub Cadet KH-24-522-251

Short Block

Note: not shown

$

$

Not available

Cub Cadet KH-24-755-108-S

Gasket Set
(Superseded to KH-24-755-393-S)

Note: not shown

$204.99

$

Usually ships in 3-6 days

0

1

Cub Cadet KH-24-782-27

Crankcase, (Use Miniblock)

$

$

Not available

2

Cub Cadet KH-25-139-57-S

Plug, Hex Hd, 3/8

$2.49

$

In Stock, only 3 left!

0

3

Cub Cadet KH-24-032-01-S

Seal, Front Oil
(Superseded to KH-24-032-19-S)

$7.49

$

In Stock, Qty 20+

0

4

Cub Cadet KH-24-380-16-S

Pin, Locating Dowel

$4.49

$

In Stock, only 3 left!

0

5

Cub Cadet KH-24-067-24-S

Rod, Connecting, Std
(Superseded to KH-25-067-04-S)

$59.99

$

In Stock, only 4 left!

0

5

Cub Cadet KH-24-067-17-S

Rod, Connection, .010 / .25mm
(Superseded to KH-25-067-05-S)

$59.99

$

In Stock, only 1 left!

0

6

Cub Cadet KH-24-874-34-S

Piston w/Ring Set, Std
(Superseded to KH-24-874-54-S)

$250.99

$

In Stock, only 3 left!

0

6

Cub Cadet KH-24-874-10

Piston w/Ring Set, .010 / .25mm
(Superseded to KH-24-874-56-S)

$289.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-24-874-11

Piston w/Ring Set, .020 / .50mm
(Superseded to KH-24-874-45-S)

$289.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-24-874-15

Piston w/Ring Set, .08mm
(Superseded to KH-24-874-43-S)

$

$

Not available

7

Cub Cadet KH-24-018-01-S

Retainer, Piston Pin

$2.99

$

In Stock, Qty 7

0

8

Cub Cadet KH-24-108-08-S

Ring Set, Std., .08
(Superseded to KH-24-108-18-S)

$

$

Not available

8

Cub Cadet KH-24-108-09-S

Ring Set, .010 / .25mm
(Superseded to KH-24-108-20-S)

$

$

Not available

8

Cub Cadet KH-24-108-10-S

Ring Set, .020 / .50mm

$

$

Not available

9

Cub Cadet KH-24-012-10-S

Camshaft Assembly
(Superseded to KH-24-012-23-S)

$164.99

$

Usually ships in 3-6 days

0

10

Cub Cadet KH-12-422-09-S

Shim, Camshaft, .0320 (Red)

Note: AR

$2.49

$

In Stock, only 1 left!

0

10

Cub Cadet KH-12-422-13-S

Shim, Camshaft, .0400 (Black)

Note: AR

$2.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-12-422-07-S

Shim, Camshaft, .0280 (White)

Note: AR

$4.49

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-12-422-08-S

Shim, Camshaft, .0300 (Blue)

Note: AR

$2.49

$

In Stock, only 2 left!

0

10

Cub Cadet KH-12-422-10-S

Shim, Camshaft, .0340 (Yellow)

Note: AR

$2.49

$

In Stock, only 1 left!

0

10

Cub Cadet KH-12-422-11-S

Shim, Camshaft, .0360 (Green)

Note: AR

$2.49

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-12-422-12-S

Shim, Camshaft, .0380 (Gray)

Note: AR

$2.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KH-24-018-09-S

Ring, Retainer

$2.49

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-M-931010-S

Washer, Nylon

$2.49

$

In Stock, only 2 left!

0

13

Cub Cadet KH-28-032-09-S

Seal, Governor Cross Shaft

$3.49

$

In Stock, Qty 6

0

14

Cub Cadet KH-24-468-15-S

Washer, Plain

$2.49

$

In Stock, Qty 5

0

15

Cub Cadet KH-24-144-38-S

Shaft, Governor Cross
(Superseded to KH-24-144-39-S)

$41.99

$

Usually ships in 2-5 days

0

16

Cub Cadet KH-52-139-09-S

Plug, Cup

$4.99

$

In Stock, only 2 left!

0

17

Cub Cadet 751-3140

Drain, Oil
(Superseded to 951-10517A)

$24.99

$

In Stock, only 1 left!

0

18

Cub Cadet 751-3141-12

Hose, Oil Drain
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 7

0

19

Cub Cadet 751-3142

Cap

$4.49

$

In Stock, Qty 14

0

20

Cub Cadet 737-0199

Pipe, Straight, 3/8 NPT x 2.0
(Superseded to 937-0199)

$

$

Not available

21

Cub Cadet 737-0272

Elbow, 90 Degree

$

$

Not available
