GT-2550 (14AZ816K190) - White Outdoor 54" Garden Tractor (2002) 54" Cutting Deck Parts Diagram

54" Garden Tractor

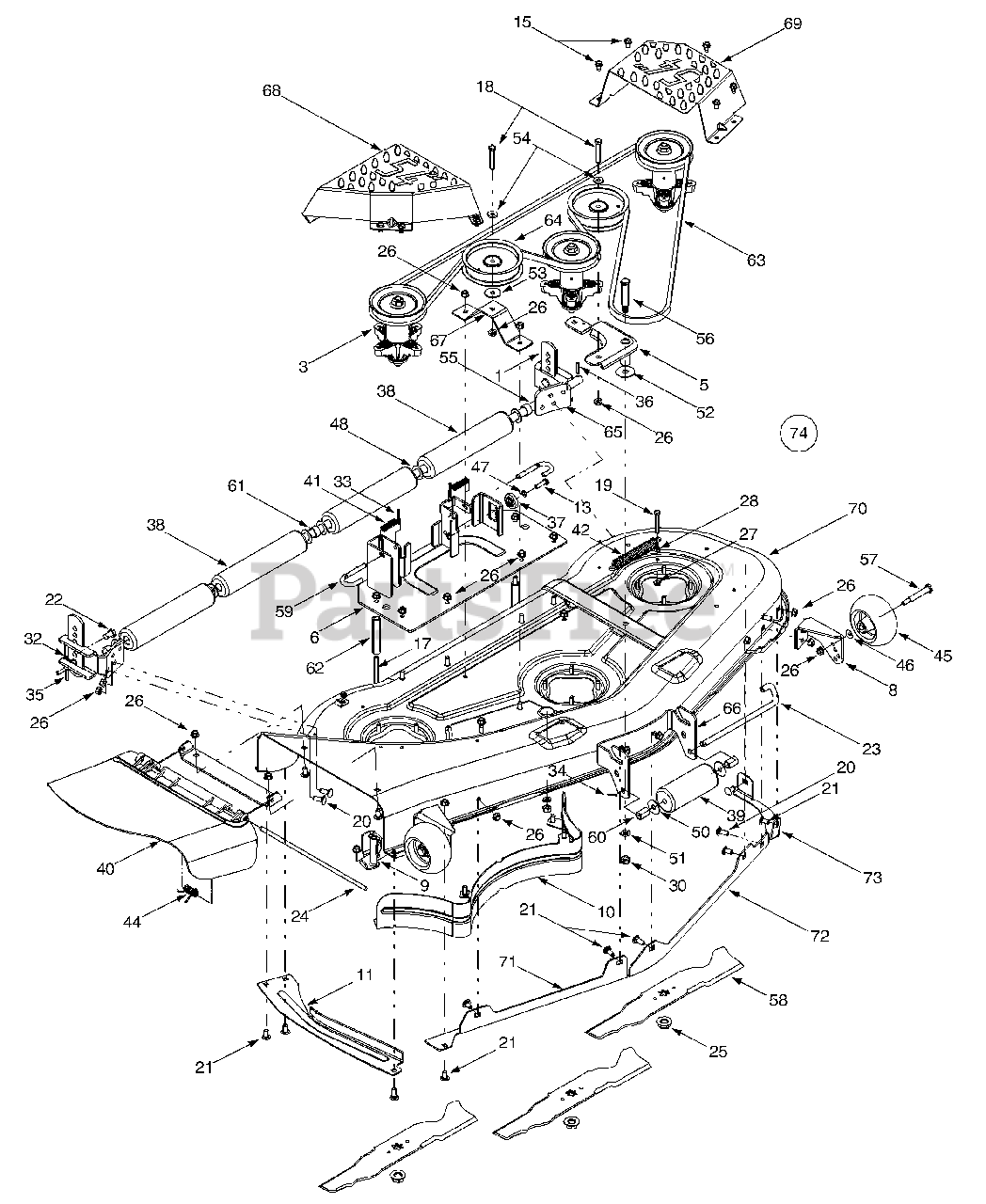

54" Cutting Deck Parts Diagram

  • Title

1

White Outdoor 12650

Bracket, Adjustment, Height

Variations

White Outdoor 12650-0637

Height Adjuster, Powder Black - POWDER BLACK (0637)

$43.99

$

In Stock, only 3 left!

0

White Outdoor 12650-4008

Height Adjuster - WINE RED (4008)

$43.99

$

In Stock, only 3 left!

0

$35.99

$

Usually ships in 3-6 days

0

?2

White Outdoor 16606

Bracket, Hook, Retainer
(Superseded to 96606)

$7.49

$

In Stock, Qty 7

0

3

White Outdoor 618-0671

Spindle Assembly, Pulley, 5.39 Dia x .5625
(Superseded to 918-04608A)

$153.99

$

In Stock, Qty 16

0

?4

White Outdoor 683-0254

Bracket Assembly, Deck, Hanger LH
(Superseded to 683-0254B)

Variations

White Outdoor 683-0254-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$36.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$36.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254-0650

BRACKET ASSY-DECK LH - RED METALLIC (0650)

$49.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254-0665

BRACKET ASSY-DECK LH - YARDMAN GREEN (0665)

$49.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

5

White Outdoor 683-0459

Idlr Assembly, 54"

Variations

White Outdoor 683-0459-0637

Idler Assembly, 54" GT - POWDER BLACK (0637)

$74.99

$

In Stock, only 1 left!

0

White Outdoor 683-0459-4008

Idler Assembly, 54" GT - WINE RED (4008)

$74.99

$

In Stock, only 1 left!

0

$60.99

$

Usually ships in 3-6 days

0

6

White Outdoor 683-0608

Bracket Assembly, Lift, 54"
(Superseded to 683-0608B)

Variations

White Outdoor 683-0608-0637

BRACKET ASSY-LIFT - POWDER BLACK (0637)

$

$

Not available

White Outdoor 683-0608-0650

BRACKET ASSY-LIFT - RED METALLIC (0650)

$

$

Not available

White Outdoor 683-0608-0665

BRACKET ASSY-LIFT - YARDMAN GREEN (0665)

$

$

Not available

$91.99

$

Usually ships in 3-6 days

0

?7

White Outdoor 683-0609

Bracket Assembly, LH-Front

Variations

White Outdoor 683-0609-0637

BRACKET ASSY-FRONT - POWDER BLACK (0637)

$

$

Not available

White Outdoor 683-0609-0650

BRACKET ASSY-FRONT - RED METALLIC (0650)

$

$

Not available

White Outdoor 683-0609-0665

BRACKET ASSY-FRONT - YARDMAN GREEN (0665)

$

$

Not available

$

$

8

White Outdoor 683-0610

Bracket Assembly, RH-Front

Variations

White Outdoor 683-0610-0637

BRACKET ASSY-FRONT - POWDER BLACK (0637)

$

$

Not available

White Outdoor 683-0610-0650

BRACKET ASSY-FRONT - RED METALLIC (0650)

$

$

Not available

White Outdoor 683-0610-0665

BRACKET ASSY-FRONT - YARDMAN GREEN (0665)

$

$

Not available

$

$

9

White Outdoor 683-0617

Stop Assembly, Chute
(Superseded to 683-0617A-0637)

Variations

White Outdoor 683-0617-0637

Chute Deflector Stop, Black - POWDER BLACK (0637)

$64.99

$

In Stock, only 3 left!

0

White Outdoor 683-0617-0638

Chute Deflector Stop, Black - MTD/TROY-BILT RED (0638)

$64.99

$

In Stock, only 3 left!

0

White Outdoor 683-0617-0650

Chute Deflector Stop, Black - RED METALLIC (0650)

$64.99

$

In Stock, only 3 left!

0

White Outdoor 683-0617-0665

Chute Deflector Stop, Black - YARDMAN GREEN (0665)

$64.99

$

In Stock, only 3 left!

0

White Outdoor 683-0617-0716

Chute Deflector Stop, Black - CUB YELLOW-99 (0716)

$64.99

$

In Stock, only 3 left!

0

$64.99

$

In Stock, only 3 left!

0

10

White Outdoor 703-2093

Baffle, RR, Inner
(Superseded to 703-2093C)

Variations

White Outdoor 703-2093-0637

Inner Rear Baffle, Black - POWDER BLACK (0637)

$96.99

$

In Stock, only 2 left!

0

White Outdoor 703-2093-4008

Inner Rear Baffle, Black - WINE RED (4008)

$96.99

$

In Stock, only 2 left!

0

$89.99

$

Usually ships in 3-6 days

0

11

White Outdoor 703-2392

Bracket
(Superseded to 631-04070C)

Variations

White Outdoor 703-2392-0498

Deflector Chute Assembly - OLD CUB YELLOW (0498)

$122.99

$

In Stock, only 4 left!

0

White Outdoor 703-2392-0637

Deflector Chute Assembly - POWDER BLACK (0637)

$122.99

$

In Stock, only 4 left!

0

White Outdoor 703-2392-0648

Deflector Chute Assembly - TECH GRAY (0648)

$122.99

$

In Stock, only 4 left!

0

$122.99

$

In Stock, only 4 left!

0

?12

White Outdoor 703-3511

Guard, Finger
(Superseded to 703-3511B-0637)

Variations

White Outdoor 703-3511-0637

Finger Guard, Black - POWDER BLACK (0637)

$69.99

$

In Stock, Qty 20+

0

$69.99

$

In Stock, Qty 20+

0

13

White Outdoor 710-0528

Hex Screw, 5/16-18, 1.25, Gr5,

$4.49

$

In Stock, Qty 20+

0

?14

White Outdoor 710-0602

Screw, Self-tapping, 5/16-18, 1.000

$4.49

$

In Stock, Qty 20+

0

15

White Outdoor 710-0604A

Screw, Self-tapping, 5/16-18, 0.625

$4.49

$

In Stock, Qty 20+

0

?16

White Outdoor 710-0751

Hex Screw, 1/4-20, .620, Gr5,

$3.99

$

In Stock, Qty 20+

0

17

MTD 710-1644

Screw, Carriage, 3/8-16, Gr5, 5.00

$9.99

$

Usually ships in 3-6 days

0

18

White Outdoor 710-3011

Hex Screw, 3/8-16, 2.25, Gr5,

$6.99

$

In Stock, Qty 20+

0

19

White Outdoor 710-3073

Hex Screw, 5/16-18, 2.25, Gr5,
(Superseded to 710-0395)

$4.99

$

In Stock, only 1 left!

0

20

White Outdoor 710-3168

Bolt, Carriage, 3/8-16 x 1.0

$3.99

$

In Stock, Qty 20+

0

21

White Outdoor 710-3178

Short Neck Carriage Bolt 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 711-0332

Pin, Clevis, .50 Dia x .78
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 17

0

23

White Outdoor 711-1737

Pin, Roller, .5" Dia x 10.06

$25.99

$

In Stock, Qty 6

0

24

White Outdoor 711-1762

Pin, Hinge, Dia .375 x 14.06

$18.99

$

In Stock, Qty 6

0

25

White Outdoor 712-0417A

Nut, Hex Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

26

White Outdoor 712-0431

Nut, Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

27

White Outdoor 712-3004A

Nut, Flange Lock, 5/16-18, Gr5

$3.99

$

In Stock, Qty 20+

0

28

White Outdoor 712-3010

Nut, Hex, 5/16-18, Gr5

$4.49

$

In Stock, Qty 20+

0

?29

White Outdoor 712-3019

Nut, Hex, 7/16-14, Gr2

$6.99

$

In Stock, only 1 left!

0

30

White Outdoor 712-3022

Nut, Hex Lock, 1/2-13

$3.99

$

In Stock, Qty 20+

0

?31

White Outdoor 712-3027

Nut, 1/4-20, Hexflg, Lock
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 17

0

32

White Outdoor 714-0145

Pin, Click, .092 x 1.64

$4.99

$

In Stock, Qty 20+

0

33

White Outdoor 714-0470

Pin, Cotter, 1/8 x 1.25

$4.49

$

In Stock, Qty 20+

0

34

White Outdoor 714-3004

Pin, Cotter, 3/32 x 1.25

$4.99

$

In Stock, Qty 9

0

35

White Outdoor 715-0108

Pin, Sprg, 1/4 Dia x 1.00

$4.99

$

In Stock, Qty 15

0

36

White Outdoor 715-0246

Pin, Spring, 3/16 x 1.25
(Superseded to 915-0246)

$6.99

$

In Stock, Qty 7

0

37

White Outdoor 717-1553A

Adjustment, Deck, Gear
(Superseded to 917-04074)

$13.99

$

In Stock, Qty 16

0

38

White Outdoor 731-0335

Roller, Deck

$72.99

$

In Stock, Qty 11

0

39

White Outdoor 731-3005

Front Roller

$28.99

$

In Stock, Qty 20+

0

40

White Outdoor 731-3131A

Deflector, Chute
(Superseded to 931-3131A)

$108.99

$

In Stock, only 4 left!

0

41

White Outdoor 732-0306

Spring, Compression, .406 x .531 x 1.75
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

42

White Outdoor 732-0459

Spring, Extension, .94 Dia x 6.74
(Superseded to 732-0459C)

$18.99

$

In Stock, only 3 left!

0

?43

White Outdoor 732-0934

Spring, Extension, 1.15 Dia x 5.99

$11.99

$

In Stock, only 1 left!

0

44

White Outdoor 732-3070

Torsion Spring .44 I.d. x 2.10
(Superseded to 732-3070A)

$11.99

$

In Stock, only 4 left!

0

45

White Outdoor 734-3058B

Deck Wheel, 5" Dia.
(Superseded to 753-04856A)

$20.99

$

In Stock, Qty 20+

0

46

White Outdoor 736-0105

Washer, Bell, .375 x .870 x .063

$4.49

$

In Stock, Qty 20+

0

47

White Outdoor 736-0119

Washer, Lock, 5/16, Regular Duty
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

48

White Outdoor 736-0134

Flat Washer, .812 ID x 1.38 OD x .1

$4.49

$

In Stock, Qty 10

0

?49

White Outdoor 736-0171

Washer, Lock, 7/16 , Regular Duty

$4.49

$

In Stock, only 4 left!

0

50

White Outdoor 736-0208

Flat Washer, .51 ID x 1.5 OD x .07

$4.49

$

In Stock, Qty 9

0

51

White Outdoor 736-0921

Washer, Lock, 1/2 , Regular Duty

$4.49

$

In Stock, Qty 6

0

52

White Outdoor 736-3027

Flat Washer, .531 x 1.75 x .090

$

$

Not available

53

White Outdoor 736-3039

Flat Washer .406 ID X 1.5 x 11ga

$5.49

$

In Stock, Qty 7

0

54

White Outdoor 736-3072

Washer, Flat .38 ID x.93 OD x.110

$4.49

$

In Stock, Qty 20+

0

55

White Outdoor 738-0295

Roller Shaft, .750 x .47.12

$124.99

$

In Stock, only 2 left!

0

56

White Outdoor 738-1229

Shoulder Screw, 5/8 Dia x 2.50
(Superseded to 738-1229A)

$12.99

$

In Stock, only 4 left!

0

57

White Outdoor 738-3056

Shoulder Screw, 1/2 Dia x 2.50
(Superseded to 938-3056)

$9.49

$

In Stock, Qty 20+

0

58

White Outdoor 742-0677

Blade, 18.50"
(Superseded to 942-0677B)

$30.99

$

In Stock, Qty 20+

0

59

White Outdoor 747-1116

Deck Release Handle Rod, .375 Dia

$12.99

$

In Stock, Qty 6

0

60

White Outdoor 750-0151

Spacer .550 ID x .755 OD x 1.1
(Superseded to 950-0151)

$10.99

$

In Stock, Qty 20+

0

61

White Outdoor 750-0212

Spacer, .82 ID x 1.00 OD x .53

$10.99

$

In Stock, Qty 18

0

62

MTD 750-3213

Spacer, .405 x .75 x 3.875

$15.99

$

In Stock, only 2 left!

0

63

White Outdoor 754-0642

Belt, V-Type, B Section
(Superseded to 954-0642)

$82.99

$

In Stock, Qty 8

0

64

White Outdoor 756-3105

Pulley, Idler, 5.0 Dia.

$73.99

$

In Stock, only 3 left!

0

65

White Outdoor 783-1453

Bracket, Mounting, 54" Roller

Variations

White Outdoor 783-1453-0637

BRACKET-MOUNT ROLLER - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-1453-0638

BRACKET-MOUNT ROLLER - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-1453-0650

BRACKET-MOUNT ROLLER - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-1453-0665

No Longer Available BRACKET-MOUNT ROLLER - YARDMAN GREEN (0665)

$

$

Not available

$

$

66

White Outdoor 783-1454

Bracket, Roller, Front
(Superseded to 783-1454D)

Variations

White Outdoor 783-1454-0637

Front Roller Bracket - POWDER BLACK (0637)

$57.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1454-0650

BRACKET-FRONT ROLLER - RED METALLIC (0650)

$57.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1454-0665

BRACKET-FRONT ROLLER - YARDMAN GREEN (0665)

$57.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

67

White Outdoor 783-1455

Bracket, Idler

Variations

White Outdoor 783-1455-0637

BRACKET-IDLER - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-1455-0716

BRACKET-IDLER - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 783-1455-0650

BRACKET-IDLER - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-1455-0665

BRACKET-IDLER - YARDMAN GREEN (0665)

$

$

Not available

$

$

68

White Outdoor 783-1470

Cover, Spindle RH

Variations

White Outdoor 783-1470-0637

Spindle Cover, RH - POWDER BLACK (0637)

$107.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1470-0665

COVER-SPINDLE RH - YARDMAN GREEN (0665)

$107.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1470-0650

COVER-SPINDLE RH - RED METALLIC (0650)

$

$

Not available

$87.99

$

Usually ships in 3-6 days

0

69

White Outdoor 783-1471

Cover, Spindle LH
(Superseded to 783-1471A)

Variations

White Outdoor 783-1471-0606

COVER-SPINDLE LH - MAJESTIC ORANGE (0606)

$80.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1471-0637

Spindle Cover, LH - POWDER BLACK (0637)

$80.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1471-0650

COVER-SPINDLE LH - RED METALLIC (0650)

$80.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1471-0716

COVER-SPINDLE LH - CUB YELLOW-99 (0716)

$80.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1471-4021

Spindle Cover, LH - CUB YELLOW 2 (4021)

$80.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1471-4028

Spindle Cover, LH - SEARS YELLOW (4028)

$80.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1471-0665

COVER-SPINDLE LH - YARDMAN GREEN (0665)

$80.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1471-0691

COVER-SPINDLE LH - BLACK JACK (0691)

$80.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1471-4008

COVER-SPINDLE LH - WINE RED (4008)

$80.99

$

Usually ships in 3-6 days

0

$69.99

$

Usually ships in 3-6 days

0

70

White Outdoor 783-1479

Deck Shell Assembly, 54"

Variations

White Outdoor 783-1479-0637

SHELL-54" DECK - POWDER BLACK (0637)

$1098.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1479-0650

DECK-54" - RED METALLIC (0650)

$1098.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1479-0665

SHELL-54" DECK - YARDMAN GREEN (0665)

$1098.99

$

Usually ships in 3-6 days

0

$1027.99

$

Usually ships in 3-6 days

0

71

White Outdoor 783-1482

RH Skirt
(Superseded to 783-1482-0637)

Variations

White Outdoor 783-1482-0637

SKIRT-54" DECK RH - POWDER BLACK (0637)

$

$

Not available

$

$

72

White Outdoor 783-1483

LH Skirt
(Superseded to 783-1483-0637)

Variations

White Outdoor 783-1483-0637

SKIRT-54" DECK LH - POWDER BLACK (0637)

$41.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

73

White Outdoor 783-1484

LH Extension Skirt
(Superseded to 783-1484-0637)

Variations

White Outdoor 783-1484-0637

SKIRT-LH EXTENSION - POWDER BLACK (0637)

$58.99

$

Usually ships in 3-6 days

0

$58.99

$

Usually ships in 3-6 days

0

74

White Outdoor 753-04000

54-inch Deck Assembly Complete

Variations

White Outdoor 753-04000-0637

KIT-DECK ASSY COMP5 - POWDER BLACK (0637)

$

$

Not available

White Outdoor 753-04000-0650

KIT-DECK ASSY COMP - RED METALLIC (0650)

$

$

Not available

White Outdoor 753-04000-0665

No Longer Available KIT-DECK ASM COMP5 - YARDMAN GREEN (0665)

$

$

Not available

$1886.99

$

Usually ships in 3-6 days

0
