GT-2550 (14A9816K190) - White Outdoor 54" Garden Tractor (2003) Engine List 1 Parts Diagram

54" Garden Tractor

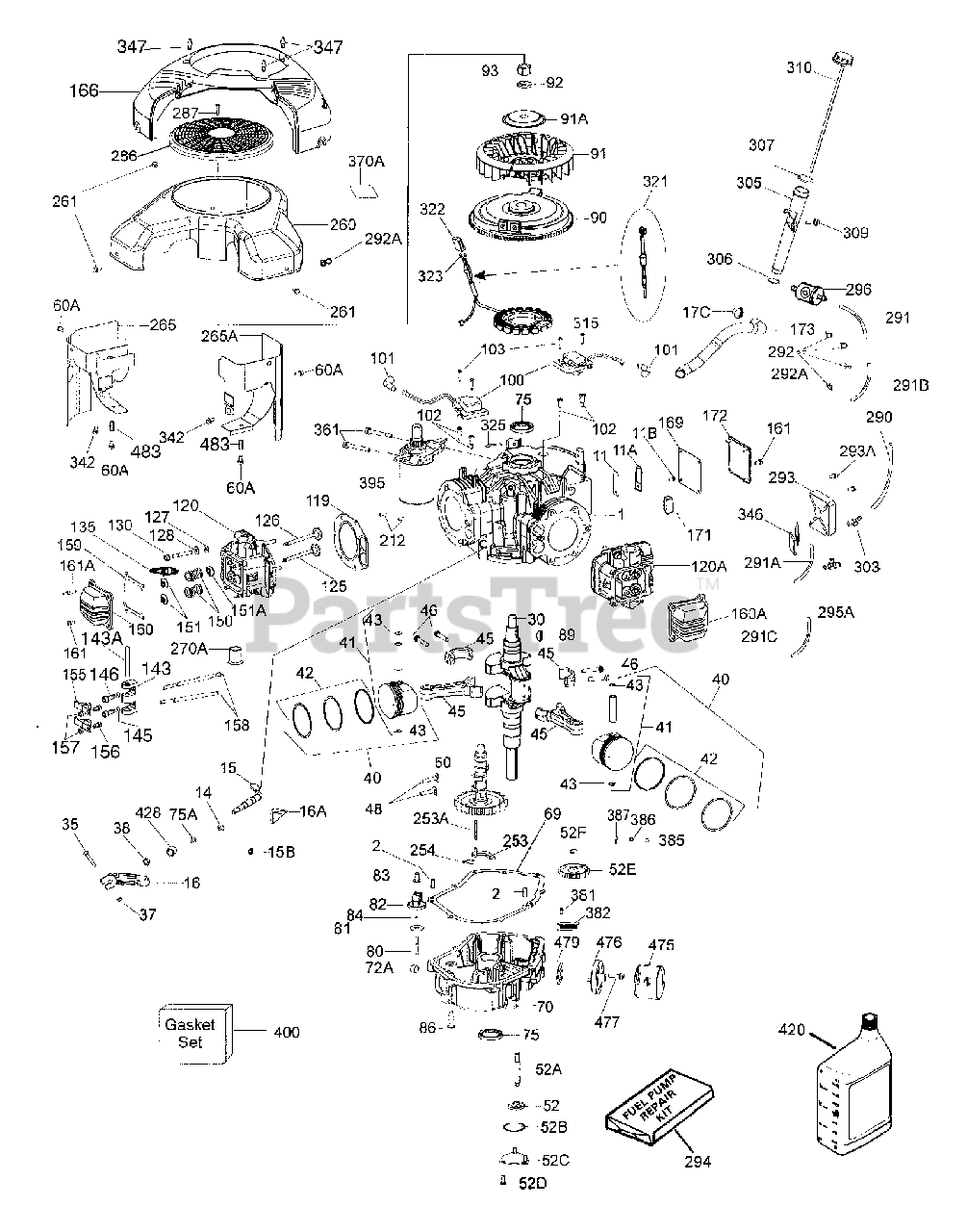

Engine List 1 Parts Diagram

  • Title

1

UNKNOWN

$

$

Not available

2

White Outdoor TC-27652

Dowel Pin

$2.49

$

Usually ships in 3-12 days

0

11

White Outdoor TC-36302

Check Valve

$1.99

$

In Stock, only 2 left!

0

11A

White Outdoor TC-36303

Breather Plate

$4.49

$

Usually ships in 3-12 days

0

11B

White Outdoor TC-650902

Screw, 10-32 x 7/16"

$1.99

$

Usually ships in 3-12 days

0

14

White Outdoor TC-37363

Washer

$

$

Not available

15

White Outdoor TC-37364

Governor Rod

$12.99

$

Usually ships in 3-12 days

0

15B

White Outdoor TC-650738

Screw, 1/4-20 x 5/8"

$3.99

$

In Stock, only 1 left!

0

16

White Outdoor TC-37413

Governor Lever

$

$

Not available

16A

White Outdoor TC-37414

Governor Spring Bracket

$

$

Not available

17C

White Outdoor TC-37429

Breather Tube Clamp

$1.99

$

Usually ships in 3-12 days

0

30

White Outdoor TC-37818

Crankshaft

$

$

Not available

35

White Outdoor TC-651069

Screw, Carriage 1/4-20 x 1-1/2"

$

$

Not available

37

White Outdoor TC-650456

Lock Nut, 1/4-20

$1.99

$

In Stock, only 1 left!

0

38

White Outdoor TC-37365

Retaining Ring

$

$

Not available

40

MTD TC-40049

Piston, Pin & Ring Set (Std.)

$

$

Not available

40

MTD TC-40050

Piston, Pin & Ring Set (.010" OS)

$

$

Not available

41

TC-40047

Piston & Pin Ass'y. (Std.)

Note: (Incl. 43)

$

$

Not available

41

TC-40048

Piston & Pin Ass'y.(.010" OS)

Note: (Incl. 43)

$

$

Not available

42

White Outdoor TC-40013

Ring Set (Std.)

$28.99

$

In Stock, only 1 left!

0

42

White Outdoor TC-40014

Ring Set (.010"OS)

$43.99

$

Usually ships in 3-12 days

0

43

White Outdoor TC-27888

Piston Pin Retaining Ring

$1.99

$

Usually ships in 3-12 days

0

45

White Outdoor TC-37372

Connecting Rod Ass'y.

Note: (Incl. 46)

$94.99

$

Usually ships in 3-12 days

0

46

White Outdoor TC-651063

Connecting Rod Bolt

$1.99

$

In Stock, only 3 left!

0

48

White Outdoor TC-37373

Valve Lifter

$8.99

$

In Stock, only 2 left!

0

50

White Outdoor TC-37773

Camshaft (MCR)

$190.99

$

Usually ships in 3-12 days

0

52

White Outdoor TC-37305

Oil Pump Ass'y.

$17.99

$

In Stock, only 1 left!

0

52A

White Outdoor TC-37382

Oil Pump Shaft

$10.99

$

Usually ships in 3-12 days

0

52B

White Outdoor TC-36333

"O" Ring

$3.99

$

Usually ships in 3-12 days

0

52C

White Outdoor TC-36334

Oil Pump Cover

Note: (Incl. 52B)

$3.99

$

Usually ships in 3-12 days

0

52D

White Outdoor TC-650888

Screw, T-30 1/4-20 x 43/64"

$1.99

$

In Stock, only 1 left!

0

52E

White Outdoor TC-37383

Oil Pump Gear

$8.99

$

Usually ships in 3-12 days

0

52F

White Outdoor TC-37384

Oil Pump Gear Retaining Ring

$1.99

$

Usually ships in 3-12 days

0

60A

White Outdoor TC-650773

Screw, 1/4-20 x 1/2"

$

$

Not available

69

White Outdoor TC-37377

Mounting Flange Gasket

Note: Kit (P)

$9.49

$

In Stock, only 1 left!

0

70

White Outdoor TC-37378

Mounting Flange

Note: (Incl. 72,72A,75,80,381-387)

$199.99

$

Usually ships in 3-12 days

0

72A

UNKNOWN

$

$

Not available

75

White Outdoor TC-36301

Oil Seal (1 in Ref 1, 1 in Ref 70)

$9.49

$

In Stock, only 1 left!

0

75A

White Outdoor TC-37369

Oil Seal (Governor Shaft)

$5.49

$

Usually ships in 3-12 days

0

80

White Outdoor TC-37379

Governor Shaft

$

$

Not available

81

White Outdoor TC-37381

Washer (Governor Shaft)

$

$

Not available

82

White Outdoor TC-37380

Governor Gear Ass'y.

$

$

Not available

83

White Outdoor TC-35322

Governor Spool

$1.99

$

In Stock, Qty 5

0

84

White Outdoor TC-29193

Retaining Ring

$1.99

$

In Stock, only 4 left!

0

86

White Outdoor TC-651064

Screw, 5/16-18 x 1-15/32"

$

$

Not available

89

White Outdoor TC-650592

Flywheel Key

$1.99

$

In Stock, Qty 5

0

90

White Outdoor TC-611254

Flywheel

Note: (Incl. 91 & 91A)

$160.99

$

Usually ships in 3-12 days

0

91

White Outdoor TC-611241A

Flywheel Fan

$15.99

$

Usually ships in 3-12 days

0

91A

White Outdoor TC-611242

Flywheel Retainer

$5.49

$

Usually ships in 3-12 days

0

92

White Outdoor TC-651082

Belleville Washer

$5.49

$

Usually ships in 3-12 days

0

93

White Outdoor TC-650594

Flywheel Nut

$3.99

$

In Stock, only 1 left!

0

100

White Outdoor TC-37395

Solid State Ignition

Note: (Incl. 101)

$50.99

$

In Stock, only 1 left!

0

101

White Outdoor TC-610118

Spark Plug Cover

$6.49

$

In Stock, only 3 left!

0

102

White Outdoor TC-651024

Solid State Mounting Stud

$3.99

$

In Stock, only 2 left!

0

103

White Outdoor TC-651007

Screw, T-15 10-24 x 15/16"

$1.99

$

In Stock, only 4 left!

0

119

White Outdoor TC-37388A

Cylinder Head Gasket
(Superseded to TC-37830)

Note: Kit (P)

$12.99

$

Usually ships in 3-12 days

0

120

White Outdoor TC-37782

Cylinder Head, Opp. Breather Side

$

$

Not available

120A

White Outdoor TC-37783

Cylinder Head, Breather Side

$

$

Not available

125

White Outdoor TC-37780

Exhaust Valve (Std.)

$

$

Not available

126

White Outdoor TC-37779

Intake Valve (Std)

$

$

Not available

127

White Outdoor TC-650691

Flat Washer

$1.99

$

Usually ships in 3-12 days

0

128

White Outdoor TC-650690

Belleville Washer
(Superseded to TC-730324)

$9.99

$

In Stock, only 1 left!

0

130

MTD TC-650697A

Screw, 5/16-18 x 2-1/2"(Head Mount)

$1.99

$

In Stock, Qty 11

0

135

White Outdoor TC-34645

Spark Plug (RN4C)
(Superseded to RN4C)

$4.49

$

In Stock, Qty 19

0

143

White Outdoor TC-37774

Rocker Arm Housing

$23.99

$

Usually ships in 3-12 days

0

143A

White Outdoor TC-37771

Rocker Arm Pin

$

$

Not available

145

White Outdoor TC-651088

Lock Washer

$

$

Not available

146

White Outdoor TC-651091

Screw, T-45 5/16-24 X 29/32"

$

$

Not available

150

White Outdoor TC-27881

Valve Spring

$3.99

$

In Stock, only 2 left!

0

151

White Outdoor TC-37781

Valve Keeper Retainer & Cap Set

$7.99

$

In Stock, only 2 left!

0

151A

MTD TC-40016A

Valve Seal

$7.49

$

In Stock, only 1 left!

0

155

White Outdoor TC-37769

Rocker Arm

$

$

Not available

156

TC-650755

Adjusting Screw

$

$

Not available

157

White Outdoor TC-650864

Lock Nut

$1.99

$

In Stock, only 2 left!

0

158

White Outdoor TC-37772

Push Rod

$21.99

$

Usually ships in 3-12 days

0

159

White Outdoor TC-35952

Rocker Arm Cover Gasket

Note: Kit (P)

$6.49

$

Usually ships in 3-12 days

0

160

White Outdoor TC-37770

Rocker Arm Cover, Opp. Breather Side

$

$

Not available

160A

UNKNOWN

$

$

Not available

161

White Outdoor TC-30063

Screw, T-30 1/4-20 x 1/2"

$1.99

$

In Stock, Qty 20+

0

161A

White Outdoor TC-651034

Stud, Valve Cover Mounting

$4.49

$

Usually ships in 3-12 days

0

166

White Outdoor TC-37777

Engine Shroud

$120.99

$

Usually ships in 3-12 days

0

169

White Outdoor TC-37367

Valve Cover Gasket

Note: Kit (P)

$

$

Not available

171

White Outdoor TC-37366

Breather Element

$3.99

$

Usually ships in 3-12 days

0

173

White Outdoor TC-37393

Breather Tube

$

$

Not available

212

White Outdoor TC-37370

Bushing

$1.99

$

In Stock, only 3 left!

0

253

White Outdoor TC-37376

Compression Release Weight

$

$

Not available

253A

White Outdoor TC-37424

Compression Release Pin

$

$

Not available

254

White Outdoor TC-37375

Compression Release Spring

$

$

Not available

260

White Outdoor TC-37775

Blower Housing (Black)

$117.99

$

In Stock, only 2 left!

0

261

White Outdoor TC-651090

Shoulder Screw

$

$

Not available

265

White Outdoor TC-37627A

Cylinder Head Cover, Opp. Breather

$

$

Not available

265A

TC-37628A

Cylinder Head Cover, Breather Side

$

$

Not available

270A

White Outdoor TC-35829A

Exhaust Port Liner

$5.49

$

In Stock, only 2 left!

0

287

White Outdoor TC-651066

Screw, T-20 8-18 x 1-15/32"

$

$

Not available

288

UNKNOWN

$

$

Not available

290

White Outdoor TC-30962

Fuel Line (16.75")

$30.99

$

In Stock, Qty 6

0

291

~N/A

Fuel Line (8-1/4")

$

$

Not available

291A

~N/A

Fuel Line (8-1/4")

$

$

Not available

291B

UNKNOWN

$

$

Not available

291C

White Outdoor TC-34357

Fuel Line (6.75")

$

$

Not available

292

White Outdoor TC-26460

Fuel Line Clamp

$1.49

$

In Stock, Qty 20+

0

292A

White Outdoor TC-37399

Fuel Line Retainer
(Superseded to TC-37399A)

$3.99

$

Usually ships in 3-12 days

0

293

White Outdoor TC-35787

Pulse Pump
(Superseded to TC-35787A)

$43.99

$

In Stock, only 1 left!

0

293A

White Outdoor TC-650931

Screw, 8-32 x 1-1/2"

$

$

Not available

294

UNKNOWN

$

$

Not available

295A

White Outdoor TC-37422

Fuel Fitting
(Superseded to TC-37422A)

$2.99

$

Usually ships in 3-12 days

0

296

White Outdoor TC-37768

Fuel Filter

Note: (Incl. 292)

$6.49

$

In Stock, only 2 left!

0

303

White Outdoor TC-32958

Pulse Pump/Fuel Fitting

$10.99

$

Usually ships in 3-12 days

0

305

White Outdoor TC-36349

Oil Fill Tube

$5.49

$

Usually ships in 3-12 days

0

306

White Outdoor TC-37401

O-Ring (Oil Fill, Bottom)

Note: Kit (P)

$3.99

$

Usually ships in 3-12 days

0

307

White Outdoor TC-35499

O-Ring (Oil Fill, Top)

$1.49

$

In Stock, only 3 left!

0

309

White Outdoor TC-650974

Screw, 1/4-20 x 57/64"

$1.99

$

Usually ships in 3-12 days

0

310

White Outdoor TC-37421

Dipstick

$9.49

$

Usually ships in 3-12 days

0

315

White Outdoor TC-611292

Alternator Coil (16 Amp)

Note: (Incl. 322-323B)

$102.99

$

Usually ships in 3-12 days

0

321

UNKNOWN

$

$

Not available

322

White Outdoor TC-611281

Connector Body

$

$

Not available

323

White Outdoor TC-611276

Terminal

$

$

Not available

325

White Outdoor TC-36342

Wire Clip

$1.99

$

Usually ships in 3-12 days

0

342

White Outdoor TC-651031

Screw, 1/4-20 x 9/16"(Ref. 240 & 265)

$1.99

$

In Stock, only 4 left!

0

346

White Outdoor TC-36413

Fuel Pump Bracket

$9.99

$

Usually ships in 3-12 days

0

347

White Outdoor TC-651092

Screw (without air duct)

$

$

Not available

347

White Outdoor TC-651093

Stud (with air duct)

$

$

Not available

361

White Outdoor TC-651065

Screw, 5/16-18 x 2-3/8"

$1.99

$

Usually ships in 3-12 days

0

370A

White Outdoor TC-35274

Lubrication Decal

$2.49

$

Usually ships in 3-12 days

0

381

White Outdoor TC-650767

Screw, 8-32 x 27/64"

$1.49

$

In Stock, only 4 left!

0

382

White Outdoor TC-36931

Oil Strainer Screen

$14.99

$

In Stock, Qty 9

0

385

White Outdoor TC-570673

Ball

$1.99

$

Usually ships in 3-12 days

0

386

White Outdoor TC-36329

Pressure Release Spring

$1.99

$

In Stock, only 3 left!

0

387

White Outdoor TC-37652

Cotter Pin

$1.99

$

Usually ships in 3-12 days

0

395

White Outdoor TC-37284

Electric Starter Motor (12 Volt)

$169.99

$

In Stock, only 2 left!

0

400

White Outdoor TC-37423

Gasket Set
(Superseded to TC-37423A)

Note: (Incl. Items Marked PK in Notes)

$

$

Not available

420

UNKNOWN

$

$

Not available

428

White Outdoor TC-37362

Spacer

$

$

Not available

475

White Outdoor TC-36563

Oil Filter

$14.99

$

In Stock, Qty 9

0

476

White Outdoor TC-36929

Oil Filter Adaptor

Note: (Incl. 479)

$32.99

$

Usually ships in 3-12 days

0

477

White Outdoor TC-650378

Screw, T-30 5/16-18 x 1 3/32"

$1.99

$

In Stock, only 3 left!

0

479

White Outdoor TC-36930

Oil Filter Adaptor Gasket

Note: Kit (P)

$5.49

$

In Stock, only 1 left!

0

483

UNKNOWN

$

$

Not available
