GT 2550 (14A-2E7P710) - Cub Cadet 50" Garden Tractor (2005 - 2008) Steering Parts Diagram

50" Garden Tractor

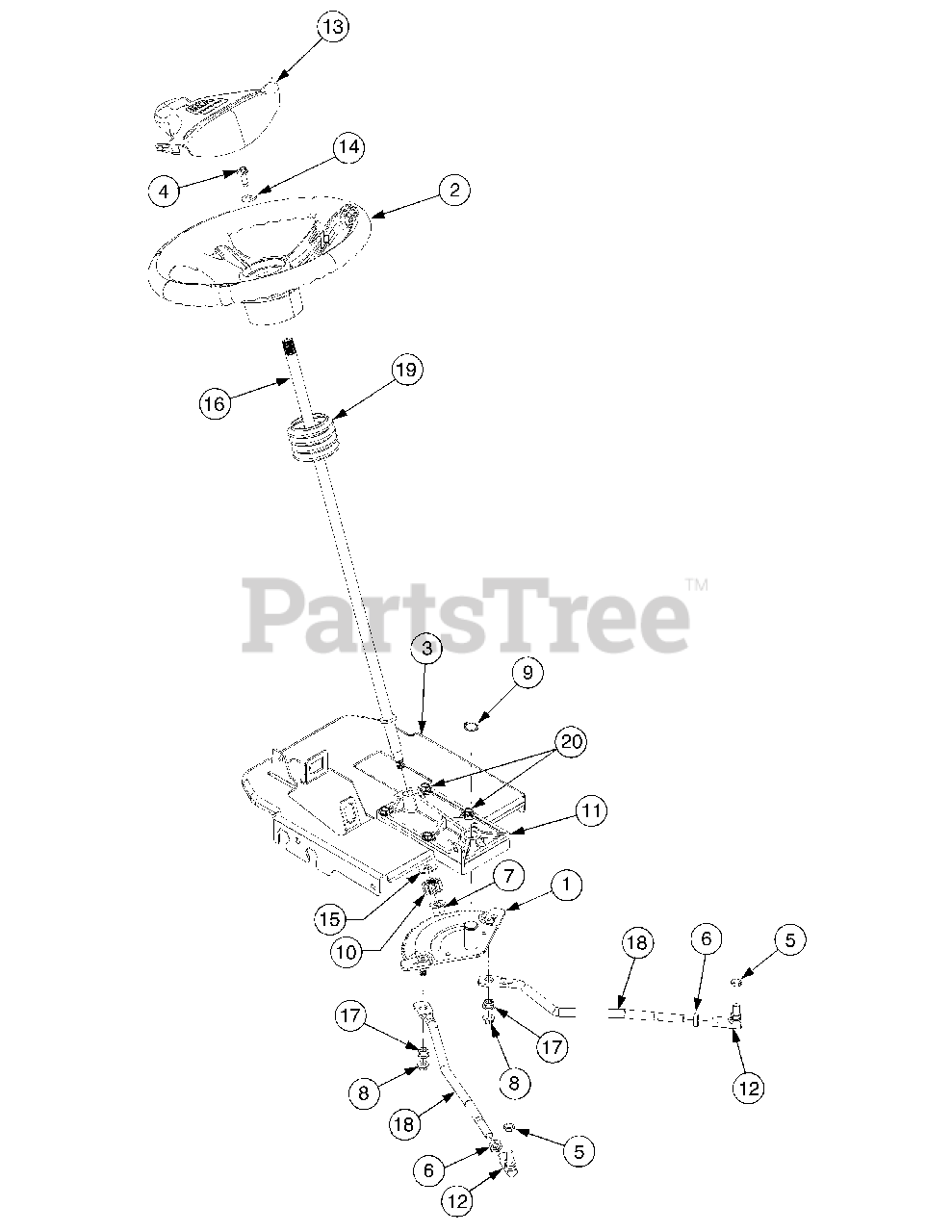

Steering Parts Diagram

  • Title

1

Cub Cadet 617-04034

Gear Assy, Segment
(Superseded to 917-04034)

$

$

Not available

2

Cub Cadet 631-04008

Wheel, Steering, Soft Grip
(Superseded to 631-04008B)

$94.99

$

In Stock, only 3 left!

0

3

Cub Cadet 703-05830

Bracket, Steering Support

Variations

Cub Cadet 703-05830-0637

Steering Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

4

Cub Cadet 710-0643

Screw,Hex Cap,5/16-18 x 1.0, GR5 Lock

Note: (S.N. K016 and Before)

$6.99

$

In Stock, Qty 5

0

4

Cub Cadet 710-0650

Screw, Hx. Wash. Hd Tapp, 5/16-18 x .875

Note: (S.N. K016 and After)

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 712-0214

Nut,Hex Center Lock, 3/8-24 GrB

Note: (S.N. K016 and Before)

$6.49

$

In Stock, only 2 left!

0

5

Cub Cadet 712-0262

Nut, Hex Jam Lock, 3/8-24 Gr2

Note: (S.N. K016 and After)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 712-0240

Nut, Hex Jam, 7/16-20 GR2
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 712-0459

Nut, Flange Lock 7/16-20 GrB

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18 GR5

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 716-0101

Ring, Snap, .75 Dia Shaft

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 717-1554

Gear, Steering Pinion

$10.99

$

In Stock, Qty 20+

0

11

Cub Cadet 719-04200A

Housing Assy, Steering
(Superseded to 919-04200B)

$154.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 737-3000

Fitting, Grease, 3/16 Drive Type
(Superseded to 937-3000)

Note: not shown

$4.99

$

In Stock, Qty 20+

0

12

Cub Cadet 723-0448A

Joint, Ball, 3/8-24
(Superseded to 923-0448A)

$24.99

$

In Stock, Qty 20+

0

13

Cub Cadet 731-04532A

Cover, Steering Wheel
(Superseded to 731-04532B)

$24.99

$

In Stock, Qty 12

0

14

Cub Cadet 736-3004

Washer, Flat, .406 x .875 x .105 Thk

$4.99

$

In Stock, Qty 6

0

15

Cub Cadet 736-3084

Washer, Flat, .51 x 1.12 x .03 Thk

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 738-04202

Shaft, Steering, .625 x 27.10
(Superseded to 938-04202A)

$85.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 741-0475

Plastic Bushing, .38 ID
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 747-04455

Link, Drag

$51.99

$

In Stock, only 1 left!

0

19

Cub Cadet 731-05524

Bellow, Steering, 2.12 Lg
(Superseded to 931-05524)

$

$

Not available

20

Cub Cadet 710-1260A

Screw, Hx. Wash. Hd Tapp, 5/16-18 x .75

Note: (S.N. K016 and Before)

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 710-0602

Screw, Hx. Wash. Hd Tapp, 5/16-18 x 1.0

Note: (S.N. K016 and After)

$4.49

$

In Stock, Qty 20+

0
