GT 2550 (14A-2E7P710) - Cub Cadet 50" Garden Tractor (2005 - 2008) Seat and Support Parts Diagram

50" Garden Tractor

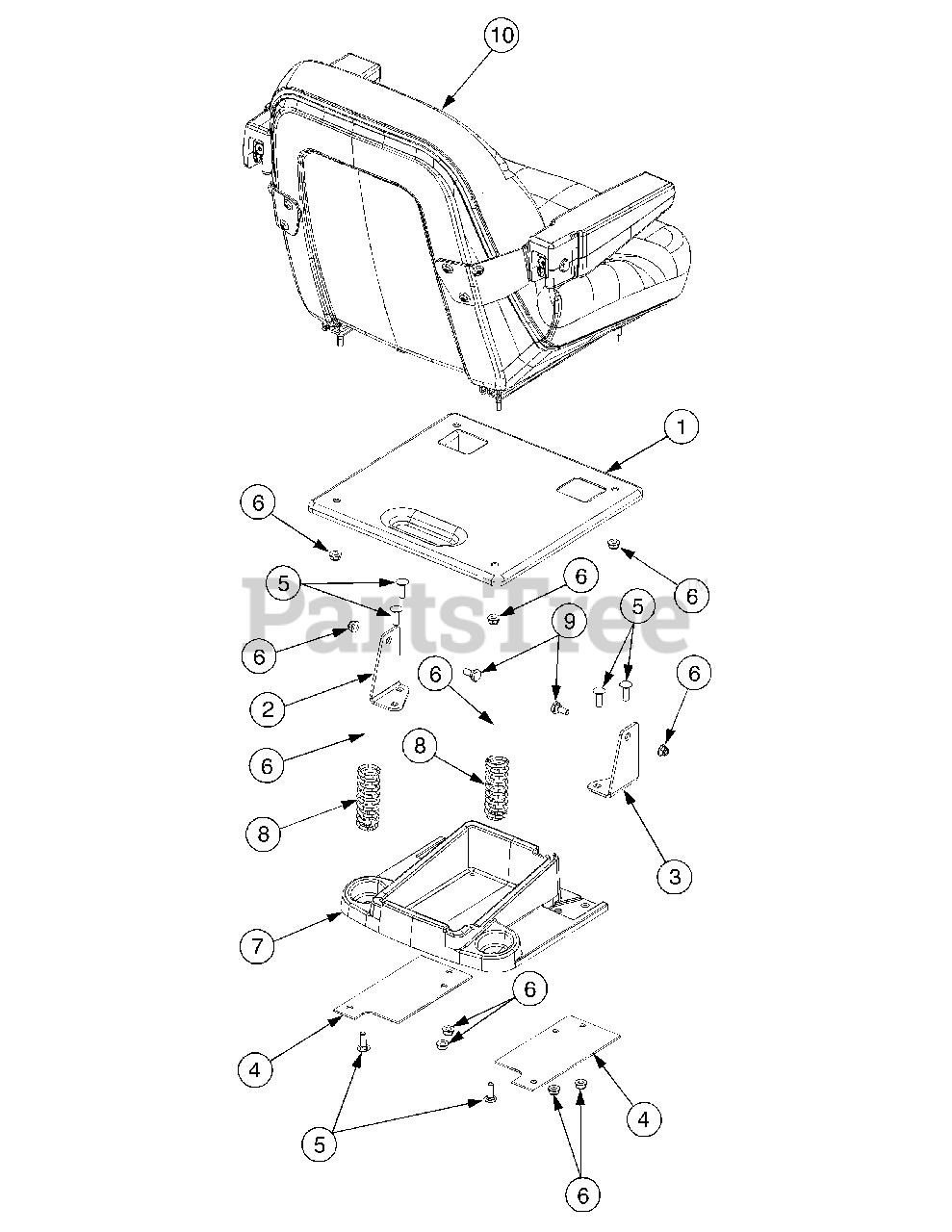

Seat and Support Parts Diagram

  • Title
1

Cub Cadet 703-05861

Seat, Base
(Superseded to 703-05861A-4021)

Variations

Cub Cadet 703-05861-0716

Seat Base - CUB YELLOW-99 (0716)

$73.99

$

In Stock, only 3 left!

0

$73.99

$

In Stock, only 3 left!

0

2

Cub Cadet 777I20310

Graphic, Seat Adjuster

$

$

Not available

2

Cub Cadet 703-05877

Bracket, LH Seat Pivot

Variations

Cub Cadet 703-05877-0716

Seat Pivot Bracket, LH Cub Yellow - CUB YELLOW-99 (0716)

$25.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05877-4021

BRACKET-SEAT LH PIVOT - CUB YELLOW 2 (4021)

$25.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05877-4015

BRACKET-SEAT LH PIVOT - FIRE RED (4015)

$

$

Not available

$22.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-05878

Bracket, RH Seat Pivot

Variations

Cub Cadet 703-05878-0716

BRACKET-SEAT RH PIVOT - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 703-05878-4021

BRACKET-SEAT RH PIVOT - CUB YELLOW 2 (4021)

$

$

Not available

Cub Cadet 703-05878-4015

BRACKET-SEAT RH PIVOT - FIRE RED (4015)

$

$

Not available

$

$

4

Cub Cadet 703-2628

Bracket, Fender Reinforcement

Variations

Cub Cadet 703-2628-0498

Fender Reinforcement Plate - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2628-0716

Fender Reinforcement Plate - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 703-2628-4015

Fender Reinforcement Plate, Fire Red - FIRE RED (4015)

$

$

Not available

Cub Cadet 703-2628-4021

PLATE-FNDR REINFOR - CUB YELLOW 2 (4021)

$

$

Not available

$

$

5

Cub Cadet 710-0276

Bolt, Carriage, 5/16-18 x 1.0

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 712-04063

Nut, Hx Insert Flnge Lck, 5/16-18 GrF

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 731-3162A

Tray, Tool

$

$

Not available

7

Cub Cadet 777I20310

Graphic, Seat Adjust

$

$

Not available

8

Cub Cadet 732-04352

Spring, Compression

$13.99

$

In Stock, Qty 7

0

9

Cub Cadet 738-0140

Bolt, Shoulder

$5.99

$

In Stock, Qty 15

0

10

Cub Cadet 757-04042

Seat, High Back w/Arm Rests

$

$

Not available

Cub Cadet 757-04040

Arm Rest Kit

$227.99

$

Usually ships in 3-6 days

0

Cub Cadet 777D09646

Graphic, Seat Back

$

$

Not available
