GT 2550 (14A-2E7P710) - Cub Cadet 50" Garden Tractor (2005 - 2008) Frame and Drawbar Parts Diagram

50" Garden Tractor

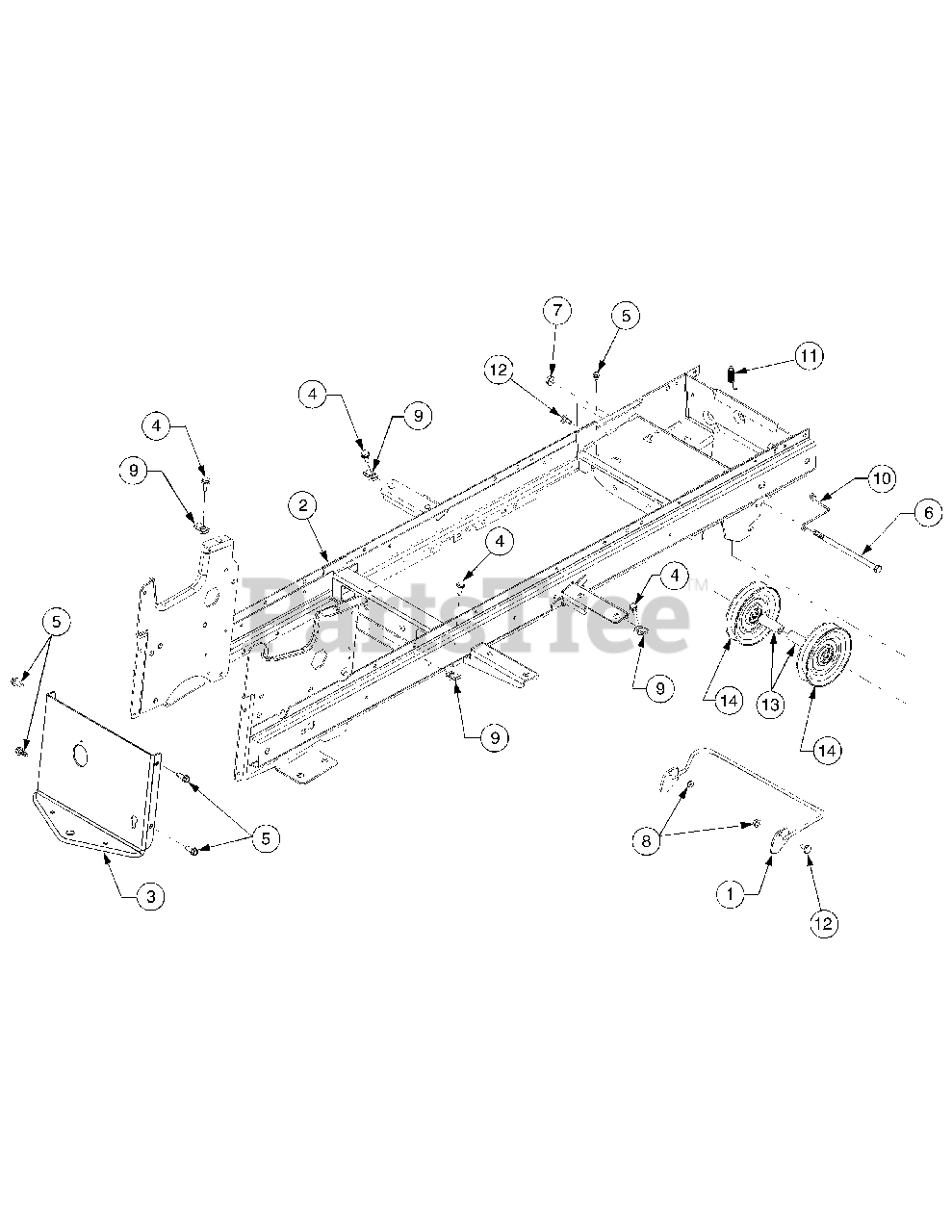

Frame and Drawbar Parts Diagram

  • Title

1

Cub Cadet 603-04250

Rod, Quick Attach
(Superseded to 603-04250-0637)

Variations

Cub Cadet 603-04250-0637

Latch Assembly, Quick - POWDER BLACK (0637)

$71.99

$

In Stock, only 3 left!

0

$71.99

$

In Stock, only 3 left!

0

2

Cub Cadet 603-04349

Frame

Variations

Cub Cadet 603-04349-0637

FRAME - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 703-3453

Drawbar

Variations

Cub Cadet 703-3453-0716

PLATE-REAR HITCH - CUB YELLOW-99 (0716)

$199.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3453-4021

PLATE-REAR HITCH - CUB YELLOW 2 (4021)

$199.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3453-4015

PLATE-REAR HITCH - FIRE RED (4015)

$

$

Not available

$185.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 777I22785

Graphic, Transmission Release Lever

Note: Not shown

$

$

Not available

3

Cub Cadet 777S30265

Graphic, Transmission Oil

Note: Not shown

$13.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0602

Screw, Hex Wsh Hd Tapp 5/16-18 x 1.0

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-1260A

Screw, Hex Wsh Hd Tap 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-3261

Screw, Hex Cap, 3/8-16 x 7.0

$13.99

$

In Stock, only 1 left!

0

7

Cub Cadet 712-04065

Nut, Hex Flange Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-04064

Nut, Hex Flange Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 726-0211

U-Nut, 5/16-18

$4.49

$

In Stock, only 1 left!

0

10

Cub Cadet 732-0970

Belt Guide
(Superseded to 932-0970)

$11.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 732-3002

Spring, Latch
(Superseded to 932-3002)

$9.49

$

In Stock, only 2 left!

0

12

Cub Cadet 738-0255

Bolt, Shoulder
(Superseded to 938-0255)

$5.49

$

In Stock, Qty 6

0

13

Cub Cadet 750-04198

Spacer, Idler, .411 x .720 x 2.19
(Superseded to 750-04198A)

$11.99

$

In Stock, Qty 6

0

14

Cub Cadet 756-3045

Pulley, Idler
(Superseded to 956-3045A)

$57.99

$

In Stock, Qty 5

0
