GT 2550 (14A-2E7P710) - Cub Cadet 50" Garden Tractor (2005 - 2008) Engine Mounting and Muffler Mfg Date K016 & Before Parts Diagram

50" Garden Tractor

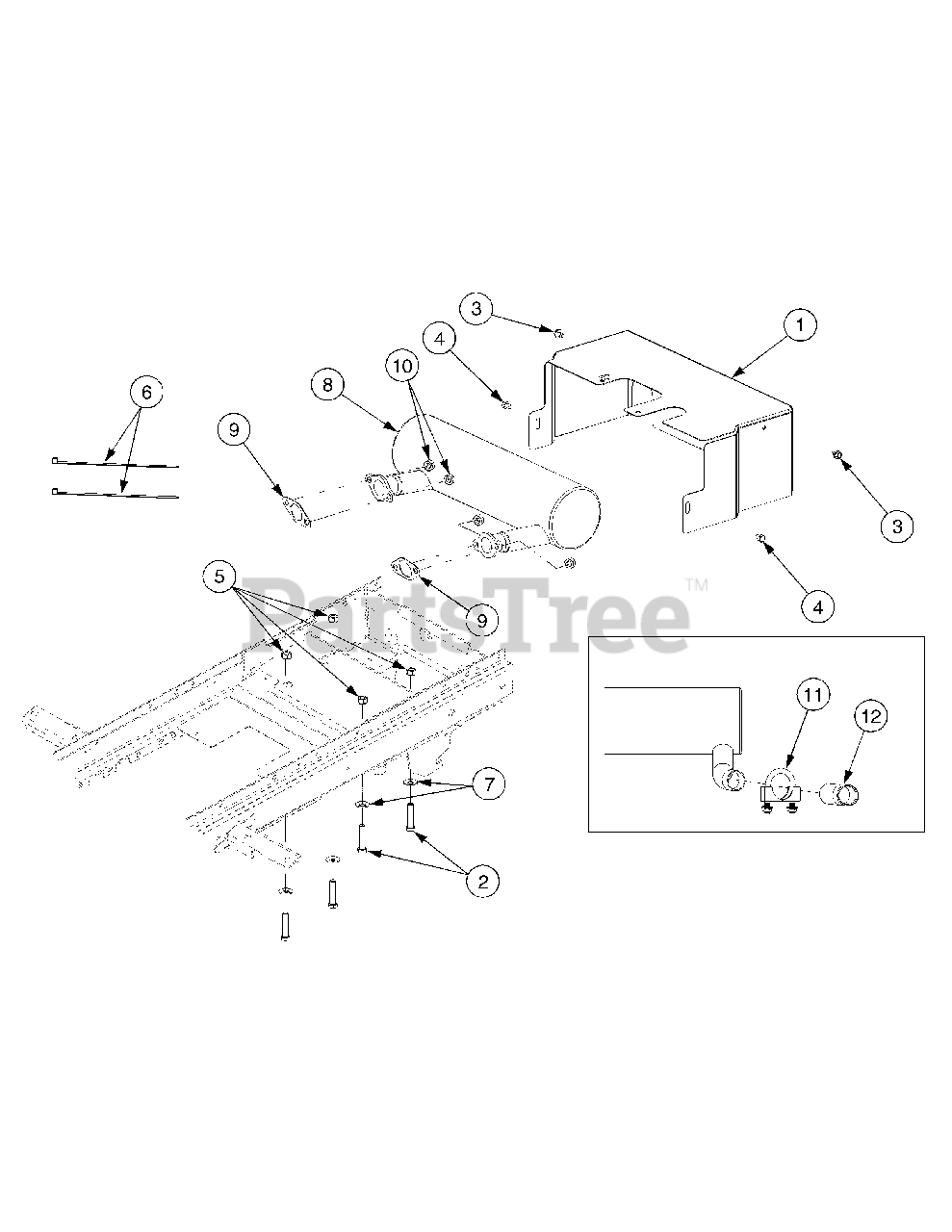

Engine Mounting and Muffler Mfg Date K016 & Before Parts Diagram

  • Title
1

Cub Cadet 703-05875

Shield, Heat
(Superseded to 703-05875A)

$

$

Not available

2

Cub Cadet 710-0539

Bolt, Eng Mount, 3/8-24 x 1.75 GR5

$4.99

$

In Stock, Qty 11

0

3

Cub Cadet 710-0653

Screw, Hx Wsh Hd Tapp, 1/4-20 x .375

$4.49

$

In Stock, Qty 7

0

4

Cub Cadet 710-3209

Screw, Hex Cap, M6 x 1 x 10

$8.49

$

In Stock, Qty 13

0

5

Cub Cadet 712-3054

Nut, Hex Lock, 3/8-24

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 725-0157

Tie, Cable

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 736-0105

Washer, Bell, .380 x .88 x .062

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 751-10249

Muffler Assembly
(Superseded to 751-10249A)

$278.99

$

Usually ships in 3-6 days

0

9

Cub Cadet KH-24-041-02

Gasket, Exhaust
(Superseded to KH-24-041-49-S)

$

$

Not available

10

Cub Cadet KH-M-0841080

Nut, Hex Flange
(Superseded to 712-3086)

$4.49

$

In Stock, only 2 left!

0

11

Cub Cadet 751-10191

Clamp, Muffler

$

$

Not available

12

Cub Cadet 751-10360

Pipe Extension, Exhaust

$

$

Not available
