GT 2550 (14A-2E7P710) - Cub Cadet 50" Garden Tractor (2005 - 2008) Deck Assembly 50 inch Parts Diagram

50" Garden Tractor

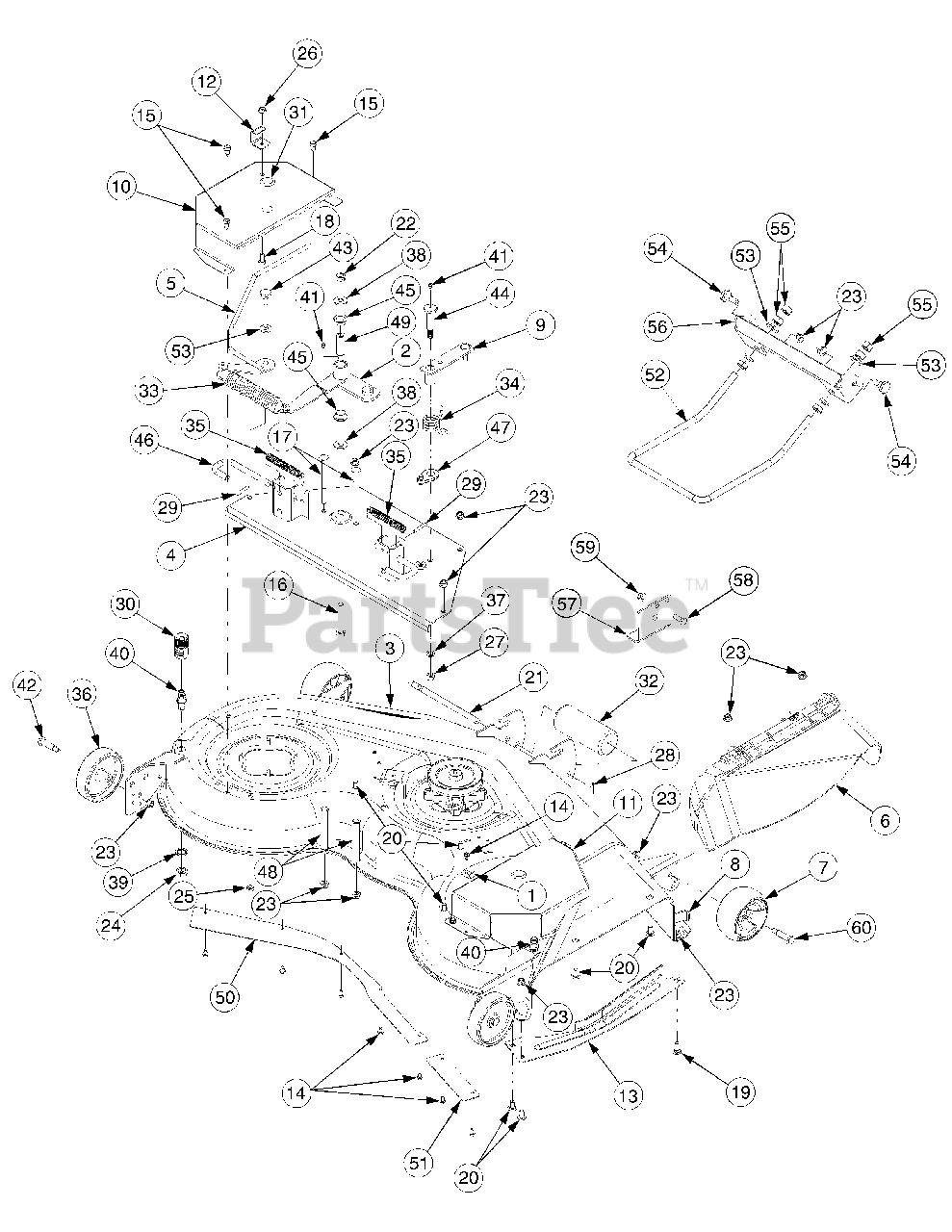

Deck Assembly 50 inch Parts Diagram

  • Title

1

Cub Cadet 16606

Hook, Retainer
(Superseded to 96606)

$7.49

$

In Stock, Qty 7

0

2

Cub Cadet 603-04094

Arm, Idler
(Superseded to 903-04094)

$162.99

$

In Stock, only 1 left!

0

3

Cub Cadet 603-04215A

Deck Assembly
(Superseded to 903-04215B)

Variations

Cub Cadet 603-04215A-0716

USE 903-04215B-0716 SHELL-50" - CUB YELLOW-99 (0716)

$925.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-04215A-4021

USE 903-04215B-4021 SHELL-50" - CUB YELLOW 2 (4021)

$925.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-04215A-0637

USE 903-04215B-0637 SHELL-50" - POWDER BLACK (0637)

$

$

Not available

$748.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 777S30014

Graphic, Caution Spring Tension

Note: not shown

$9.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 777S30015

Graphic, Rider Danger

Note: not shown

$8.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 777S30503

Graphic, Danger

Note: not shown

$11.99

$

In Stock, only 3 left!

0

3

Cub Cadet 777I22485

Graphic, Belt Routing

Note: not shown

$

$

Not available

3

Cub Cadet 777D10641

Graphic, 50" Cut

Note: not shown

$

$

Not available

3

Cub Cadet 777D10624

Graphic, Deck Wash

Note: not shown

$3.49

$

In Stock, Qty 5

0

4

Cub Cadet 603-04223

Plate Assembly, Deck Mounting

Variations

Cub Cadet 603-04223-0637

HANGER ASSY-50" DECK - POWDER BLACK (0637)

$84.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-04223-0716

HANGER ASSY-50" DECK - CUB YELLOW-99 (0716)

$84.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-04223-4021

HANGER ASSY-50" DECK - CUB YELLOW 2 (4021)

$84.99

$

Usually ships in 3-6 days

0

$73.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 603-04267

Handle, Tension

Variations

Cub Cadet 603-04267-0637

HANDLE ASSY 50" DECK - POWDER BLACK (0637)

$48.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-04267-4021

HANDLE ASSY 50" DECK - CUB YELLOW 2 (4021)

$42.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-04267-0716

HANDLE ASSY 50" DECK - CUB YELLOW-99 (0716)

$

$

Not available

$42.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 631-04070A

Chute Assembly
(Superseded to 631-04070C)

$122.99

$

In Stock, only 3 left!

0

6

Cub Cadet 711-04565

Pin, Hinge, .375 Dia x 14.06

Note: not shown

$15.99

$

In Stock, only 3 left!

0

6

Cub Cadet 732-04372

Spring, Torsion

Note: not shown

$10.99

$

In Stock, Qty 8

0

6

Cub Cadet 783-05030

Bracket, Mounting

Note: not shown

$29.99

$

In Stock, Qty 5

0

6

Cub Cadet 777S30284

Graphic, Danger
(Superseded to 977S30145)

Note: not shown

$10.99

$

In Stock, only 1 left!

0

7

Cub Cadet 734-04155

Wheel, Gauge Ball

$20.99

$

In Stock, Qty 20+

0

8

Cub Cadet 703-3279

Bracket, Chute Deflector Stop

Variations

Cub Cadet 703-3279-0498

Chute Deflector Stop - OLD CUB YELLOW (0498)

$40.99

$

In Stock, only 1 left!

0

Cub Cadet 703-3279-0606

Chute Deflector Stop - MAJESTIC ORANGE (0606)

$40.99

$

In Stock, only 1 left!

0

Cub Cadet 703-3279-0637

Chute Deflector Stop - POWDER BLACK (0637)

$40.99

$

In Stock, only 1 left!

0

Cub Cadet 703-3279-0638

Chute Deflector Stop - MTD/TROY-BILT RED (0638)

$40.99

$

In Stock, only 1 left!

0

Cub Cadet 703-3279-0650

Chute Deflector Stop - RED METALLIC (0650)

$40.99

$

In Stock, only 1 left!

0

Cub Cadet 703-3279-0665

Chute Deflector Stop - YARDMAN GREEN (0665)

$40.99

$

In Stock, only 1 left!

0

Cub Cadet 703-3279-0691

Chute Deflector Stop - BLACK JACK (0691)

$40.99

$

In Stock, only 1 left!

0

Cub Cadet 703-3279-0716

Chute Deflector Stop - CUB YELLOW-99 (0716)

$40.99

$

In Stock, only 1 left!

0

Cub Cadet 703-3279-4008

Chute Deflector Stop - WINE RED (4008)

$40.99

$

In Stock, only 1 left!

0

Cub Cadet 703-3279-4021

Chute Deflector Stop - CUB YELLOW 2 (4021)

$40.99

$

In Stock, only 1 left!

0

Cub Cadet 703-3279-4028

Chute Deflector Stop - SEARS YELLOW (4028)

$40.99

$

In Stock, only 1 left!

0

Cub Cadet 703-3279-4033

Chute Deflector Stop - FLINT MICA (4033)

$40.99

$

In Stock, only 1 left!

0

Cub Cadet 703-3279-4044

Chute Deflector Stop - CRAFTSMAN RED (4044)

$40.99

$

In Stock, only 1 left!

0

$40.99

$

In Stock, only 1 left!

0

9

Cub Cadet 703-0118

Arm, Idler
(Superseded to 759-04324B)

$188.99

$

In Stock, Qty 16

0

10

Cub Cadet 703-05546

Shield, Spindle LH

Variations

Cub Cadet 703-05546-0637

COVER-SPINDLE 50" - POWDER BLACK (0637)

$145.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05546-0716

COVER-SPINDLE 50" - CUB YELLOW-99 (0716)

$145.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05546-4021

COVER-SPINDLE 50" - CUB YELLOW 2 (4021)

$145.99

$

Usually ships in 3-6 days

0

$126.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-05556

Shield, Spindle RH

Variations

Cub Cadet 703-05556-0637

COVER-SPINDLE RH - POWDER BLACK (0637)

$142.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05556-0716

COVER-SPINDLE RH - CUB YELLOW-99 (0716)

$142.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05556-4021

COVER-SPINDLE RH - CUB YELLOW 2 (4021)

$142.99

$

Usually ships in 3-6 days

0

$124.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 703-2559

Bracket, Handle Stop

Variations

Cub Cadet 703-2559-0498

Stop Bracket - OLD CUB YELLOW (0498)

$26.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2559-0716

Stop Bracket - CUB YELLOW-99 (0716)

$26.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2559-0637

Stop Bracket - POWDER BLACK (0637)

$26.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2559-0648

Stop Bracket - TECH GRAY (0648)

$26.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2559-4021

BRACKET-STOP - CUB YELLOW 2 (4021)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 703-3511

Guard, Finger
(Superseded to 703-3511B-0637)

Variations

Cub Cadet 703-3511-0637

Finger Guard, Black - POWDER BLACK (0637)

$69.99

$

In Stock, Qty 20+

0

$69.99

$

In Stock, Qty 20+

0

14

Cub Cadet 710-0599

Screw, Hex Wash. Hd Tapp 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 710-0726

Screw, Hex Wash. Hd Tapp 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 710-1010

Screw, Hex Cap, 1/2-20 x 3.0 GR8

$

$

Not available

17

Cub Cadet 710-1644

Screw, Carriage, 3/8-16 x 5.0 GR5

$9.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 710-3008

Screw, Cap, 5/16-18x .75 GR5

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 710-3168

Bolt, Carriage, 3/8-16 x 1.0 GR5

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 710-3178

Bolt, Carriage, 3/8-16 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 711-3314

Pin, Roller, 1/2 Dia x 7.31
(Superseded to 711-3314A)

$25.99

$

In Stock, Qty 11

0

22

Cub Cadet 712-0239

Nut, Hex Lock, 1/2-20

$5.99

$

In Stock, Qty 20+

0

23

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16 GRF
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

24

Cub Cadet 712-0641

Nut, Hex M16-1.5

$6.49

$

In Stock, Qty 7

0

25

Cub Cadet 712-3000

Nut, Hex Ctr. Lock, 3/8-16 GRB

$4.49

$

In Stock, Qty 9

0

26

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18 GR5

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 712-3019

Nut, Hex, 7/16-14 GR2

$6.99

$

In Stock, only 1 left!

0

28

Cub Cadet 714-3004

Pin, Cotter, 3/32 Dia x 1.25

$4.99

$

In Stock, Qty 9

0

29

Cub Cadet 715-3003

Pin, Spirol, 3/16 x .75

$6.99

$

In Stock, Qty 7

0

30

Cub Cadet 721-04041

Adapter, Water Nozzle
(Superseded to 921-04041)

$23.99

$

In Stock, Qty 20+

0

31

Cub Cadet 726-3045

Plug, Button
(Superseded to 726-3045A)

$4.99

$

In Stock, Qty 6

0

32

Cub Cadet 731-05679

Roller, Front
(Superseded to 731-05679B)

$18.99

$

In Stock, Qty 20+

0

33

Cub Cadet 732-0861

Spring, Extension, 1.25 OD x 7.2

$30.99

$

In Stock, only 1 left!

0

34

Cub Cadet 732-3067

Spring, Torsion

$23.99

$

In Stock, only 1 left!

0

35

Cub Cadet 732-3127

Spring, Compression
(Superseded to 932-3127)

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 734-0973

Wheel, Gauge

$12.99

$

In Stock, Qty 20+

0

37

Cub Cadet 736-0171

Washer, Lock, 7/16

$4.49

$

In Stock, Qty 5

0

38

Cub Cadet 736-0179

Washer, Flat, .5 x 1.25 x .1

$4.99

$

In Stock, only 2 left!

0

39

Cub Cadet 736-0225

Washer, Lock

$4.49

$

In Stock, only 2 left!

0

40

Cub Cadet 737-04003C

Nozzle, Deck Water
(Superseded to 737-04003D)

$23.99

$

In Stock, Qty 6

0

41

Cub Cadet 737-3000

Fitting, Lube, 3/16 Drive
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

42

Cub Cadet 738-0373

Bolt, Shoulder, .498 x 1.53:3/8-16
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

43

Cub Cadet 738-0507B

Bolt, Shoulder, .500 Dia x .434

$4.49

$

In Stock, Qty 20+

0

44

Cub Cadet 738-3172

Bolt, Shoulder, .68 x 2.11:7/ 16-14

$20.99

$

In Stock, only 2 left!

0

45

Cub Cadet 741-0338

Bearing, Flange

$9.49

$

In Stock, only 2 left!

0

46

Cub Cadet 747-3188

Pin, Mower Support

$34.99

$

In Stock, only 3 left!

0

47

Cub Cadet 748-3100

Retainer, Spring
(Superseded to 748-3100A)

$28.99

$

In Stock, only 1 left!

0

48

Cub Cadet 750-04395

Spacer, .405 x .75 x 4.312

$

$

Not available

49

Cub Cadet 750-3136

Spacer, .5 x .75 x 2.07
(Superseded to 950-3136)

$13.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 783-04414A

Skirt, Center

Variations

Cub Cadet 783-04414A-4021

Center Skirt for 50" Deck, Yellow - CUB YELLOW 2 (4021)

$35.99

$

In Stock, only 1 left!

0

Cub Cadet 783-04414A-0637

Center Deck Skirt, 50" - POWDER BLACK (0637)

$35.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04414A-0716

Center Deck Skirt, 50" - CUB YELLOW-99 (0716)

$35.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04414A-0606

Center Skirt for 50" Deck, Orange - MAJESTIC ORANGE (0606)

$35.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04414A-0665

SKIRT-CENTER 50" - YARDMAN GREEN (0665)

$35.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04414A-0691

SKIRT-CENTER 50" - BLACK JACK (0691)

$35.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04414A-4008

SKIRT-CENTER 50" - WINE RED (4008)

$35.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04414A-4033

Center Skirt for 50" Deck, Flint - FLINT MICA (4033)

$35.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04414A-4044

SKIRT-CENTER 50" - CRAFTSMAN RED (4044)

$35.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04414A-4028

SKIRT-CENTER 50" - SEARS YELLOW (4028)

$35.99

$

Usually ships in 3-6 days

0

$35.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 783-04415

Skirt, RH

Variations

Cub Cadet 783-04415-4021

Right Skirt for 50" Deck - CUB YELLOW 2 (4021)

$30.99

$

In Stock, only 1 left!

0

Cub Cadet 783-04415-0606

Right Skirt for 50" Deck - MAJESTIC ORANGE (0606)

$30.99

$

In Stock, Qty 5

0

Cub Cadet 783-04415-0637

Right Skirt for 50" Deck - POWDER BLACK (0637)

$30.99

$

In Stock, only 3 left!

0

Cub Cadet 783-04415-0665

SKIRT-RH 50" - YARDMAN GREEN (0665)

$30.99

$

In Stock, only 3 left!

0

Cub Cadet 783-04415-0691

SKIRT-RH 50" - BLACK JACK (0691)

$30.99

$

In Stock, only 3 left!

0

Cub Cadet 783-04415-0716

Right Skirt for 50" Deck - CUB YELLOW-99 (0716)

$30.99

$

In Stock, only 3 left!

0

Cub Cadet 783-04415-4008

SKIRT-RH 50" - WINE RED (4008)

$30.99

$

In Stock, only 1 left!

0

Cub Cadet 783-04415-4028

Right Skirt for 50" Deck - SEARS YELLOW (4028)

$30.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04415-4033

Right Skirt for 50" Deck - FLINT MICA (4033)

$30.99

$

In Stock, only 3 left!

0

Cub Cadet 783-04415-4044

SKIRT-RH 50" - CRAFTSMAN RED (4044)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 747-3172C

Rod, Front Lift

$71.99

$

In Stock, only 3 left!

0

53

Cub Cadet 736-3019

Washer, Flat, .531x1.062 x.134 HT

$5.99

$

In Stock, Qty 11

0

54

Cub Cadet 738-0507B

Bolt, Shoulder, .50 Dia. x .494 Lg

$4.49

$

In Stock, Qty 20+

0

55

Cub Cadet 712-0206

Nut, Hex, 1/2-13 Gr5

$4.49

$

In Stock, Qty 20+

0

56

Cub Cadet 703-2248

Bracket, Front Lift

Variations

Cub Cadet 703-2248-0637

Front Lift Bracket - POWDER BLACK (0637)

$47.99

$

In Stock, only 2 left!

0

Cub Cadet 703-2248-0716

Front Lift Bracket - CUB YELLOW-99 (0716)

$47.99

$

In Stock, only 2 left!

0

$38.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 703-05902

Bracket, Up-Stop
(Superseded to 703-05902-0637)

Note: (S.N. K016 and After)

Variations

Cub Cadet 703-05902-0637

BRACKET-DECK UP STOP - POWDER BLACK (0637)

$26.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 x 1.0 Gr5

Note: (S.N. K016 and After)

$4.49

$

In Stock, Qty 20+

0

59

Cub Cadet 712-04065

Nut, Flange Lock, 3/8-16 GrF

Note: (S.N. K016 and After)

$3.99

$

In Stock, Qty 20+

0

60

Cub Cadet 738-3056

Bolt, Shoulder, .496 x 2.5:3/8-16
(Superseded to 938-3056)

$9.49

$

In Stock, Qty 20+

0
