GT 2550 (14A-2E7P010) - Cub Cadet 50" Garden Tractor (2009 & After) Seat & Support Parts Diagram

50" Garden Tractor

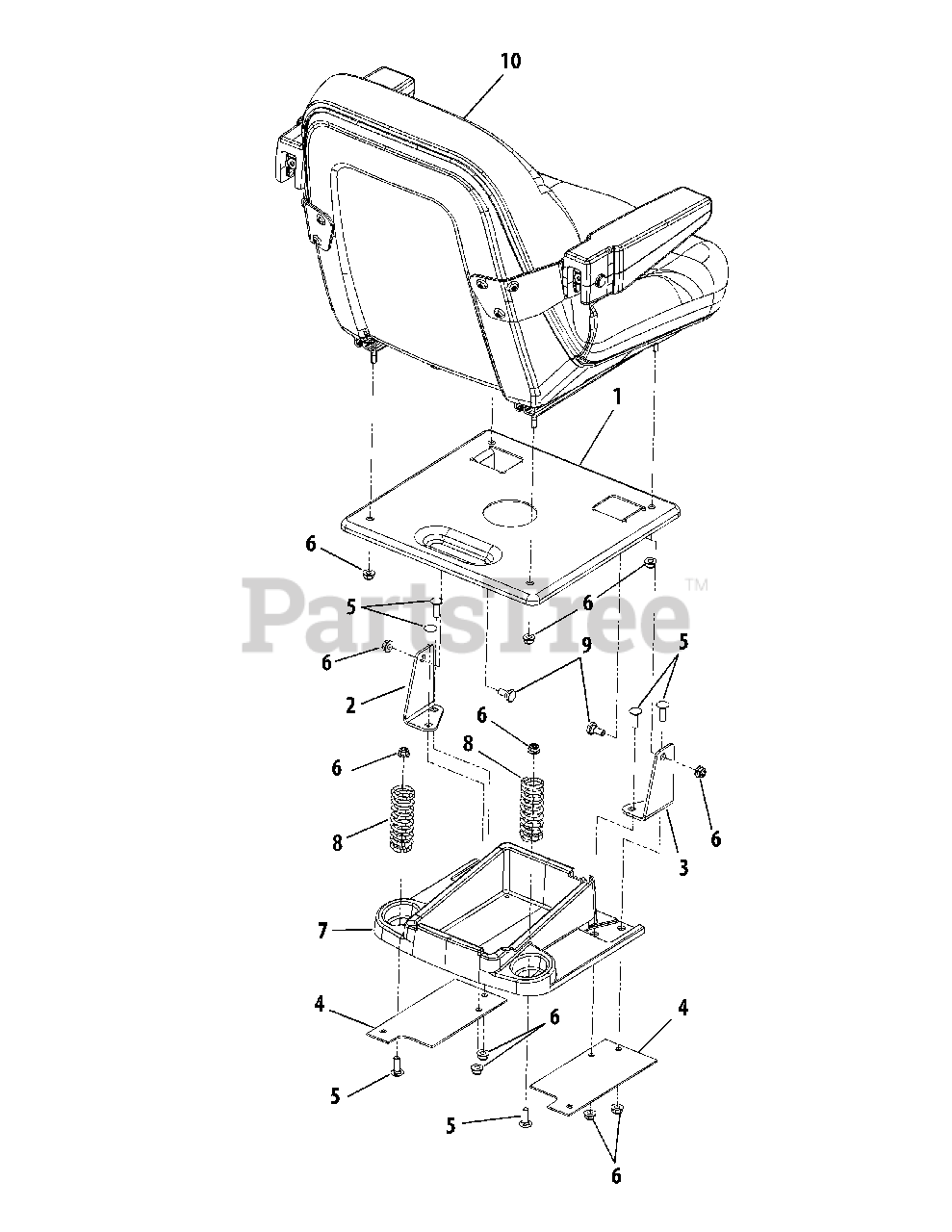

Seat & Support Parts Diagram

  • Title

$73.99

$

In Stock, only 3 left!

0

1

Cub Cadet 777I20310

Graphic, Seat Adjuster

Note: Not shown

$

$

Not available

2

Cub Cadet 703-05877-4021

Bracket, LH Seat Pivot

$25.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-05878-4021

Bracket, RH Seat Pivot

$

$

Not available

4

Cub Cadet 703-2628-4021

Bracket, Fender Reinforcement

$

$

Not available

5

Cub Cadet 710-0276

Bolt, Carriage, 5/16-18 x 1.0

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 712-04063

Nut, Hx Insert Flnge Lck, 5/16-18 GrF

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 731-3162A

Tray, Tool

$

$

Not available

8

Cub Cadet 732-04352

Spring, Compression

$13.99

$

In Stock, Qty 7

0

9

Cub Cadet 938-0140

Bolt, Shoulder
(Superseded to 738-0140)

$

$

Not available

10

Cub Cadet 757-04042

Seat, High Back w/Arm Rests

$

$

Not available
