GT 2550 (14A-2E7P010) - Cub Cadet 50" Garden Tractor (2009 & After) Mower Deck 50 Inch Parts Diagram

50" Garden Tractor

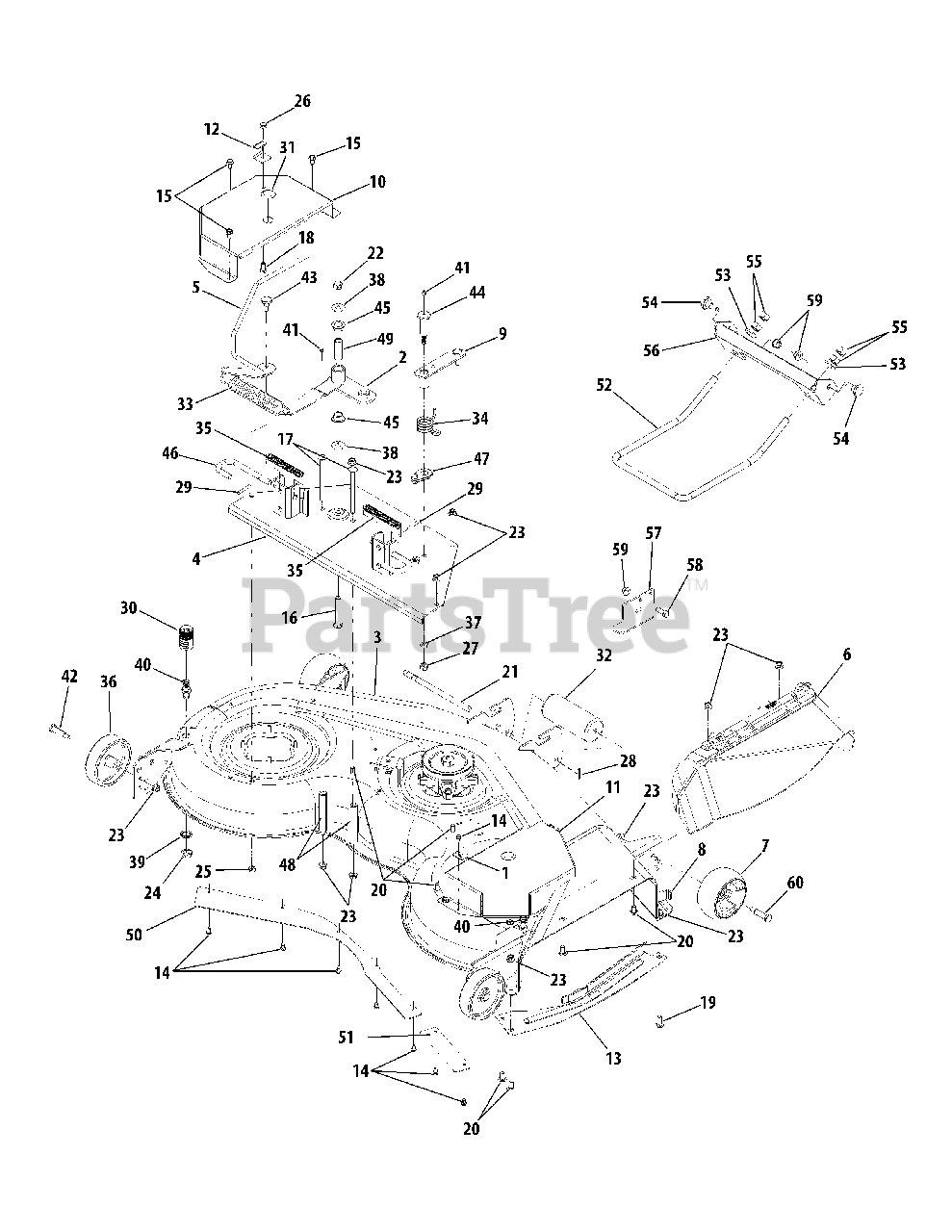

Mower Deck 50 Inch Parts Diagram

  • Title

1

Cub Cadet 96606

Hook, Retainer

$7.49

$

In Stock, Qty 7

0

2

Cub Cadet 603-04094

Arm, Idler
(Superseded to 903-04094)

$162.99

$

In Stock, only 1 left!

0

3

Cub Cadet 903-04215B-4021

Deck Assembly

$925.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 777S30014

Graphic, Caution Spring Tension

Note: Not shown

$9.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 777S30015

Graphic, Rider Danger

Note: Not shown

$8.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 777S30503

Graphic, Danger

Note: Not shown

$11.99

$

In Stock, only 3 left!

0

3

Cub Cadet 777I22485

Graphic, Belt Routing

Note: Not shown

$

$

Not available

3

Cub Cadet 777D11622

Graphic, 50" Cut

Note: Not shown

$9.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 777D10624

Graphic, Deck Wash

Note: Not shown

$3.49

$

In Stock, Qty 5

0

4

Cub Cadet 603-04223-4021

Plate Assembly, Deck Mounting
(Superseded to 603-04223-0637)

$84.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 603-04267-4021

Handle, Tension
(Superseded to 603-04267)

$42.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 631-04070A

Chute Assembly
(Superseded to 631-04070C)

$122.99

$

In Stock, only 3 left!

0

6

Cub Cadet 711-04565

Pin, Hinge, .375 Dia x 14.06

Note: Not shown

$15.99

$

In Stock, only 3 left!

0

6

Cub Cadet 732-04372

Spring, Torsion

Note: Not shown

$10.99

$

In Stock, Qty 8

0

6

Cub Cadet 783-05030

Bracket, Mounting

Note: Not shown

$29.99

$

In Stock, Qty 5

0

6

Cub Cadet 977S30145

Graphic, Danger

Note: Not shown

$10.99

$

In Stock, only 1 left!

0

7

Cub Cadet 734-04155

Wheel, Gauge Ball

$20.99

$

In Stock, Qty 20+

0

8

Cub Cadet 703-3279-4021

Bracket, Chute Deflector Stop
(Superseded to 703-3279)

$40.99

$

In Stock, only 1 left!

0

9

Cub Cadet 703-0118-4021

Arm, Idler
(Superseded to 759-04324B)

$188.99

$

In Stock, Qty 16

0

10

Cub Cadet 703-05546-4021

Shield, Spindle LH

$145.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-05556-4021

Shield, Spindle RH

$142.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 703-2559-4021

Bracket, Handle Stop

$28.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 703-3511A-0637

Guard, Finger
(Superseded to 703-3511B-0637)

$69.99

$

In Stock, Qty 20+

0

14

Cub Cadet 710-0599

Screw, Hex Wash. Hd Tapp , 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 710-0726

Screw, Hex Wash. Hd Tapp, 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 710-1010

Screw, Hex Cap, 1/2-20 x 3.0 GR8

$

$

Not available

17

Cub Cadet 710-1644

Screw, Carriage, 3/8-16 x 5.0 GR5

$9.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 710-3008

Screw, Cap, 5/16-18x .75 GR5

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 710-3168

Bolt, Carriage, 3/8-16 x 1.0 GR5

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 710-3178

Bolt, Carriage, 3/8-16 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 911-3314

Pin, Roller, 1/2 Dia x 7.31
(Superseded to 711-3314A)

$25.99

$

In Stock, Qty 11

0

22

Cub Cadet 912-0239

Nut, Hex Lock, 1/2-20
(Superseded to 712-0239)

$

$

Not available

23

Cub Cadet 912-0431

Nut, Hex Flange Lock, 3/8-16 GRF

$4.99

$

In Stock, Qty 20+

0

24

Cub Cadet 912-0641

Nut, Hex M16-1.5
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

25

Cub Cadet 912-3000

Nut, Hex Ctr. Lock, 3/8-16 GRB
(Superseded to 712-3000)

$4.49

$

In Stock, Qty 9

0

26

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18 GR5

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 912-3019

Nut, Hex, 7/16-14 GR2
(Superseded to 712-3019)

$6.99

$

In Stock, only 1 left!

0

28

Cub Cadet 714-3004

Pin, Cotter, 3/32 Dia x 1.25

$4.99

$

In Stock, Qty 9

0

29

Cub Cadet 715-3003

Pin, Spirol, 3/16 x .75

$6.99

$

In Stock, Qty 7

0

30

Cub Cadet 921-04041

Adapter, Water Nozzle

$23.99

$

In Stock, Qty 20+

0

31

Cub Cadet 726-3045

Plug, Button
(Superseded to 726-3045A)

$4.99

$

In Stock, Qty 6

0

32

Cub Cadet 731-05679

Roller, Front
(Superseded to 731-05679B)

$18.99

$

In Stock, Qty 20+

0

33

Cub Cadet 732-0861

Spring, Extension, 1.25 OD x 7.2

$30.99

$

In Stock, only 1 left!

0

34

Cub Cadet 732-3067

Spring, Torsion

$23.99

$

In Stock, only 1 left!

0

35

Cub Cadet 932-3127

Spring, Compression

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 734-0973

Wheel, Gauge

$12.99

$

In Stock, Qty 20+

0

37

Cub Cadet 936-0171

Washer, Lock, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, Qty 5

0

38

Cub Cadet 936-0179

Washer, Flat, .5 x 1.25 x .1
(Superseded to 736-0179)

$4.99

$

In Stock, only 2 left!

0

39

Cub Cadet 736-0225

Washer, Lock

$4.49

$

In Stock, only 2 left!

0

40

Cub Cadet 737-04003D

Nozzle, Deck Water

$23.99

$

In Stock, Qty 6

0

41

Cub Cadet 937-3000

Fitting, Lube, 3/16 Drive

$4.99

$

In Stock, Qty 20+

0

42

Cub Cadet 938-0373

Bolt, Shoulder, .498 x 1.53:3/8-16

$9.49

$

In Stock, Qty 20+

0

43

Cub Cadet 938-0507B

Bolt, Shoulder, .500 Dia x .434
(Superseded to 738-0507B)

$4.49

$

In Stock, Qty 20+

0

44

Cub Cadet 738-3172

Bolt, Shoulder, .68 x 2.11:7/ 16-14

$20.99

$

In Stock, only 2 left!

0

45

Cub Cadet 741-0338

Bearing, Flange

$9.49

$

In Stock, only 2 left!

0

46

Cub Cadet 747-3188

Pin, Mower Support

$34.99

$

In Stock, only 3 left!

0

47

Cub Cadet 748-3100

Retainer, Spring
(Superseded to 748-3100A)

$28.99

$

In Stock, only 1 left!

0

48

Cub Cadet 750-04395

Spacer, .405 x .75 x 4.312

$

$

Not available

49

Cub Cadet 950-3136

Spacer, .5 x .75 x 2.07

$13.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 783-04414A-4021

Skirt, Center

$35.99

$

In Stock, only 1 left!

0

51

Cub Cadet 783-04415-4021

Skirt, RH

$30.99

$

In Stock, only 1 left!

0

52

Cub Cadet 747-3172C

Rod, Front Lift

$71.99

$

In Stock, only 3 left!

0

53

Cub Cadet 736-3019

Washer, Flat, .531 x 1.062 x .134 HT

$5.99

$

In Stock, Qty 11

0

54

Cub Cadet 938-0507B

Bolt, Shoulder, .50 Dia. x .494 Lg
(Superseded to 738-0507B)

$4.49

$

In Stock, Qty 20+

0

55

Cub Cadet 912-0206

Nut, Hex, 1/2-13 Gr5
(Superseded to 712-0206)

$4.49

$

In Stock, Qty 20+

0

56

Cub Cadet 703-2248-0637

Bracket, Front Lift

$47.99

$

In Stock, only 2 left!

0

57

Cub Cadet 703-05902-0637

Bracket, Up-Stop

$26.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 x 1.0 Gr5

$4.49

$

In Stock, Qty 20+

0

59

Cub Cadet 712-04065

Nut, Flange Lock, 3/8-16 GrF

$3.99

$

In Stock, Qty 20+

0

60

Cub Cadet 938-3056

Bolt, Shoulder, .496 x 2.5:3/8-16

$9.49

$

In Stock, Qty 20+

0
