GT 2550 (14A-2E7P010) - Cub Cadet 50" Garden Tractor (2009 & After) Engine Mounting & Muffler Parts Diagram

50" Garden Tractor

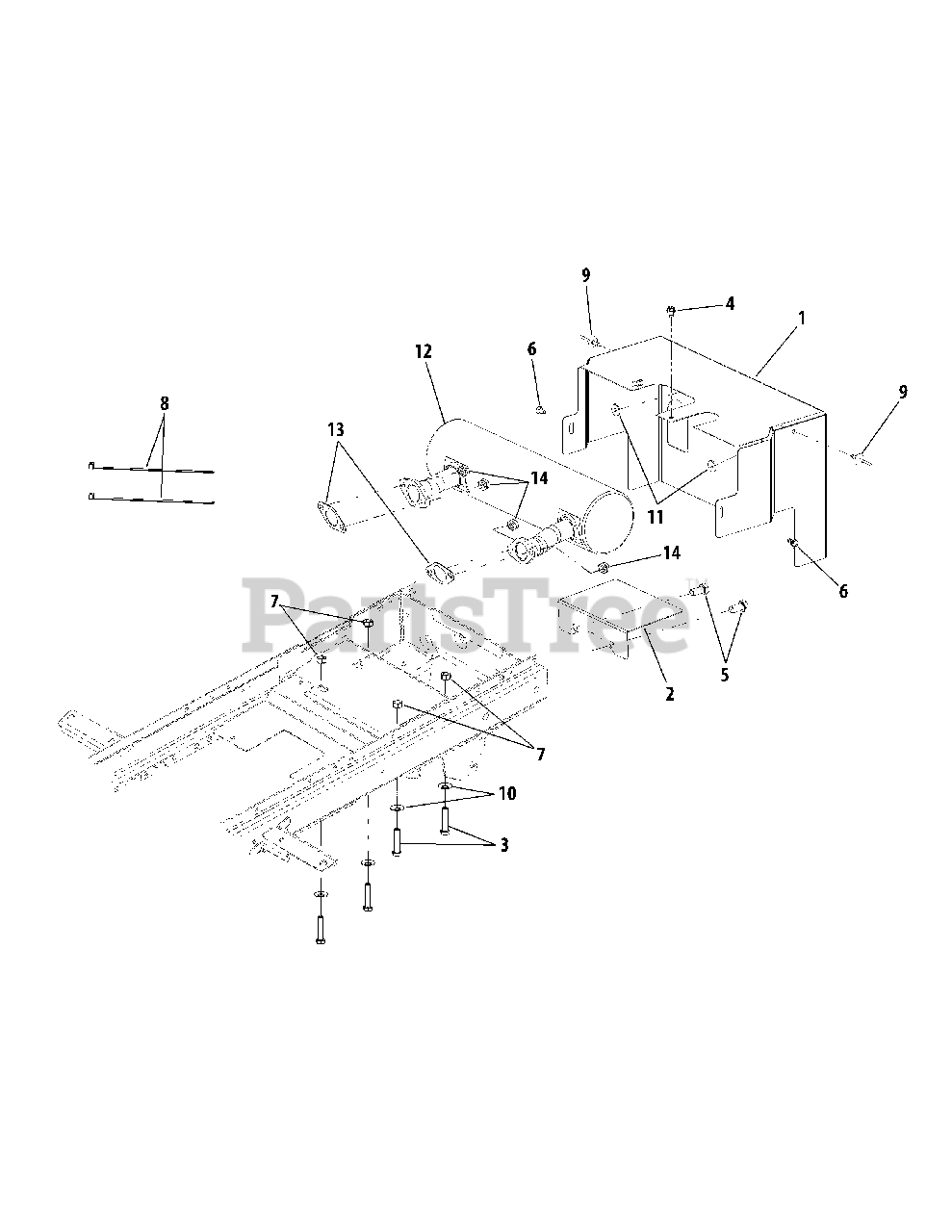

Engine Mounting & Muffler Parts Diagram

  • Title

1

Cub Cadet 703-05875C

Shield, Heat

$88.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-05883

Shield, Clutch

$

$

Not available

3

Cub Cadet 710-0539

Bolt, Eng Mount, 3/8-24 x 1.75 GR5

$4.99

$

In Stock, Qty 11

0

4

Cub Cadet 710-0653

Screw, Hx Wsh Hd Tapp, 1/4-20 x .375

$4.49

$

In Stock, Qty 8

0

5

Cub Cadet 710-3119

Screw, Hx Cap Lock, 3/8-16 x .75 Gr5

$6.99

$

In Stock, only 1 left!

0

6

Cub Cadet 710-3209

Screw, Hex Cap, M6 x 1 x 10

$8.49

$

In Stock, Qty 13

0

7

Cub Cadet 712-3054

Nut, Hex Lock, 3/8-24

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 725-0157

Tie, Cable

$3.99

$

In Stock, only 2 left!

0

9

Cub Cadet 728-0177

Rivet, Pop, 3/16 x .45

$4.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 736-0105

Washer, Bell, .380 x .88 x .062

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 936-0400

Washer, Flat, .194 x .62 x .063
(Superseded to 736-0400)

$

$

Not available

12

Cub Cadet 751-10249A

Muffl er Assembly

$278.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 721-0377A

Gasket, Exhaust
(Superseded to KH-24-041-49-S)

$

$

Not available

14

Cub Cadet 712-3086

Nut, Hex Flange

$4.49

$

In Stock, only 2 left!

0
