GT 2550 (14A-2E7P010) - Cub Cadet 50" Garden Tractor (2009 & After) Engine Ignition, Electrical & Flywheel Parts Diagram

50" Garden Tractor

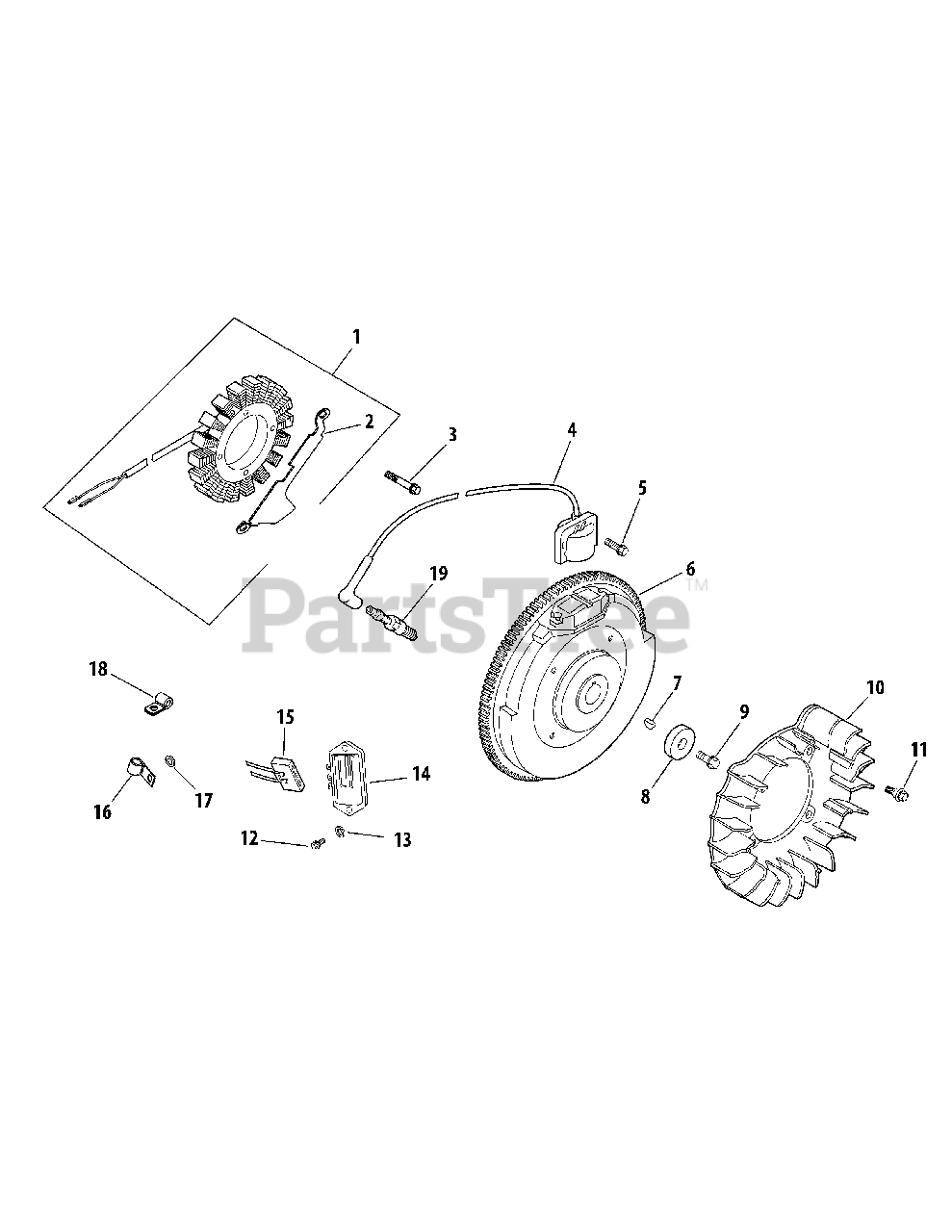

Engine Ignition, Electrical & Flywheel Parts Diagram

  • Title
1

Cub Cadet KH-237878

Stator Kit, 15 Amp

$149.99

$

In Stock, Qty 8

0

2

Cub Cadet KH-24-126-139-S

Bracket, Stator Wire

$15.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-M-548025-S

Screw, Stator Mtg. M5 x .8 x 25
(Superseded to KH-25-086-402-S)

$2.49

$

In Stock, only 2 left!

0

4

Cub Cadet KH-24-584-45-S

Module, Ignition
(Superseded to KH-24-584-201-S)

$110.99

$

Usually ships in 3-6 days

0

5

Cub Cadet KH-M-545020-S

Screw, Module M5 x .8 x 20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 20+

0

6

Cub Cadet KH-24-025-48-S

Flywheel Assembly
(Superseded to KH-24-025-59-S)

$

$

Not available

$

$

Not available

8

Cub Cadet KH-12-468-03

Washer, Flat, 13/32

$

$

Not available

9

Cub Cadet KH-12-086-14

Screw, Flange M10x1.5 x 45
(Superseded to KH-25-086-361-S)

$3.99

$

In Stock, Qty 12

0

10

Cub Cadet KH-24-157-11-S

Fan
(Superseded to KH-24-755-253-S)

$46.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KH-25-086-47

Bolt, Shoulder

$

$

Not available

12

Cub Cadet KH-24-086-18

Screw Phillips Hd., #11-16 x .875

$

$

Not available

13

Cub Cadet KH-X-25-92

Washer, Plain

$

$

Not available

14

Cub Cadet KH-41-403-09

Regulator - Rectifier
(Superseded to KH-25-403-37-S)

$

$

Not available

15

Cub Cadet KH-25-155-41-S

Connector, Regulator-Rectifier

$24.99

$

In Stock, only 1 left!

0

16

Cub Cadet KH-235173

Clip, Cable

$

$

Not available

17

Cub Cadet KH-X-25-63

Washer, Plain 1/4"

$

$

Not available

18

$

$

Not available

19

Cub Cadet 759-3336

Spark Plug
(Superseded to RC12YC)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet KH-24-176-08

Harness, Wire
(Superseded to KH-24-176-171-S)

Note: Not Shown

$117.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-126-137-S

Bracket, Ground Strap
(Superseded to KH-24-518-12-S)

Note: Not Shown

$4.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-086-91-S

Screw, Tapping

Note: Not Shown

$3.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-454-03-S

Tie, Wire

Note: Not Shown

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-468-07-S

Washer, Flat

Note: Not Shown

$2.49

$

Usually ships in 2-5 days

0
