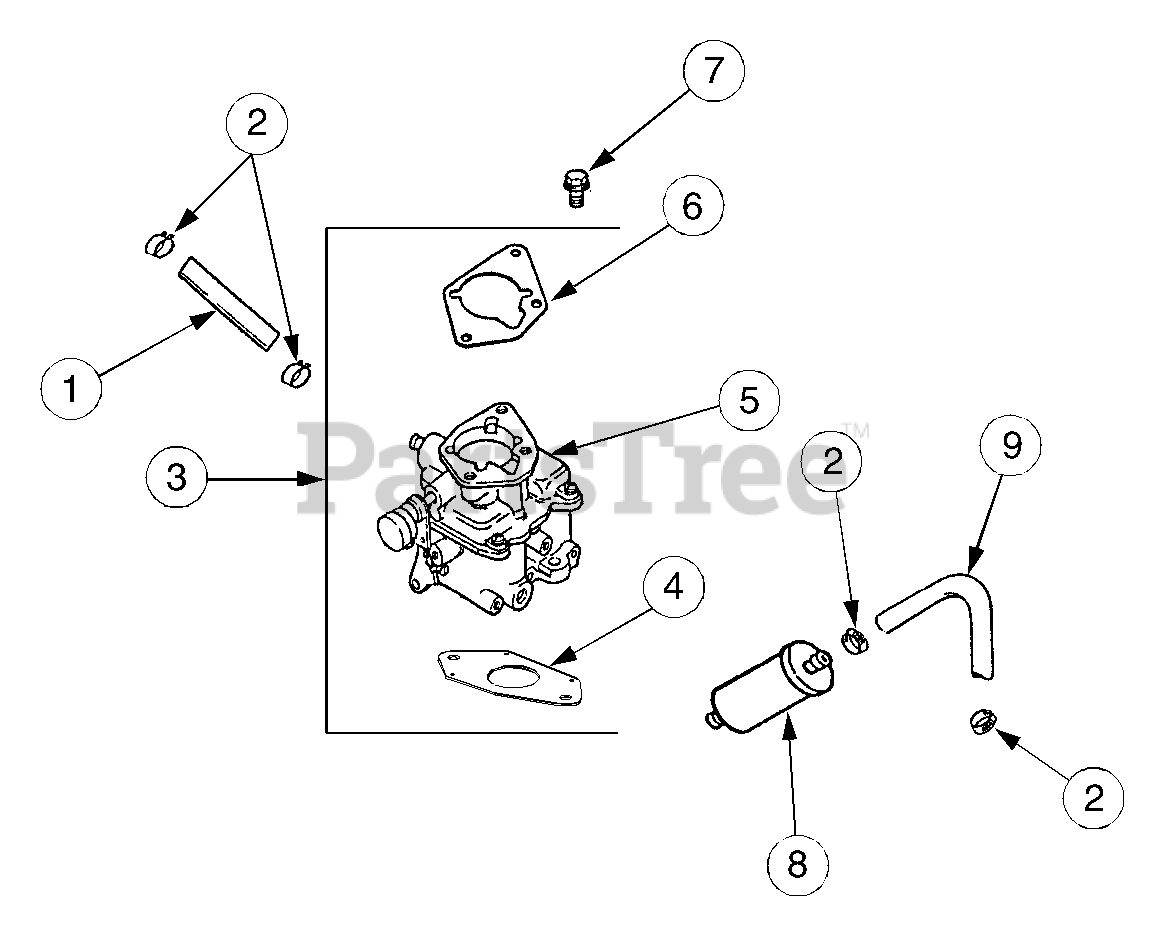

GT 2550 (13A-2C7P710) - Cub Cadet 50" Garden Tractor (2004 & Before) Fuel System Parts Diagram

50" Garden Tractor

Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-52-353-20

Line, Fuel 9-1/4"
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

2

Cub Cadet KH-25-237-14-S

Clamp, Hose
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, only 3 left!

0

3

Cub Cadet KH-24-853-59-S

Kit, Carburetor w/Gasket
(Superseded to KH-24-853-311-S)

Note: (Includes 4-6)

$339.99

$

Usually ships in 3-6 days

0

4

Cub Cadet KH-24-041-53-S

Gasket, Carburetor

$3.49

$

In Stock, Qty 5

0

5

Carburetor Assembly

Note: Not available separately

$

$

Not available

6

Cub Cadet KH-24-041-06

Gasket, Air Cleaner Base

$2.99

$

In Stock, Qty 19

0

7

Cub Cadet KH-M-651025-S

Screw, Hex Flange, M6 x 1.0 x 25
(Superseded to KH-25-086-124-S)

$2.49

$

In Stock, only 3 left!

0

8

Cub Cadet KH-24-050-10

Filter, Fuel

$

$

Currently unavailable

9

Cub Cadet KH-24-353-12

Line, Fuel 11"

$

$

Not available

Cub Cadet 723-3066-14

Insulator, Foam Fuel LIne
(Superseded to 723-3066-24)

Note: Not Illustrated

$16.99

$

In Stock, only 3 left!

0

Cub Cadet KH-24-518-24-S

Lead, Ground

Note: Not Illustrated

$2.49

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-01

Kit, Solenoid

Note: Not Illustrated

$

$

Not available

Cub Cadet KH-24-757-02

Kit, Float Repair
(Superseded to KH-24-757-02-S)

Note: Not Illustrated

$133.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-757-03

Kit, Carburetor Repair
(Superseded to KH-24-757-03-S)

Note: Not Illustrated

$112.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-757-07

Kit, Choke Repair

Note: Not Illustrated

$

$

Not available

Cub Cadet KH-24-755-125-S

Kit, High Altitude

Note: Not Illustrated

$55.99

$

Usually ships in 2-5 days

0
