GT 2544 (14A-2E7L710) - Cub Cadet 44" Garden Tractor (2005 - 2008) Fuel System Parts Diagram

44" Garden Tractor

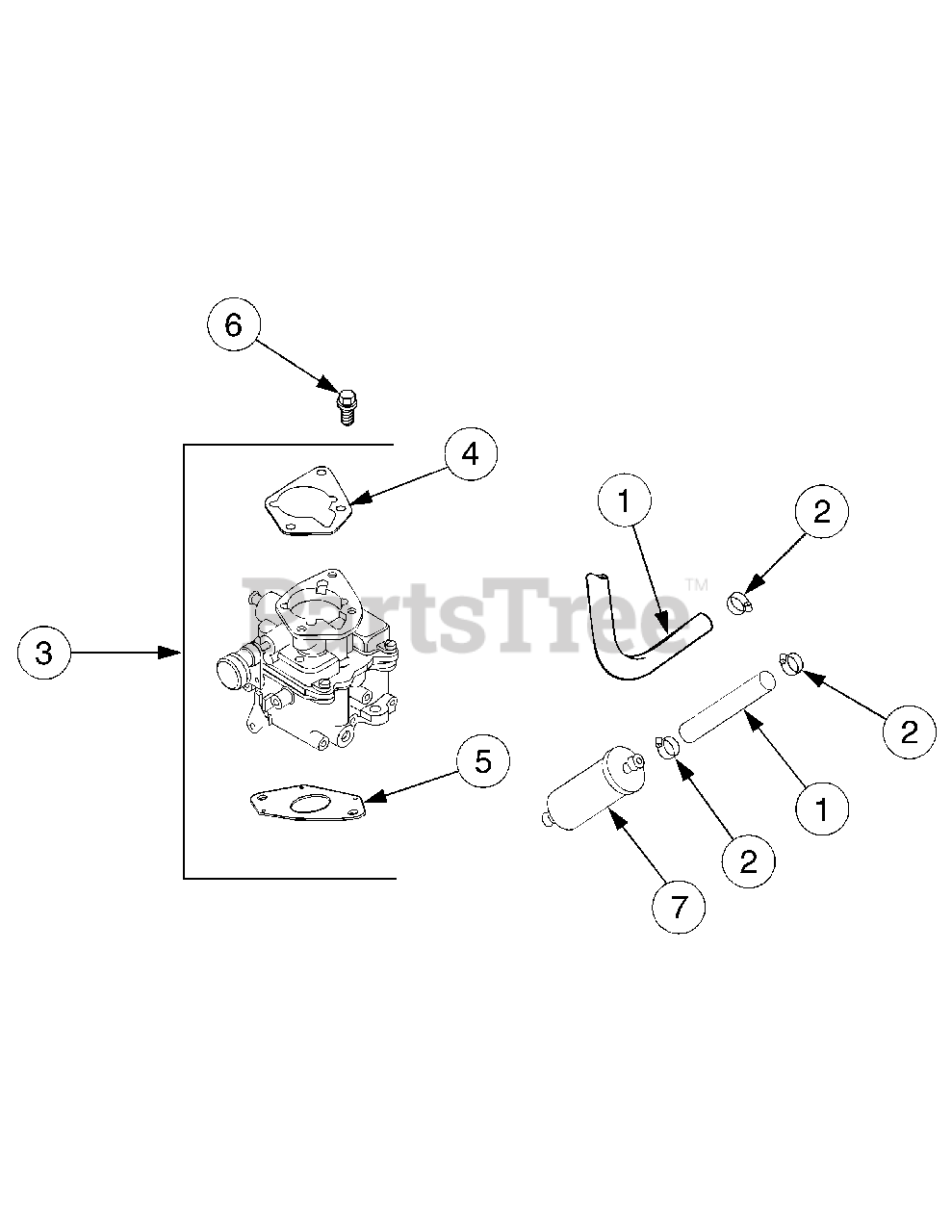

Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-25-111-34-S

Line, Fuel (24" - Cut to Length)
(Superseded to KH-25-111-81-S)

$17.99

$

In Stock, only 4 left!

0

2

Cub Cadet KH-25-237-14-S

Clamp, Hose
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, only 3 left!

0

3

Cub Cadet KH-24-853-59-S

Kit, Carburetor w/Gasket (Includes 2,3)
(Superseded to KH-24-853-311-S)

$339.99

$

Usually ships in 3-6 days

0

4

Cub Cadet KH-24-041-06

Gasket, Air Cleaner Base

$2.99

$

In Stock, Qty 19

0

5

Cub Cadet KH-24-041-53-S

Gasket, Carburetor

$3.49

$

In Stock, Qty 5

0

6

Cub Cadet KH-25-086-124-S

Screw, Hex Flange, M6 x 1.0 x 25

$2.49

$

In Stock, only 3 left!

0

7

Cub Cadet KH-24-050-10-S

Filter, Fuel
(Superseded to 2405013S1C)

$12.99

$

In Stock, Qty 20+

0

Cub Cadet KH-24-518-24-S

Lead, Ground

Note: Not Illustrated

$2.49

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-01

Kit, Solenoid

Note: Not Illustrated

$

$

Not available

Cub Cadet KH-24-757-02-S

Kit, Float Repair

Note: Not Illustrated

$133.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-757-03-S

Kit, Carburetor Repair

Note: Not Illustrated

$112.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-757-07

Kit, Choke Repair

Note: Not Illustrated

$

$

Not available

Cub Cadet KH-24-755-125-S

Kit, High Altitude

Note: Not Illustrated

$55.99

$

Usually ships in 2-5 days

0
