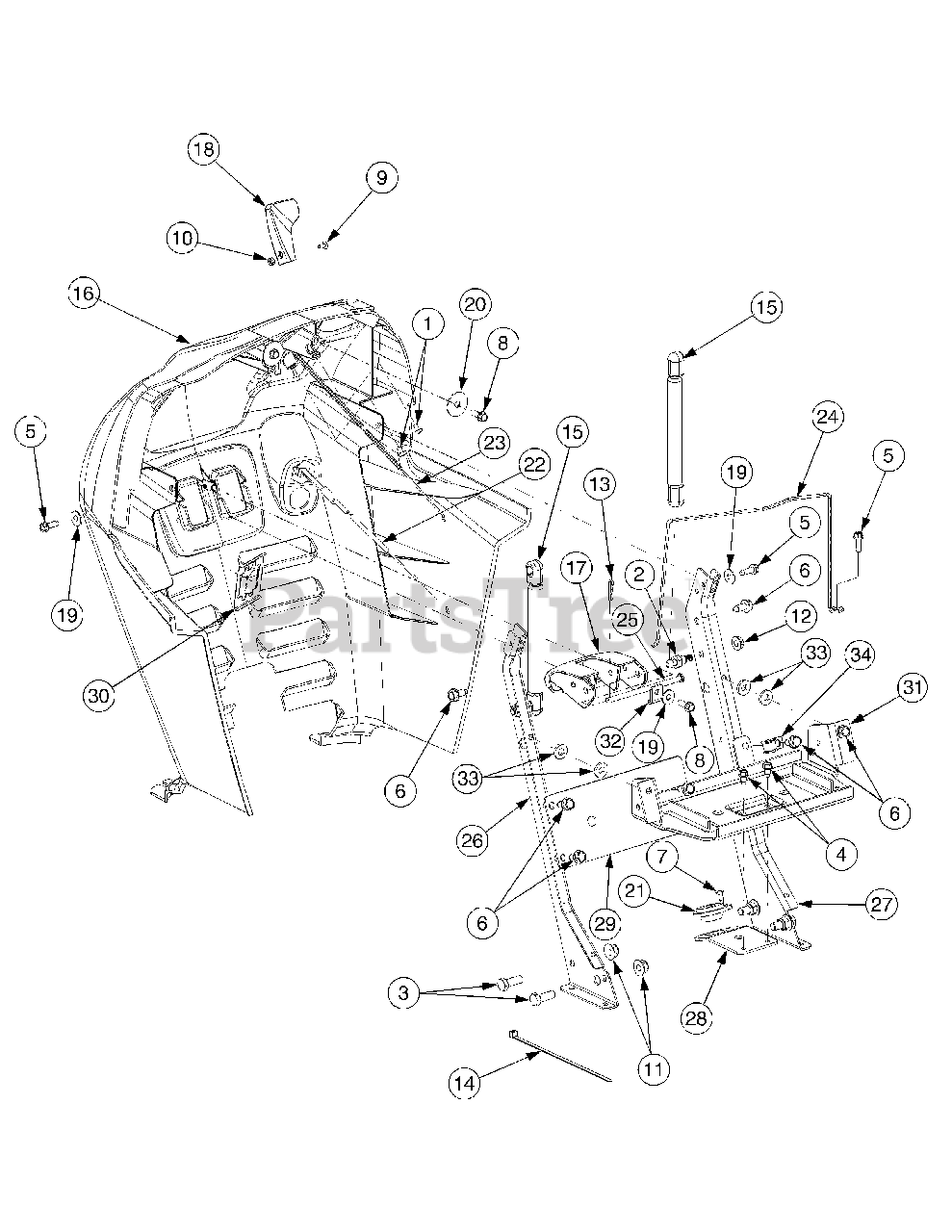

GT 2544 (14A-2E7L710) - Cub Cadet 44" Garden Tractor (2005 - 2008) Dash Panel and Engine Controls Mfg Date K016 & Before Parts Diagram

44" Garden Tractor

Dash Panel and Engine Controls Mfg Date K016 & Before Parts Diagram

  • Title
1

Cub Cadet 710-0192

Screw, #10-24 X .375

$3.99

$

In Stock, Qty 12

0

2

Cub Cadet 710-04471

Screw, Ball Shoulder. 5/16-18 x .48

$27.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-0376

Screw, Hex Cap, 5/16-18 x 1.0 GR5

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0599

Screw, Self-tapping, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0642

Screw, Hx. Wash. Hd, Tapp. 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0726

Screw, Hx. Wash. Hd, Tapp, 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0837

Screw, Oval Cntrsnk, #10-16 x .625

$4.49

$

In Stock, Qty 5

0

8

Cub Cadet 710-0895

Screw, 1/4-15, 0.750

$6.49

$

In Stock, Qty 10

0

9

Cub Cadet 710-3217

Screw, Truss Mach., #8-32 x .375

$6.99

$

In Stock, Qty 7

0

10

Cub Cadet 712-0142

Nut, Hex, #8-32 GrA

$4.49

$

In Stock, Qty 10

0

11

Cub Cadet 712-04063

Nut, Hx Insert Flange Lck, 5/16-18 GrF

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18 GR5

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 714-0104

Internal Cotter Pin, .072 x 1.13

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 725-0157

Tie, Cable

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 727-04142

Cylinder, Gas

$59.99

$

In Stock, only 1 left!

0

16

Cub Cadet 731-05354

Dash
(Superseded to 731-05354A)

$

$

Not available

Cub Cadet 777I22459

Graphic, Dash Insert

$

$

Not available

Cub Cadet 777I22280

Graphic, Throttle
(Superseded to 977I22280)

$

$

Not available

Cub Cadet 777X42183

Graphic, Carb Emissions

$

$

Currently unavailable

17

Cub Cadet 731-05447

Lever, Dash, Cruise
(Superseded to 731-05447A)

$16.99

$

In Stock, Qty 5

0

18

Cub Cadet 731-3161

Knob, Throttle Control
(Superseded to 931-3161A)

$19.99

$

In Stock, only 1 left!

0

19

Cub Cadet 736-0173

Washer, Flat, .28 x .74 x .063

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 736-0362

Washer, Flat, .33 x 1.25 x .06 HT

$4.49

$

In Stock, only 4 left!

0

21

Cub Cadet 741-0587

Bearing, Steering Column

$4.49

$

In Stock, Qty 9

0

22

Cub Cadet 746-04277

Cable, Choke
(Superseded to 946-04277)

$46.99

$

In Stock, only 1 left!

0

23

Cub Cadet 746-3049

Cable, Throttle Control
(Superseded to 946-3049)

$39.99

$

In Stock, only 1 left!

0

24

Cub Cadet 747-04215

Strap, Batter
(Superseded to 747-04215-0637)

Variations

Cub Cadet 747-04215-0637

Battery Strap - POWDER BLACK (0637)

$16.99

$

In Stock, Qty 7

0

$16.99

$

In Stock, Qty 7

0

25

Cub Cadet 747-1323A

Rod, .25 x 4.55

$11.99

$

In Stock, only 3 left!

0

26

Cub Cadet 783-04285D

Plate, Dash Support RH
(Superseded to 783-04285F-0637)

Variations

Cub Cadet 783-04285D-0637

Dash Plate Support - POWDER BLACK (0637)

$

$

Not available

$

$

27

Cub Cadet 783-04323D

Plate, Dash Support, LH
(Superseded to 783-04323F-0637)

Variations

Cub Cadet 783-04323D-0637

USE 783-04323F-0637 SUPPORT-D - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04323D-4008

SUPPORT DASH - WINE RED (4008)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 783-04475

Bracket, Steering Support
(Superseded to 783-04475-0637)

Variations

Cub Cadet 783-04475-0637

Steering Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

29

Cub Cadet 783-04506A

Plate, Dash Support
(Superseded to 783-04506C-0637)

Variations

Cub Cadet 783-04506A-0637

USE 783-04506B-0637 DASH SUPP - POWDER BLACK (0637)

$

$

Not available

$

$

30

Cub Cadet 783-0462

Bracket, PTO Switch Retainer

$

$

Not available

31

Cub Cadet 783-1447B

Bracket, Support, Battery
(Superseded to 783-1447C)

Variations

Cub Cadet 783-1447B-0637

SUPPORT BRACKET - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-1447B-0716

SUPPORT BRACKET - CUB YELLOW-99 (0716)

$

$

Not available

$

$

32

Cub Cadet 783-1499

Bracket, Rod, Dash
(Superseded to 783-1499-0637)

Variations

Cub Cadet 783-1499-0637

Lever Rod Retainer - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 736-3008

Washer, Flat, .344 x .75 x .12
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 726-0272

Clamp, 9/16

$7.49

$

Usually ships in 3-6 days

0
