GT 2544 (14A-2E7L710) - Cub Cadet 44" Garden Tractor (2005 - 2008) Dash Panel and Engine Controls Mfg Date K016 & After Parts Diagram

44" Garden Tractor

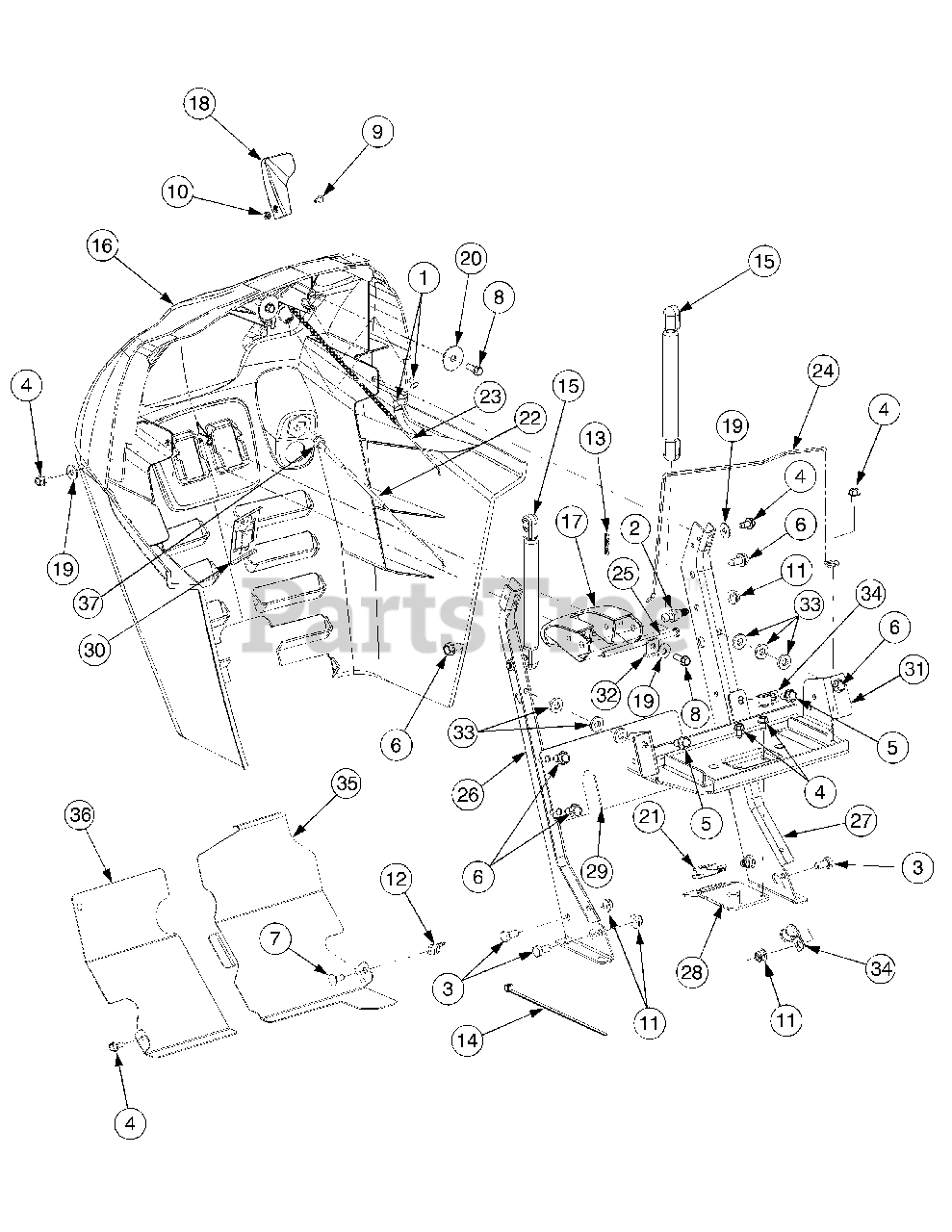

Dash Panel and Engine Controls Mfg Date K016 & After Parts Diagram

  • Title

1

Cub Cadet 710-0192

Screw, #10-24 X .375

$3.99

$

In Stock, Qty 12

0

2

Cub Cadet 710-04471

Screw, Ball Shoulder. 5/16-18 x .48

$27.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-3025

Screw, Hex Cap, 5/16-18 x .625 GR5

$3.99

$

In Stock, Qty 8

0

4

Cub Cadet 710-0599

Screw, Self-tapping, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0650

Screw, Hx. Wash. Hd, Tapp. 5/16-18 x .875

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0726

Screw, Hx. Wash. Hd, Tapp, 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0134

Screw, Carriage, 1/4 -20 x .62

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0895

Screw, 1/4-15, 0.75

$6.49

$

In Stock, Qty 10

0

9

Cub Cadet 710-3217

Screw, Truss Mach., #8-32 x .375

$6.99

$

In Stock, Qty 7

0

10

Cub Cadet 712-0142

Nut, Hex, #8-32 GrA

$4.49

$

In Stock, Qty 10

0

11

Cub Cadet 712-04063

Nut, Hx Insert Flange Lck, 5/16-18 GrF

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-3087

Nut, Wing, 1/4-20

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 714-0104

Internal Cotter Pin, .072 x 1.13

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 725-0157

Tie, Cable

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 727-04142

Cylinder, Gas

$59.99

$

In Stock, only 1 left!

0

16

Cub Cadet 731-05354A

Dash

$

$

Not available

16

Cub Cadet 777I22459

Graphic, Dash Insert

Note: not shown

$

$

Not available

16

Cub Cadet 777I22280

Graphic, Throttle
(Superseded to 977I22280)

Note: not shown

$

$

Not available

17

Cub Cadet 731-05447

Lever, Dash, Cruise
(Superseded to 731-05447A)

$16.99

$

In Stock, Qty 5

0

18

Cub Cadet 731-3161A

Knob, Throttle Control
(Superseded to 931-3161A)

$19.99

$

In Stock, only 1 left!

0

19

Cub Cadet 736-0173

Washer, Flat, .28 x .74 x .063

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 736-0362

Washer, Flat, .33 x 1.25 x .06 HT

$4.49

$

In Stock, only 4 left!

0

21

Cub Cadet 731-05659

Bushing, Steering Shaft

$10.99

$

In Stock, only 1 left!

0

22

Cub Cadet 746-04277

Cable, Choke
(Superseded to 946-04277)

$46.99

$

In Stock, only 1 left!

0

23

Cub Cadet 746-1100

Cable, Throttle Control
(Superseded to 946-1100)

$34.99

$

In Stock, Qty 9

0

24

Cub Cadet 747-04215

Strap, Battery
(Superseded to 747-04215-0637)

Variations

Cub Cadet 747-04215-0637

Battery Strap - POWDER BLACK (0637)

$16.99

$

In Stock, Qty 7

0

$16.99

$

In Stock, Qty 7

0

25

Cub Cadet 747-1323A

Rod, .25 x 4.55

$11.99

$

In Stock, only 3 left!

0

26

Cub Cadet 783-04285E

Plate, Dash Support RH
(Superseded to 783-04285F-0637)

Variations

Cub Cadet 783-04285E-0637

Dash Plate Support - POWDER BLACK (0637)

$

$

Not available

$

$

27

Cub Cadet 783-04323D

Plate, Dash Support, LH
(Superseded to 783-04323F-0637)

Variations

Cub Cadet 783-04323D-0637

USE 783-04323F-0637 SUPPORT-D - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04323D-4008

SUPPORT DASH - WINE RED (4008)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 783-05240

Bracket, Steering Support
(Superseded to 783-05240A-0637)

Variations

Cub Cadet 783-05240-0637

Steering Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

29

Cub Cadet 783-04506C

Plate, Dash Support
(Superseded to 783-04506C-0637)

Variations

Cub Cadet 783-04506C-0637

DASH-SUPPORT PLATE - POWDER BLACK (0637)

$

$

Not available

$

$

30

Cub Cadet 783-0462

Bracket, PTO Switch Retainer

$

$

Not available

31

Cub Cadet 783-1447C

Bracket, Support, Battery

Note: K016 - K017

Variations

Cub Cadet 783-1447C-0637

SUPPORT BRACKET - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-1447C-0716

SUPPORT BRACKET - CUB YELLOW-99 (0716)

$

$

Not available

$

$

31

Cub Cadet 783-05469

Bracket, Support, Battery

Note: K017 & After

Variations

Cub Cadet 783-05469-0637

BRACKET-BATTERY TRAY - POWDER BLACK (0637)

$

$

Not available

$

$

32

Cub Cadet 783-1499

Bracket, Rod, Dash
(Superseded to 783-1499-0637)

Variations

Cub Cadet 783-1499-0637

Lever Rod Retainer - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 736-3008

Washer, Flat, .344 x .75 x .12
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 726-0272

Clamp, 9/16

$7.49

$

Usually ships in 3-6 days

0

35

Cub Cadet 703-05885A

Shield, Engine, LH
(Superseded to 703-05885A-0637)

Note: K016 - K017

Variations

Cub Cadet 703-05885A-0637

SHIELD-ENGINE LH - POWDER BLACK (0637)

$

$

Not available

$

$

35

Cub Cadet 777S32728

Graphic, Steering Box Access Panel

Note: not shown

$

$

Not available

35

Cub Cadet 703-06668

Shield, Engine, LH

Note: K017 & After

Variations

Cub Cadet 703-06668-0637

SHIELD-ENGINE LH - POWDER BLACK (0637)

$

$

Not available

$

$

36

Cub Cadet 703-05884

Shield, Enging, RH

Variations

Cub Cadet 703-05884-0637

SHIELD-ENGINE RH - POWDER BLACK (0637)

$35.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 712-3005

Nut, Flange Lock, 3/8-16 Gr5

$6.99

$

Usually ships in 3-6 days

0
