GT 2544 (14A-2C7L710) - Cub Cadet 44" Garden Tractor (2005 - 2008) Deck Assembly 44 inch Parts Diagram

44" Garden Tractor

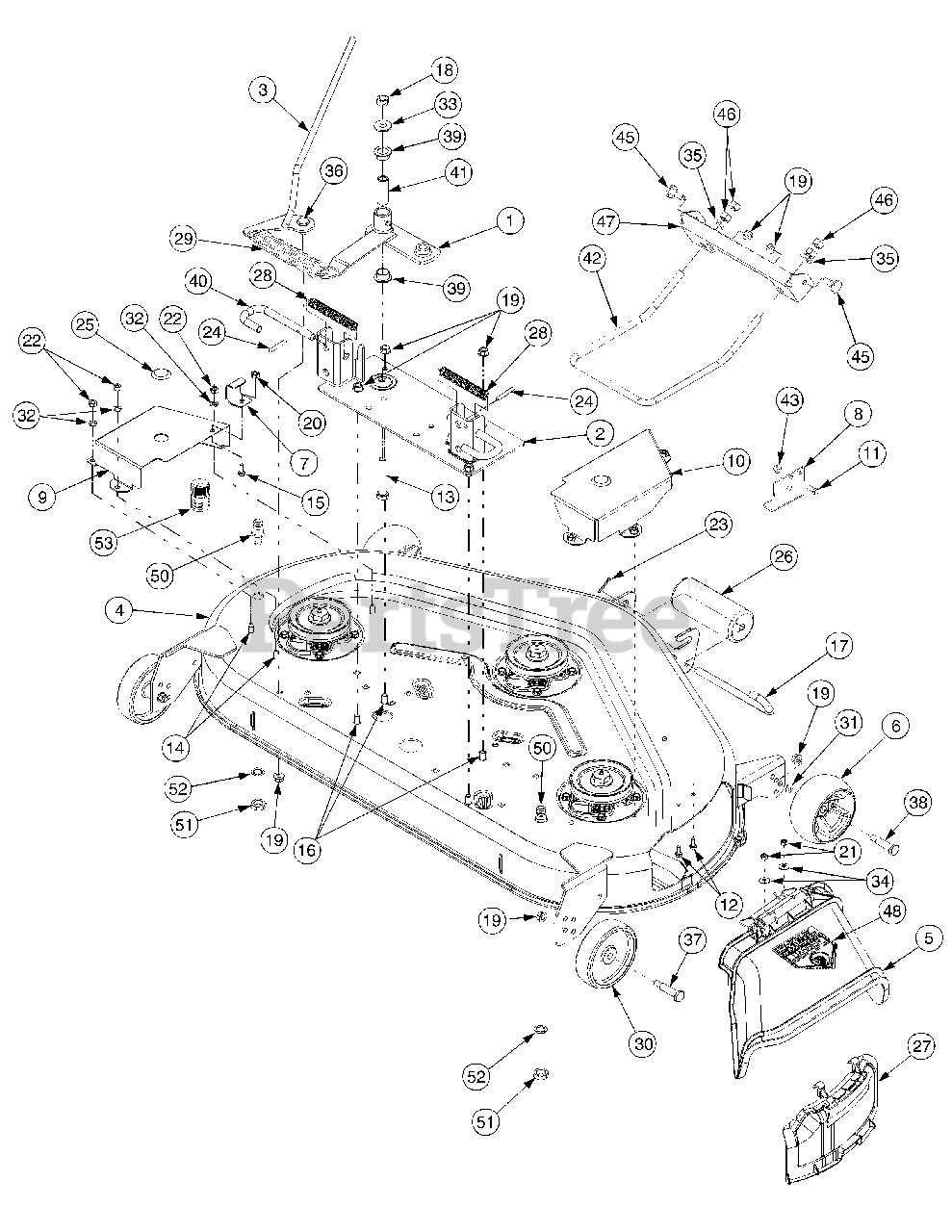

Deck Assembly 44 inch Parts Diagram

1

Cub Cadet 603-0857

Idler Assembly
(Superseded to 903-0857)

$131.99

$

In Stock, Qty 6

0

2

Cub Cadet 603-0183A-0637

Mounting Plate Assembly - POWDER BLACK (0637)

Variations

$174.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 603-04113-0637

HANDLE ASSY - POWDER BLACK (0637)

Variations

$70.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 603-04269A-0716

USE 903-04269A-0716 SHELL-44" - CUB YELLOW-99 (0716)
(Superseded to 903-04269A)

Variations

$

$

Not available

4

Cub Cadet 777S30014

Graphic, Warning

Note: not shown

$9.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 777S30018

Graphic, Deck Safety

Note: not shown

$8.49

$

In Stock, Qty 9

0

4

Cub Cadet 777S30503

Graphic, Deck Safety

Note: not shown

$11.99

$

In Stock, only 2 left!

0

4

Cub Cadet 777I20847

Graphic, Belt Routing

Note: not shown

$

$

Not available

4

Cub Cadet 777D12241

Graphic, 44" Cut

Note: not shown

$

$

Not available

4

Cub Cadet 777D10624

Graphic, Deck Wash

Note: not shown

$3.49

$

In Stock, Qty 5

0

5

Cub Cadet 631-0094

Chute Assembly, Discharge
(Superseded to 631-0094B)

$78.99

$

In Stock, Qty 5

0

6

Cub Cadet 734-04155

Wheel, Deck Ball

$20.99

$

In Stock, Qty 20+

0

7

Cub Cadet 703-2559-0498

Stop Bracket - OLD CUB YELLOW (0498)

Variations

$26.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-05902-0637

BRACKET-DECK UP STOP - POWDER BLACK (0637)
(Superseded to 703-05902-0637)

Note: (S.N. K016 and After)

Variations

$26.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-3742-0716

Belt Cover, LH Yellow - CUB YELLOW-99 (0716)

Variations

$53.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-3743-0637

Belt Cover, RH Black - POWDER BLACK (0637)

Variations

$64.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 x1.0 Gr5

Note: (S.N. K016 and After)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-1010

Screw, Hex Cap, 1/2-20 x 3.0

$

$

Not available

14

Cub Cadet 710-1611B

Screw, Self Tap, 5/16-18 x .75

$6.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 710-3008

Screw, Hex Cap, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 710-3178

Bolt, Carriage, 3/8-16 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 711-3314

Pin, Roller, 1/2 Dia x 7.31
(Superseded to 711-3314A)

$25.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-0239

Nut, Hex Lock, 1/2-20

$5.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-0431

Nut, Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet 712-3004A

Nut, Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 712-3006

Nut, Hex, 1/4-20 GR5

$4.99

$

In Stock, Qty 14

0

22

Cub Cadet 712-3010

Nut, Hex, 5/16-18, GR5

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 714-0115

Pin, Cotter, 1/8 Dia x 1

$3.99

$

In Stock, only 2 left!

0

24

Cub Cadet 715-3003

Pin, Spiral Spring, 3/16 Dia x .75

$6.99

$

In Stock, Qty 7

0

25

Cub Cadet 726-3045

Button Plug
(Superseded to 726-3045A)

$4.99

$

In Stock, Qty 16

0

26

Cub Cadet 731-05679

Front Roller
(Superseded to 731-05679B)

$18.99

$

In Stock, Qty 20+

0

27

Cub Cadet 731-3316

Plug, Mulch

$30.99

$

In Stock, Qty 12

0

28

Cub Cadet 732-3127

Spring, Comp, .66 OD x 1.8
(Superseded to 932-3127)

$4.49

$

In Stock, Qty 19

0

29

Cub Cadet 732-0861

Spring, Ext, .162 Dia x 1.25 OD

$30.99

$

In Stock, Qty 10

0

30

Cub Cadet 734-0973

Wheel, Deck, 5.0 x 1.38

$12.99

$

In Stock, Qty 20+

0

31

Cub Cadet 736-0105

Washer, Belleville, .401 x .870x.63

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

33

Cub Cadet 736-0179

Washer, Flat, 1/2 x 1.25 x .10

$4.99

$

In Stock, Qty 20+

0

34

Cub Cadet 736-0270

Washer, Bell, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet 736-3019

Washer, Flat, .531x1.062 x.134 HT

$5.99

$

In Stock, Qty 8

0

36

Cub Cadet 738-0143

Bolt, Shoulder, .498 Dia x .340

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 738-0373

Screw, Shoulder, .496 x 1.525:3/8-16
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

38

Cub Cadet 738-3056

Bolt, Shoulder, .496 x 2.5:3/8-16
(Superseded to 938-3056)

$9.49

$

In Stock, Qty 20+

0

39

Cub Cadet 741-0338

Bearing, Flange, 3/4 ID x .52 LG

$9.49

$

In Stock, Qty 20+

0

40

Cub Cadet 747-3188

Pin, Mower Support

$34.99

$

In Stock, Qty 6

0

41

Cub Cadet 750-3136

Spacer, .5 OD x .75 x 2.07 Lg
(Superseded to 950-3136)

$13.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 747-3172C

Rod, Front Lift

$71.99

$

In Stock, Qty 8

0

43

Cub Cadet 712-04065

Nut, Flange Lock, 3/8-16 GrF

Note: (S.N. K016 and After)

$3.99

$

In Stock, Qty 20+

0

45

Cub Cadet 738-0507B

Bolt, Shoulder, .50 Dia. x .494 Lg

$4.49

$

In Stock, Qty 20+

0

46

Cub Cadet 712-0206

Nut, Hex, 1/2-13 Gr5

$4.49

$

In Stock, Qty 20+

0

47

Cub Cadet 703-2248-0637

Front Lift Bracket - POWDER BLACK (0637)

Variations

$47.99

$

In Stock, Qty 7

0

48

Cub Cadet 777S30145

Graphic, Danger
(Superseded to 977S30145)

$10.99

$

In Stock, only 1 left!

0

50

Cub Cadet 737-04003C

Nozzle, Deck Wash
(Superseded to 737-04003D)

$23.99

$

In Stock, Qty 13

0

51

Cub Cadet 712-0641

Nut, Hex M16-1.5

$6.49

$

In Stock, Qty 12

0

52

Cub Cadet 736-0225

Washer, Lock

$4.49

$

In Stock, only 1 left!

0

53

Cub Cadet 721-04041

Adapter, Water Nozzle
(Superseded to 921-04041)

$23.99

$

In Stock, Qty 20+

0
