GT 2544 (13A-2D7L710) - Cub Cadet 44" Garden Tractor (2004 & Before) Deck Drive 44" & Spindle Assembly Parts Diagram

44" Garden Tractor

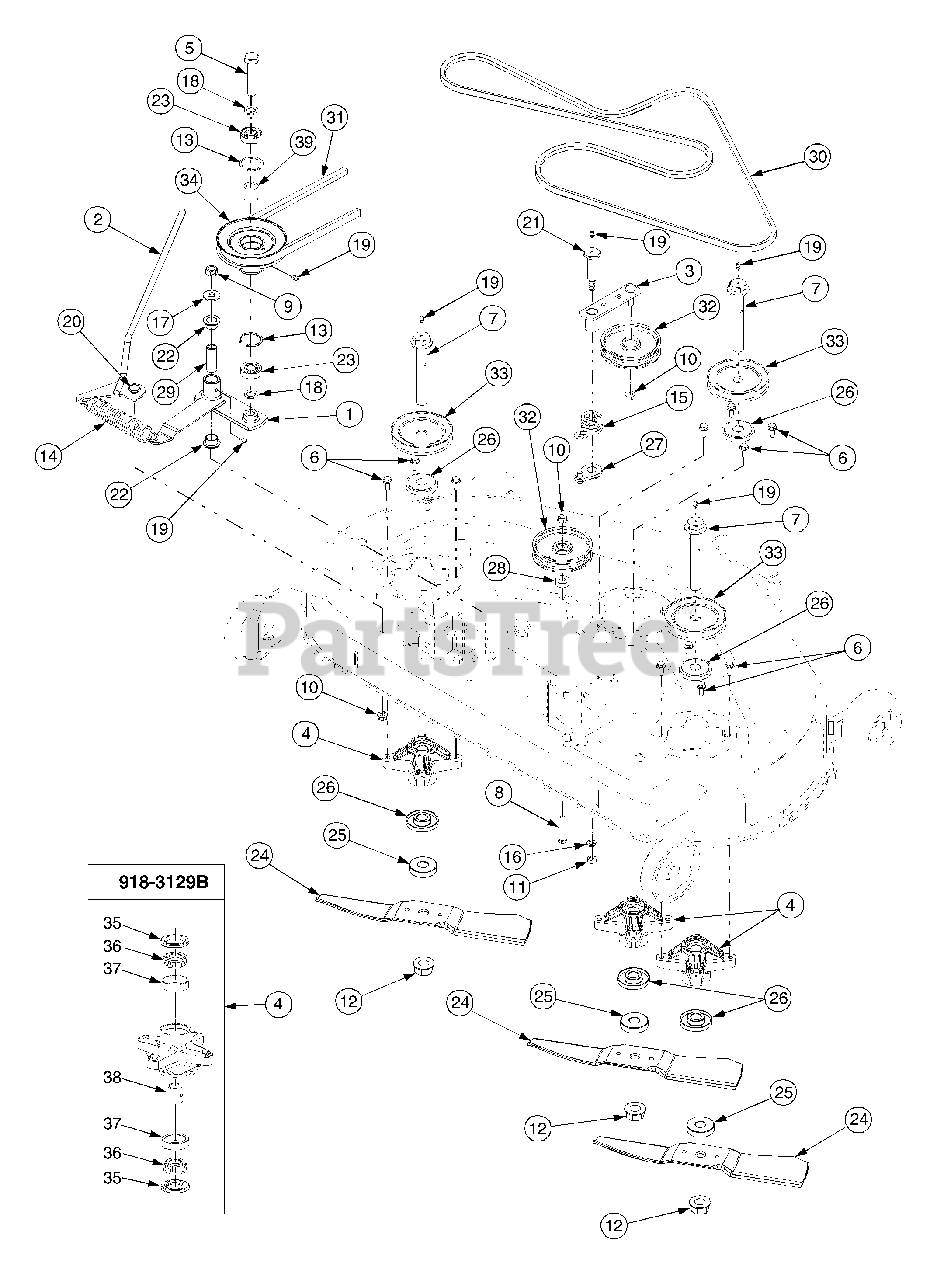

Deck Drive 44" & Spindle Assembly Parts Diagram

  • Title

1

Cub Cadet 603-0857

Idler Assembly
(Superseded to 903-0857)

$131.99

$

In Stock, only 1 left!

0

2

Cub Cadet 603-04113

Handle, Tension

Variations

Cub Cadet 603-04113-0637

HANDLE ASSY - POWDER BLACK (0637)

$70.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-04113-0716

USE 603-04113-0637 HANDLE ASS - CUB YELLOW-99 (0716)

$70.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-04113-4021

USE 603-04113-0637 HANDLE ASS - CUB YELLOW 2 (4021)

$70.99

$

Usually ships in 3-6 days

0

$61.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-0118

Idler Arm Assembly
(Superseded to 759-04324B)

$188.99

$

In Stock, Qty 16

0

4

Cub Cadet 918-3129B

Spindle Assembly -
(Superseded to 918-3129C)

Note: Includes Ref. Nos. 35, 36, 37 and 38

$112.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0923

Screw, Hex Cap, 5/8-18 x 3.0

$9.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-1260A

Screw, Hex Wash Ld, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-1852

Bolt, Spindle, 3/4-16 x 5.37

$28.99

$

In Stock, only 2 left!

0

8

Cub Cadet 710-3144

Screw, Hex Cap, 3/8-16 x 2.0 GR5

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 712-0239

Nut, Hex Lock, 1/2-20

$5.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-0431

Nut, Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-3019

Nut, Hex, 7/16-14, GR2

$6.99

$

In Stock, only 1 left!

0

12

Cub Cadet 712-3078

Nut, Hex Flange, 3/4-16

$9.99

$

In Stock, Qty 20+

0

13

Cub Cadet 716-3020

Snap Ring, Internal
(Superseded to 916-3020)

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 732-0861

Spring, Ext, .162 Dia x 1.25 OD

$30.99

$

In Stock, only 1 left!

0

15

Cub Cadet 732-3067

Torsion Spring, Idler, 1.10 ID x 1.3

$23.99

$

In Stock, only 1 left!

0

16

Cub Cadet 736-0171

Washer, Lock, 7/16

$4.49

$

In Stock, only 4 left!

0

17

Cub Cadet 736-0179

Washer, Flat, 1/2 x 1.25 x .10

$4.99

$

In Stock, only 2 left!

0

18

Cub Cadet 736-0237

Washer, Flat, .65 x 1.25 x .075

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 737-3000

Fitting, Lube, 3/16 Drive
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet 738-0143

Bolt, Shoulder, .498 Dia x .340

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 738-3172

Screw, Shldr, .68 x 2.11, 7/16-14

$20.99

$

In Stock, only 1 left!

0

22

Cub Cadet 741-0338

Bearing, Flange, 3/4 ID x .52 LG

$9.49

$

In Stock, only 2 left!

0

23

Cub Cadet 741-1122

Bearing, Ball

$34.99

$

In Stock, Qty 20+

0

24

Cub Cadet 759-3939

Blade, Mower, 15.94
(Superseded to 742P3036)

$

$

Not available

25

Cub Cadet 748-3020

Spacer, Blade
(Superseded to 948-3020)

$17.99

$

In Stock, only 2 left!

0

26

Cub Cadet 748-3065

Spacer, Deck Spindle
(Superseded to 748-3065A)

$13.99

$

In Stock, Qty 14

0

27

Cub Cadet 748-3100

Retainer, Spring
(Superseded to 748-3100A)

$28.99

$

In Stock, only 1 left!

0

28

Cub Cadet 750-3119

Spacer, .406 ID x 1.00 OD x .38

$11.99

$

In Stock, only 4 left!

0

29

Cub Cadet 750-3136

Spacer, .5 OD x .75 x 2.07 Lg
(Superseded to 950-3136)

$13.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 754-3039

V-Belt, 1/2 x 103.0 Lg
(Superseded to 954-3039)

$59.99

$

In Stock, only 2 left!

0

31

Cub Cadet 754-04041

V-Belt, B sect x 111.2 Lg
(Superseded to 954-04041)

$62.99

$

In Stock, only 2 left!

0

32

Cub Cadet 756-3005

Pulley, Flat w/Flanges

$45.99

$

In Stock, Qty 20+

0

33

Cub Cadet 756-3089

Pulley, V-Type, 4.0 Dia

$36.99

$

In Stock, only 3 left!

0

34

Cub Cadet 756-3115

Pulley, Double

Note: Lube Fitting NOT included.

$135.99

$

In Stock, only 1 left!

0

35

Cub Cadet 721-3018A

Seal, Oil, 1.25 x 1.874 x .25
(Superseded to 921-3018A)

$8.49

$

In Stock, Qty 20+

0

36

Cub Cadet 741-04089

Bearing, Cone
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 19

0

37

Cub Cadet 741-04091

Cup, Bearing
(Superseded to 941-04299)

$6.99

$

In Stock, Qty 20+

0

38

Cub Cadet 750-04409

Spacer, Bearing

$20.99

$

In Stock, only 1 left!

0

39

Cub Cadet 750-3132

Spacer, .88 x .635 x 1.25
(Superseded to 950-3132)

$9.99

$

Usually ships in 3-6 days

0
