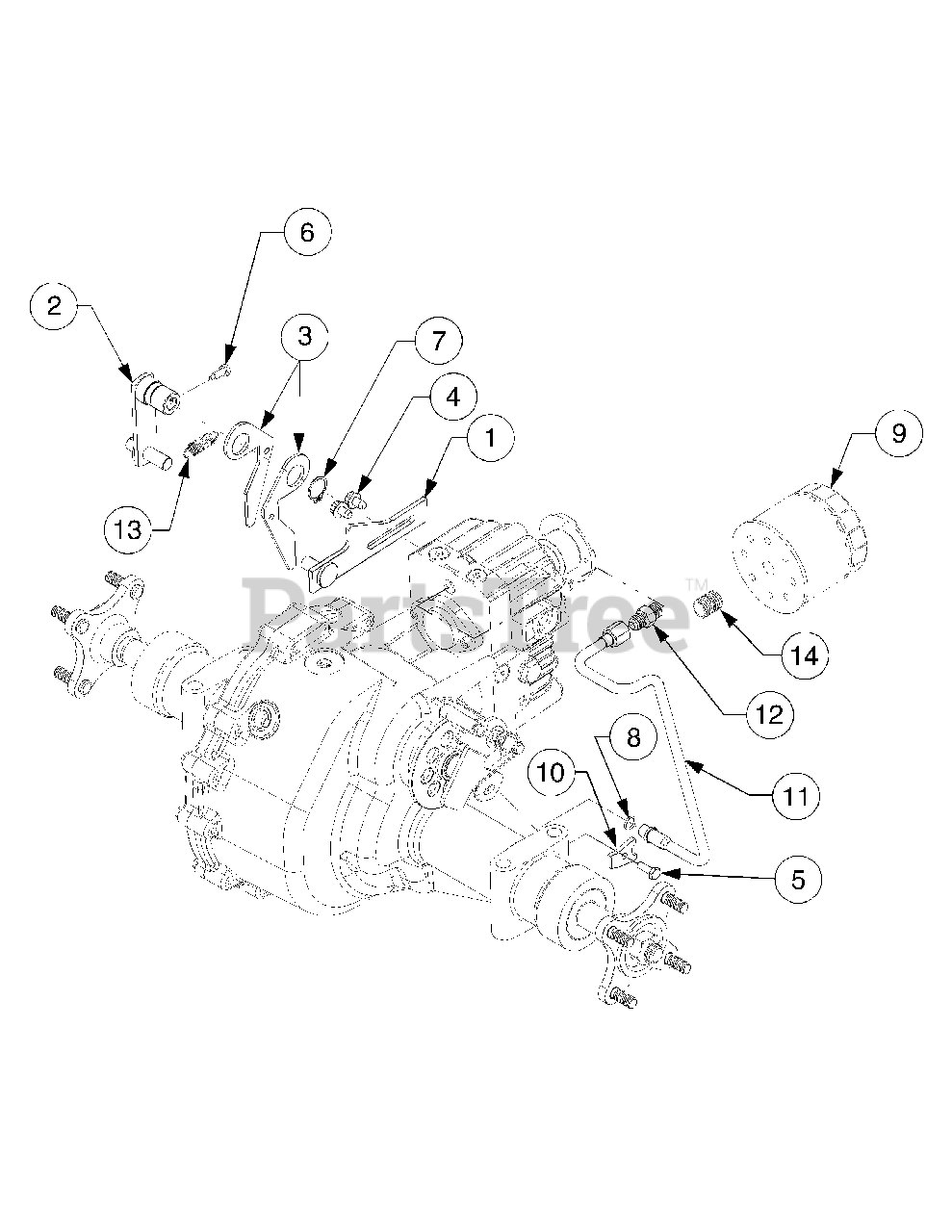

GT 2542 (14A-2D2G710) - Cub Cadet 42" Garden Tractor (2008 & Before) Neutral Linkage and Hydraulic Tube Parts Diagram

42" Garden Tractor

Neutral Linkage and Hydraulic Tube Parts Diagram

  • Title

1

Cub Cadet 603-0732

Bracket, Neutral Return

$40.99

$

In Stock, only 2 left!

0

2

Cub Cadet 603-04340

Arm Assembly, Control
(Superseded to 603-04340A)

$47.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-2441

Arm, Neutral

$7.49

$

In Stock, only 2 left!

0

4

Cub Cadet 710-0607

Screw, Hex Wash Hd Tapp, 5/16-18 x .50

$6.99

$

In Stock, Qty 9

0

5

Cub Cadet 710-3015

Screw, Hex Cap, 1/4-20 x .75 GR5

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-04171

Screw, Special Hex Cap, 5/16-24 x .625

$5.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 716-0111

Ring, Snap, .875 Shaft

$6.99

$

In Stock, only 4 left!

0

8

Cub Cadet 721-0459

O-Ring, .426 ID x .566 OD x .07

$7.99

$

In Stock, Qty 11

0

9

Cub Cadet 723-3014

Filter, Oil
(Superseded to 923-3014)

$20.99

$

In Stock, Qty 20+

0

10

Cub Cadet 726-0295

Clamp, Tube, .50

$10.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 727-0636

Tube, Hydro Pickup

$82.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 727-3002

Fitting, Hydraulic
(Superseded to 927-3002)

$12.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 732-3119A

Spring, Extension

$23.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 737-3022

Nipple, Oil Filter
(Superseded to 937-3022)

$15.99

$

In Stock, only 1 left!

0
