GT 2542 (14A-2D2G710) - Cub Cadet 42" Garden Tractor (2008 & Before) Hydrostatic Pump Parts Diagram

42" Garden Tractor

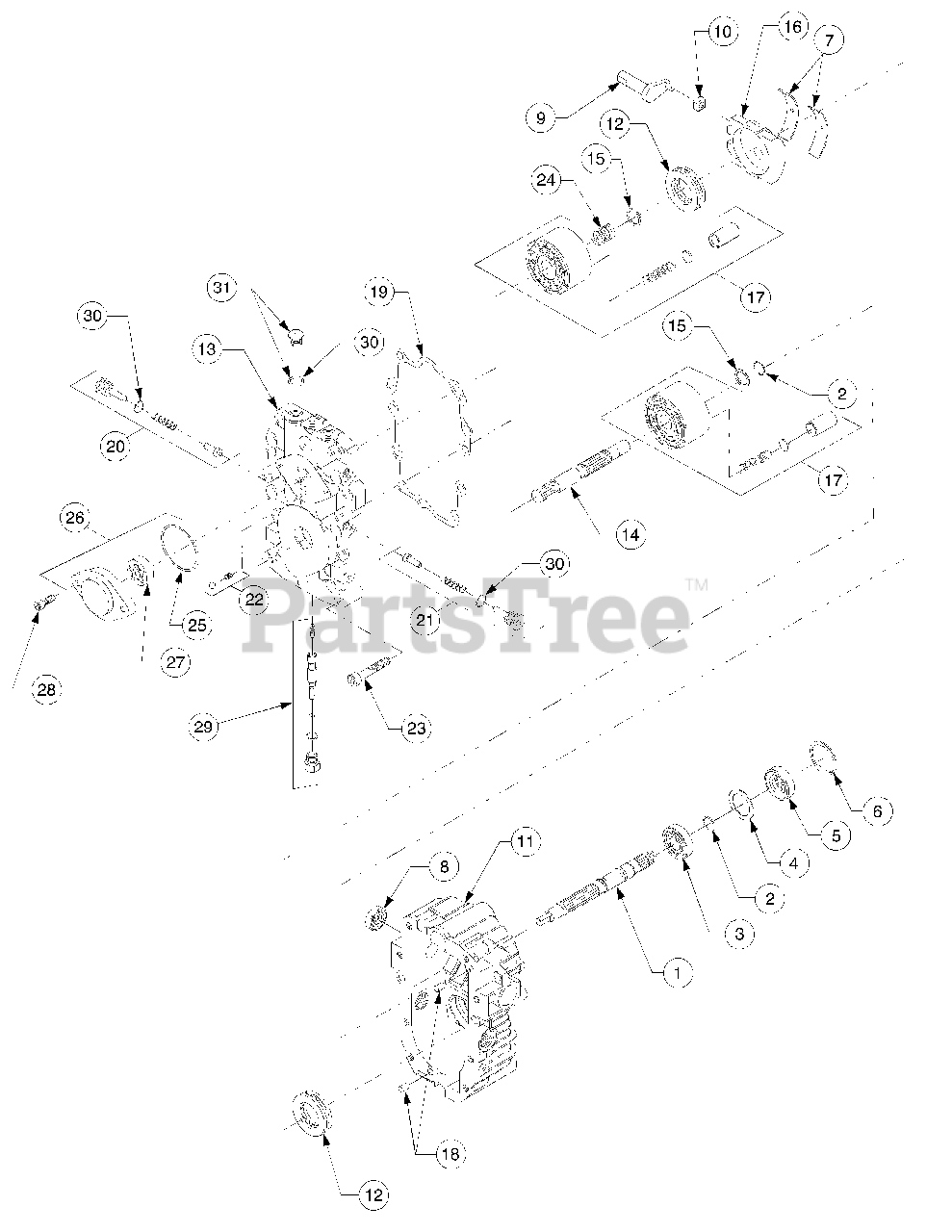

Hydrostatic Pump Parts Diagram

  • Title
1

Cub Cadet HG-50158

Shaft, Pump (Splined)

$168.99

$

Usually ships in 3-6 days

0

2

Cub Cadet HG-2003016

Ring, Retaining

$7.99

$

Usually ships in 3-6 days

0

3

Cub Cadet HG-2003043

Bearing, Ball
(Superseded to HG-2003043P)

$73.99

$

Usually ships in 3-6 days

0

$10.99

$

Usually ships in 3-6 days

0

$19.99

$

In Stock, only 2 left!

0

6

Cub Cadet HG-2003052

Ring, Retaining

$7.99

$

Usually ships in 3-6 days

0

7

Cub Cadet HG-2003023

Bearing, Cradle
(Superseded to HG-52619)

$12.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0

9

Cub Cadet HG-2003005

Arm, Trunnion

$215.99

$

Usually ships in 3-6 days

0

10

Cub Cadet HG-2000015

Guide, Slot

$21.99

$

Usually ships in 3-6 days

0

11

Cub Cadet HG-2513036

Housing Kit

$277.99

$

Usually ships in 3-6 days

0

12

Cub Cadet HG-50551P

Bearing Assembly, Thrust Ball

$29.99

$

Usually ships in 3-6 days

0

13

Cub Cadet HG-70444

Center Section Kit

$541.99

$

Usually ships in 3-6 days

0

14

Cub Cadet HG-2003034

Shaft, Motor

$338.99

$

Usually ships in 3-6 days

0

15

Cub Cadet HG-2003017

Washer, Block Thrust

$4.49

$

Usually ships in 3-6 days

0

16

Cub Cadet HG-2003087

Swash Plate

$220.99

$

Usually ships in 3-6 days

0

17

Cub Cadet HG-70079

Block Assembly
(Superseded to HG-70331)

$188.99

$

Usually ships in 3-6 days

0

$4.49

$

Usually ships in 3-6 days

0

19

Cub Cadet HG-2003060

Gasket, Center Section

$10.99

$

In Stock, only 1 left!

0

20

Cub Cadet HG-2510027

Kit, Check Valve

$65.99

$

Usually ships in 3-6 days

0

21

Cub Cadet HG-2510034

Kit, Orificed Check Valve

$49.99

$

Usually ships in 3-6 days

0

22

Cub Cadet HG-2510011

Kit, Charge Relief Valve

$12.99

$

Usually ships in 3-6 days

0

23

Cub Cadet HG-9007314-0808

Screw, Socket Hd

$5.99

$

Usually ships in 3-6 days

0

24

Cub Cadet HG-2003014

Spring, Block

$4.99

$

Usually ships in 3-6 days

0

$4.49

$

Usually ships in 3-6 days

0

26

Cub Cadet HG-2513027

Kit, Charge Pump

$188.99

$

Usually ships in 3-6 days

0

27

Cub Cadet HG-50273

Gerotor Assy

$36.99

$

Usually ships in 3-6 days

0

28

Cub Cadet HG-50095

Screw, Socket Hd

$

$

Not available

29

Cub Cadet HG-2153011

Bypass Valve Kit
(Superseded to HG-2513011)

$171.99

$

Usually ships in 3-6 days

0

$4.49

$

Usually ships in 3-6 days

0

31

$20.99

$

Usually ships in 3-6 days

0
