GT 2542 (14A-2D2G710) - Cub Cadet 42" Garden Tractor (2008 & Before) Grille and Hood Mfg Date K016 & Before Parts Diagram

42" Garden Tractor

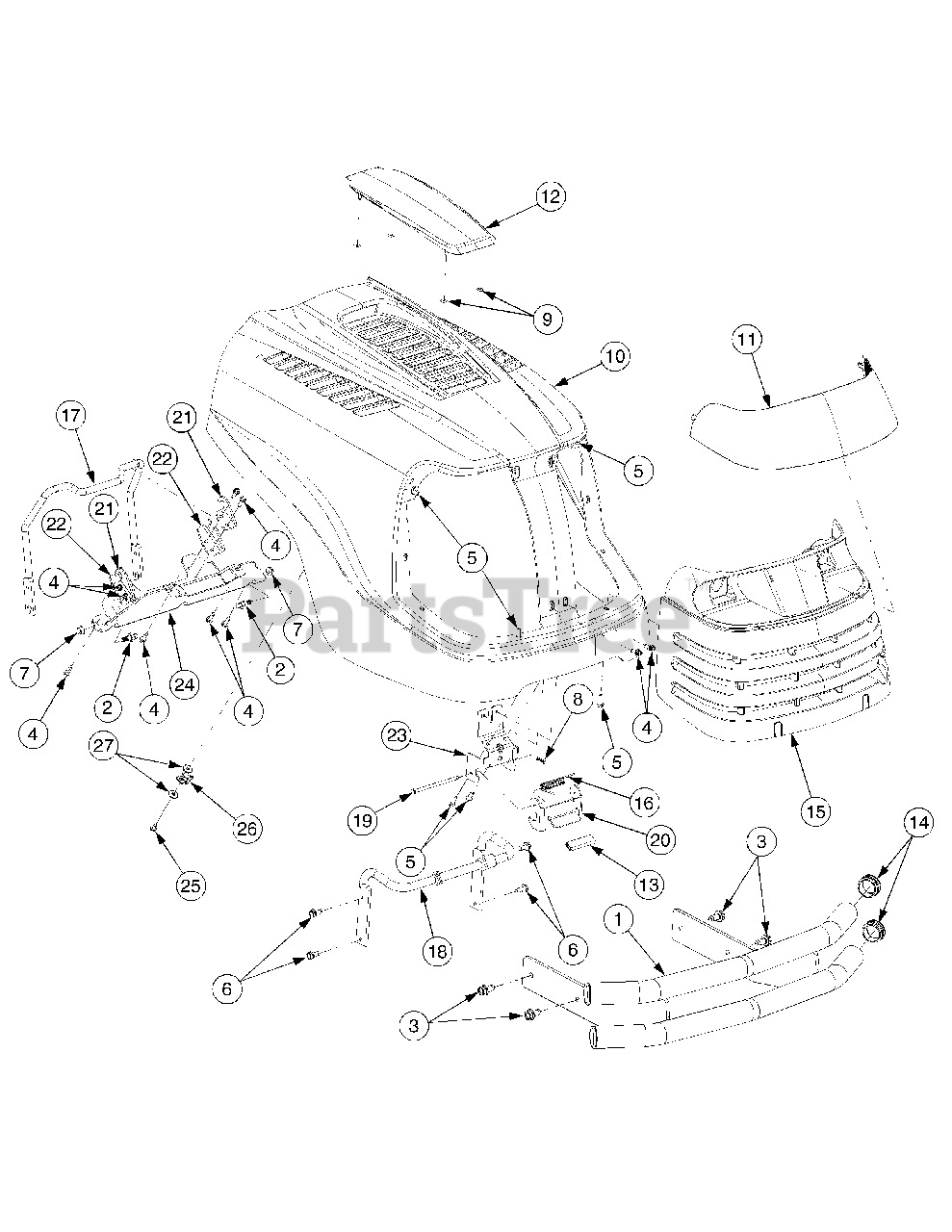

Grille and Hood Mfg Date K016 & Before Parts Diagram

  • Title

1

Cub Cadet 603-04343

Bumper

Variations

Cub Cadet 603-04343-0637

BUMPER-FRONT - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 710-04471

Screw, Ball Shoulder, 5/16-18 x.56

$27.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-0623

Screw, Hx Washer Hd Tapp 3/8-16 x.750

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0642

Screw, Hx Washer Hd Tapp 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0895

Screw, 1/4-15 x.750

$6.49

$

In Stock, Qty 10

0

6

Cub Cadet 710-1260A

Screw, Hx Washer Hd Tapp 5/16- 18 x.750

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-3004A

Nut, Flange Lock, 5/16-18 GR5

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 714-0104

Pin, Cotter,.072 Dia. x 1.13

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 726-0233

Nut, Push, .25 ID x .50 OD

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 759-04136A

Hood, Service Kit

Note: (contains 731-06887, 731-05161, 703-05947, 726-0233, 728-0177, 736-0400, 710-1242 and installation instructions)

$

$

Not available

10

Cub Cadet 731-06887

Hood
(Superseded to 931-06887A)

Note: Replaces 731-05053B

$

$

Not available

10

Cub Cadet 731-05161

Hood Cover
(Superseded to 931-05161)

Note: Not shown

$

$

Not available

10

Cub Cadet 703-05939

Muffler Extension Shield

Note: Not shown

$60.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 726-0233

Push Nut

Note: Not shown

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 728-0177

Pop Rivet 3/16 x .450

Note: Not shown

$4.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 736-0400

Flat Washer .194 x .62 x .063

Note: Not shown

$5.49

$

In Stock, Qty 11

0

10

Cub Cadet 710-1242

Hi Low Screw 5/16-14 x .75

Note: Not shown

$4.99

$

In Stock, Qty 19

0

10

Cub Cadet 777D09721

Graphic, Cub Cadet RH

Note: Not shown

$33.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 777D09722

Graphic, Cub Cadet LH

Note: Not shown

$

$

Not available

10

Cub Cadet 777D09713

Graphic, GT2542 RH

Note: Not shown

$

$

Not available

10

Cub Cadet 777D09714

Graphic, GT2542 LH

Note: Not shown

$

$

Not available

11

Cub Cadet 731-05111

Lens
(Superseded to 931-05111)

$47.99

$

In Stock, Qty 10

0

12

Cub Cadet 731-05161

Cover, Hood
(Superseded to 931-05161)

$

$

Not available

13

Cub Cadet 731-05291

Vinyl Strip, 2.5"
(Superseded to 731-05291-2.50)

$

$

Not available

14

Cub Cadet 731-05368

Cap, Bumper

$5.99

$

In Stock, Qty 10

0

15

Cub Cadet 731-05510

Grill
(Superseded to 931-05510)

$117.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 777X42027

Reflector, Headlight

Note: Not shown

$38.99

$

In Stock, only 1 left!

0

16

Cub Cadet 732-04281A

Latch Spring

$8.49

$

In Stock, Qty 12

0

17

Cub Cadet 747-04354B

Hood Pivot Rod

$

$

Not available

18

Cub Cadet 747-04423

Hood Latch Rod
(Superseded to 747-04423A)

$122.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 747-1323A

Rod,.250 Dia. x 4.55

$11.99

$

In Stock, only 3 left!

0

20

Cub Cadet 783-04717A

Latch Pivot Bracket

$

$

Not available

21

Cub Cadet 783-04724A

Upper Pivot Bracket

$

$

Not available

22

Cub Cadet 783-04725A

Hood Pivot Bracket

$

$

Not available

23

Cub Cadet 783-04848

Latch Plate

$23.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 783-04971

Hood Hinge Bracket

Variations

Cub Cadet 783-04971-0637

Hood Hinge Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

25

Cub Cadet 710-0224

Screw, Hx Wash, Hd. AB, 10-16 x .5
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 726-0272

Clamp, 9/16

$7.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 736-0400

Washer, Flat, .194 x .62 x .063

$5.49

$

In Stock, Qty 11

0
