GT 2542 (14A-2D2G710) - Cub Cadet 42" Garden Tractor (2008 & Before) Front Axle and Connections Parts Diagram

42" Garden Tractor

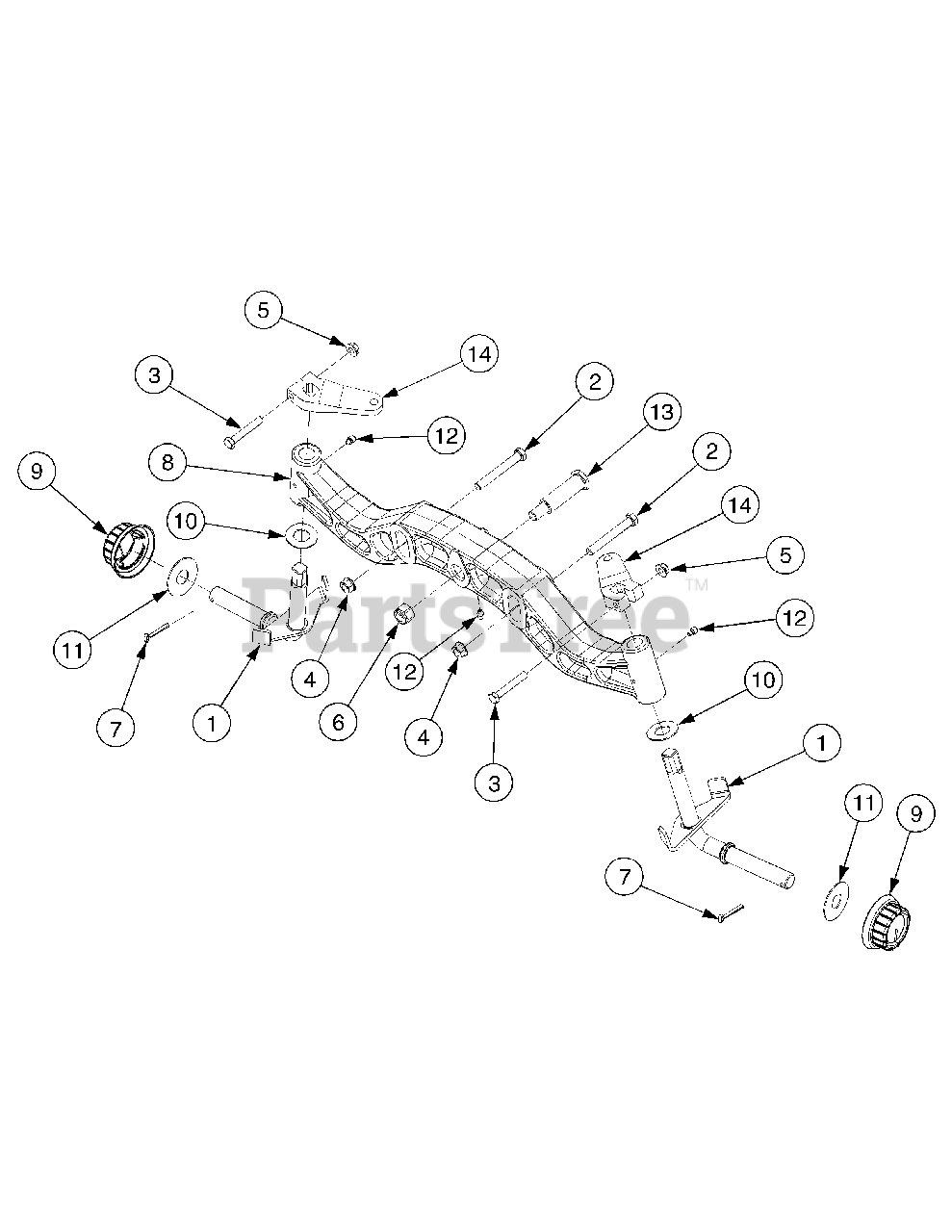

Front Axle and Connections Parts Diagram

  • Title

1

Cub Cadet 603-04338

Axle Assembly
(Superseded to 903-04338)

$49.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-3066

Screw, Hex Cap, 3/8-16 x 2.75 GR8

$5.49

$

In Stock, Qty 7

0

3

Cub Cadet 710-3103

Screw, Hex Cap, 5/16-18 x 2 GR5

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 712-0431

Nut, Hex Flanged Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

5

Cub Cadet 712-3004A

Nut, Hex Flange Top Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 712-3083

Nut, Hex Top Nylon Lock, 1/2-13

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 714-04039

Pin, Cotter, 5/32 x 1.25
(Superseded to 714-0162)

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet 719-3095

Axle, Front Pivot

$438.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 731-3020

Hubcap
(Superseded to 931-3020)

$8.99

$

In Stock, Qty 20+

0

10

Cub Cadet 736-0188

Washer, Flat, .760 x 1.49 x .06 Thk.

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 736-0866

Washer, Flat, .755 x 1.92 x .06

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 737-3000

Fitting, Lube, 3/16 Drive Type
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 738-3110

Bolt, Pivot Shoulder, 3/4 Dia x 2.23
(Superseded to 938-3110)

$33.99

$

In Stock, Qty 5

0

14

Cub Cadet 748-3049

Arm, Steering

$48.99

$

Usually ships in 3-6 days

0
