GT 2542 (14A-2D2G710) - Cub Cadet 42" Garden Tractor (2008 & Before) Deck Drive and Spindle Assembly Parts Diagram

42" Garden Tractor

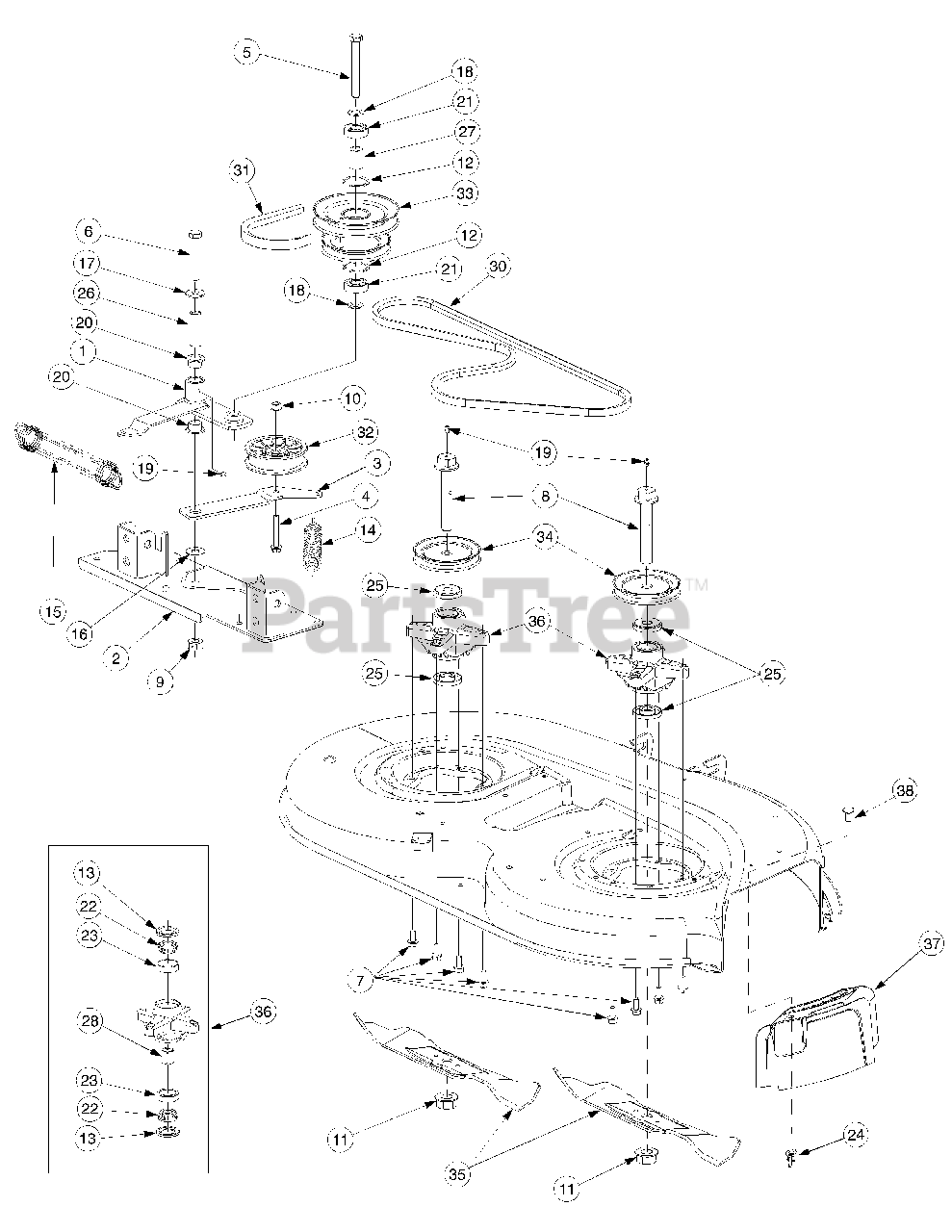

Deck Drive and Spindle Assembly Parts Diagram

  • Title

1

Cub Cadet 603-0857

Pivot Arm, Double Pulley
(Superseded to 903-0857)

$131.99

$

In Stock, only 1 left!

0

2

Cub Cadet 603-0181B

Plate Assembly, Mounting

Variations

Cub Cadet 603-0181B-0716

PLATE ASM-MOUNTING - CUB YELLOW-99 (0716)

$192.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-0181B-4021

PLATE ASM-MOUNTING - CUB YELLOW 2 (4021)

$179.99

$

Usually ships in 3-6 days

0

$155.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-2463

Arm, Idler
(Superseded to 703-2463-0637)

Variations

Cub Cadet 703-2463-0498

Idler Arm - OLD CUB YELLOW (0498)

$39.99

$

In Stock, only 2 left!

0

Cub Cadet 703-2463-0637

Idler Arm - POWDER BLACK (0637)

$39.99

$

In Stock, only 2 left!

0

$39.99

$

In Stock, only 2 left!

0

4

Cub Cadet 710-0520

Screw, Hex Cap, 3/8-16 x 1.5 GR5

$4.49

$

In Stock, Qty 6

0

5

Cub Cadet 710-0923

Screw, Hex Cap, 5/8-18 x 3.0 GR5

$9.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-1010

Screw, Hex Cap, 1/2-20 x 3.0 GR8

$

$

Not available

7

Cub Cadet 710-1260A

Screw, Hex Wsh Hd Tap, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-1336A

Bolt, Spindle, 3/4-16 x 4.25

$24.99

$

In Stock, Qty 8

0

9

Cub Cadet 712-0239

Nut, Hex Center Lock, 1/2-20

$5.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-04065

Nut, Hex Flange Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-3078

Nut, Hex Flange, 3/4-16

$9.99

$

In Stock, Qty 20+

0

12

Cub Cadet 716-3020

Snap Ring, Internal
(Superseded to 916-3020)

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 721-3018A

Seal, Oil, 1.25 x 1.874 x .25
(Superseded to 921-3018A)

$8.49

$

In Stock, Qty 20+

0

14

Cub Cadet 732-0262

Spring, Extension, .88 x 6.12
(Superseded to 932-0262)

$

$

Not available

15

Cub Cadet 732-3115

Spring, Extension, 1.25 x 8.15

$

$

Not available

16

Cub Cadet 736-0100

Washer, Flat, .531 x 1.25 x .036

$6.99

$

In Stock, Qty 7

0

17

Cub Cadet 736-0179

Washer, Flat, .531 x 1.25 x .100

$4.99

$

In Stock, only 2 left!

0

18

Cub Cadet 736-0237

Washer, Flat, .65 x 1.25 x .075 Hdn.

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 737-3000

Fitting, 3/16 Drive Lube
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet 741-0338

Bearing, Flange, 3/4 ID x .53 Lg

$9.49

$

In Stock, only 2 left!

0

21

Cub Cadet 741-1122

Bearing, .625 ID x 1.574 OD x 470

$34.99

$

In Stock, Qty 20+

0

22

Cub Cadet 741-04129

Cone, Bearing
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 19

0

23

Cub Cadet 741-04130

Cup, Bearing
(Superseded to 941-04299)

$6.99

$

In Stock, Qty 20+

0

24

Cub Cadet 712-3087

Nut, Wing, 1/4-20

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 748-3065A

Spacer, Deck Spindle

$13.99

$

In Stock, Qty 14

0

26

Cub Cadet 750-0656

Spacer, Idlr Brkt .50 ID x .75 OD x 2.25

$11.99

$

In Stock, only 1 left!

0

27

Cub Cadet 750-3132

Spacer, Pulley .635 ID x .88 OD x 1.25
(Superseded to 950-3132)

$9.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 750-3190A

Spacer, Bearing

$13.99

$

In Stock, only 2 left!

0

30

Cub Cadet 754-3073

Belt, Spindle, A-Section x 61 Lg
(Superseded to 954-3073)

$53.99

$

In Stock, Qty 9

0

31

Cub Cadet 754-04041

Belt, PTO, B-Section x 111.2 Lg
(Superseded to 954-04041)

$62.99

$

In Stock, only 2 left!

0

32

Cub Cadet 756-0627D

Pulley, Flat Idler, 3.5 OD

$30.99

$

In Stock, Qty 20+

0

33

Cub Cadet 756-3114

Pulley, Double

Note: (737-3000 Lube Fitting Not Included)

$142.99

$

In Stock, only 1 left!

0

34

Cub Cadet 756-3089

V-Pulley, 4.0 Dia

$36.99

$

In Stock, only 3 left!

0

35

Cub Cadet 759-04081

Blade, 3 In One, 21.20 Lg
(Superseded to 742P04101)

$33.99

$

In Stock, only 3 left!

0

36

Cub Cadet 618-3129C

Spindle, Blade
(Superseded to 918-3129C)

$112.99

$

In Stock, Qty 20+

0

37

Cub Cadet 731-2363

Plug, Mulch

$29.99

$

In Stock, only 4 left!

0

38

Cub Cadet 710-0134

Screw, Carriage, 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0
