GT 2542 (14A-2D2G710) - Cub Cadet 42" Garden Tractor (2008 & Before) Deck Assembly 42 inch Parts Diagram

42" Garden Tractor

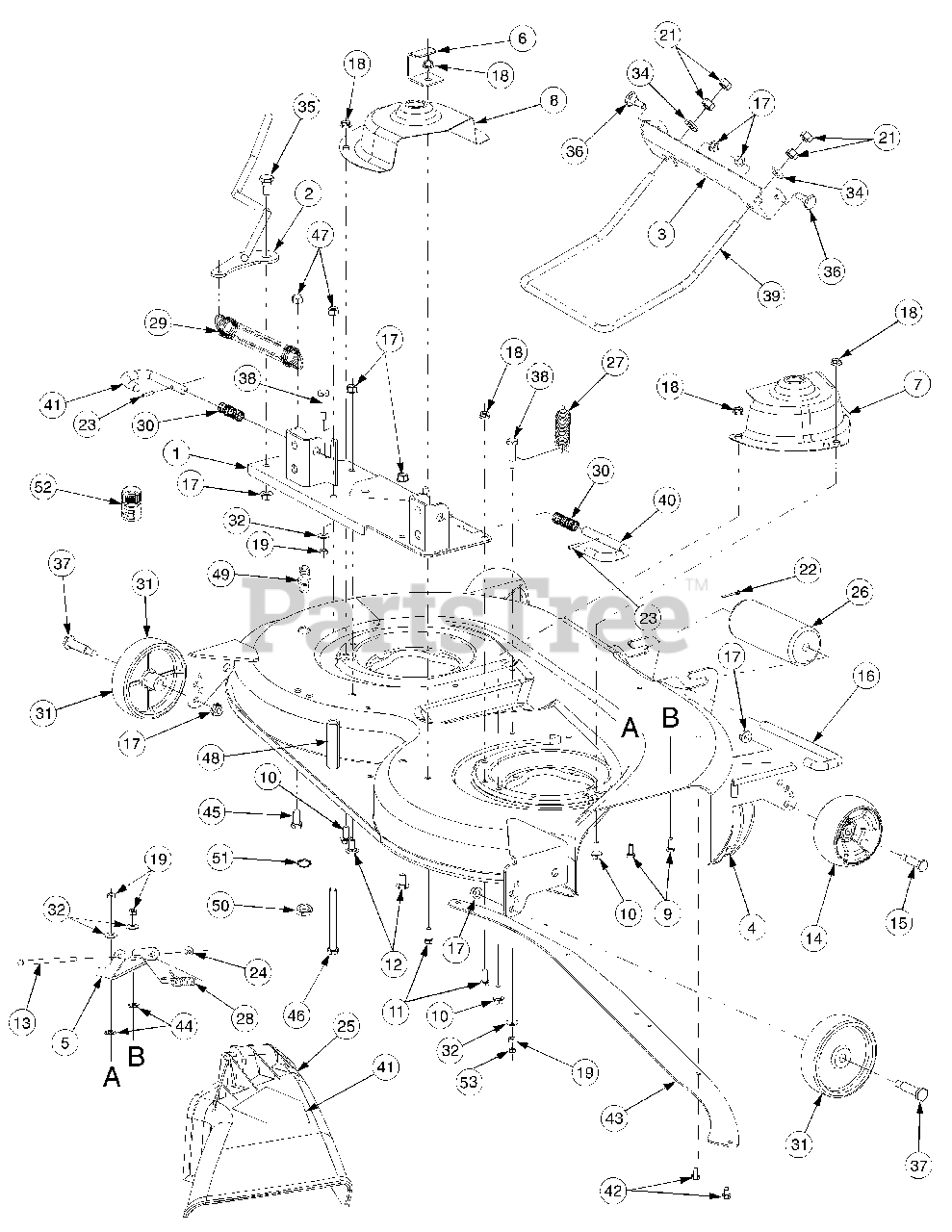

Deck Assembly 42 inch Parts Diagram

  • Title

1

Cub Cadet 603-0181B

Plate Assembly, Mounting

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 603-0181B-0716

PLATE ASM-MOUNTING - CUB YELLOW-99 (0716)

$192.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-0181B-4021

PLATE ASM-MOUNTING - CUB YELLOW 2 (4021)

$179.99

$

Usually ships in 3-6 days

0

$155.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-0199

Handle, Tension

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 603-0199-0498

USE 603-0199-0716 HANDLE TEN - OLD CUB YELLOW (0498)

$54.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-0199-0716

HANDLE TENSION - CUB YELLOW-99 (0716)

$54.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-0199-0637

HANDLE TENSION - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 603-0199-4021

TENSION HANDLE - CUB YELLOW 2 (4021)

$

$

Not available

$54.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-2248

Bracket, Front Lift

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-2248-0637

Front Lift Bracket - POWDER BLACK (0637)

$47.99

$

In Stock, only 2 left!

0

Cub Cadet 703-2248-0716

Front Lift Bracket - CUB YELLOW-99 (0716)

$47.99

$

In Stock, only 2 left!

0

$38.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 903-0409D-0716

Deck Assembly, 42"
(Superseded to 903-0409D-4021)

$806.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 777S30503

Graphic, Danger Top/RH Deck

$11.99

$

In Stock, only 2 left!

0

4

Cub Cadet 777S30014

Graphic, Tension Lever

$9.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 777S30018

Graphic, Safety Top/LH Deck

$8.49

$

In Stock, only 1 left!

0

4

Cub Cadet 777I22056

Graphic, Belt Routing

$

$

Not available

4

Cub Cadet 777D07755

Graphic, 42" Cut

$

$

Not available

4

Cub Cadet 777D09508

Graphic, Cut

$7.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 777D10624

Graphic, Deck Wash

$3.49

$

In Stock, Qty 7

0

5

Cub Cadet 703-1693A

Bracket, Hinge Mounting

$23.99

$

In Stock, only 4 left!

0

6

Cub Cadet 703-2559

Bracket, Handle Stop

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-2559-0498

Stop Bracket - OLD CUB YELLOW (0498)

$26.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2559-0716

Stop Bracket - CUB YELLOW-99 (0716)

$26.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2559-0637

Stop Bracket - POWDER BLACK (0637)

$26.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2559-0648

Stop Bracket - TECH GRAY (0648)

$26.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2559-4021

BRACKET-STOP - CUB YELLOW 2 (4021)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-3237

Shield, RH Pulley

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-3237-0716

Belt Cover, RH Yellow - CUB YELLOW-99 (0716)

$66.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3237-0498

Belt Cover, RH - OLD CUB YELLOW (0498)

$66.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3237-0637

COVER-BELT RH - POWDER BLACK (0637)

$61.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3237-4021

Belt Cover, RH - CUB YELLOW 2 (4021)

$66.99

$

Usually ships in 3-6 days

0

$61.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-2945

Shield, LH Pulley

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-2945-0498

USE 703-2945-0716 COVER-BELT - OLD CUB YELLOW (0498)

$71.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2945-0716

COVER-BELT LH - CUB YELLOW-99 (0716)

$71.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2945-4021

COVER-BELT LH - CUB YELLOW 2 (4021)

$71.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2945-0637

COVER-BELT LH - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 703-2945-0648

USE 703-2945-0637 COVER-BELT - TECH GRAY (0648)

$

$

Not available

$66.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 x .62 GR5

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-1260A

Screw, Hx Wsh Hd Tapp, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3008

Screw, Hex Cap, 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3178

Bolt, Carriage, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 911-0792

Pin, Hinge, .25 Dia x 6.75 Lg

$4.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 734-04155

Wheel, Deck w/Fitting

$20.99

$

In Stock, Qty 20+

0

15

Cub Cadet 938-3056

Bolt, Shoulder, 1/2 x 2.5 : 3/8-16

$9.49

$

In Stock, Qty 20+

0

16

Cub Cadet 911-3314

Pin, Roller, 1/2 Dia x 7.31 Lg
(Superseded to 711-3314A)

$25.99

$

In Stock, Qty 11

0

17

Cub Cadet 712-04065

Nut, Hex Flange Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-04063

Nut, Hex Flange Lock, 5/16-18 GR5

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-3006

Nut, Hex, 1/4-20

$4.99

$

In Stock, Qty 19

0

21

Cub Cadet 912-0206

Nut, Hex, 1/2-13
(Superseded to 712-0206)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 714-3004

Pin, Cotter, 3/32 x 1.25

$4.99

$

In Stock, Qty 8

0

23

Cub Cadet 715-3003

Pin, Spirol Spring, 3/16 x .75

$6.99

$

In Stock, Qty 9

0

24

Cub Cadet 926-0106

Cap, Speed Nut
(Superseded to 726-0106)

$

$

Not available

25

Cub Cadet 931-1032B

Deflector Assy, Includes 5, 13, 24, 28, and 44
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 6

0

26

Cub Cadet 731-05679

Roller
(Superseded to 731-05679B)

$18.99

$

In Stock, Qty 20+

0

27

Cub Cadet 932-0262

Spring, Extension, .88 OD x 6.12

$

$

Not available

28

Cub Cadet 732-0602A

Spring, Torsion

$12.99

$

In Stock, Qty 5

0

29

Cub Cadet 732-3115

Spring, Extension, 1.25 OD x 8.15

$

$

Not available

30

Cub Cadet 932-3127

Spring, Compression

$4.49

$

In Stock, Qty 6

0

31

Cub Cadet 734-0973

Wheel, Deck, 5 in. Dia

$12.99

$

In Stock, Qty 20+

0

32

Cub Cadet 736-0270

Washer, Bell, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

34

Cub Cadet 736-3019

Washer, Flat, .531 x 1.062 x .134 HT

$5.99

$

In Stock, Qty 11

0

35

Cub Cadet 738-0143

Bolt, Shoulder, .498 Dia x .340 Lg

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 938-0507B

Bolt, Shoulder, .50 Dia x .434 Lg
(Superseded to 738-0507B)

$4.49

$

In Stock, only 4 left!

0

37

Cub Cadet 938-0373

Bolt, Shoulder, 1/2 x 1.5 : 3/8-16

$9.49

$

In Stock, Qty 20+

0

38

Cub Cadet 938-0572

Bolt, Shoulder, .375 Dia x 1.16 Lg
(Superseded to 738-0572)

$

$

Not available

39

Cub Cadet 747-3172C

Rod, Front Lift

$71.99

$

In Stock, only 3 left!

0

40

Cub Cadet 747-3188

Pin, Mower Support

$34.99

$

In Stock, only 3 left!

0

41

Cub Cadet 977S30145

Graphic, Danger

$10.99

$

In Stock, only 1 left!

0

42

Cub Cadet 710-0599

Screw, Self Tapping, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

43

Cub Cadet 753-0884

Skirt, Deck

$82.99

$

In Stock, only 1 left!

0

44

Cub Cadet 726-0233

Nut, Push, 1/4

$4.49

$

In Stock, only 3 left!

0

45

Cub Cadet 710-0180A

Screw, Hx Cap Lock, 3/8-24 x .75 GR5

$3.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 710-0902

Screw, Hex Cap, 3.8-24 x 3.75 GR5

$7.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 912-3061

Nut, Hex Insert Lock, 3/8-24
(Superseded to 712-3061)

$6.99

$

In Stock, Qty 15

0

48

Cub Cadet 750-3193

Spacer

$18.99

$

In Stock, Qty 20+

0

49

Cub Cadet 737-04003D

Nozzle, Deck Wash

$23.99

$

In Stock, Qty 6

0

50

Cub Cadet 912-0641

Nut, Hex, M16-1.5
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

51

Cub Cadet 736-0225

Washer, Lock

$4.49

$

In Stock, only 2 left!

0

52

Cub Cadet 921-04041

Adapter, Water Nozzle

$23.99

$

In Stock, Qty 20+

0

53

Cub Cadet 712-04064

Nut, Hex Flange Lock, 1/4-20 GrF

$3.99

$

In Stock, Qty 20+

0
