GT 2542 (14A-2D2G710) - Cub Cadet 42" Garden Tractor (2008 & Before) Cylinder Head, Valves and Breather Parts Diagram

42" Garden Tractor

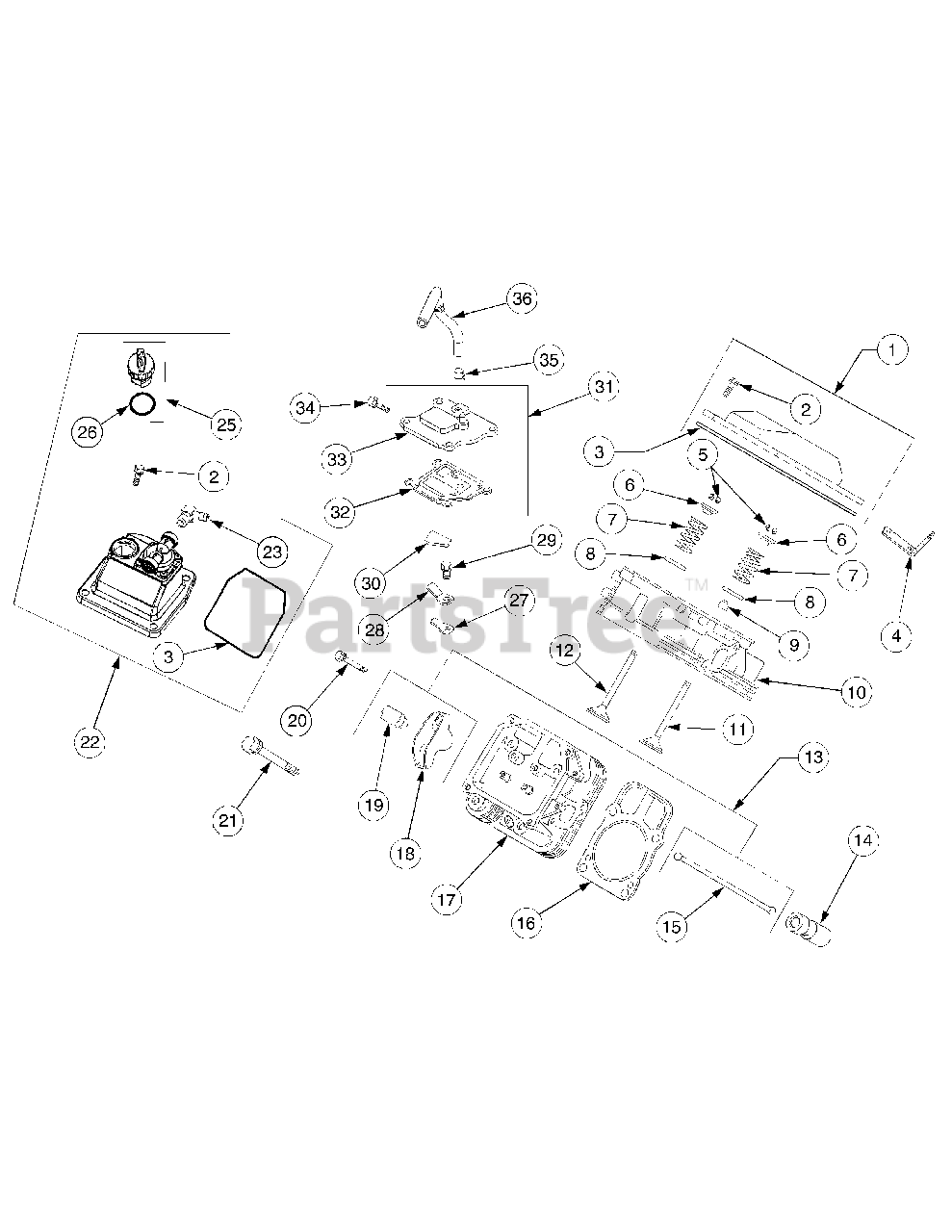

Cylinder Head, Valves and Breather Parts Diagram

  • Title

1

Cub Cadet KH-24-755-141-S

Kit, Valve Cover (Includes 2-3)

$35.99

$

In Stock, only 2 left!

0

2

Cub Cadet KH-M-651030-S

Screw, Hex Flng, M6 x1.0 x 30
(Superseded to KH-25-086-797-S)

$2.99

$

Usually ships in 3-6 days

0

3

Cub Cadet KH-24-153-28-S

O-Ring, Valve Cover
(Superseded to KH-24-153-30-S)

$11.99

$

In Stock, only 3 left!

0

4

Cub Cadet KH-24-445-01

Strap, Lifting
(Superseded to KH-25-445-03-S)

$

$

Not available

5

Cub Cadet KH-12-755-03

Kit, Retainer

$5.99

$

In Stock, only 2 left!

0

6

Cub Cadet KH-12-173-01

Cap, Valve Spring
(Superseded to KH-25-173-28-S)

$8.49

$

In Stock, Qty 5

0

7

Cub Cadet KH-24-089-02

Spring, Valve

$

$

Not available

8

Cub Cadet KH-235011

Retainer, Spring
(Superseded to KH-235011-S)

$6.49

$

In Stock, only 2 left!

0

9

Cub Cadet KH-66-032-05-S

Seal, Valve Stem
(Superseded to KH-25-032-14-S)

$11.99

$

In Stock, only 2 left!

0

10

Cub Cadet KH-24-318-68-S

Head Assembly, #1 Cylinder
(Superseded to KH-24-318-202-S)

$286.99

$

Usually ships in 3-6 days

0

11

Cub Cadet KH-24-017-01

Valve, Intake Std

$

$

Not available

11

Cub Cadet KH-24-017-02

Valve, Intake, .25mm

$

$

Not available

12

Cub Cadet KH-24-016-01

Valve, Exhaust Std
(Superseded to KH-32-016-01-S)

$15.99

$

In Stock, only 4 left!

0

12

Cub Cadet KH-24-016-02

Valve, Exhaust, .25mm

$

$

Not available

13

Cub Cadet KH-24-755-66

Kit, Valve Train (Incl. 15,18,19)

$

$

Not available

14

Cub Cadet KH-25-351-04-S

Lifter, Valve
(Superseded to KH-25-351-11-S)

$23.99

$

In Stock, only 4 left!

0

15

Cub Cadet KH-24-411-05

Rod, Push

$

$

Not available

16

Cub Cadet KH-24-841-01-S

Kit, Cyl. Hd. Gasket (Includes 21)

$45.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-24-318-71-S

Head Assembly, #2 Cylinder
(Superseded to KH-24-318-203-S)

$286.99

$

Usually ships in 3-6 days

0

18

Cub Cadet KH-25-186-01

Arm, Rocker

$

$

Not available

19

Cub Cadet KH-24-599-01

Pivot, Rocker Arm
(Superseded to KH-24-599-02-S)

$2.49

$

In Stock, Qty 8

0

20

Cub Cadet KH-66-086-07-S

Screw, Hex Flng, M6 x 1.0 x 34
(Superseded to KH-M-640034-S)

$2.49

$

In Stock, Qty 18

0

21

Cub Cadet KH-12-086-16

Screw, Hex Flng, M10 x 1.5 x 90
(Superseded to KH-62-086-08-S)

$5.99

$

In Stock, Qty 5

0

22

Cub Cadet KH-24-559-10-S

Kit, Fuel Pump Valve Cover

$168.99

$

In Stock, Qty 13

0

23

Cub Cadet KH-25-294-11-S

Fitting, 90°

$11.99

$

In Stock, only 2 left!

0

25

Cub Cadet KH-24-227-02

Cap Assembly, Oil Fill (Incl. 26)
(Superseded to KH-24-227-02-S)

$7.99

$

In Stock, Qty 6

0

26

Cub Cadet KH-24-153-09

O-Ring
(Superseded to KH-24-153-32-S)

$2.49

$

In Stock, only 4 left!

0

27

Cub Cadet KH-24-402-03

Reed, Breather
(Superseded to KH-24-402-06-S)

$3.49

$

Usually ships in 3-6 days

0

28

Cub Cadet KH-66-018-04-S

Retainer, Breather Reed

$4.99

$

In Stock, Qty 6

0

29

Cub Cadet KH-M-0545010

Screw, Hex Flng, M5 x 0.8 x 10

$

$

Not available

30

Cub Cadet KH-24-050-01

Filter, Breather
(Superseded to KH-24-050-11-S)

$2.49

$

Usually ships in 2-5 days

0

31

Cub Cadet KH-24-033-01

Kit, Breather (Includes 32-34)

$

$

Not available

32

Cub Cadet KH-24-041-51-S

Gasket, Breather
(Superseded to KH-24-041-67-S)

$13.99

$

In Stock, Qty 9

0

33

Cub Cadet KH-24-096-86-S

Cover, Breather
(Superseded to KH-24-033-01)

$

$

Not available

34

Cub Cadet KH-M-0645020

Screw, Hex Flng M6 x 1.0 x 20
(Superseded to KH-25-086-396-S)

$2.49

$

In Stock, only 1 left!

0

35

Cub Cadet KH-25-237-14-S

Clamp, Breather
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, only 2 left!

0

36

Cub Cadet KH-24-326-26

Hose, Breather
(Superseded to KH-24-326-89-S)

$9.99

$

In Stock, Qty 6

0

Cub Cadet KH-24-755-147-S

Kit, Cylinder Head

Note: Includes Ref. Nos. 5-9, 11, 12, 15, 18-20, Not shown

$96.99

$

In Stock, only 3 left!

0
