GT 2542 (14A-2D2G710) - Cub Cadet 42" Garden Tractor (2008 & Before) Air Intake and Filtration Parts Diagram

42" Garden Tractor

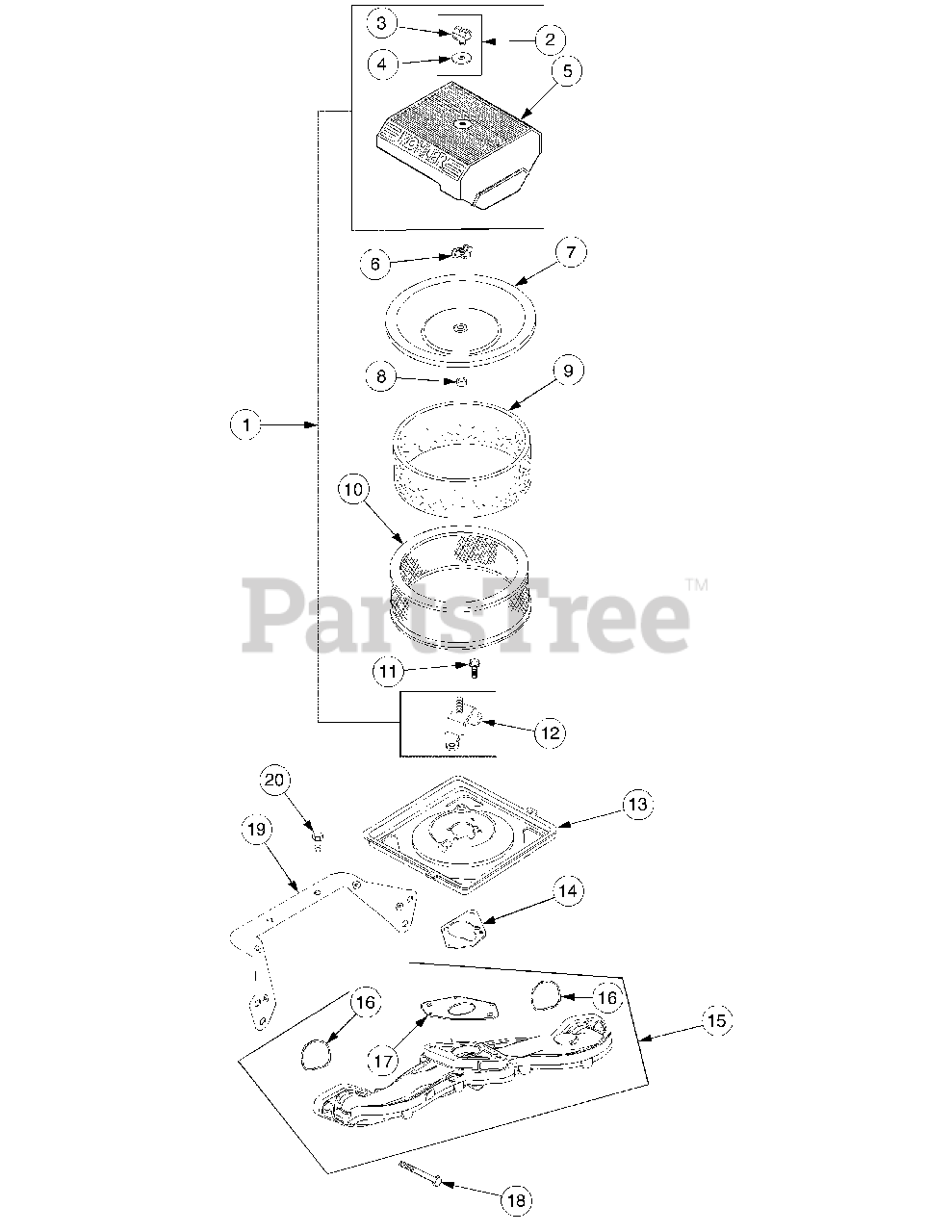

Air Intake and Filtration Parts Diagram

  • Title
1

Cub Cadet KH-24-743-08

Kit, Air Cleaner Cover

Note: (Incl. 2-5, 12)

$

$

Not available

2

Cub Cadet KH-54-755-01

Kit, Knob w/Seal
(Superseded to KH-54-755-01-S)

Note: (Incl. Ref #2, 3)

$9.49

$

In Stock, Qty 9

0

3

$7.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-24-153-20-S

Seal, Air Cleaner Cover Knob

$2.49

$

In Stock, Qty 10

0

5

Cub Cadet KH-24-096-69-S

Cover, Air Cleaner

$47.99

$

Usually ships in 2-5 days

0

$3.99

$

In Stock, only 2 left!

0

7

Cub Cadet KH-24-096-01

Cover, Inner Air Cleaner

$

$

Not available

8

Cub Cadet KH-24-032-03

Seal, Inner Air Cleaner

$4.99

$

In Stock, Qty 7

0

9

Cub Cadet KH-47-883-03-S1

Precleaner, Element
(Superseded to 4788303S1C)

Note: Includes Ref 10

$27.99

$

Usually ships in 3-6 days

0

10

Cub Cadet KH-47-883-03-S1

Element, Air Cleaner
(Superseded to 4788303S1C)

Note: Includes Ref 9

$27.99

$

Usually ships in 3-6 days

0

11

Cub Cadet KH-24-086-53-S

Screw, Hex Flange, M6 x 1.0 x16

$2.49

$

In Stock, Qty 6

0

12

Cub Cadet KH-24-126-21

Bracket, Air Cleaner Base
(Superseded to KH-24-126-206-S)

$10.99

$

In Stock, Qty 6

0

13

Cub Cadet KH-24-094-03

Base, Air Cleaner
(Superseded to KH-24-094-84-S)

Note: CH20S-64742

$18.99

$

In Stock, only 1 left!

0

13

Cub Cadet KH-24-094-39-S

Base, Air Cleaner
(Superseded to KH-24-094-84-S)

Note: CH20S-64748

$18.99

$

In Stock, only 1 left!

0

14

Cub Cadet KH-24-041-06

Gasket, Air Cleaner Base

$2.99

$

In Stock, Qty 19

0

15

Cub Cadet KH-24-164-54-S

Manifold, Intake
(Superseded to KH-24-164-93-S)

Note: (Includes 16, 17)

$219.99

$

Usually ships in 3-6 days

0

16

Cub Cadet KH-24-153-27-S

O-Ring, Intake Manifold

$3.99

$

In Stock, Qty 8

0

17

Cub Cadet KH-24-041-53-S

Gasket, Carburetor

$3.49

$

In Stock, Qty 5

0

18

Cub Cadet KH-M-651040-S

Screw, Hex Flange, M6 x 1.0 x 40

$2.49

$

In Stock, Qty 12

0

19

Cub Cadet KH-24-126-130-S

Bracket, Air Cleaner Base

$10.99

$

In Stock, only 4 left!

0

20

Cub Cadet KH-M-0545010

Screw, Hex Flng, M5 x 0.8 x 10

$

$

Not available
